Zund S3 Z63 Oscillating Knife Blades For Zund Digital Cutter | Cutting Systems | Flatbed Cutter

CHINA BT-2363 Zund Z63 solid carbide vibrating tip insert (5202688) is a pointed vibrating flat insert with a double-edged cutting edge design. It is specifically designed for use on the EOT-250 (electric vibrating tool) heads of Zund S3, G3, and other CNC flat-top cutting machines Enquire now

Description

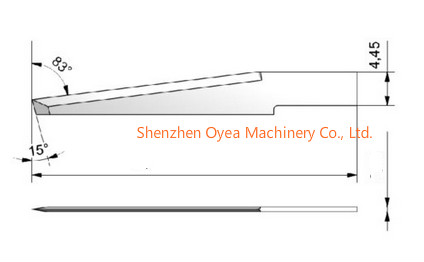

Zund S3 Z63 Carbide Oscillating Knife Blades 83° Cutting Angle for Foam Materials - 5002637 For Zund Digital Cutter | Cutting Systems | Flatbed Cutter

Flat Knife Blades , pulling and oscillating
Width
0,64mm
Overall Length
43,0mm
Cutting Lenght
28,0mm
Cutting Angle
83°
Geometrie
2 edge
Composition:
Tungsten Carbide - HM - Hard Metal.

Recommended materials and processing techniques

The Z63's most distinctive feature is its thick blade (1.5mm) yet sharp, acute-angled tip . This design ensures the blade doesn't shift or break under high-frequency vibrations, while perfectly handling the carving of small-radius, complex, and intricate shapes. It is particularly recommended for the following hard or tough materials:

Gaskets and high-density industrial rubber (Gasket materials / High-density rubber)
Multi-layer kraft paperboard and solid cardboard (Solid Cardboard/Kraft paperboard)
Magnetic foil and high - density plastics
Carpets, thick felt, and heavy leather shoe uppers .

Suitable for machine manufacturer:BT-2363 Zund 5002637 Z63 Mécanuméric 100610630 ITC BOP-63 Carbide Oscillating Knife Blade

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know,please contact us.
