Esko Kongsberg BLD-DR6160 Cemented Carbide Knife Blades For Sale G42445510

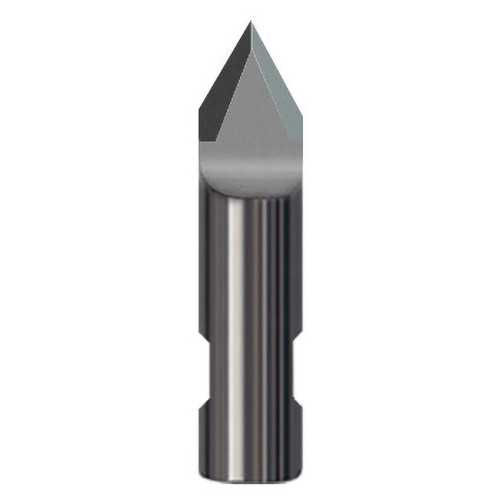

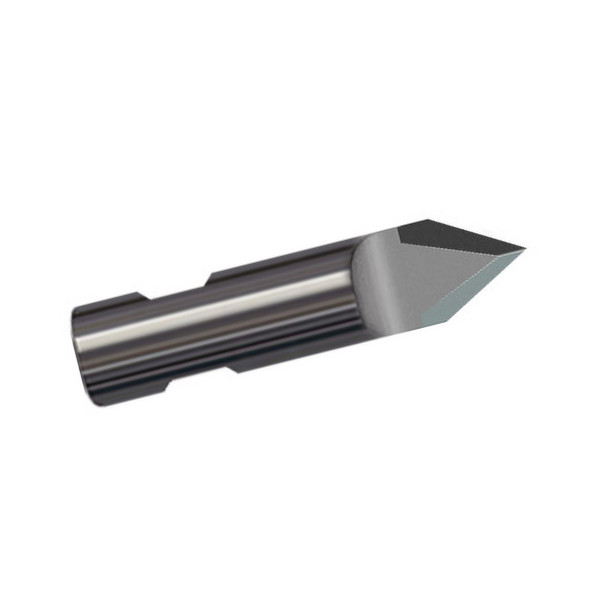

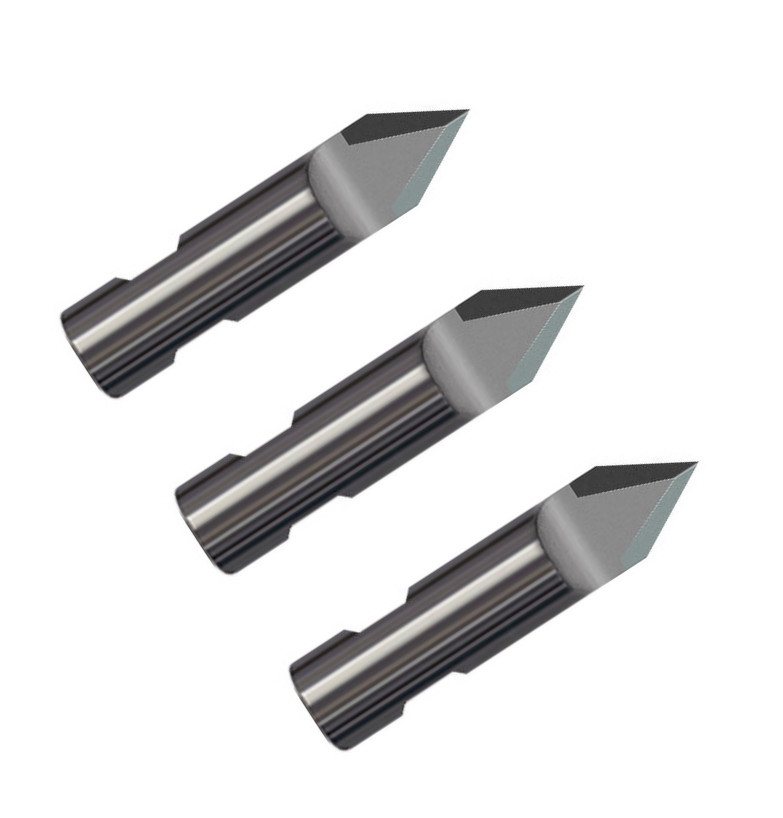

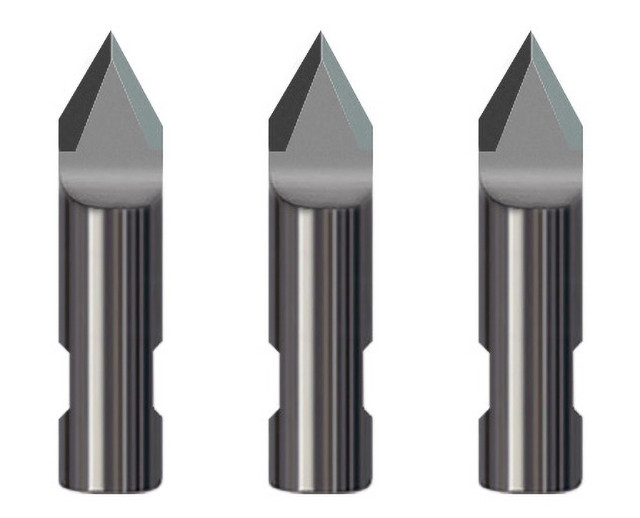

BT-71003 Esko Kongsberg BLD-DR6160 (part number 42445510 or G42445510) is a premium tungsten carbide drag blade engineered for digital cutting tables. It features a distinctive spear-headed shape and a \(2 \times 30^{\circ}\) cutting angle optimized for high-precision, static cutting. This blade is … Enquire now

Description

Esko Kongsberg BLD-DR6160 Cemented Carbide Knife Blade For Sale G42445510

Kongsberg BLD-DR6160 Blade,Kongsberg BLD-DR6160,Esko BLD-DR6160 Blade,Esko BLD-DR6160,Esko Blade,Kongsberg Blade,BLD-DR6160,Esko Kongsberg Knife Blade,Esko Kongsberg Blades,Esko Kongsberg Blade,Esko Blades,Kongsberg Blades

Recommended use

Tungsten carbide blade for thinner flexible or rigid materials such as solid carton, vinyl, plastics. 2x30* cutting angle. Spear-headed shape

CUTTER BRAND
Esko Kongsberg
ANGLE
60°

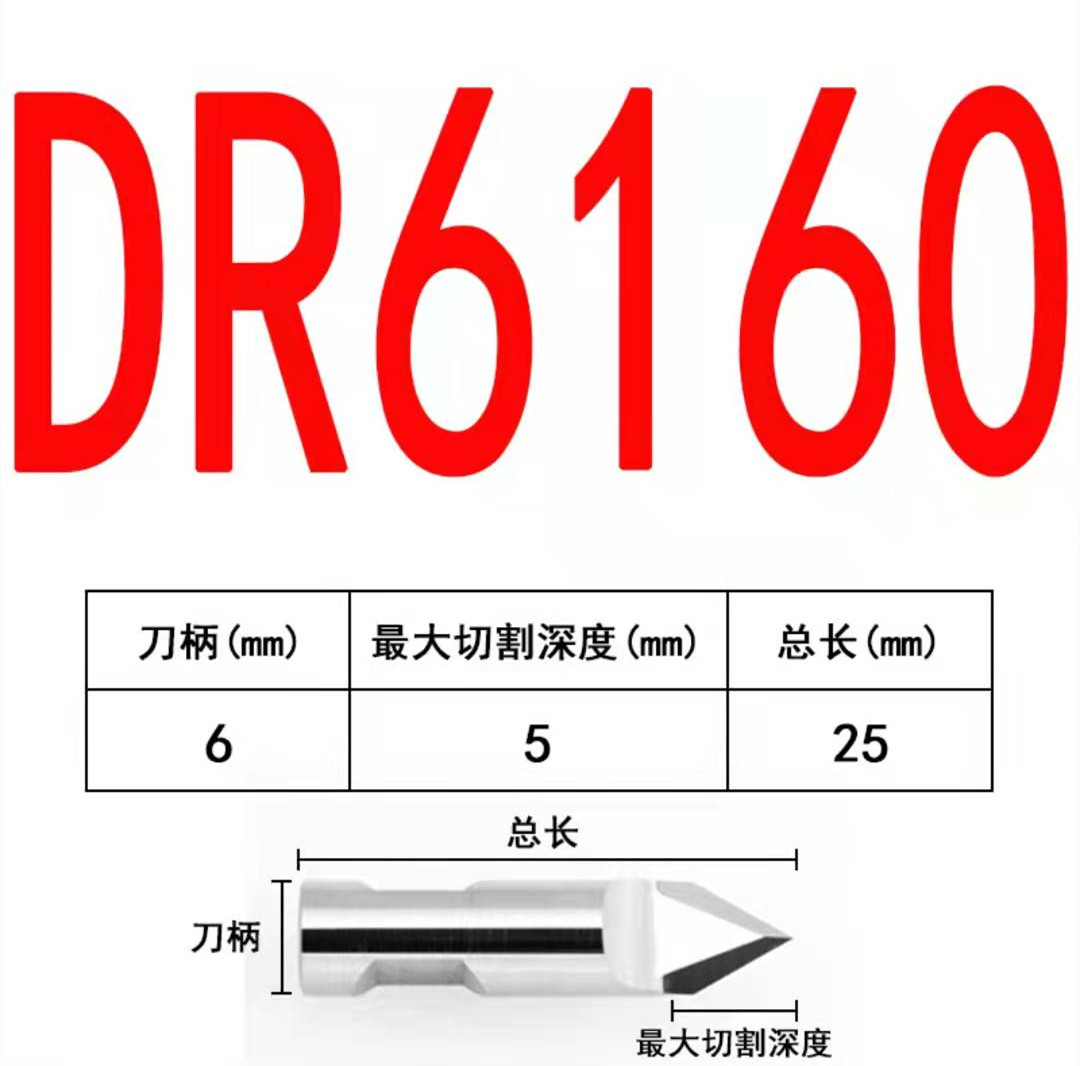

KNIFE HEIGHT
25,00 mm
MAX. CUTTING DEPTH
5,00 mm
KNIFE TYPE
Drag blade, Weldon
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
round Ø 6 mm

Equivalent to: ESKO BLD-DR6160 G42445510 , AXYZ B1051L-5

Target Materials

The blade is highly efficient at processing a variety of industrial and packaging materials:

Solid board and folding carton
Vinyl and flexible plastic sheets
Lenticular display panels
Magnetic foil

Compatible Tools and Adapters

To run the BLD-DR6160 blade on an Kongsberg cutting table, it must be paired with specific tool heads and matching adapters:

Hi-Force Knife tool (on C, XP, and XE tables) – Requires adapter 34068759.
VariCut knife tool (on XE tables) – Requires adapter 34061135.
Static knife tool (on XE tables) – Requires adapter 34061135.
Psaligraphy knife tool (on C, XP, XL, XN, X, V, and XE tables) – No adapter required.
