Description

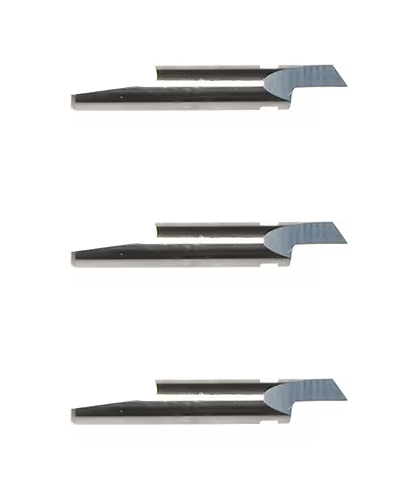

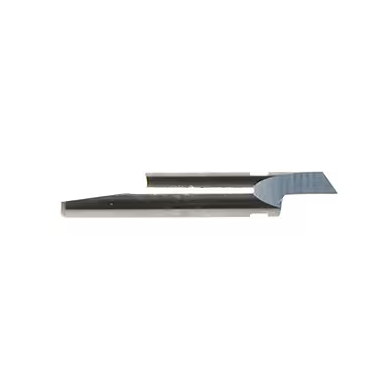

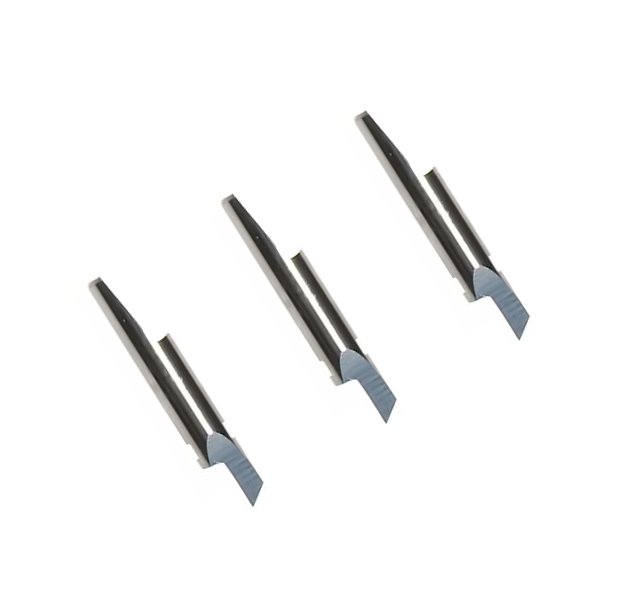

Esko Kongsberg BLD-KC102 Tungsten Carbide Drag Knife Blade For Kongsberg Cutter G42438507

The Esko Kongsberg BLD-KC102 is a tungsten carbide drag knife blade specifically designed for high-precision kiss-cutting applications on Kongsberg digital cutting tables. It is characterized by its sharper-edged design compared to standard blades, making it ideal for processing tougher adhesive materials.

Recommended use

Sharper-edged blade for thicker, tougher adhesive foils, such as reflex foil

CUTTER BRAND
Esko Kongsberg

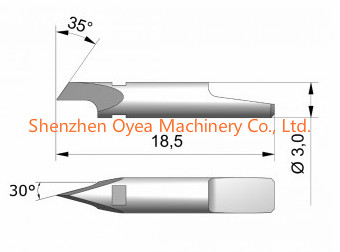

ANGLE
35°
KNIFE HEIGHT
18,50 mm
KNIFE WIDTH
3,00 mm
THICKNESS
3,00 mm
MAX. CUTTING DEPTH
1,00 mm
KNIFE TYPE
Drag blade, Kiss Cut
MATERIALS
Folding Carton, Magnetic foil, Masking film, Polycarbonate
REPLACEMENT
Yes

Recommended Applications
The BLD-KC102 is primarily used for kiss-cutting through the face stock of a material without piercing the liner.
Kongsberg Precision Cutting Systems
Kongsberg Precision Cutting Systems
Best for: Thicker or tougher adhesive-backed foils, such as reflective vinyl and magnetic foil.
Other Materials: Standard self-adhesive vinyls, masking films, cardstock, pattern materials, and thin polycarbonate.
Comparison: It is sharper than the BLD-KC101 but typically exerts less drag force and may have a slightly shorter life expectancy due to the thinner edge profile.

Tool & Machine Compatibility
This blade requires specific tool holders depending on your Kongsberg machine series:
C, XP, XE series: Uses the PressCut knife tool.
XL, XN, X, V series: Uses the KissCut knife tool.

Replacement for:Zund 3910110 Z2,Esko Kongsberg G42438507 42438507 BLD-KC102 i102 KC12,iEcho E2,Blackman & White Bw Kiss Cut 2
