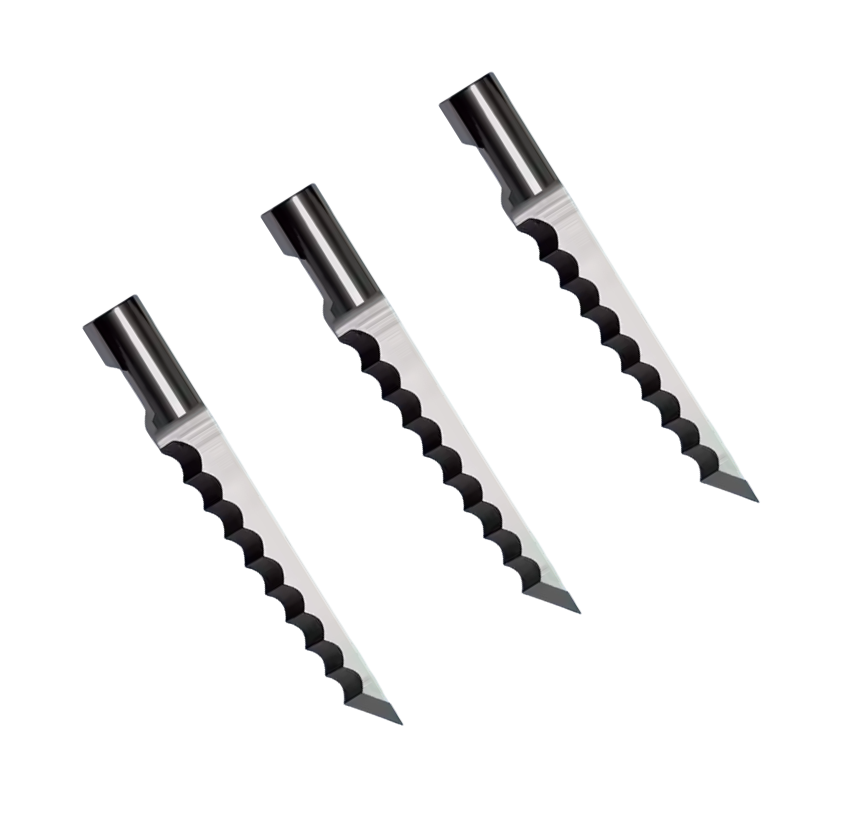

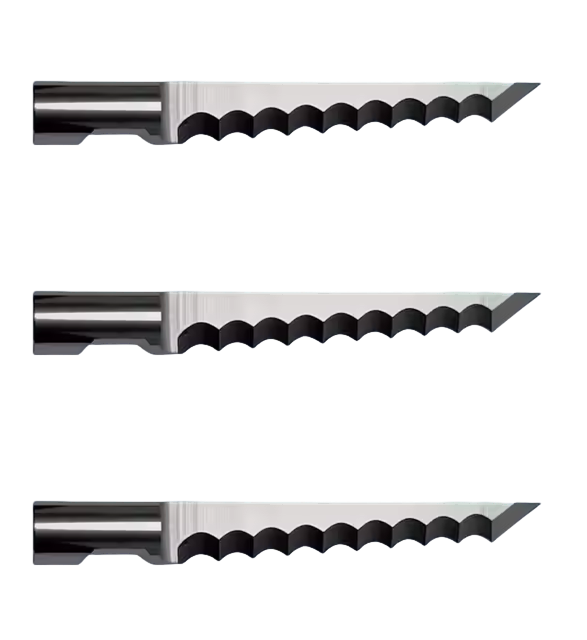

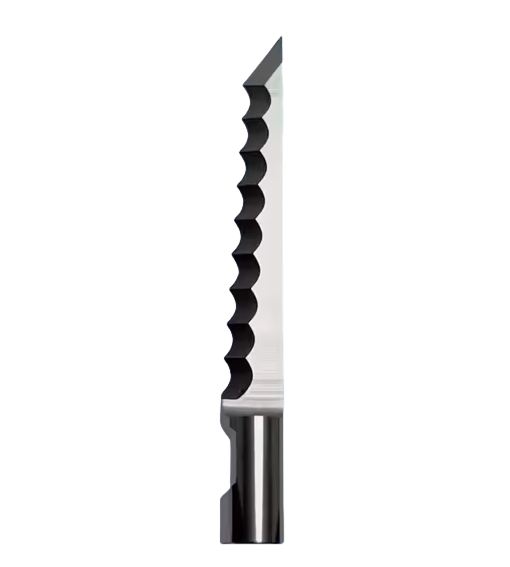

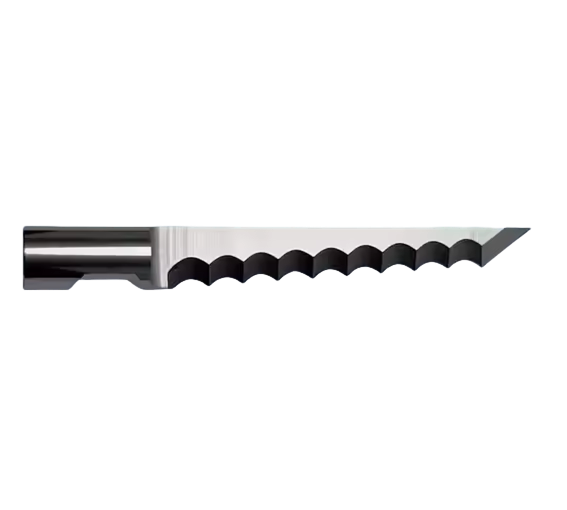

Esko Kongsberg BLD-SR6353 Oscillating Serrated Knife Blade For Kongsberg Cutter G42456947

Esko Kongsberg BLD-SR6353(Official order number: G42456947) isHigh-performance round shank vibrating blades designed specifically for Kongsberg CNC die-cutting machines/CNC cutting machines
Enquire now

Description

Esko Kongsberg BLD-SR6353 Oscillating Serrated Knife Blade For Kongsberg Cutter G42456947

CUTTER BRAND
Esko Kongsberg
ANGLE
3°
KNIFE HEIGHT
52,00 mm
THICKNESS
1,50 mm
MAX. CUTTING DEPTH
35,00 mm
MATERIALS
Honeycomb, Poliethylene foam
KNIFE TYPE
Oscillating blade, Weldon
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
round Ø 6 mm

Advantages of the wavy toothed blade design

Compared to ordinary flat-blade blades, the wavy-toothed cutting edge of the BLD-SR6353 significantly reduces lateral friction between the blade and the material during reciprocating vibration cutting . This design prevents the material from melting or sticking to the blade due to frictional heat, thus keeping the blade tip cool and extending its service life.

Recommended processing materials

According to Shenzhen Oyea store specifications, this blade is best suited for use with a felt underlay for cutting medium to high thickness sandwich and foam materials.

Expanded polystyrene (EPS/foam) : Best suited for high and low density foam materials with a thickness of <30mm.
Honeycomb/corrugated core composite board : suitable for sandwich paperboard with a thickness of 20mm to 30mm.
Medium-density protective foam : suitable for cushioning packaging sponges, EVA foam, etc. with a thickness of < 20mm.

Compatible head and tool modules

This blade needs to be mounted on a specific Kongsberg tool module and used in conjunction with an adapter:

FoamHead foam material cutter (for XL / XN / X series, requires 34057125 adapter).
Foam Unit Foam Cutting Head Module (for new C-series/XP-series platforms, requires 34057125 adapter).

Procurement Tips

In addition to ordering original parts, there are also high-quality third-party compatible alternatives available on the market (such as Shenzhen Oyea or alternatives from domestic manufacturers). When purchasing, please pay special attention to confirming the grinding precision of the wavy cutting edge to avoid fraying at the cut edge due to non-standard tooth shape
