Gerber Technology Single-Ply Tl-052 Tangential Knife Blades For Sale

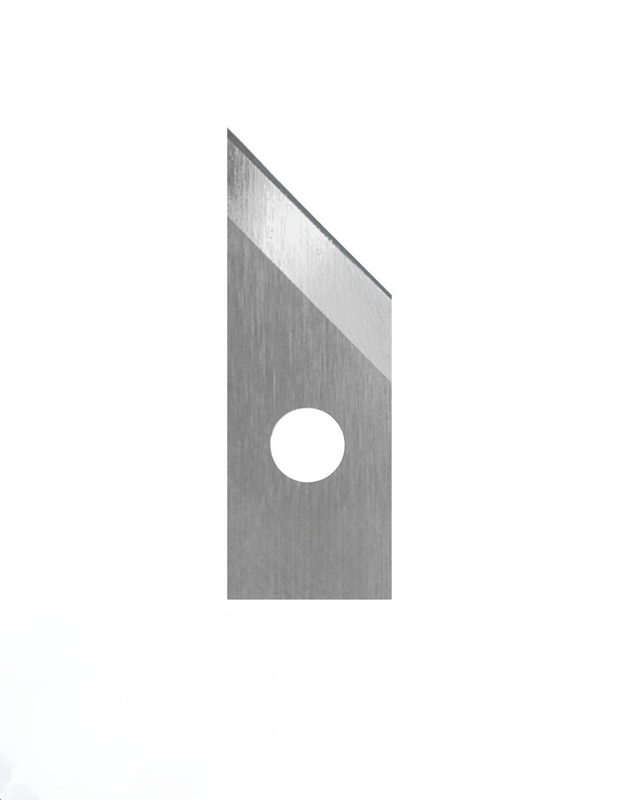

The Gerber TL-052 is a 45-degree tangential knife blade made from solid tungsten carbide. It is a staple in high-precision automated cutting, particularly for single-ply and low-ply materials Enquire now

Description

Gerber Technology Single-Ply Tl-052 Tungsten Steel Tangential Knife Blade For Sale

Equivalent
TL-052
Thickness / Type
1.00 mm
Max. cutting depth
6 mm
Composition
Tungsten Carbide - HM - Hard Metal
Tool
Tangential knife tool
Recommended materials
Fabric
Leather hide
Paper
Compatible Brand
Gerber
Lectra
Knife width
6.5 mm

Machine Compatibility
This blade is designed for use in Gerber Technology’s tangential tool heads, common on the following systems:

Gerber DCS Series: DCS 1500, DCS 2500, DCS 3500 (Static cutting tables)
Gerber Taurus: Specifically used in leather cutting applications.
Gerber Z1: Modern automated cutting platforms.
Gerber GTxL: When equipped with the Single Ply Cutter (SPC) option.

Recommended Materials

The TL-052 is highly versatile and excels at cutting:

Textiles: Woven and non-woven fabrics, technical textiles.
Leathers: Automotive and furniture upholstery.
Synthetics: Vinyl, thin plastics, and masking films.
Paper/Cardstock: For pattern making and industrial templates.

Unlike "drag" knives, the tangential action of the TL-052 means the machine rotationally steers the blade. This allows for incredibly sharp corners and complex geometries without the material distortion often caused by the "offset" of a drag knife.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
