Esko Kongsberg BLD-TZ192 Super-trapezoid V-cut Blades For Kongsberg Cutting Systems

Esko Kongsberg BLD-TZ192 (Part Number: G42424374) is a super-trapezoid, deep-edged knife blade engineered for heavy-duty static and V-notch cutting on Kongsberg digital finishing systems. Enquire now

Description

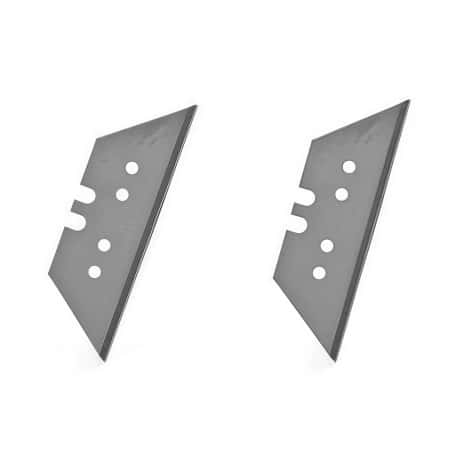

Esko Kongsberg BLD-TZ192 Super-trapezoid V-cut Knife Blade For Kongsberg Cutting Systems

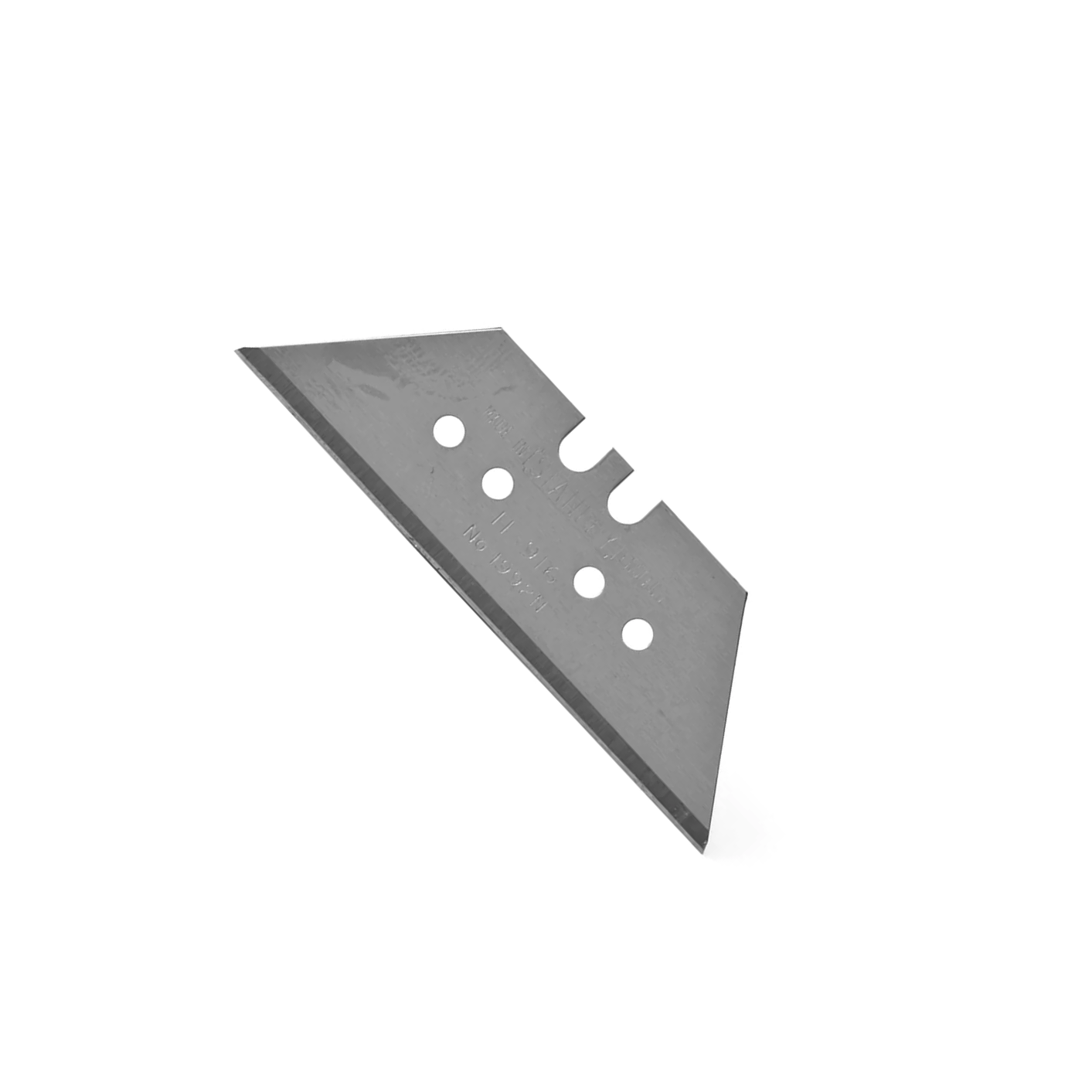

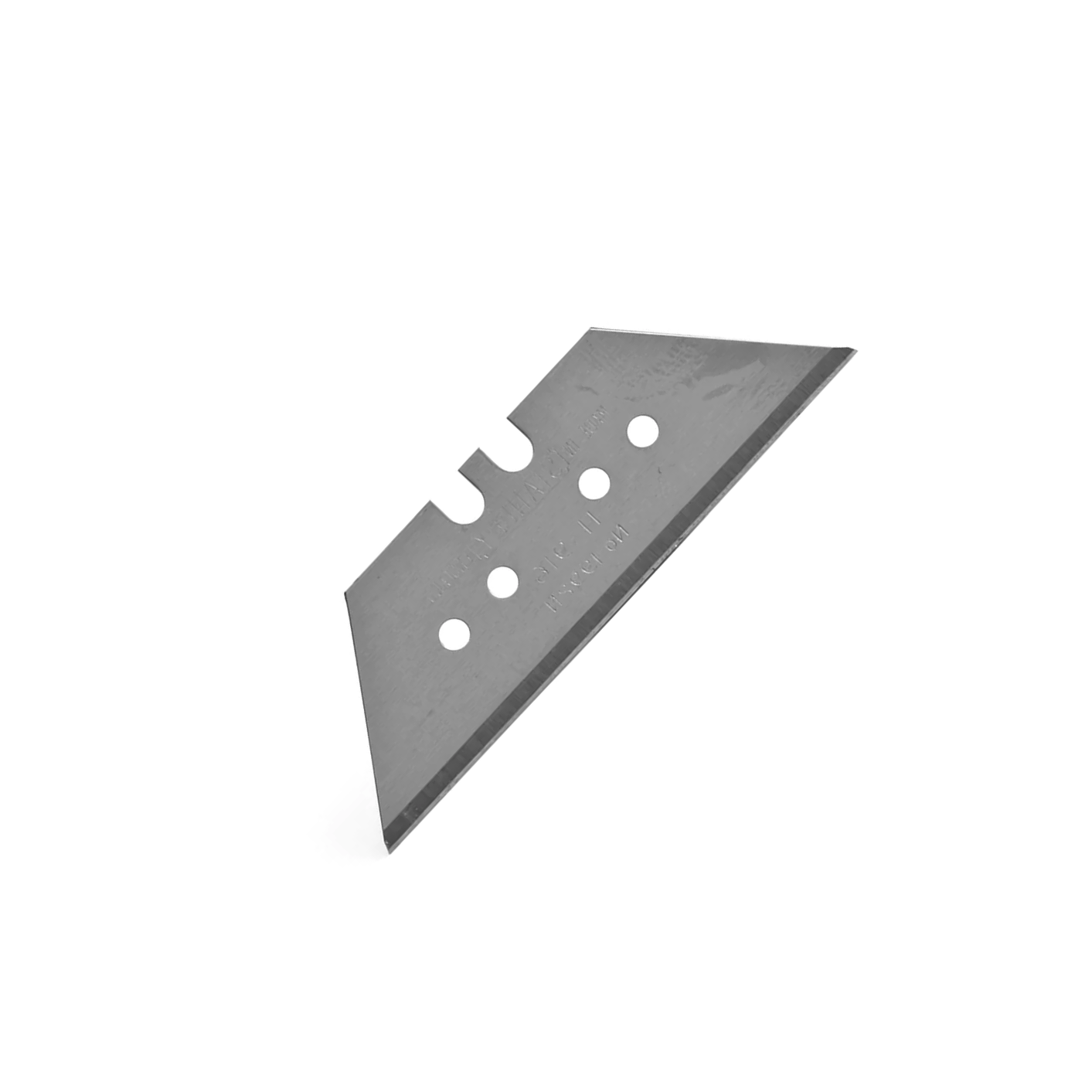

Esko Kongsberg BLD-TZ192 (part number: G42424374) super-trapezoid, deep-blade V-shaped cutter blade designed specifically for the Kongsberg digital cutting system.It is often used in conjunction with V-notch tools and HD (heavy-duty) tools, primarily for high-precision V-grooving and cutting of thick or sandwich materials

Recommended use

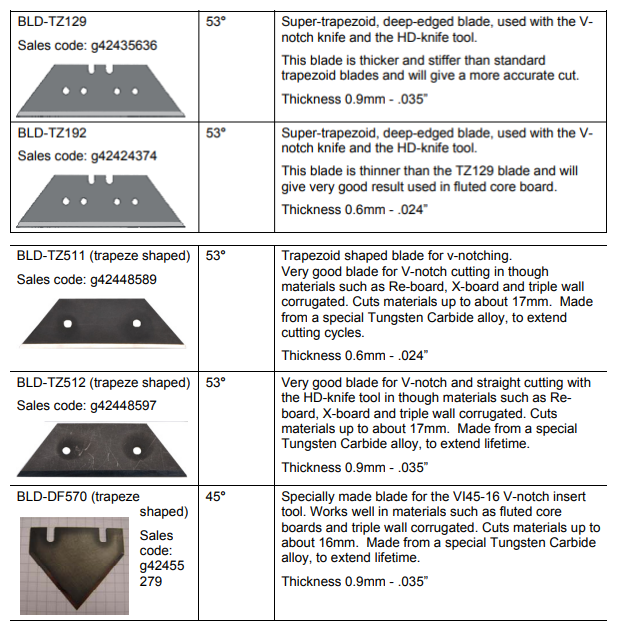

Super-trapezoid, deep-edged blade, used with the V-notch knife and the HD-knife tool. Thinner than the TZ129 blade and will give very good result used in fluted core board. Thickness 0.6mm - .024”.

Specifications

Maximum cutting thickness

17mm - 43/64"

Dimensions

2 x 0.1 x 6 cm

Weight

0.005 kg

Recommended materials:

fluted core board (Re-board, X-board, D-board, etc.), Honeycomb, triple wall corrugated board, tough paper-based materials

Special feature:

Thinner than 60.61329
