Wild Z11 Cnc Flat Pulling Blades- Production, Production, Production, Distribution

Wild Z11 CNC flat pulling blades are 60° carbide drag (flat‑stock) knife blades used on CNC flatbed cutters for precise contour cutting of films, vinyls, fabrics, and thin rigid sheets. Enquire now

Description

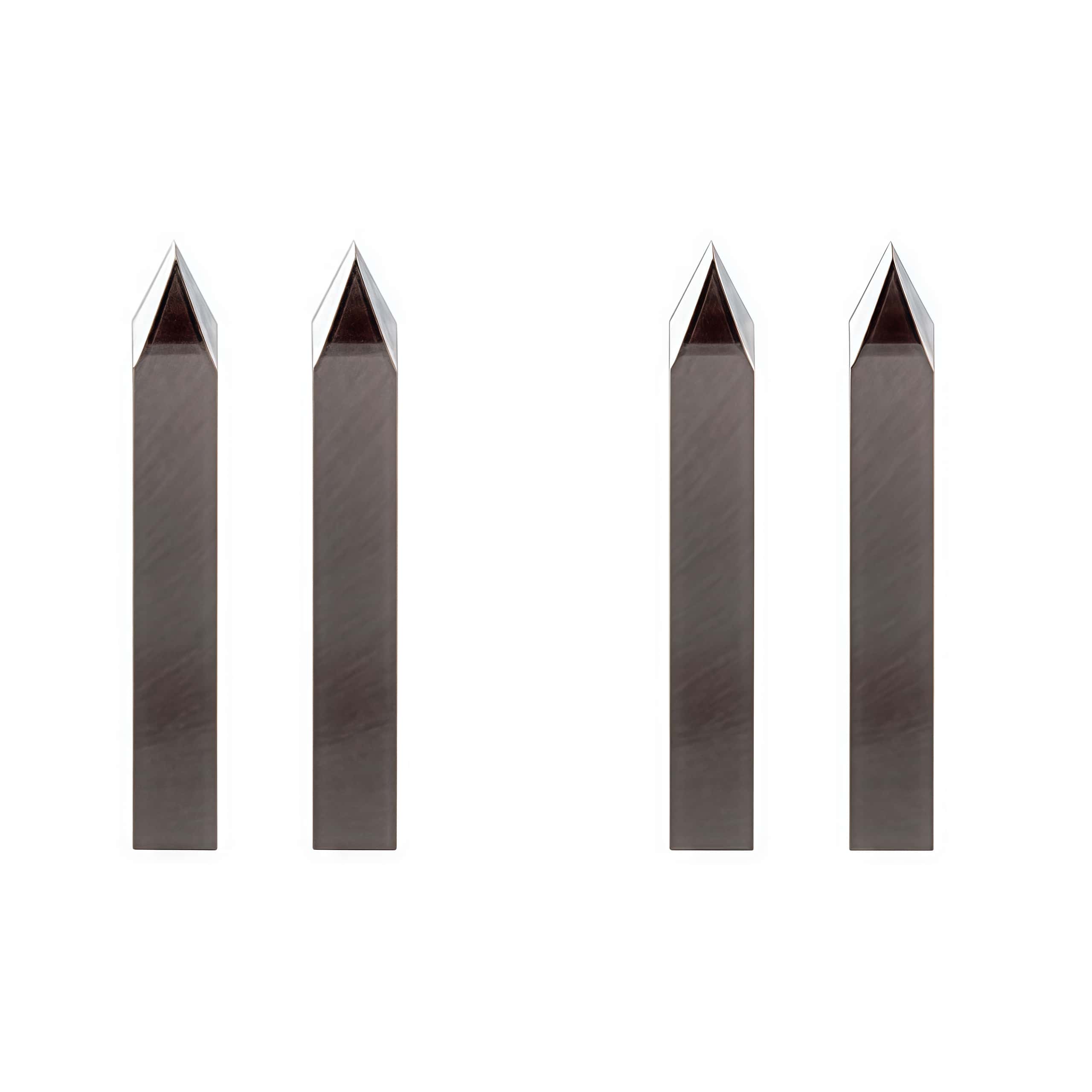

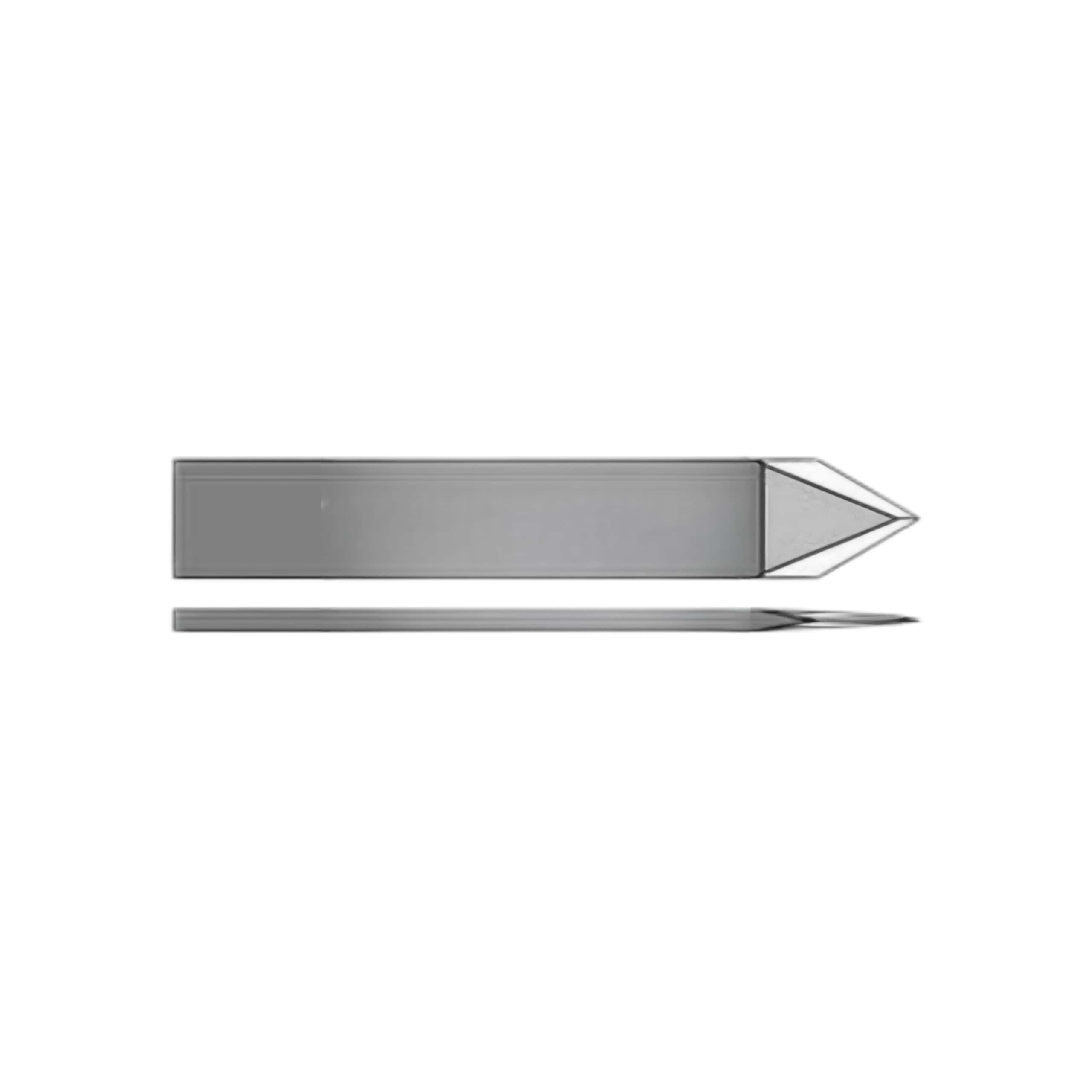

Wild Z11 Cnc Flat Pulling Blades

Wild Z11 CNC Flat Pulling/Drag Blades is a double-edge drag blade widely used in digital flatbed cutting systems . It originated from the traditional standard of Wild Leitz (Swiss, later integrated by digital cutting giants such as Zund and Esko), and is currently used as a general-purpose high-frequency consumable in packaging, advertising printing, and industrial gasket processing.

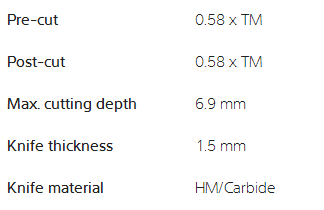

Core technical specifications and geometric parameters

Blade type : Flat-stock drag blade, which follows the material path by relying on physical tension during the cutting process.
Cutting edge angle : 60° Double edge, symmetrical design allows for bidirectional or extended lifespan use.
Blade height/length : 50 mm.
Blade width (shank width) : 8.0 mm.
Handle thickness : 1.5 mm Flat (flat slot fixation).
Maximum cutting depth : 6.9 mm .
Material : Fine Grain Tungsten Carbide , which is extremely wear-resistant.

Cross-brand generic model comparison

Z11 (or K11) is one of the most well-known standardized cutting blades in the digital die-cutting field. Its corresponding part number is as follows for different brands of CNC machines or cutting heads:

Zund : Zund Z11 / Official part number 3910309 (Most commonly used with UCT general-purpose tools or SCT indentation tools).
Esko Kongsberg : Esko BLD-DF113 or BLD-DF213 (G42441204).
Gerber/MCT : Gerber MCT DE13 (895013).
Lectra : Lectra 301439-14.

Applicable processing materials

Due to its 60° acute angle and thinner cut-in section, the Z11 is suitable for precision through cuts and kiss cuts (such as self-adhesive car stickers):

Advertising signage : reflective film, vehicle body stickers, magnetic stickers, lightbox fabric, PVC flexible board.
Packaging and printing : cardboard, cardboard, composite carton board, folding cartons.
Industrial manufacturing : gaskets, canvas, polyester fabrics, thin rigid plastics, polycarbonate sheets (PC).

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
