Wild Z22 Cnc Oscillating Flat Blades Compatible With Iecho E22 Esko Kongsberg Bld-Sf422

Wild Z22 is a compatible oscillating flat blade for Esko Kongsberg BLD-SF422 / G42458265, and it is also cross-listed for iEcho E22 and Zund Z22 / 3910315. The blade is typically described as a tungsten carbide, flat pointed knife with a 0.63 mm thickness
Enquire now

Description

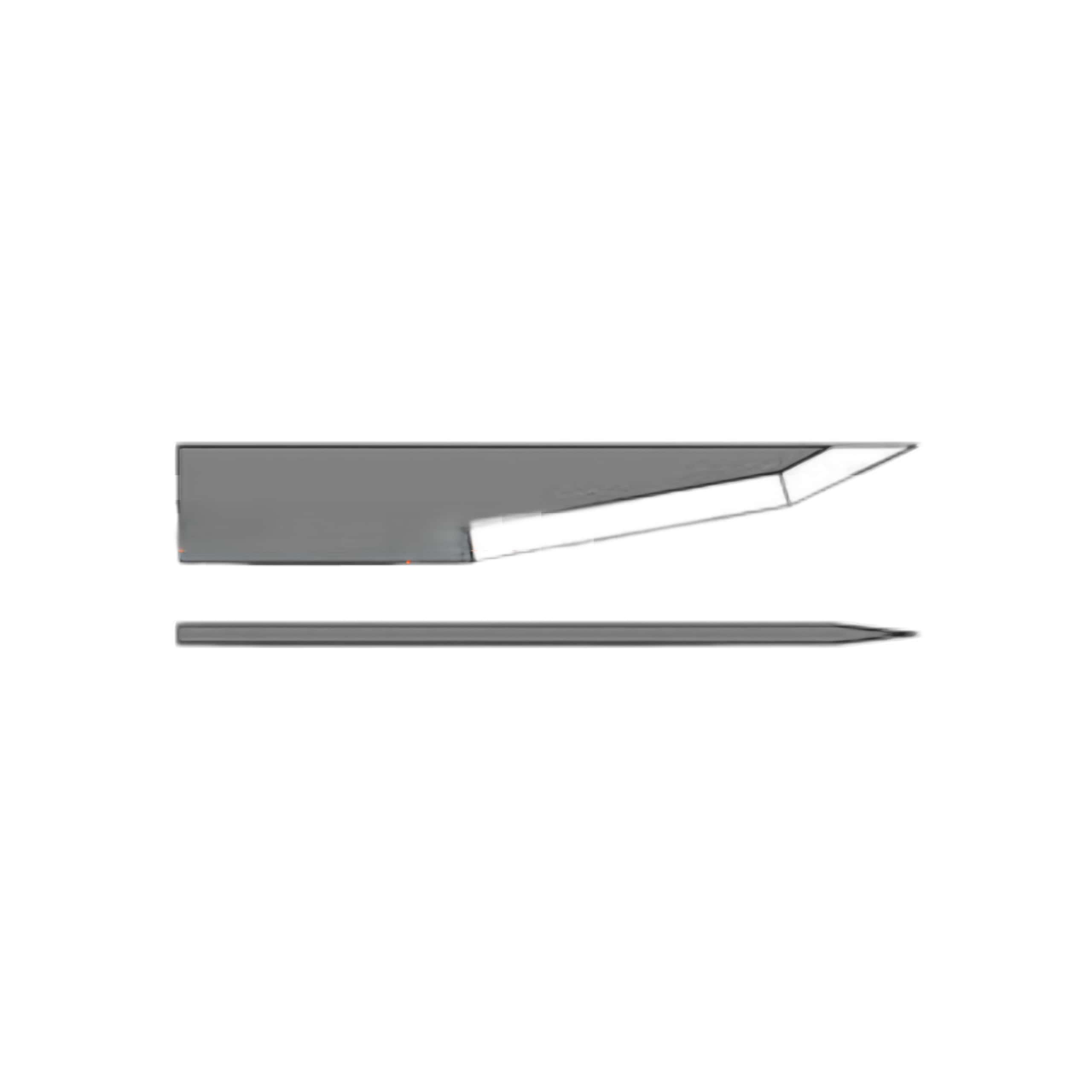

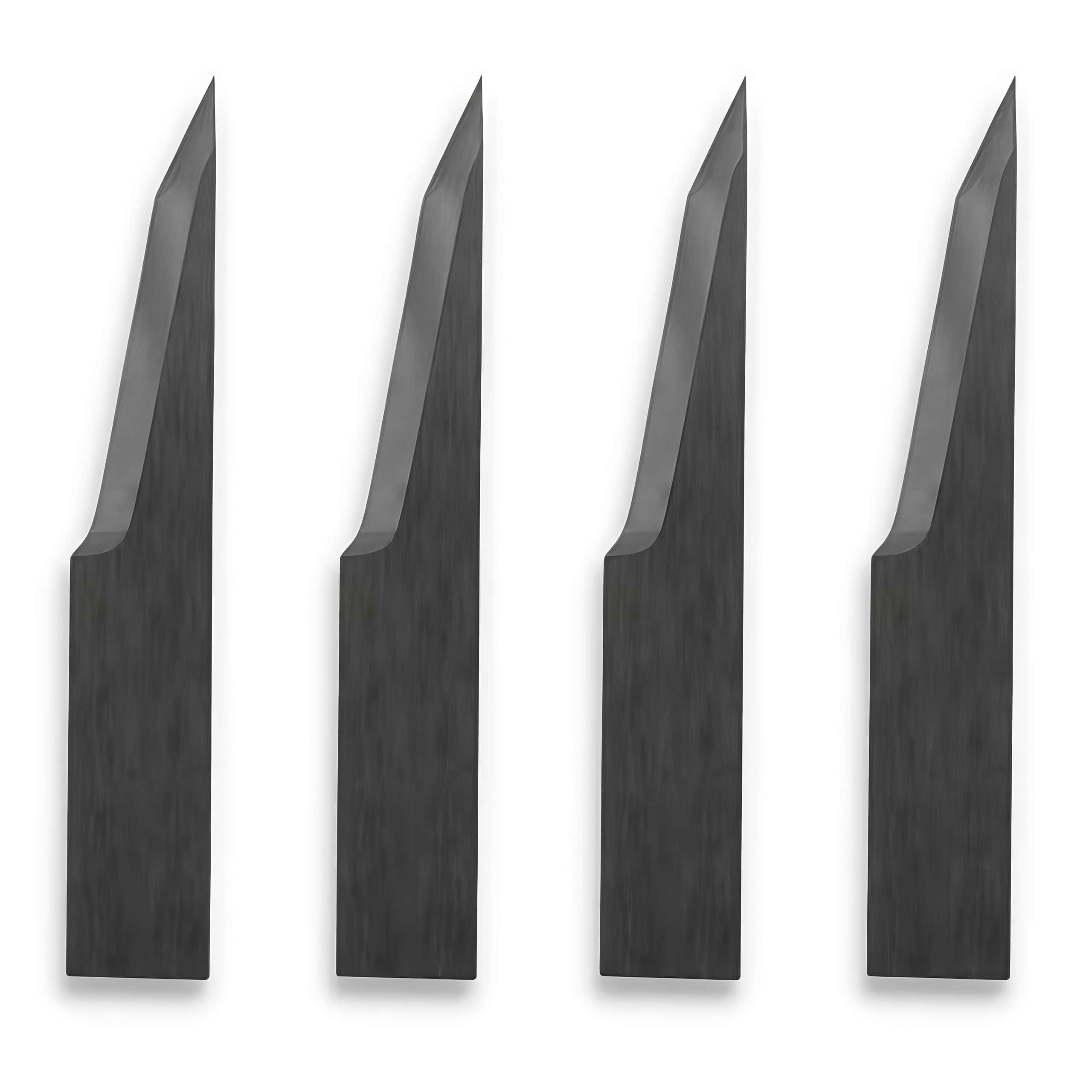

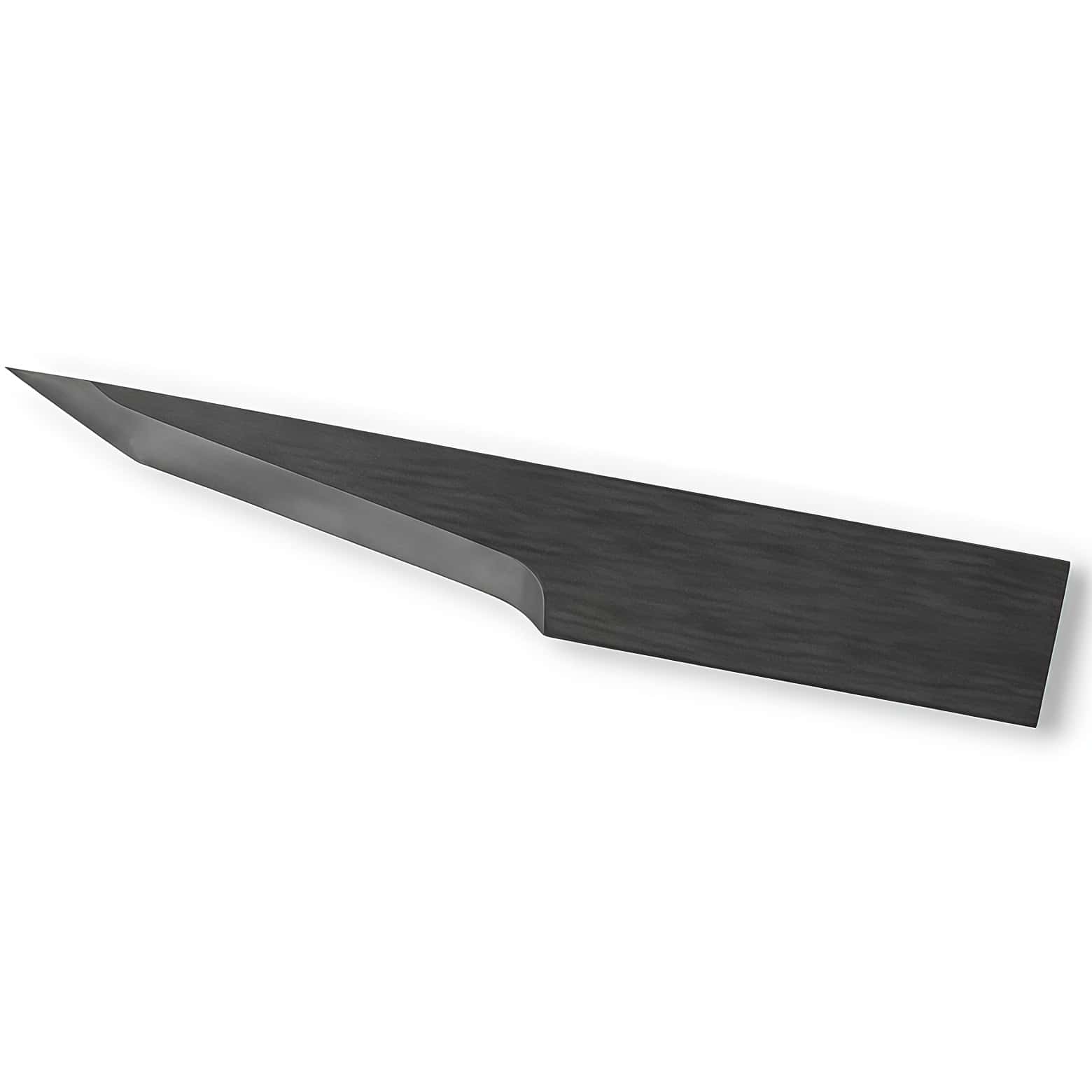

Wild z22 flat blade oscillating

Wild Z22 oscillating flat blades are premium tungsten carbide cutting blades designed for digital flatbed cutters. They are exact cross-platform equivalents to the iEcho E22, Esko Kongsberg BLD-SF422 (also referenced as i-422 / G42458265), and Zund Z22 (3910315)

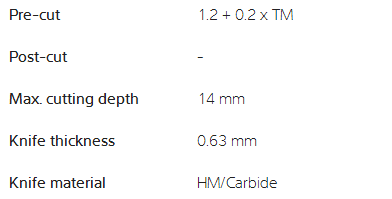

Blade Specifications

Max Cutting Depth: ~14 mm
Shank Type: Flat
Shank Size: 4 mm
Blade Thickness: 0.63 mm
Overall Length: 25 mm
Material: Tungsten steel / Tungsten Carbide
Edge Style: Single-edge, pointed/flat

Ideal Material Applications

These blades are highly durable and optimized for intricate detailing with minimal overcut in materials like:

Corrugated Board & Plastic
Foam Board (including PE and PUR foam)
Folding Carton
Magnetic Foil
Rubber
Felt & Polyester Fabric

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
