Atom 01030728 Flashcut 15°-15° HV1600 Oscillating Knife Blades For Atom Flashcut Flex

Description

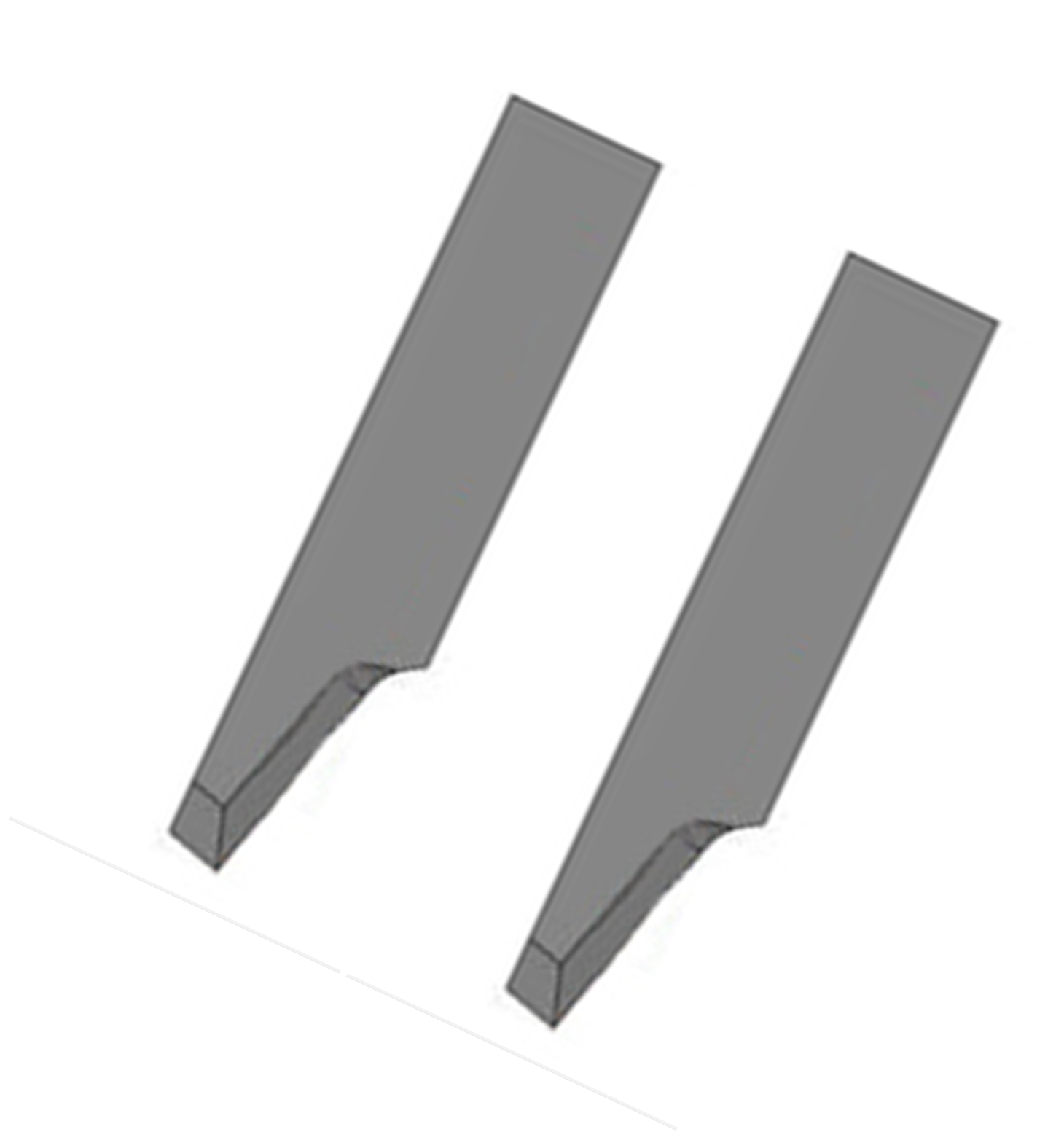

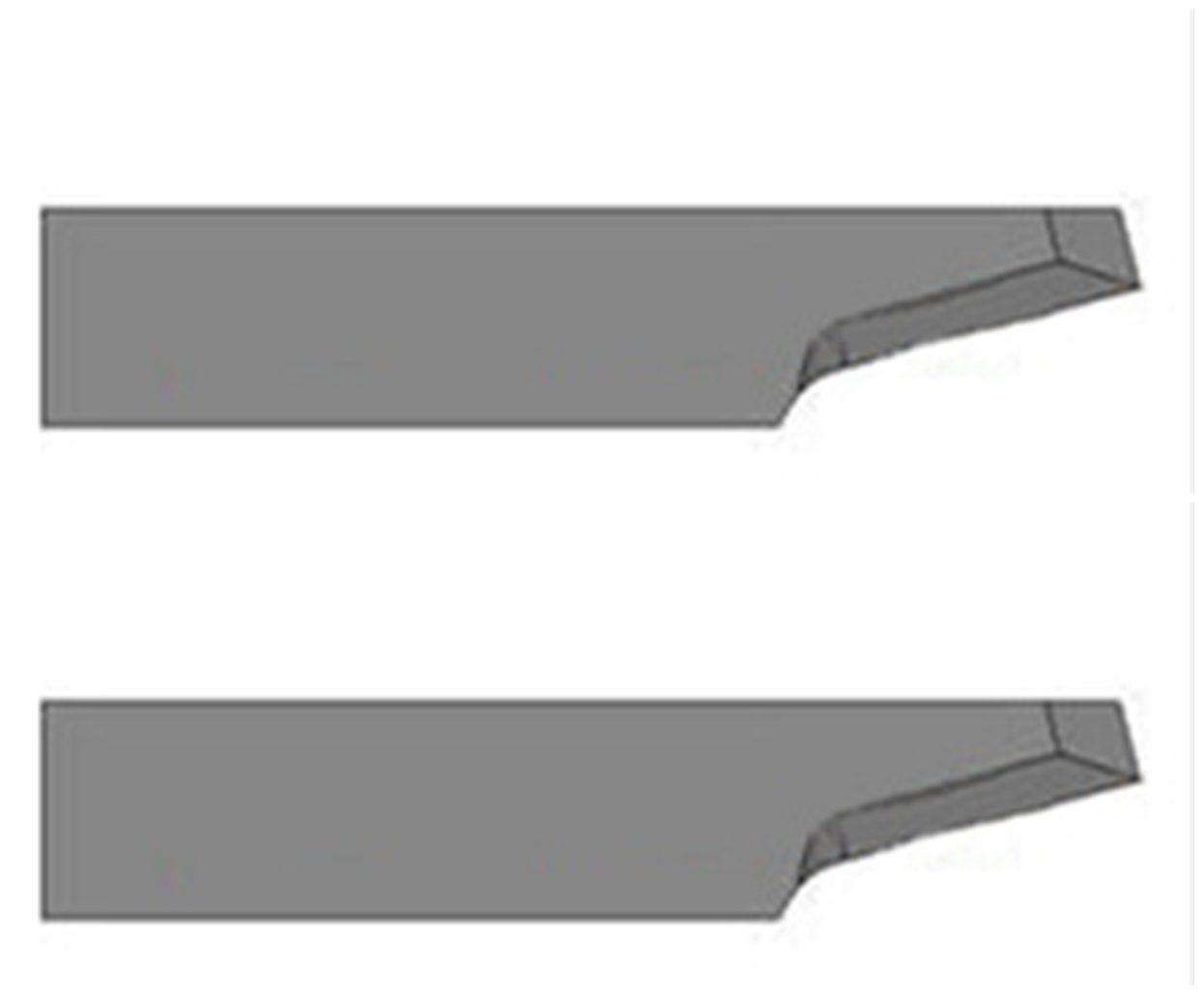

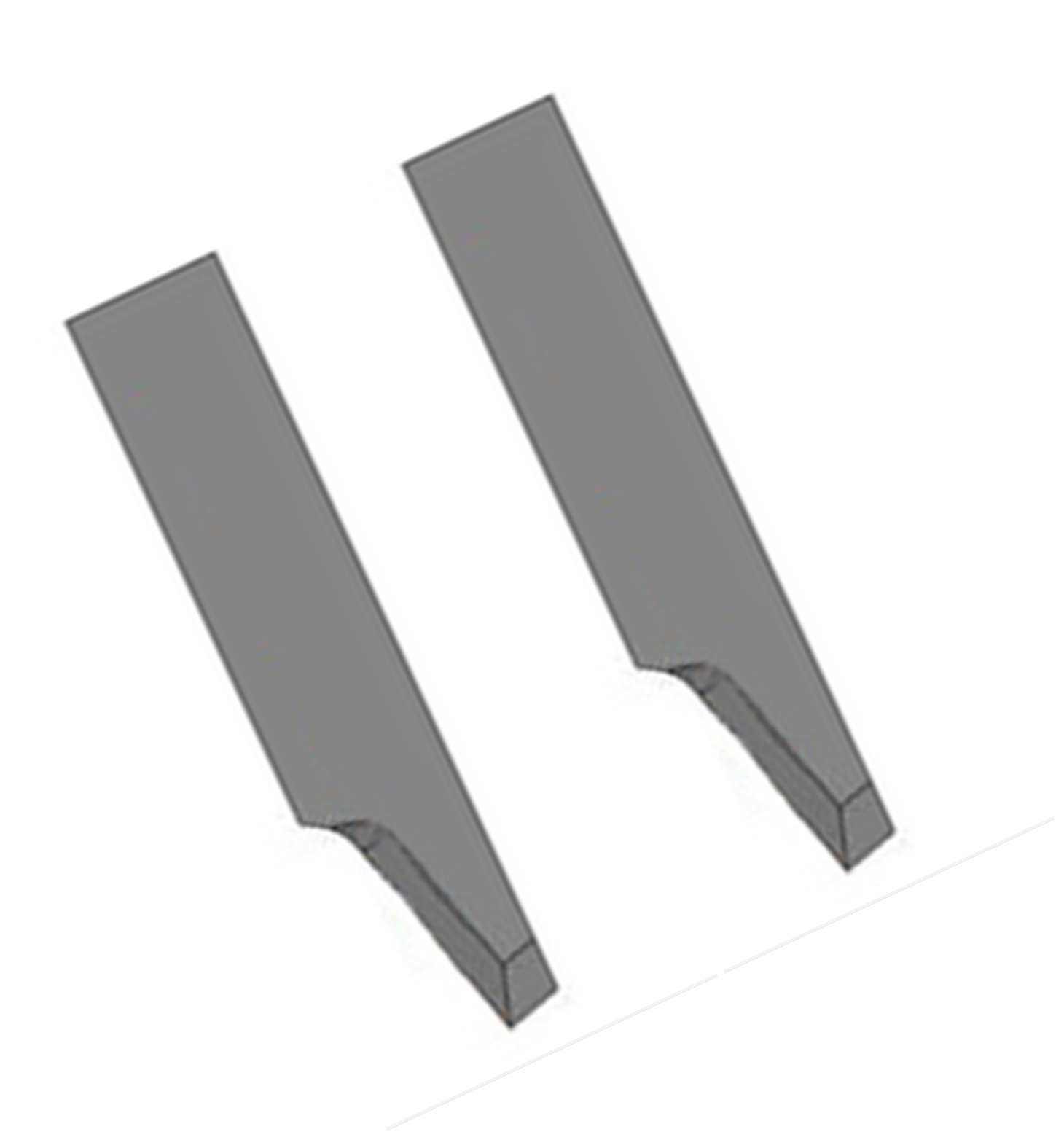

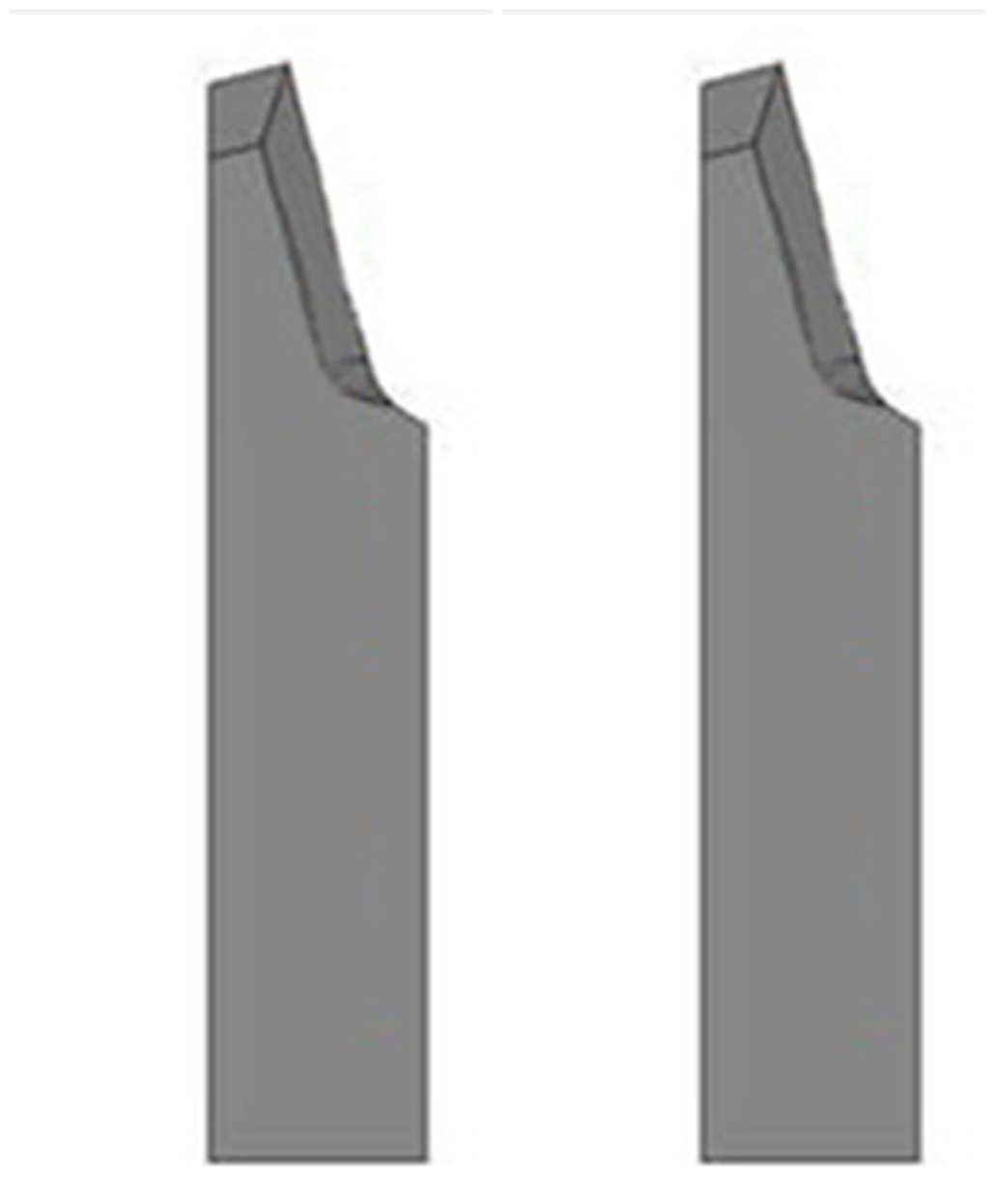

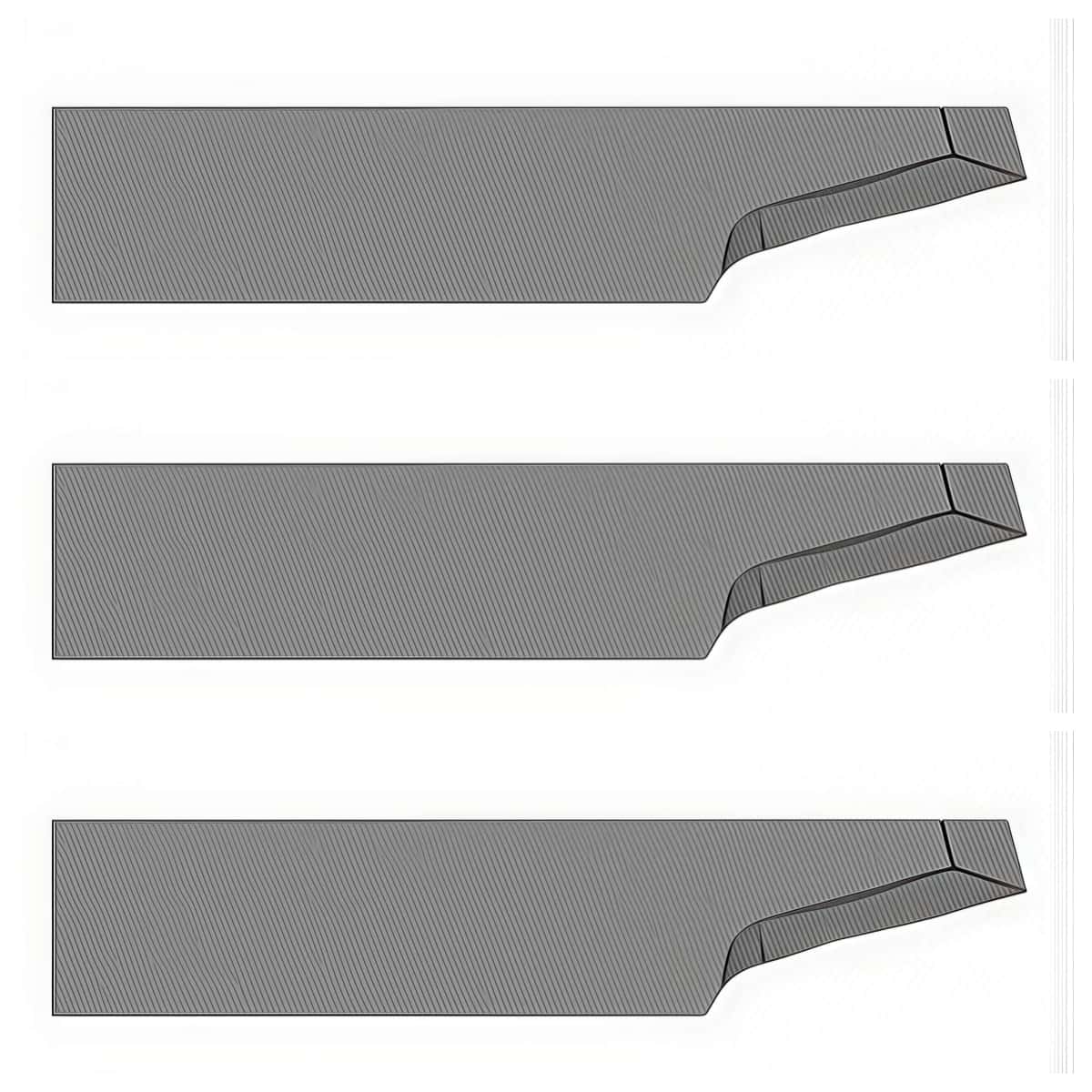

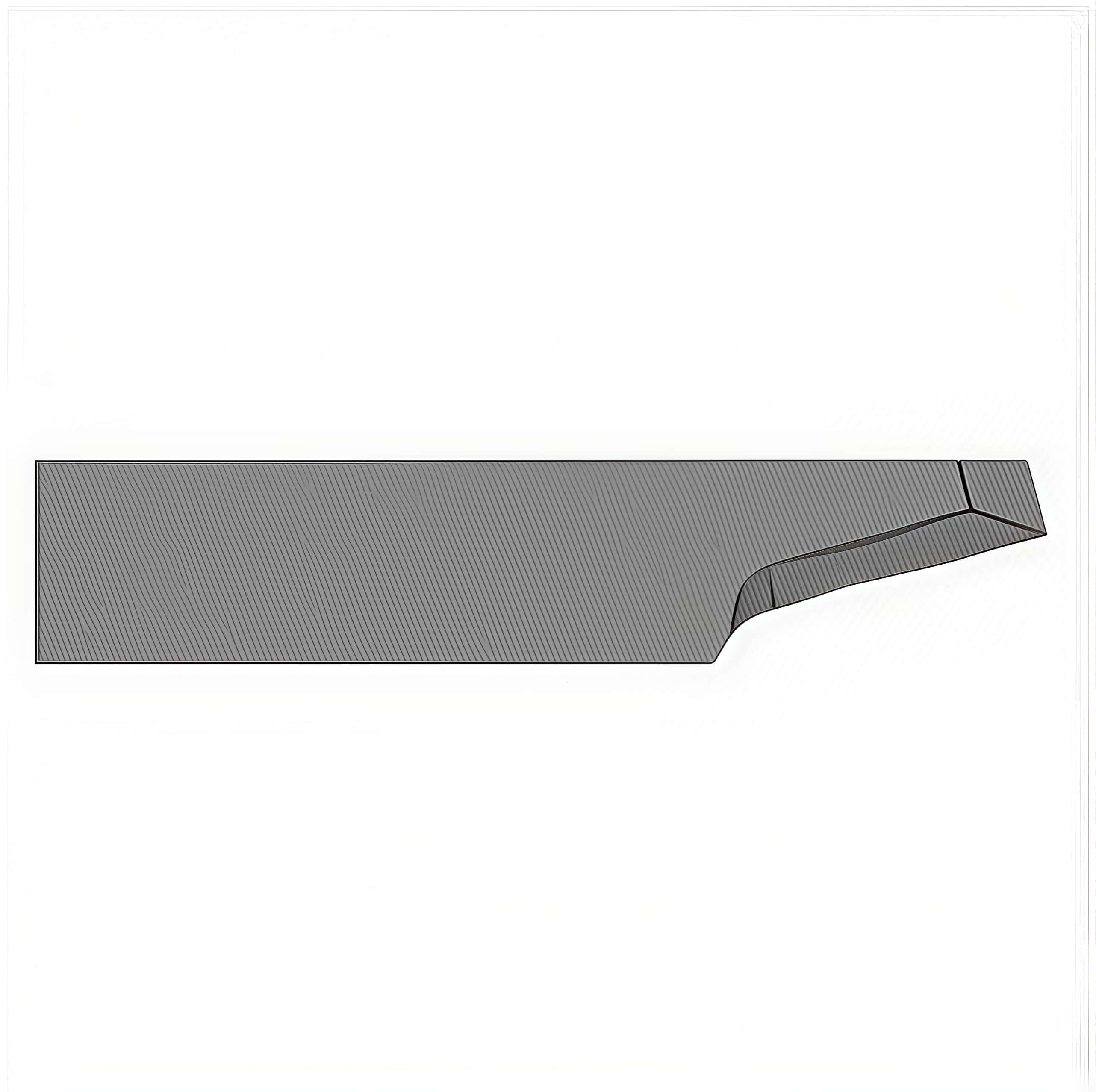

Atom 01030728 Flashcut 15°-15° HV1600 Oscillating Knife Blades For Atom Flashcut Flex

Atom 01030728 is specifically designed for the Atom Flashcut Flex series (including Flex Pro, Flex S, and Flex B series).An industrial-grade carbide (tungsten carbide) vibrating blade designed for standard digital cutting systems.Although some general classification labels categorize it as a 15°-15° double-edged type, the core manufacturing characteristics of this blade are more inclined towards a precision asymmetrical cutting edge design of 11°-15° , which was developed specifically to balance enhanced cutting speed with a small radii possible.

Core Technical Specifications

Cutting edge angle : It is mainly characterized by a precise cutting edge angle of 11° - 15° . This angle has been geometrically optimized to significantly reduce the frictional resistance from the sides of the material during high-speed and frequent turning.
Maximum cutting depth : Maximum cuttable thickness is 6.00 mm .
Minimum turning radius : Excellent turning accuracy, easily overcoming precision arcs or inner corners with a minimum radius of only 2.5 mm when processing complex layout graphics .
Tool head adapter : Belongs to the high-strength adapter category of the HV1600 series . Its shank usually adopts a flat blade structure, which is specially adapted to the high-power electric vibratory tool (EOK) or pneumatic vibratory tool (POT) on the new generation Atom Flashcut Flex cutting machine, keeping the blade tip from drifting under high-frequency vertical reciprocating impact.
Material hardness : Made of high-purity cemented carbide (tungsten steel), the material has a hardness of up to HRA 89 ~ 92.5 , which provides excellent cutting edge retention and wear resistance.

Suitable for cutting materials

The 01030728 blade, due to its "high turning flexibility" and medium depth of cut, is best suited for high-density layout and rapid cutting (Nesting) of precision footwear materials, bags, and lightweight industrial composite materials.

Footwear and bag sheet materials : Texon fiberboard (capable of high-speed, resistance-free cutting when the thickness is ≤ 3mm), various rigid insoles and leather shoe linings.
High-end genuine leather and synthetic leather : hard sole leather , heavy-duty genuine saddle leather, and high-density synthetic leather for automotive and aviation seats.
Packaging and cushioning materials : dense grey cardboard, high-density special foam board, composite honeycomb board.

Flex Series Digital Cutting Machine Production and Maintenance Guide

To address the issue of rounding or breakage at 2.5mm small radius corners : Since this blade is primarily used for cutting high-hardness Texon fiberboard or hard-soled leather, the lateral shearing force on the blade tip reaches its peak when machining a 2.5mm precision small arc. It is essential to enable the "Corner deceleration" process parameter in the control software and ensure sufficient chuck vacuum suction. If the sheet material experiences even a slight displacement during high-speed, small-radius turns, it will not only cause corner distortion but may also instantly break the tungsten carbide blade tip.
Chip removal and cleaning of the chuck : The HV1600 flat mounting shank requires extremely high cleanliness inside the chuck. Texon plates and genuine leather will shed a large amount of fine fiber dust under high-speed vibration cutting. The inside of the chuck must be thoroughly cleaned with compressed air every time the tool is changed . Once tiny hard debris gets stuck on one side of the tool holder, the blade will be slightly laterally deflected after locking. Under high-frequency, high-load vibration, this will not only create a sloped cutting surface but also easily lead to tool breakage

Atom 01030728 Flashcut 15°-15° HV1600 Oscillating Knife Blade, designed for Atom Flashcut Flex, is an ideal replacement product compatible with production and manufacturing applications. It is suitable for wholesale supply, factory usage, and retail sales. Manufactured by Shenzhen Oyea Machinery Co., Ltd. in China, this high-quality blade combines durability and precision. Available for OEM and ODM services, it offers reliable performance at a competitive price.
