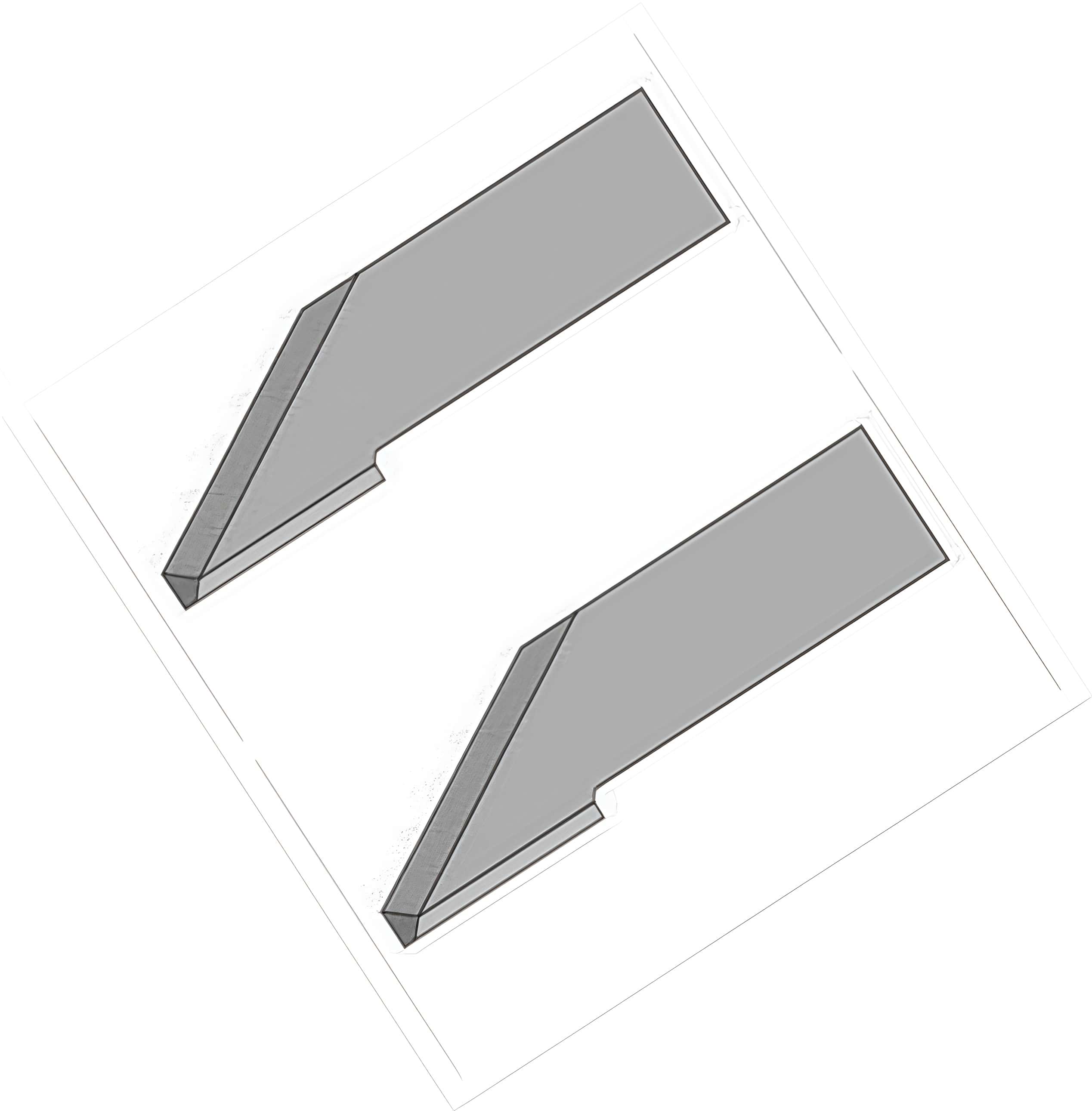

Atom 01030731 Flashcut HV1600 Oscillating Knife Blades For Atom Cnc Digital Knife Cutting Systems

Atom 01030731 is high-performance carbide (tungsten carbide) vibrating blade designed specifically for Atom Flashcut automatic digital cutting machines and CNC digital cutting systems. Enquire now

Description

Atom 01030731 Flashcut 25°-0° HV1600 Oscillating Knife Blades For Atom Cnc Digital Knife Cutting Systems

Atom 01030731 is A high-performance carbide (tungsten carbide) vibrating blade designed specifically for Atom Flashcut automatic digital cutting machines and CNC digital cutting systems.This model belongs to the HV1600 heavy-duty cutter head series and is specifically developed for medium-thin, extremely soft, and easily deformable high-grade flexible materials. Its physical design is focused on extremely high linear speed cutting .

Core Technical Specifications

Based on the digital cutting tool industry parameters, the technical configuration of this blade is as follows:

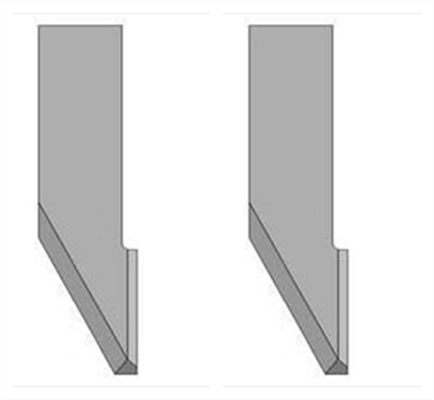

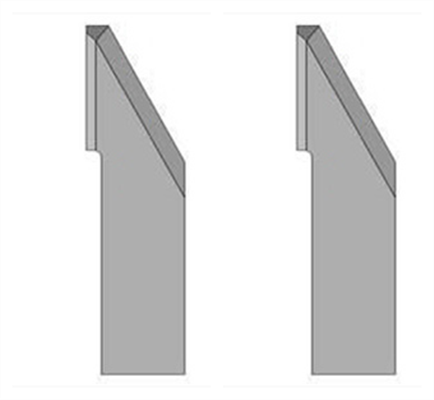

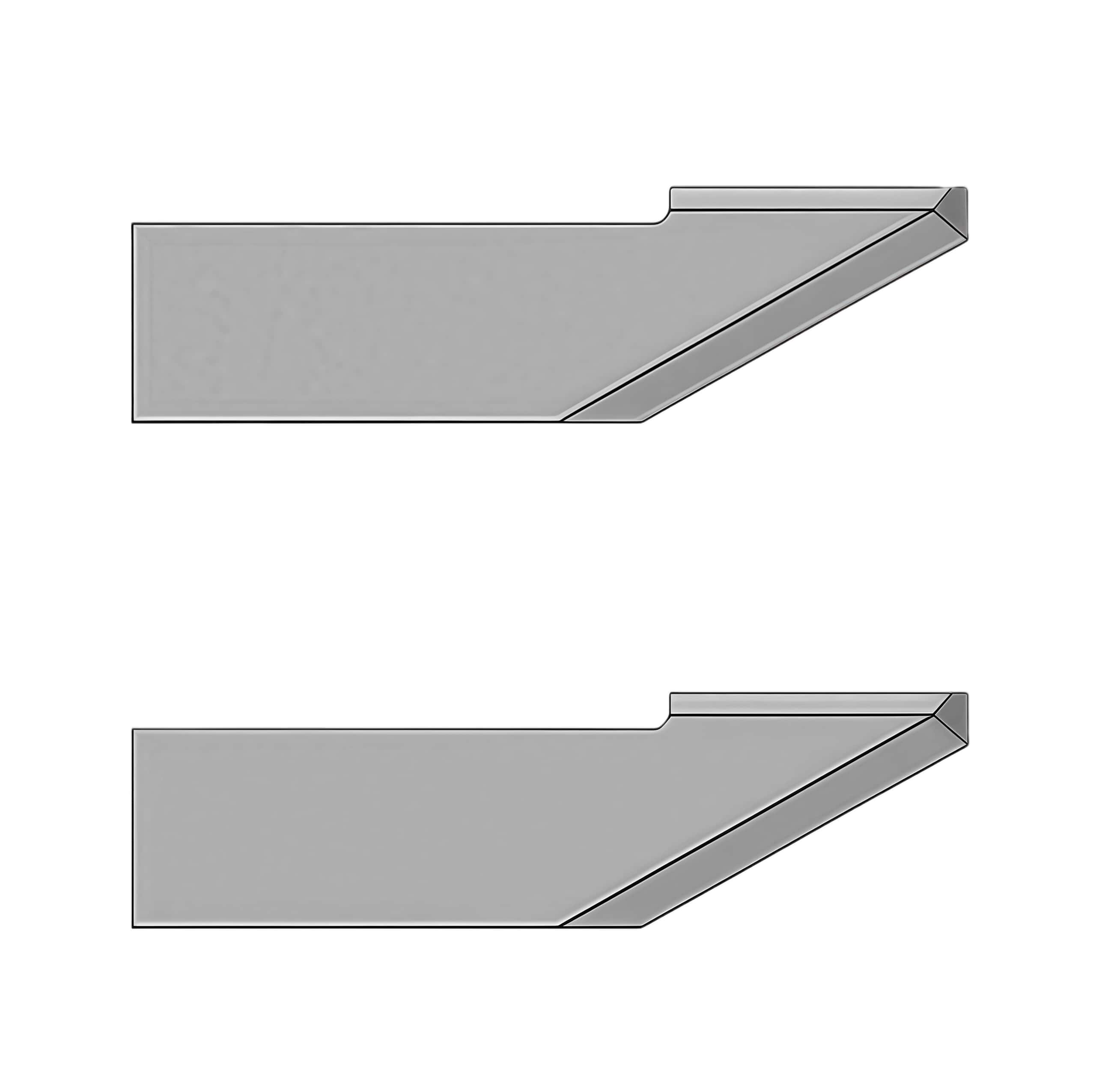

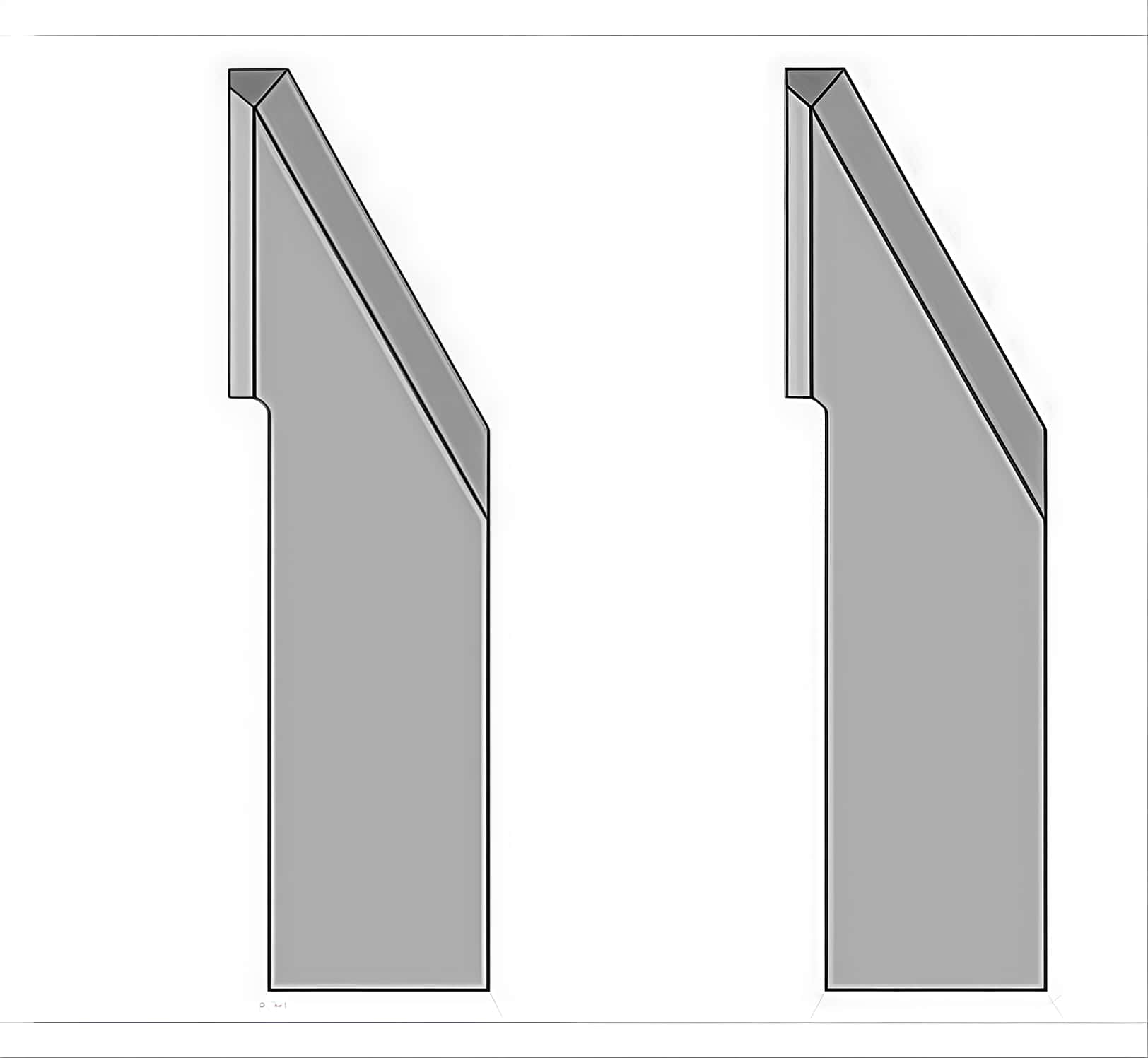

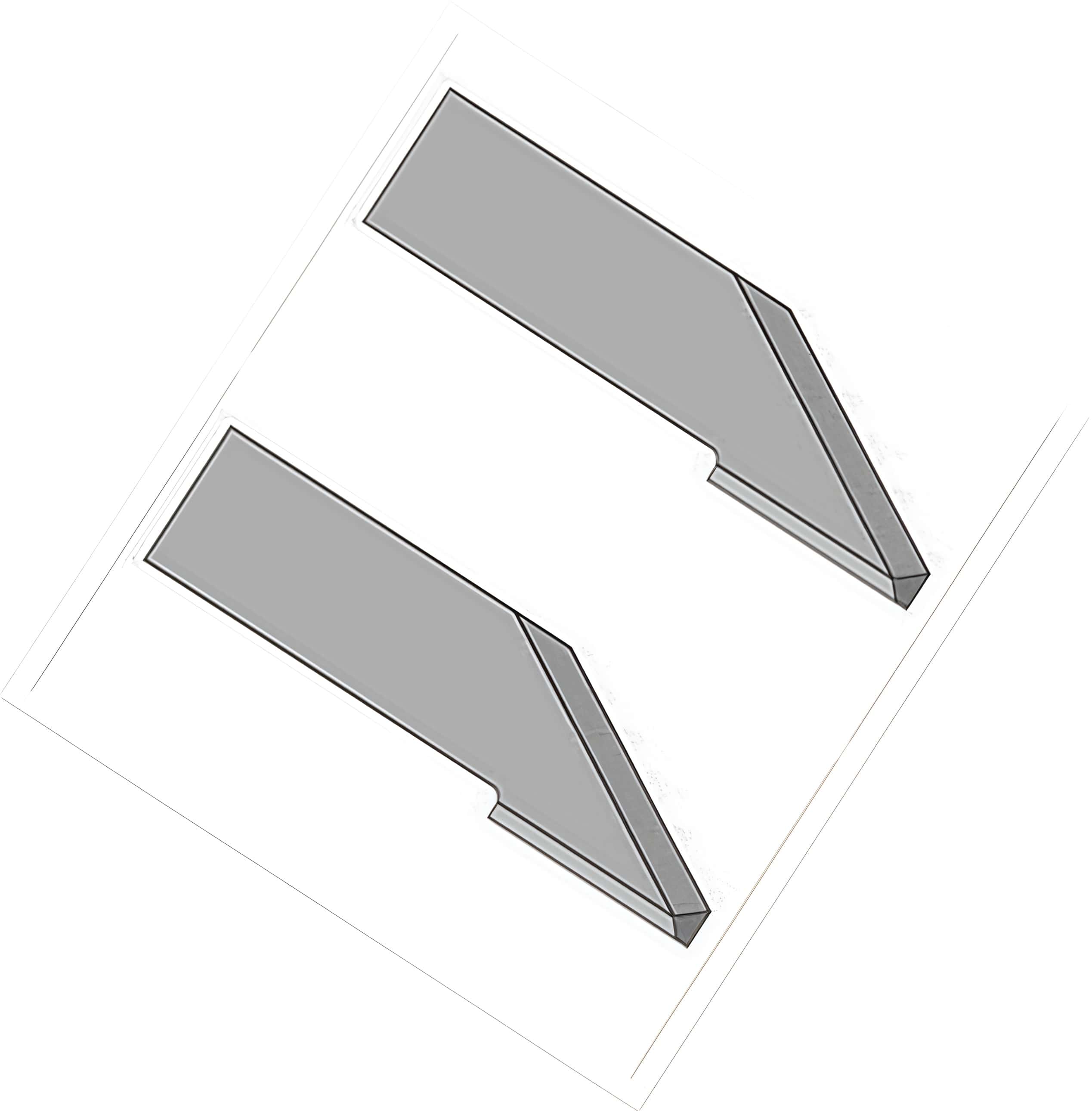

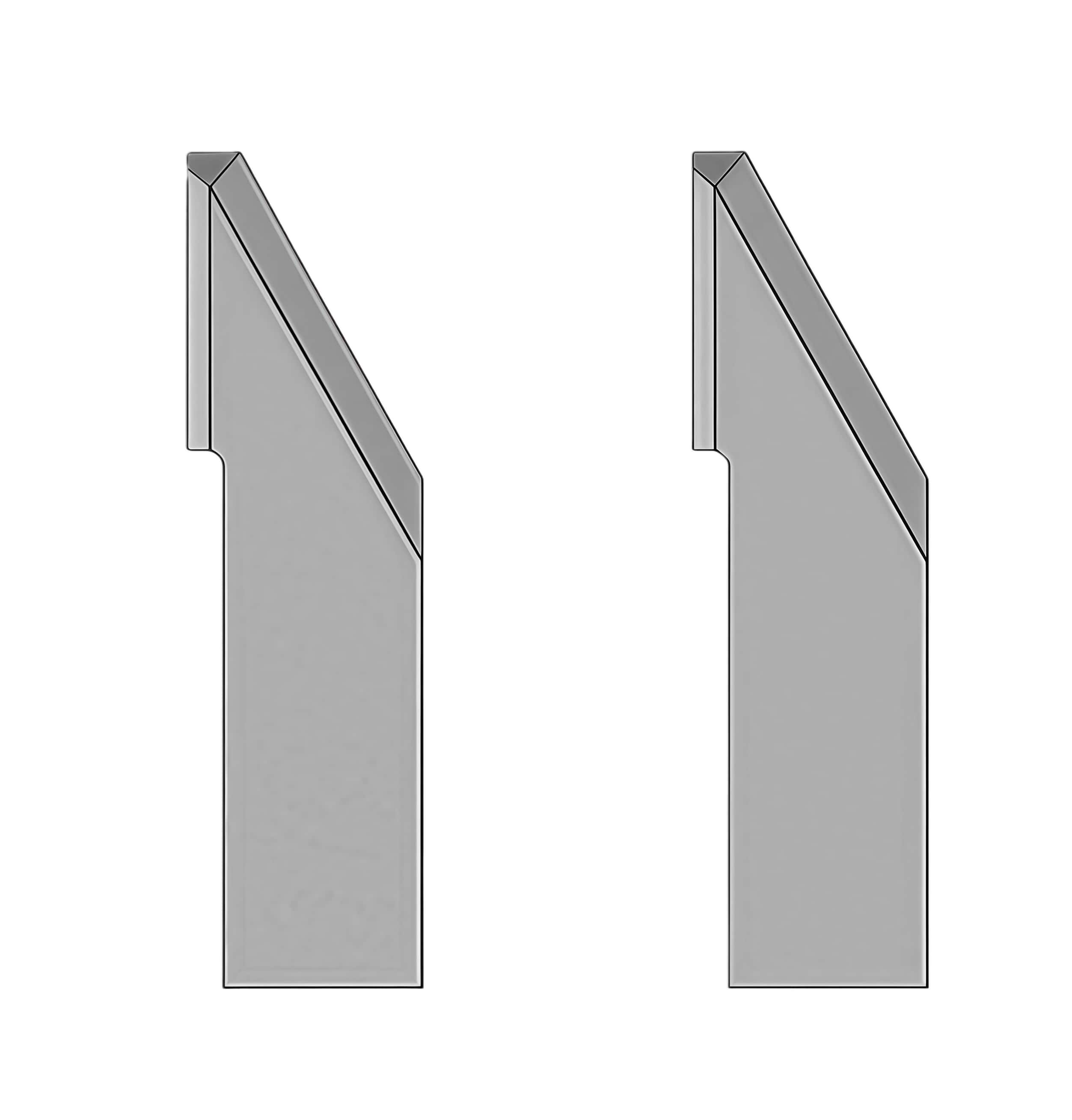

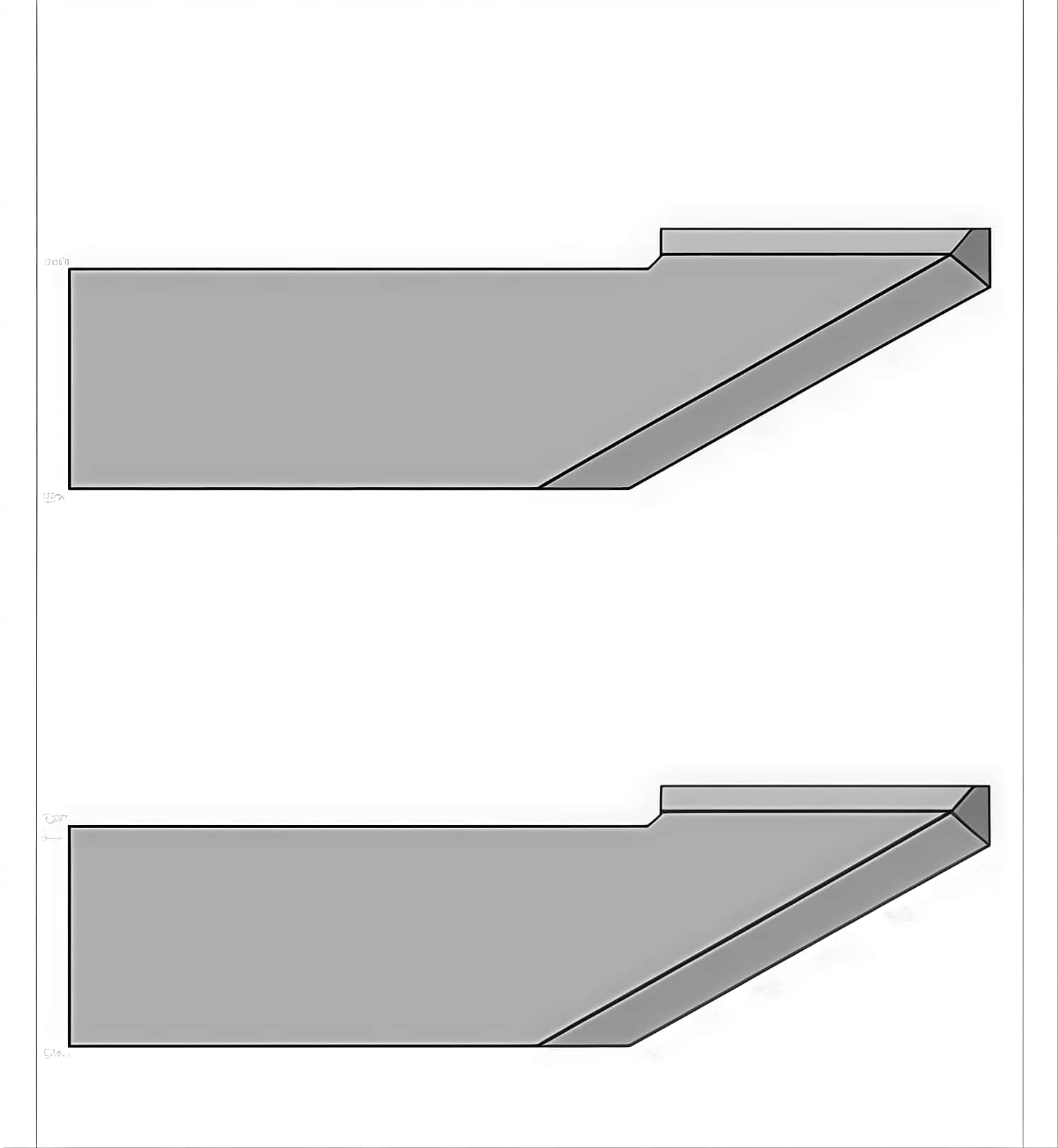

Cutting edge angle : Adopts the classic 25° - 0° single-bevel profile design. The vertical 0° facet is used to keep the cutting contour and the material run-out line perfectly aligned, while the 25° bevel is used for efficient chip removal and to reduce high-speed cutting resistance.
Blade mounting shank : 1.0 mm thick reinforced flat shank . This is the standard clamping size for the HV1600 system. It is made of thick steel and is specifically designed to fit high-power pneumatic vibratory heads (POTs) or electric vibratory tools (EOKs) on digital cutting machines, without bending under high-speed, continuous, high-frequency vibration.
Material : High-quality pure tungsten carbide (HM) without coating , with high wear resistance and rigidity, and long cutting edge retention time.
Technological advantages : It allows the equipment to operate at extremely high cutting speeds while ensuring highly flexible steering, making it ideal for complex nested cuts with minute curvatures.

Suitable for cutting materials

Unlike other models in the same series designed for rigid sheets such as graphite and asbestos-free materials (e.g., 01030730), the 01030731 blade is physically optimized for materials that are prone to fraying, highly elastic, or extremely soft , enabling precise edge cutting without material dragging or fraying.

High-end footwear and bags : suede, nubuck, premium suede , as well as ultra-soft natural sheepskin and thin top-grain cowhide.
Textile interiors and fashion : Flexible multi-layer fabrics, high-performance woven fabrics, and self-adhesive vinyl.
Industrial textile composite sheets : uncured carbon fiber or aramid prepreg, industrial thin dustproof mats.

On-site production process adjustment suggestions

To address the deformation caused by dragging of high-grade soft leather or suede : Because suede and multi-layered flexible fabrics are prone to wriggling during high-frequency reciprocating cutting, the "Maximum vacuum hold-down" function must be activated in the control software for this type of blade . Additionally, if the material surface is too slippery, an airtight protective film can be added to prevent interlayer rubbing or edge misalignment of the fabric during extremely high-speed cutting.
Beware of blade breakage caused by tiny dust particles in the chuck : The HV1600 tool head features a 1.0mm flat, tight clamping design. Although the 01030731 is primarily designed for cutting soft materials, multi-layered fabrics and suede generate a significant amount of ultra-fine shed fiber dust during high-speed cutting. Each time the blade is changed, the vibrating chuck holder must be thoroughly cleaned with compressed air . If tiny clumps of fiber are trapped on the 1.0mm blade holder mating surface, a barely perceptible lateral deviation will occur after tightening, which can immediately cause the blade tip to chip under high-frequency vibration.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
