Atom 01030773 Flashcut HV1600 Oscillating Knife Blades For Atom Cnc Digital Knife Cutting Systems

Atom 01030773 Flashcut HV1600 Oscillating Knife Blades For Atom CNC Digital Knife Cutting Systems is a replacement oscillating blade for Atom cutting systems, and it is listed as compatible with Atom FlashCut HV1600. Enquire now

Description

Atom 01030773 Flashcut 15°-15° HV1600 Oscillating Knife Blade For Atom Cnc Digital Knife Cutting Systems

Atom 01030773 (also known as 30773) oscillating knife blades are premium industrial consumables engineered for high-frequency electric or pneumatic oscillating tool heads on Atom FlashCut HV1600 and FlashCut Flex series digital CNC cutting systems

Cutting depth approx. 11 mm
no. 01030773 / (HV1600)

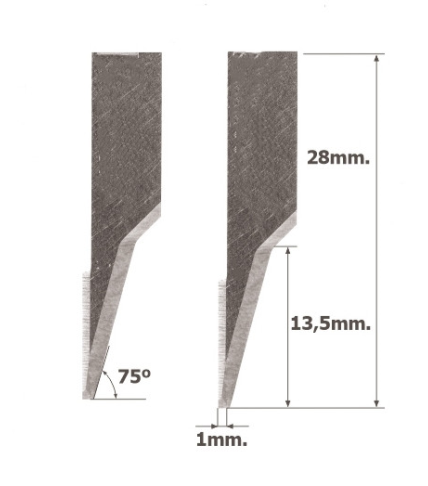

KNIFE HEIGHT
28,00 mm
THICKNESS
1,00 mm
KNIFE WIDTH
5,50 mm
ANGLE
75°
MAX. CUTTING DEPTH
11,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Footwear materials, Gasket materials, Leather
KNIFE/BLADE MOUNTING
flat 1 mm

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
