Summa 390-550 T-Series Tangencial Plotter Knife Blades Replacement Compatible

CHINA Summa 390-550 is agenuine OEM 60°tangential plotter knife blade engineered for high-performance motorized cutting heads on Summa T-Series vinyl cutters and F-Series flatbed plotters Enquire now

Description

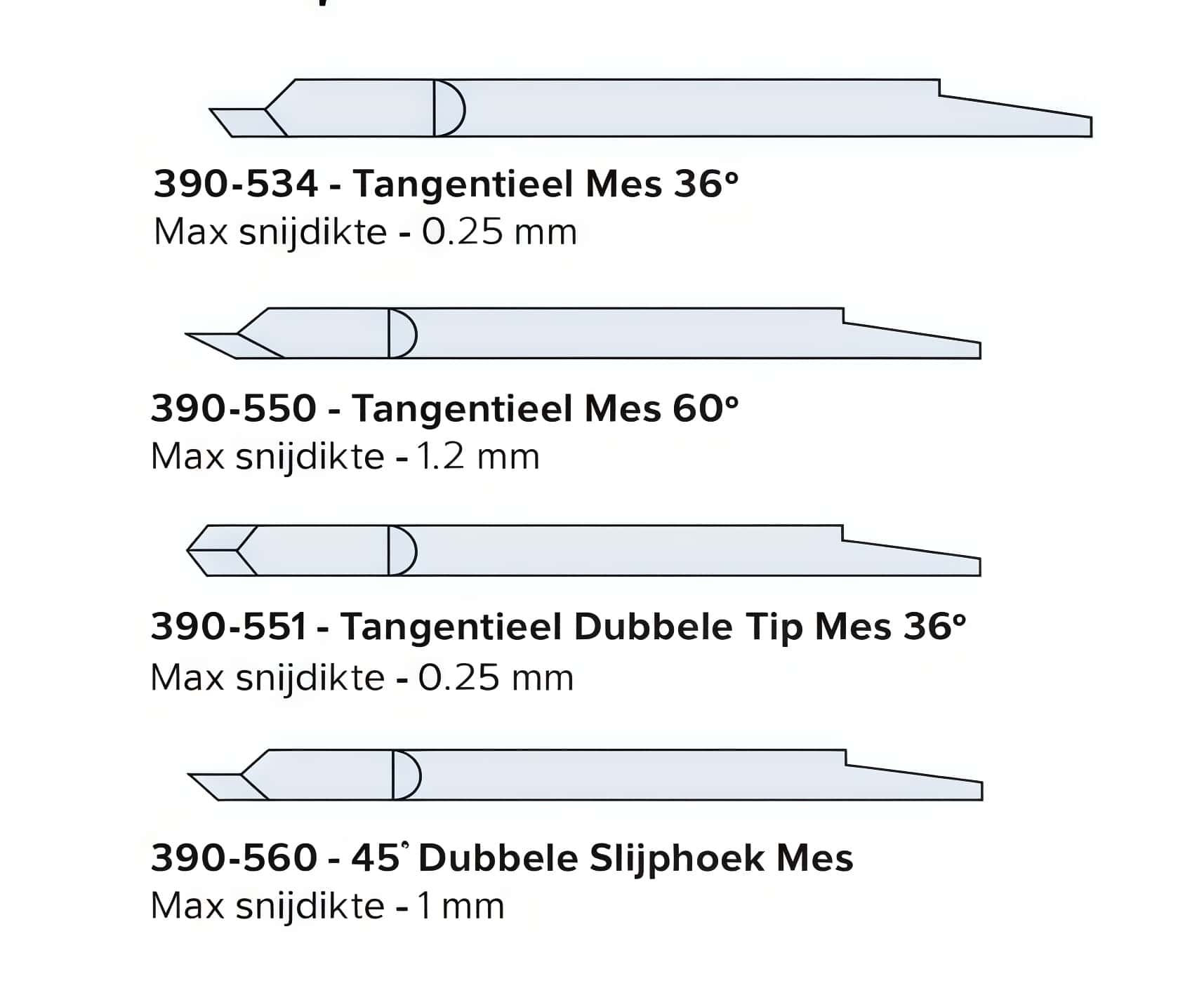

Summa 390-550 T-Series 60 Degree tangencial knife Blade

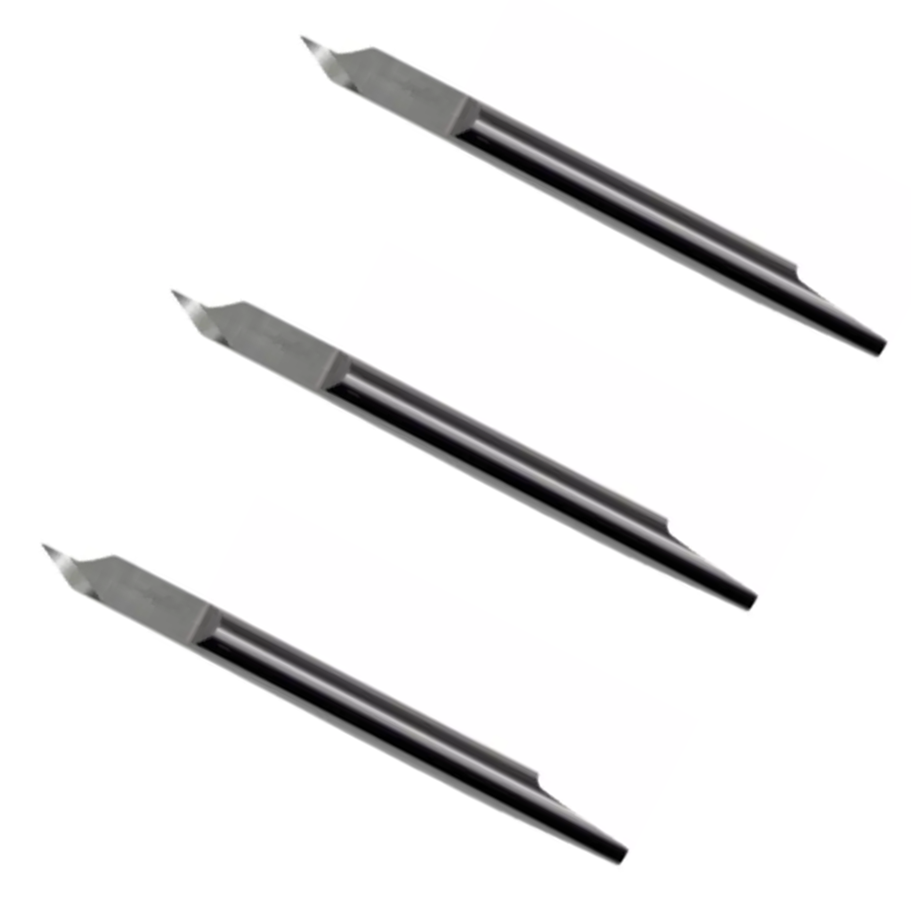

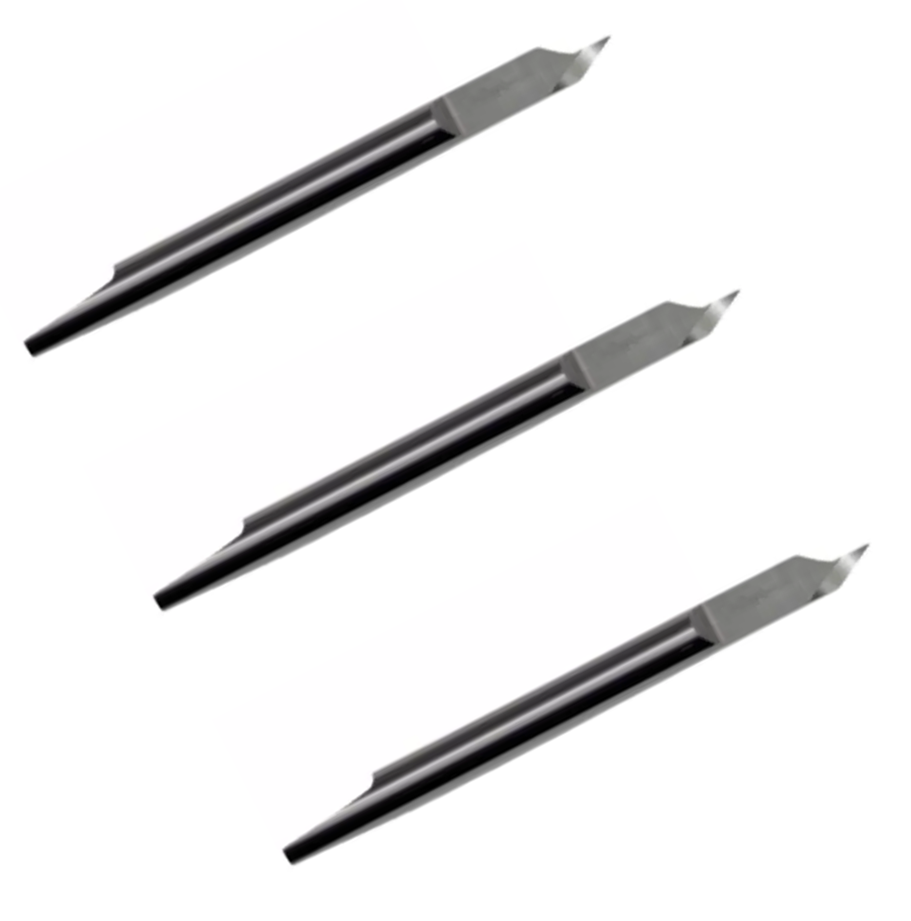

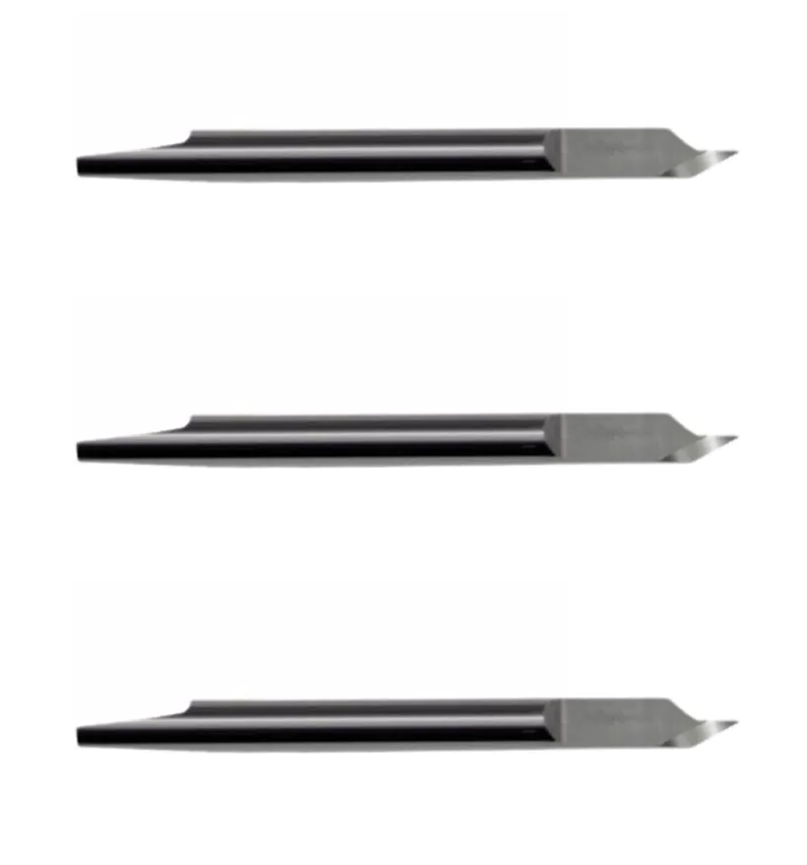

Summa 390-550 T-Series Tangencial Plotter Knife Blades

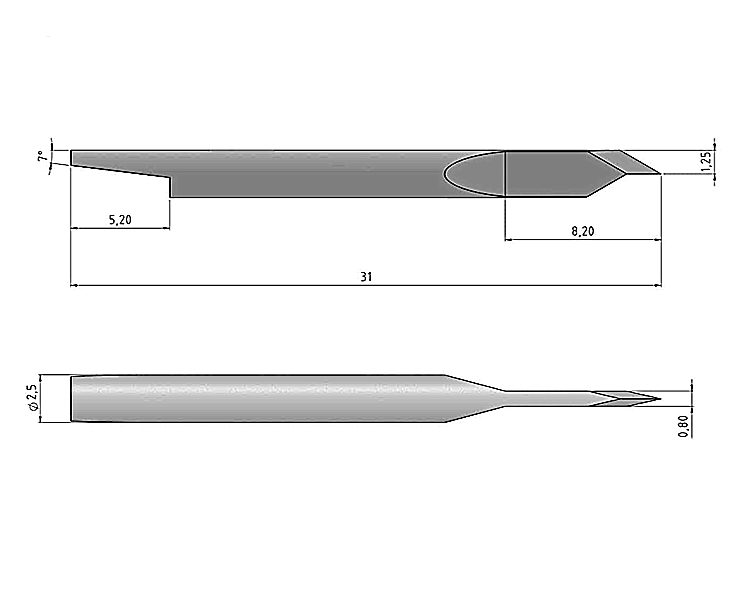

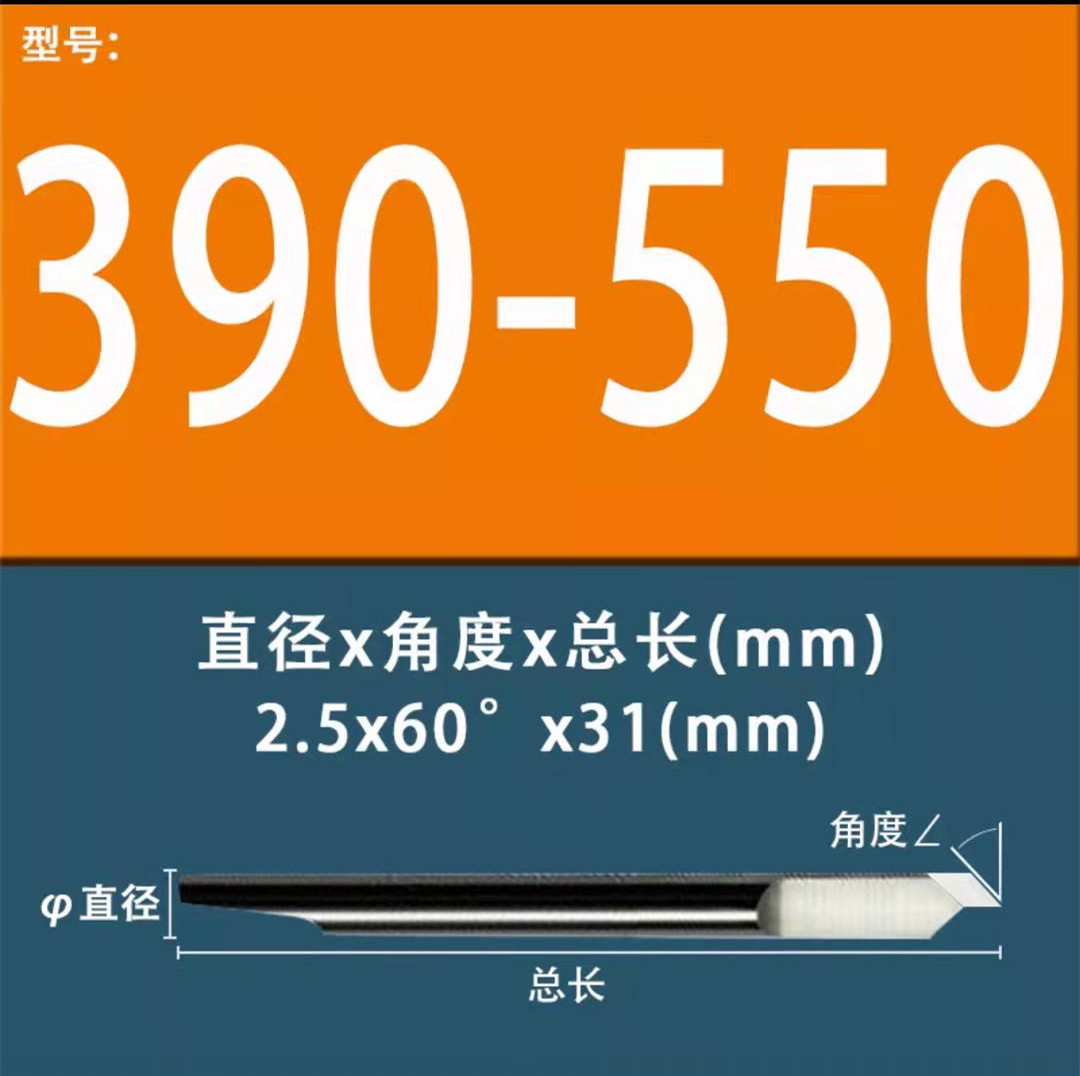

Technical Specifications

The measurements and tolerances designated for the 390-550 cutting profile include:

Part Number : 390-550
Cutting Angle : 60°
Blade Diameter : 2.5 mm
Blade Length : 31 mm
Maximum Cutting Depth : Up to 0.047″ (1.2 mm)
Material Composition : Premium solid tungsten carbide

Compatibility

This heavy-duty knife blade is restricted to genuine motorized tangential cutting assemblies. It will not work with D-Series or standard drag knife plotters . It is explicitly cross-compatible across the following configurations:

S Class T-Series & S Class 2 T-Series (eg, S75T, S120T, S140T, S160T)
S One T-Series roll plotters equipped with tangential options
F-Series Flatbed Cutters utilizing the Tangential Module tool
Legacy SummaSign / SummaSign Pro T-Series models

Material Application

Thick rubber sandblast masking and glass etching stencils
Heavy-duty flock heat transfers and textile substrates
Rhinestone template stencil sheets
Dense cardboard, felt, framing mat boards, and magnetic sheets
