Summa 500-9802 500-0802 F-Series Double Edge Cutout Cutter Knife Blades

China Summa 500-9802 (also cross-referenced as 500-0802) is a thick, ultra-stable 50° double-edge cutout drag blade engineered specifically for the Summa F Series flatbed cutters Enquire now

Description

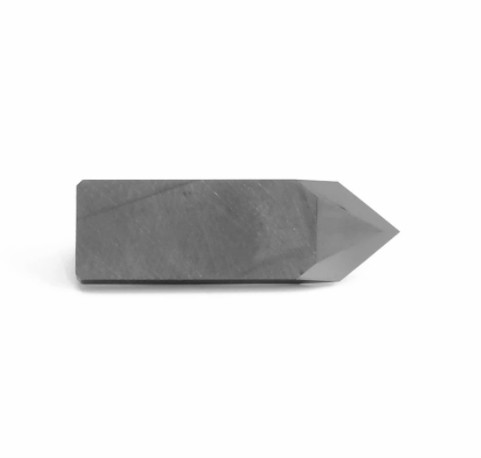

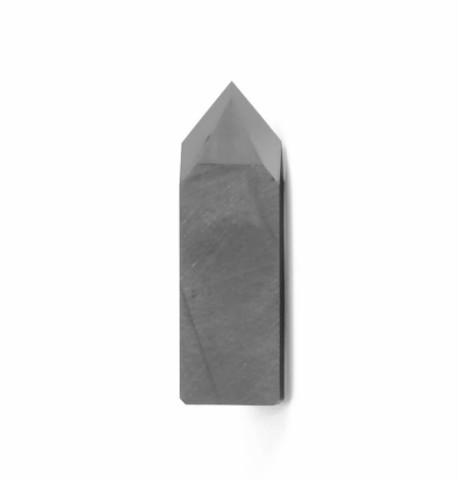

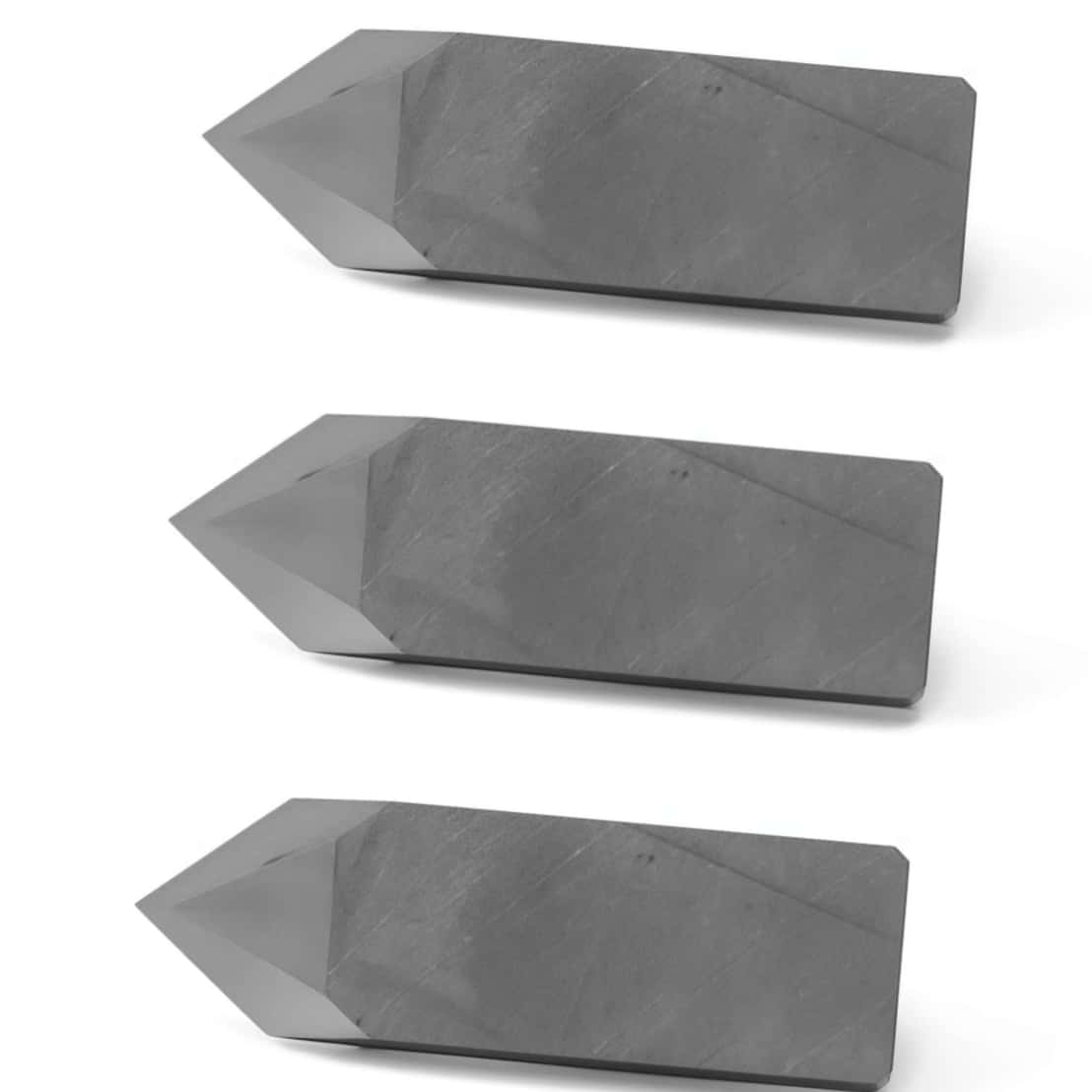

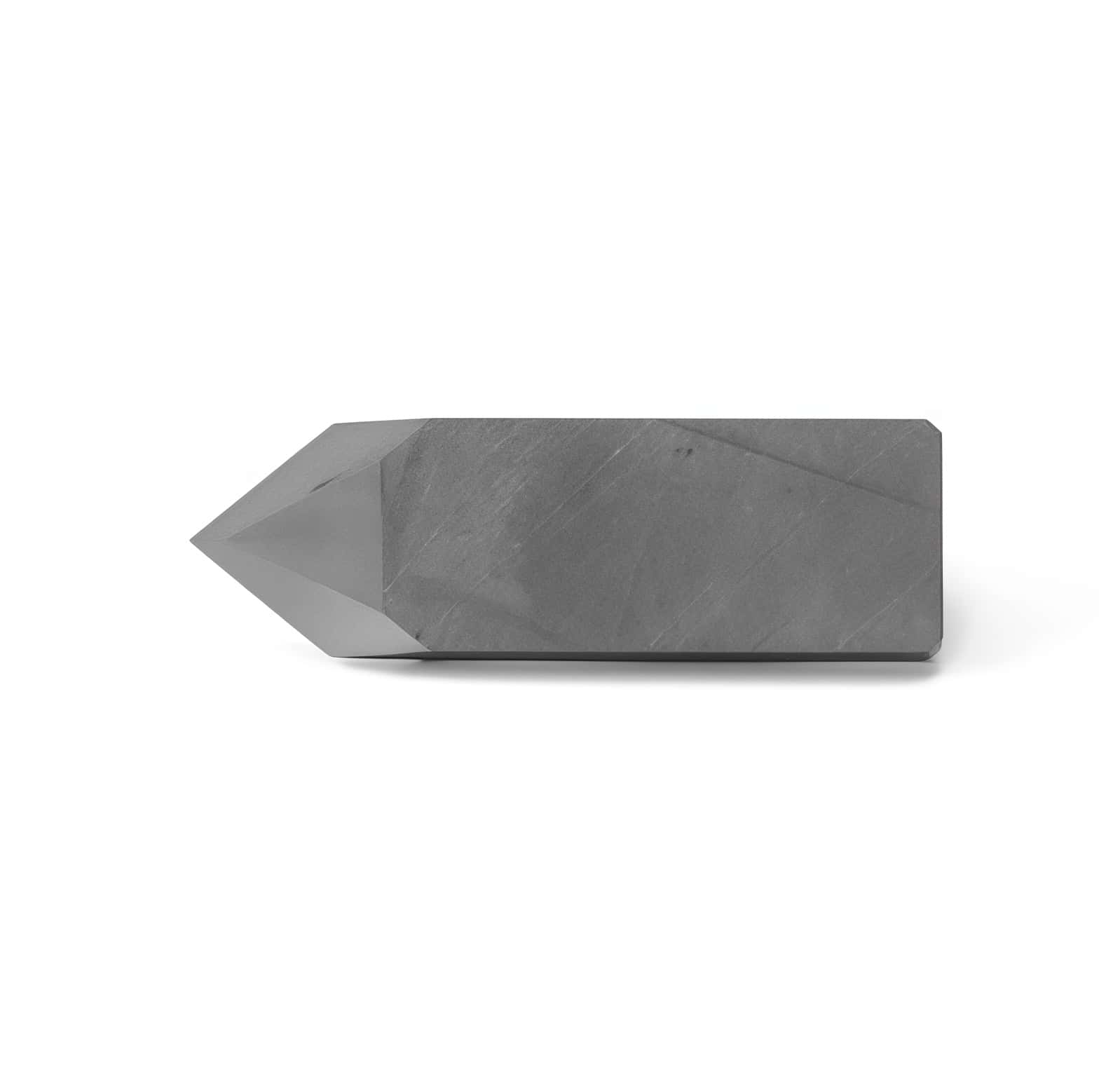

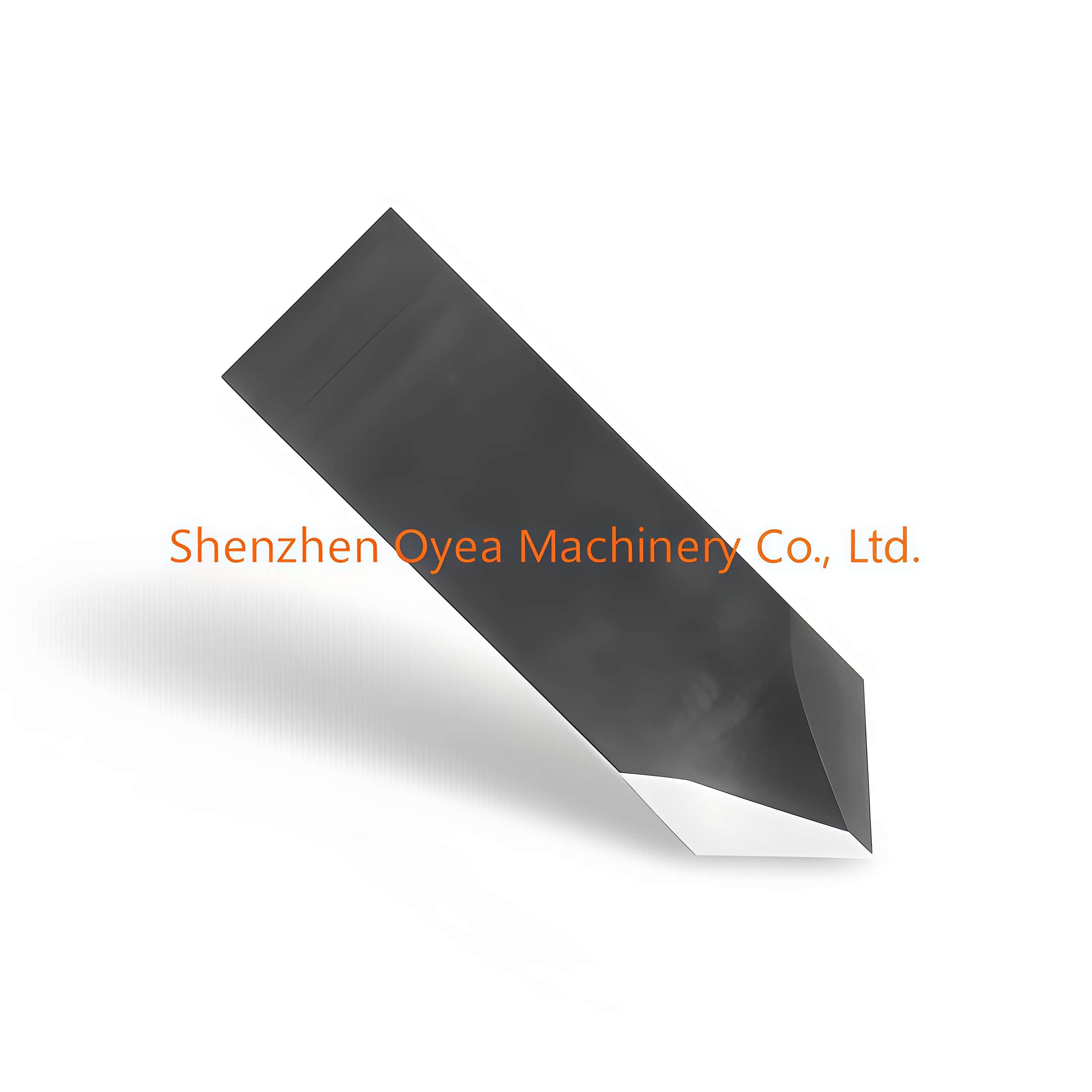

Summa F-Series Double Edge Cutout Knife Blade 500-9802,500-0802

Summa 500-9802,Summa 500-0802,Summa 500-9802 Knife,Summa 500-0802 Knife,Summa 500-9802 Blade,Summa 500-0802 Blade

Technical Specifications

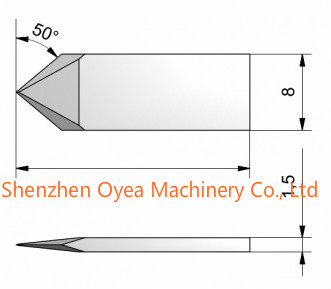

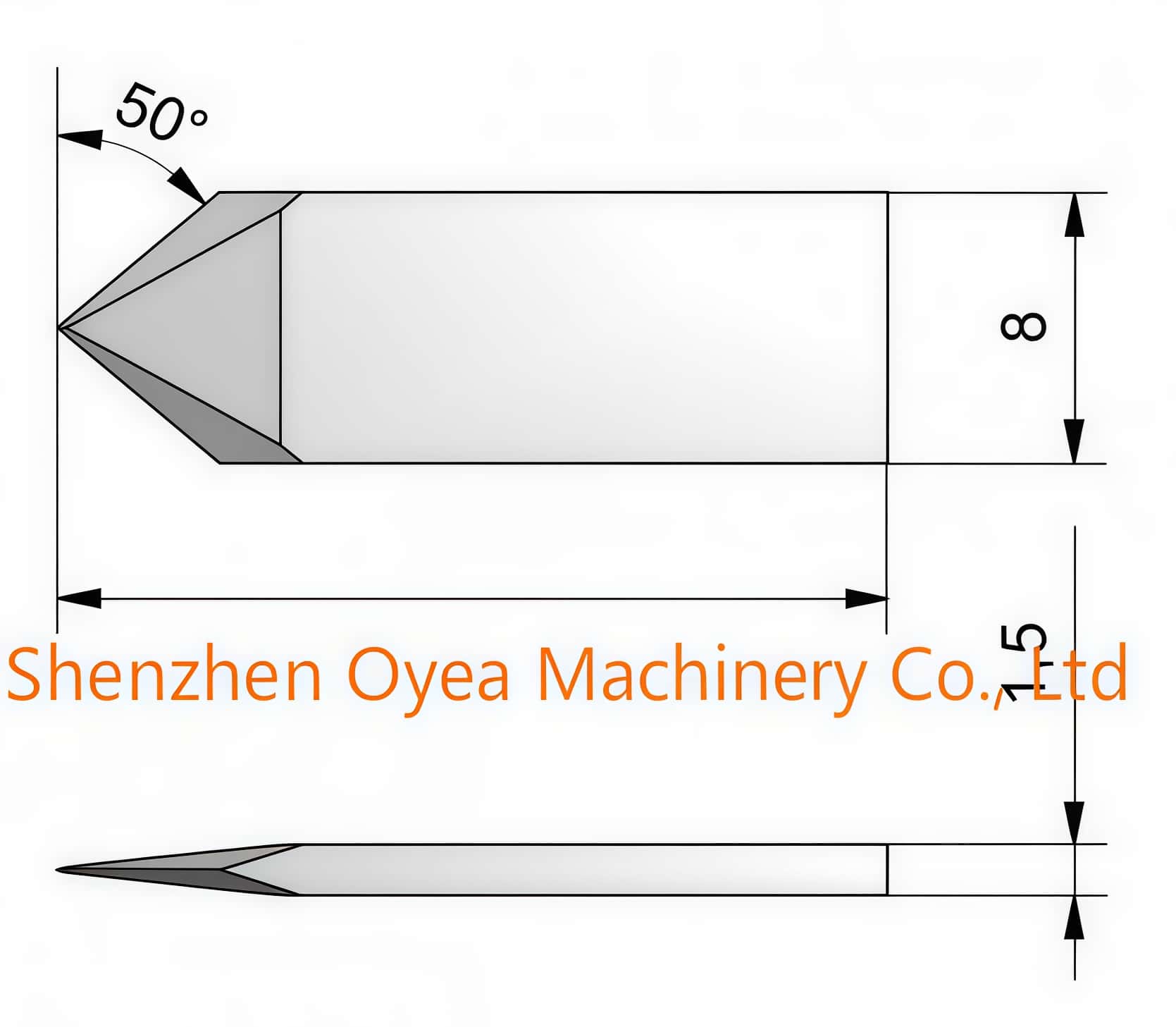

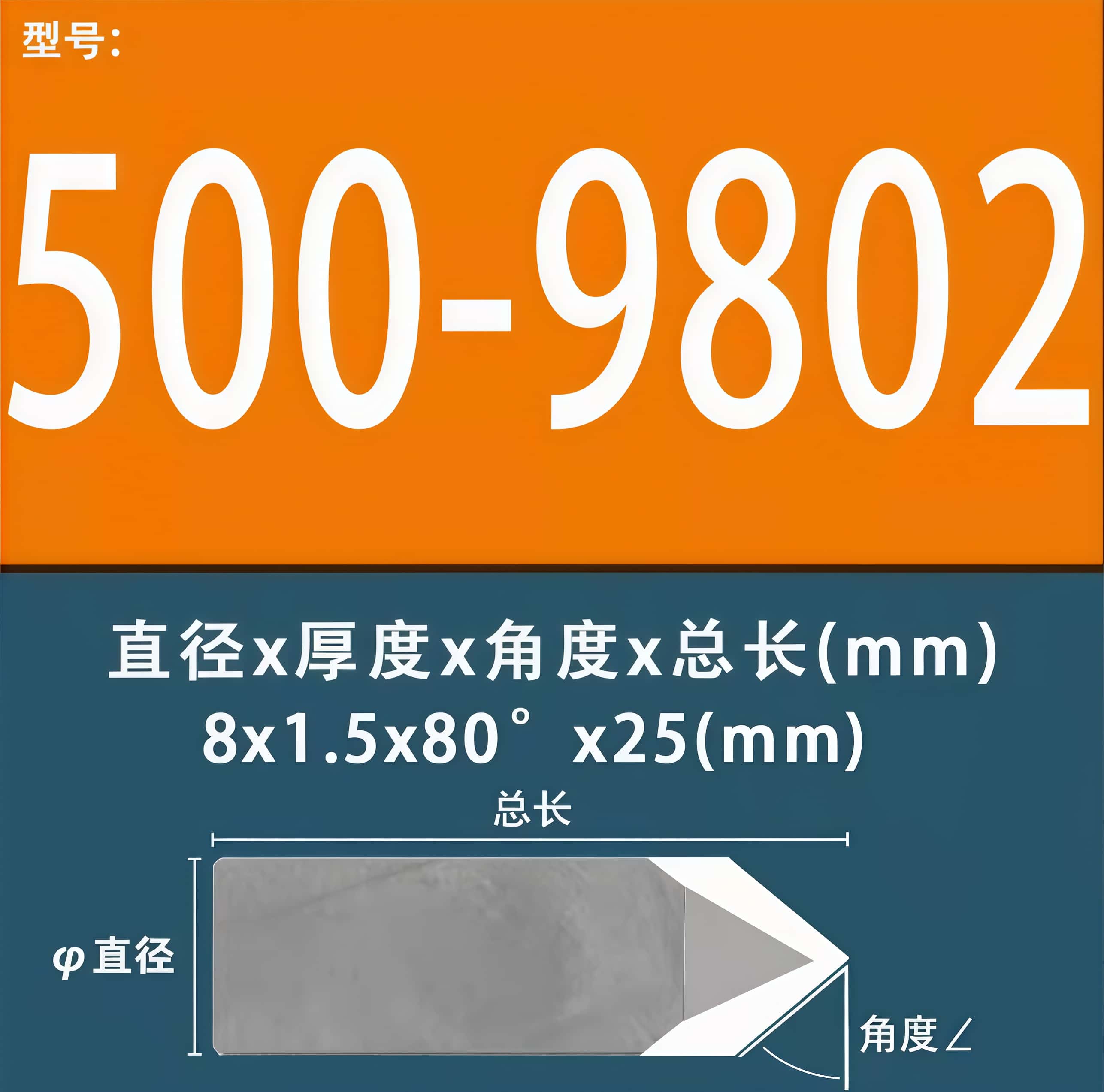

Blade Angle: 50° cutting angle with an 80° tip angle.
Blade Thickness: 1.50 mm heavy-duty flat stock (significantly thicker than standard 0.63 mm blades).
Blade Dimensions: 25 mm height x 8 mm width.
Maximum Cutting Depth: 4.5 mm to 4.8 mm. It cleanly cuts materials up to 3 mm (0.12 inches) thick when deployed with standard tool configurations.
Material Composition: Solid Fine-Grain Tungsten Carbide.

Tool Compatibility

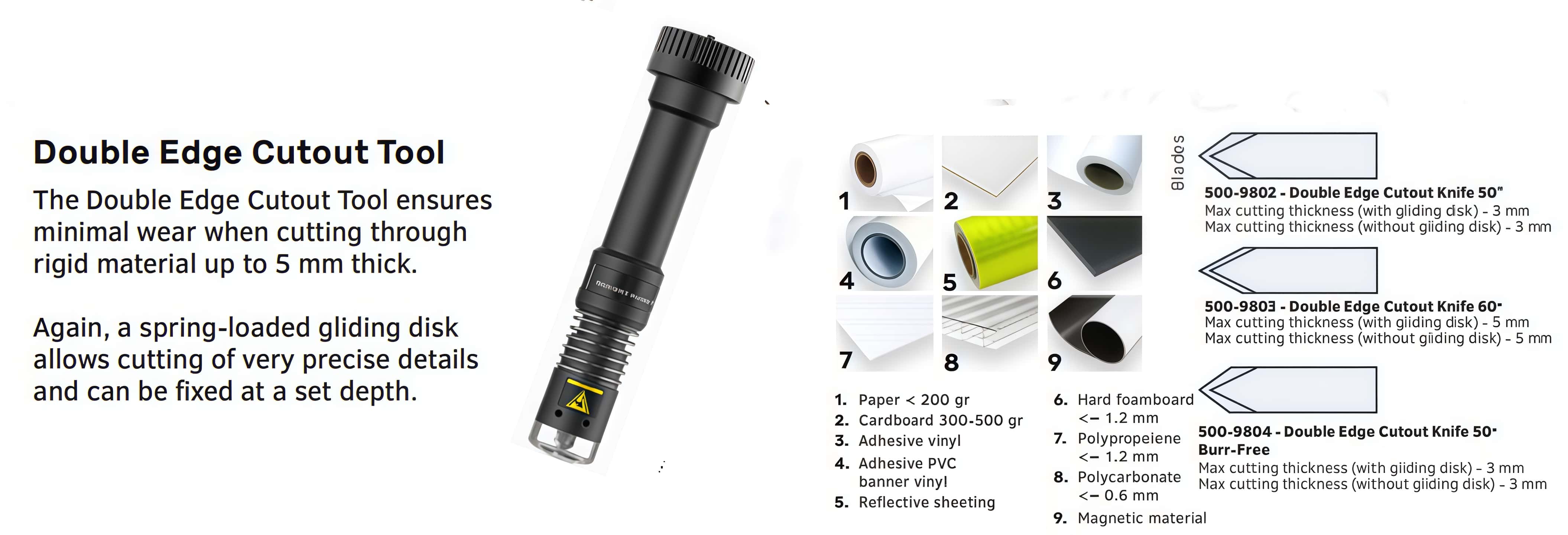

This blade is explicitly designed to fit the Double Edge Cutout Tool (SKU: 500-9313), which operates under the Summa Tangential Module. The tool utilizes a spring-loaded gliding disk to maintain consistent depth control and ensure minimal blade wear when cornering rigid substrates.

Recommended Materials

Its dual-cutting edge design reduces friction and allows for efficient bi-directional path optimization on tough surfaces, making it ideal for:

Rigid Signage & Graphics: Magnetic foil, composite boards, hardfoam, and polycarbonate sheets.
Thick Packaging: Folding cartons, heavy paperboard, and corrugated plastics.
Industrial & Industrial Textiles: Heavy rubber, canvas, tarpaulin, polyester fabrics, and gasket materials.

Equivalent to:
Summa 500-9802 Esko BLD-DF112 G42444299 MultiCam 94-02466-910.301-S ZUND Z10 in 25mm Blackman & White BW112 Colex T00312 ITC BDF-112 50-degree Dual Edge Solid Carbide Wide Diameter Knife Blades
