Summa 500-9813 500-0813 F Series Electronic Oscillating Tool(Eot)Vinyl Plotter Knives Knife Blades

CHINA BT-2385 Summa 500-9813 (also referenced under the manufacturing code 500-0813) is a premium, robust oscillating knife blade designed specifically for the Summa F Series flatbed cutters equipped with the Electronic Oscillating Tool (EOT). Enquire now

Description

Summa 500-9813,500-0813 F-Series Oscillating Knife Blade

Summa Blades,Summa F Series Blades,Summa Plotter Blades,Summa Knives,Summa EOT Blades

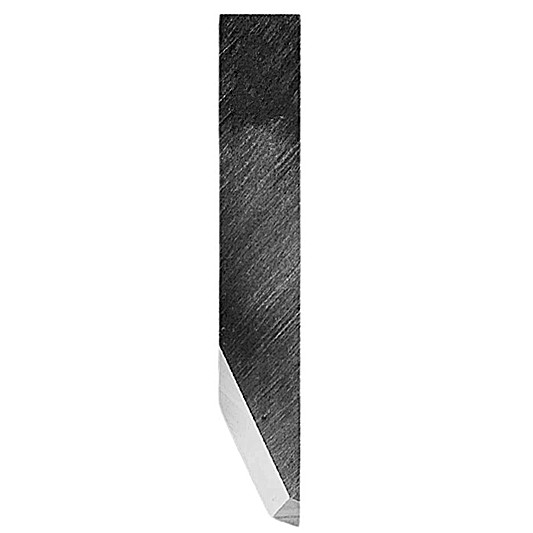

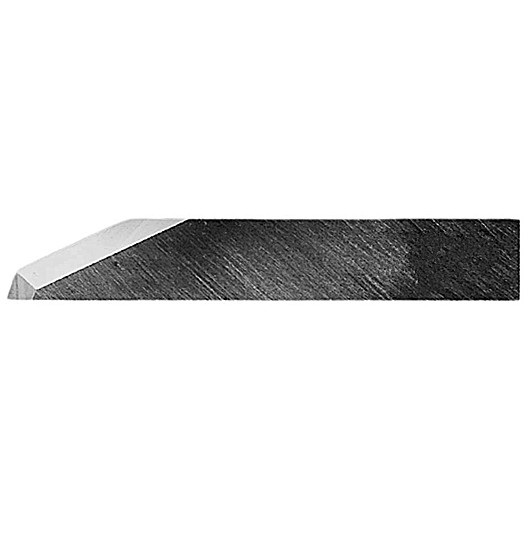

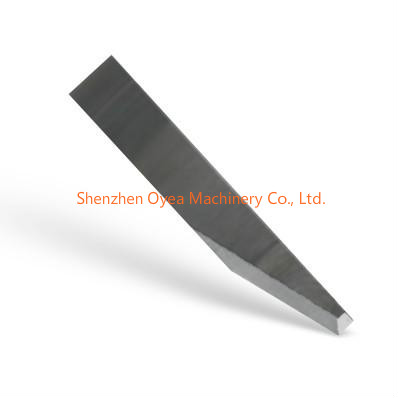

The Summa 500-9813 (also referenced under the manufacturing code 500-0813) is a premium, robust oscillating knife blade designed specifically for the Summa F Series flatbed cutters equipped with the Electronic Oscillating Tool (EOT).

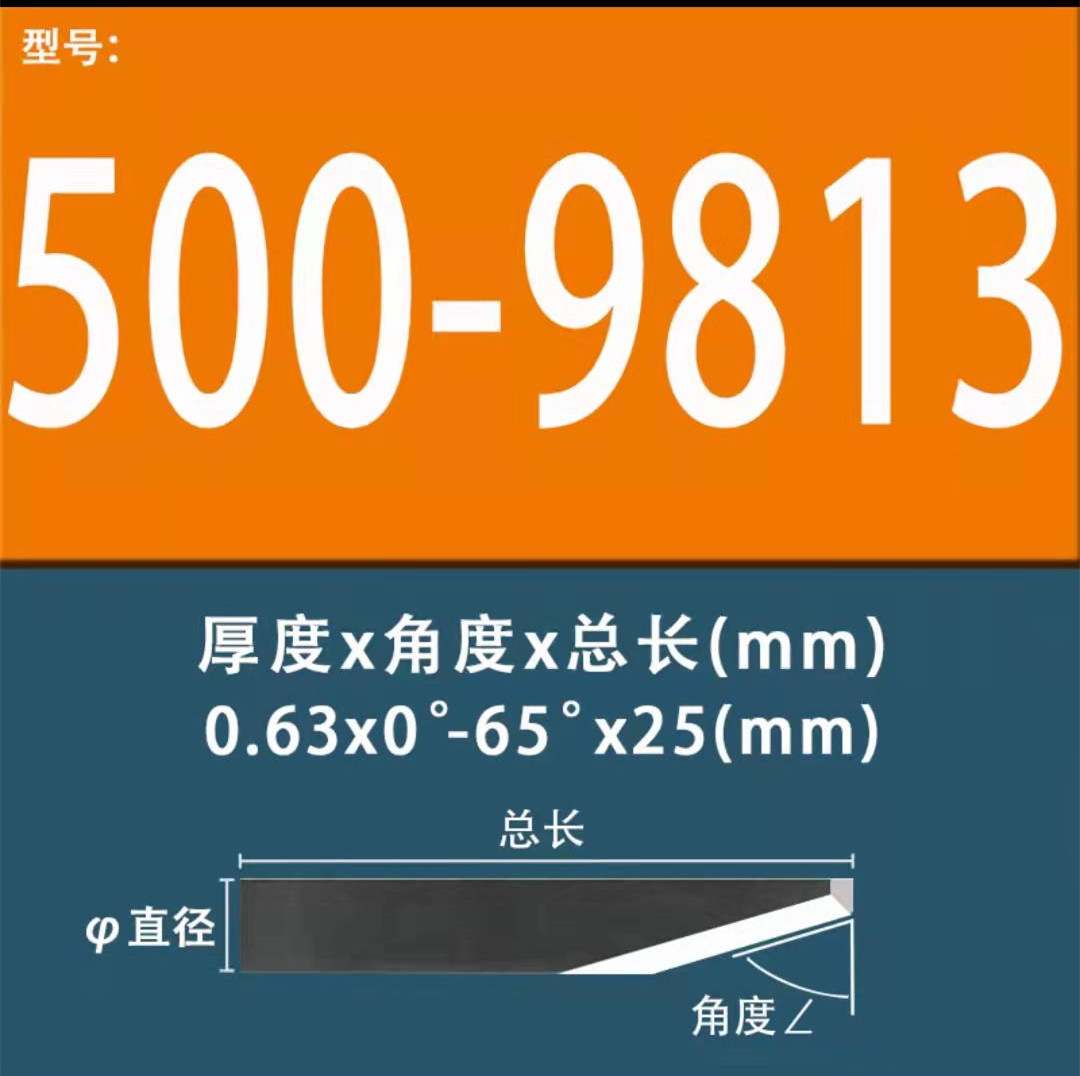

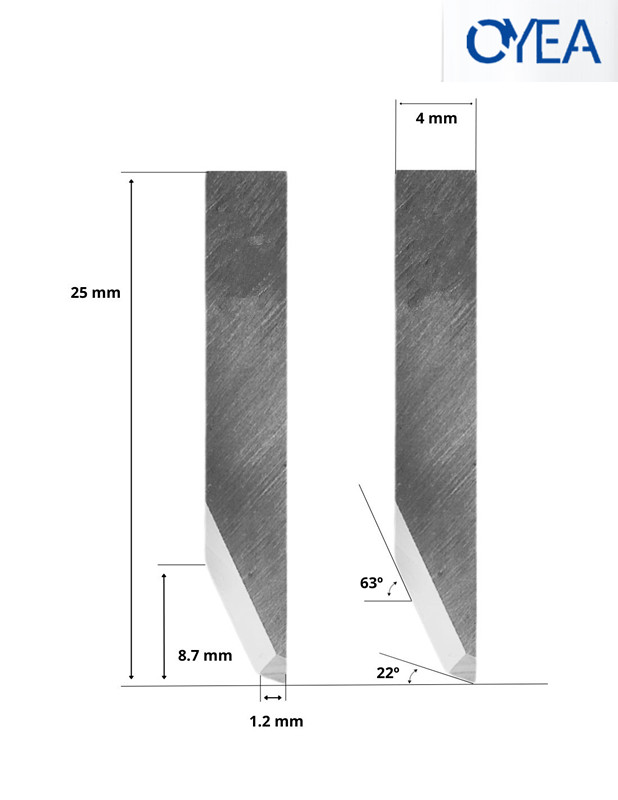

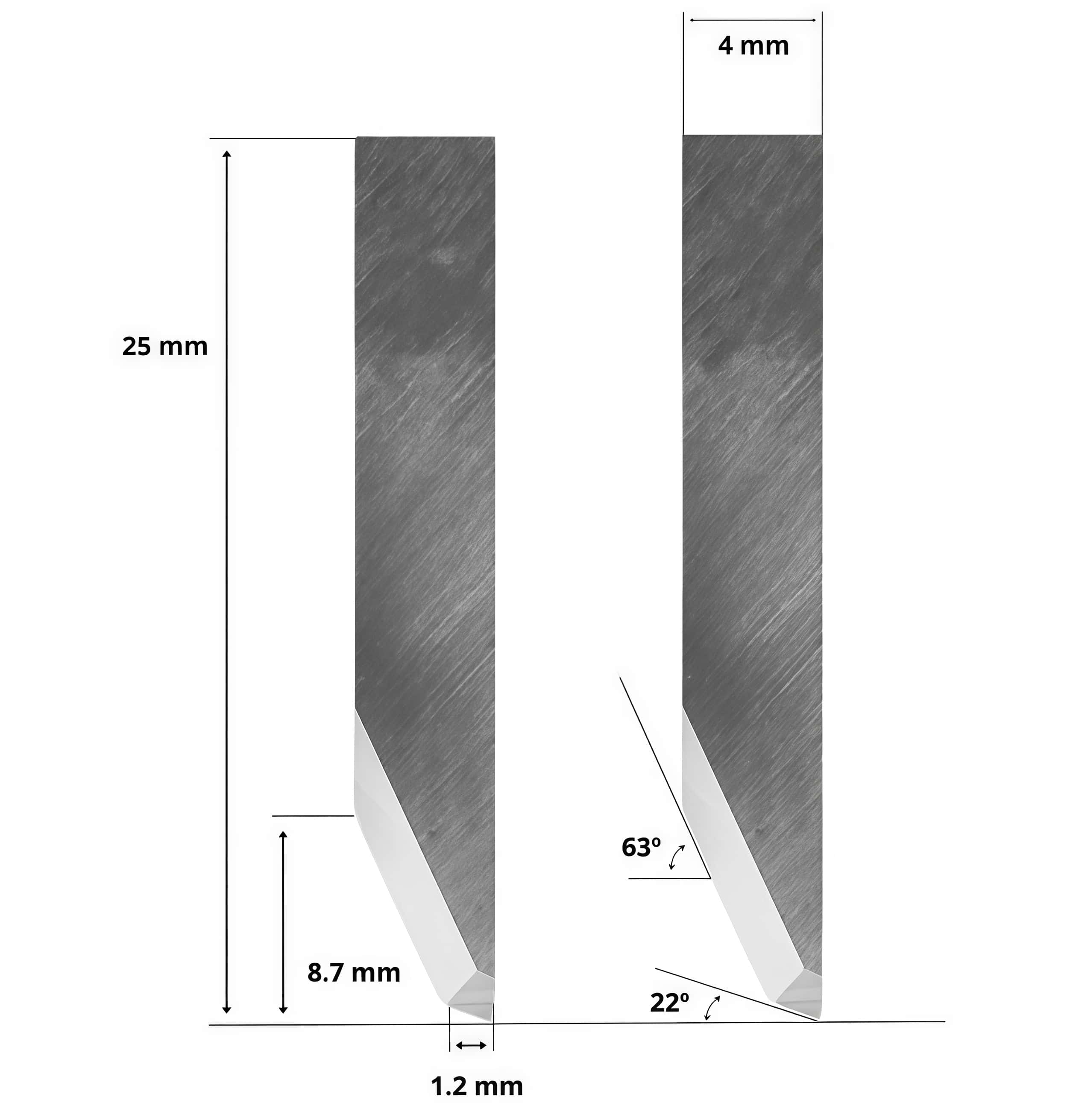

Technical Specifications

Blade Type: L25 Oscillating Blade.
Cutting Profile: Double-sided edge with a asymmetric 0° - 65° cutting angle.
Material Composition: Solid Tungsten Carbide (HM - Hard Metal), ensuring exceptional edge retention and durability under intense vibration.
Blade Thickness: 0.63 mm.
Blade Width: 4.00 mm.
Maximum Cutting Depth: Cuts materials up to 6 mm (0.24″) thick without a gliding disk, and up to 5 mm thick when using a gliding disk.

Tool Compatibility

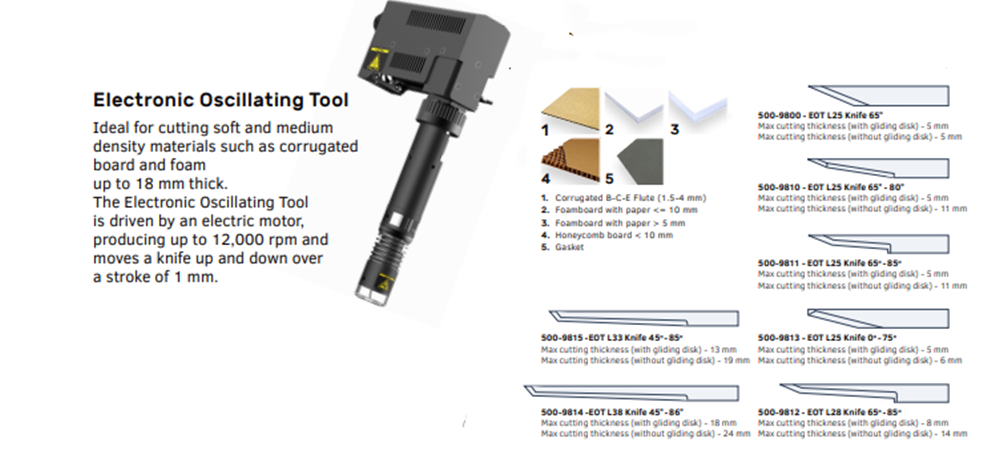

This blade is engineered for the Summa EOT (Electronic Oscillating Tool) module. The EOT is powered by an electric motor that produces up to 12,000 rpm and delivers a rapid 1 mm vertical stroke, enabling the blade to slice through dense or thick substrates without dragging or tearing.

Target Applications & Materials

The unique geometry of the 500-9813 blade makes it ideal for soft-to-medium density materials, particularly for intricate packaging structures, detailed point-of-sale displays, and gasket manufacturing:

Corrugated Cardboard: Soft and medium density (BCE flutes, 1.5 mm to 4 mm thickness).
Foam & Sandwich Boards: Foam core with paper lining up to 6 mm.
Industrial Fabrics: Nylon, polyester, carbon, and aramid fibers.
Soft Gasket Materials: Rubber, felt, and leather hides.

Equivalent to:
Zund Z25, Summa 500-9813, Summa 500-0813 Esko Kongsberg BLD-SF425 (i-425) /G42458273

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
