SUMMA 500-9833 500-0833 F Series - POT Pneumatic Oscillating Cutter Tool Knives Blades

china BT-55442810 Summa 500-9833 (500-0833) isFlat-head serrated carbide cutting blades designed specifically for the Pneumatic Oscillating Tool (POT) of the Summa F series flatbed cutters

Enquire now

Description

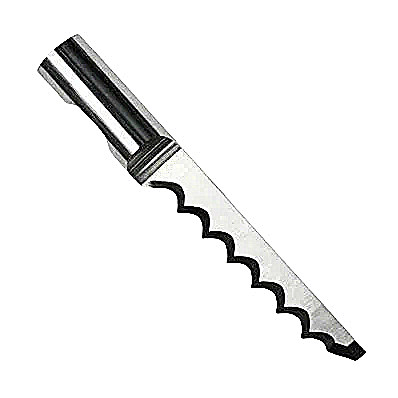

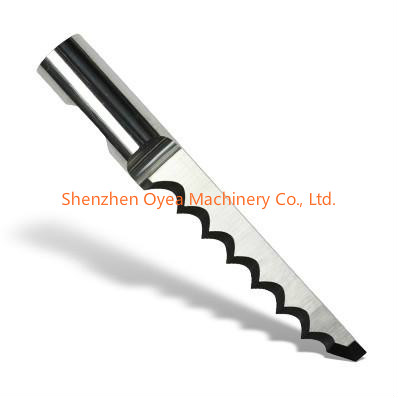

SUMMA 500-9833 500-0833 POT Flat Point Knife blades L27 T1.0 For Summa F Series Routing System

SUMMA 500-9833,SUMMA 500-0833,SUMMA POT Knife,SUMMA POT blades,SUMMA Point Knife,SUMMA Point blades,SUMMA Flat Knife,SUMMA Flat blades,SUMMA blade

Summa 500-9833 is Carbide serrated vibrating insert (POT Knife Serrated L27 T1.0) specifically designed for use with Summa F series flatbed CNC cutting machines .In everyday industrial processing, it is often referred to as a pneumatic vibration tool (POT) flat-head saw blade, and its corresponding compatibility or factory code is often 500-0833 .

The detailed technical specifications and core application indicators of this blade model are as follows:

Core physical parameters

Official full name : Summa POT Knife Serrated L27 T1.0

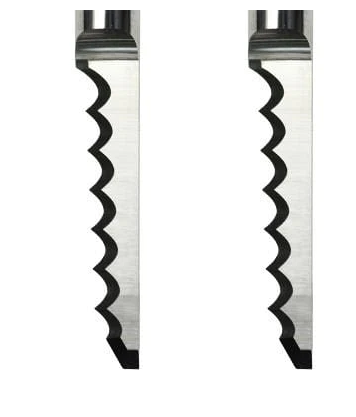

Blade design : Serrated edge + Flat point . The serrated edge can more efficiently cut and disperse porous and fibrous materials under high-frequency air vibration.

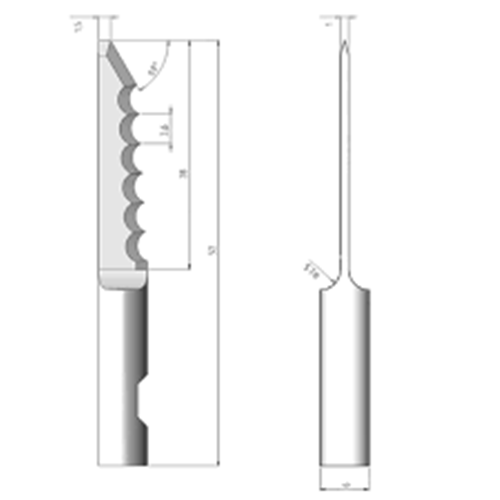

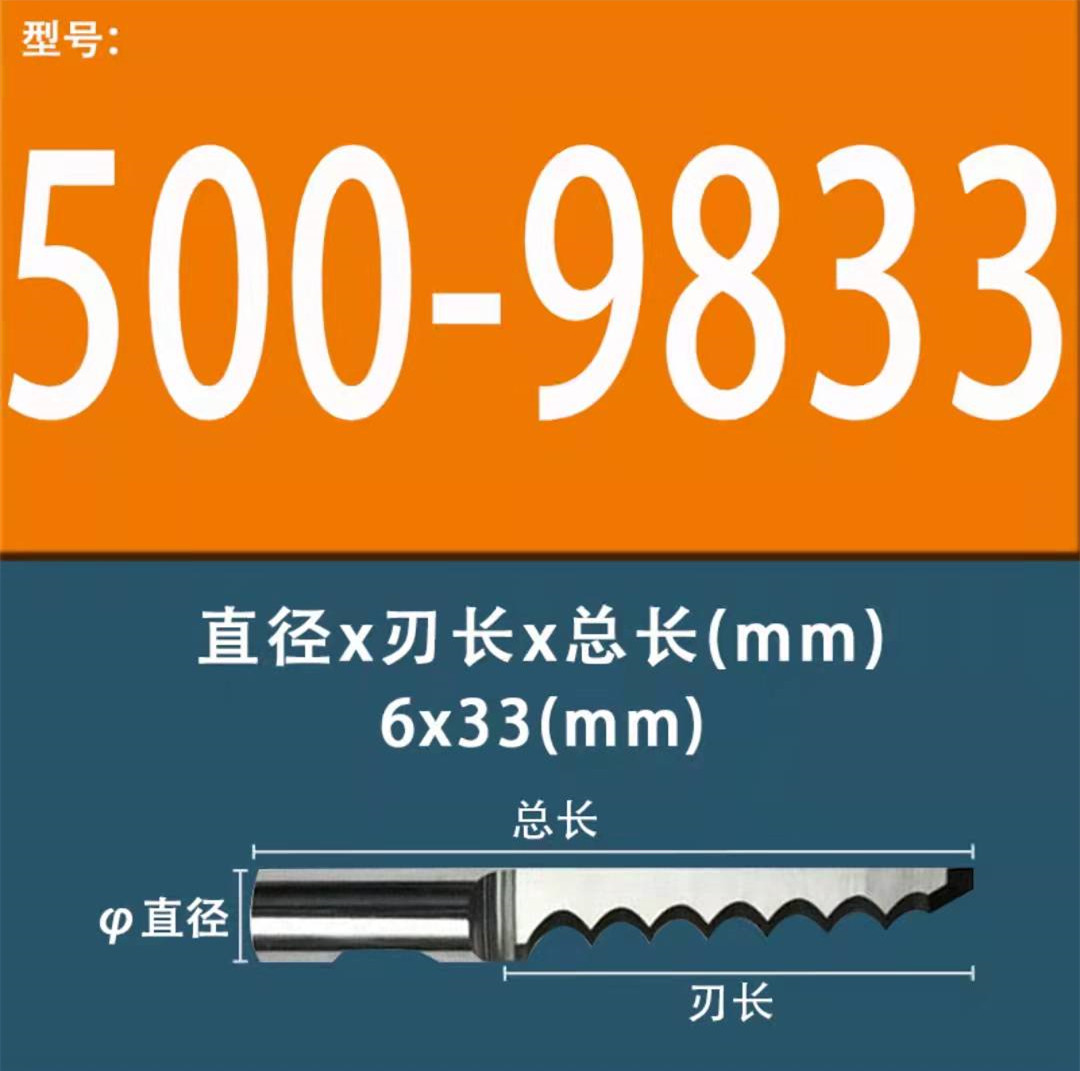

Physical dimensions :

Blade length (L) : 27 mm
Blade thickness (T) : 1.0 mm (with enhanced bending and torsional rigidity)
Handle diameter : 6 mm (round handle)

Maximum machining thickness : 25 mm (approximately 1 inch)
Drive tool requirements : Must be mounted on a Summa Pneumatic Vibration Tool Module (POT) with a drive stroke of 8 mm and a high-frequency operating frequency of up to 150 Hz.

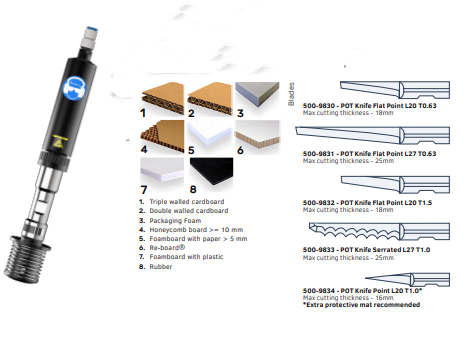

Core Applicable Materials

Utilizing the efficient cutting force of a serrated flat head, the 500-9833 is primarily designed for thick, multi-layered, or soft industrial packaging and advertising media.

Triple/ Double walled cardboard
Packaging cushioning foam and sponge (PE Foam / PU Sponge)
Heavy-duty honeycomb board (≥ 10 mm)
Rigid, environmentally friendly high-density cardboard (such as Re-board display panels)
Solid rubber composite foam board with paper/plastic side .

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
