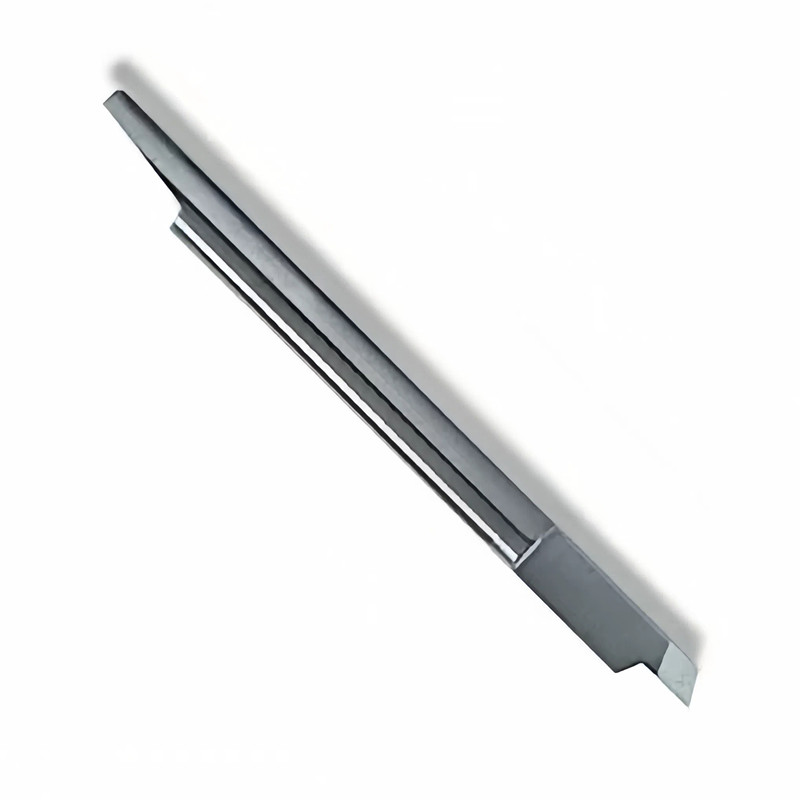

Summa 390-534 36°T-Series Tangential Cutter Knives Knife Blades

CHINA Summa 390-534 isa genuine, professional-grade 36° tangential cutting blade manufactured specifically for motorized tangential heads on Summa T-Series vinyl cutters and F-Series flatbed plotters Enquire now

Description

Summa 390-534 36°T-Series Tangential Cutter Knives Knife Blades

Summa 390-534,Summa T-Series Blades,Summa Tangential Blades,Summa Knives,Summa Cutter Blades,Summa Blades

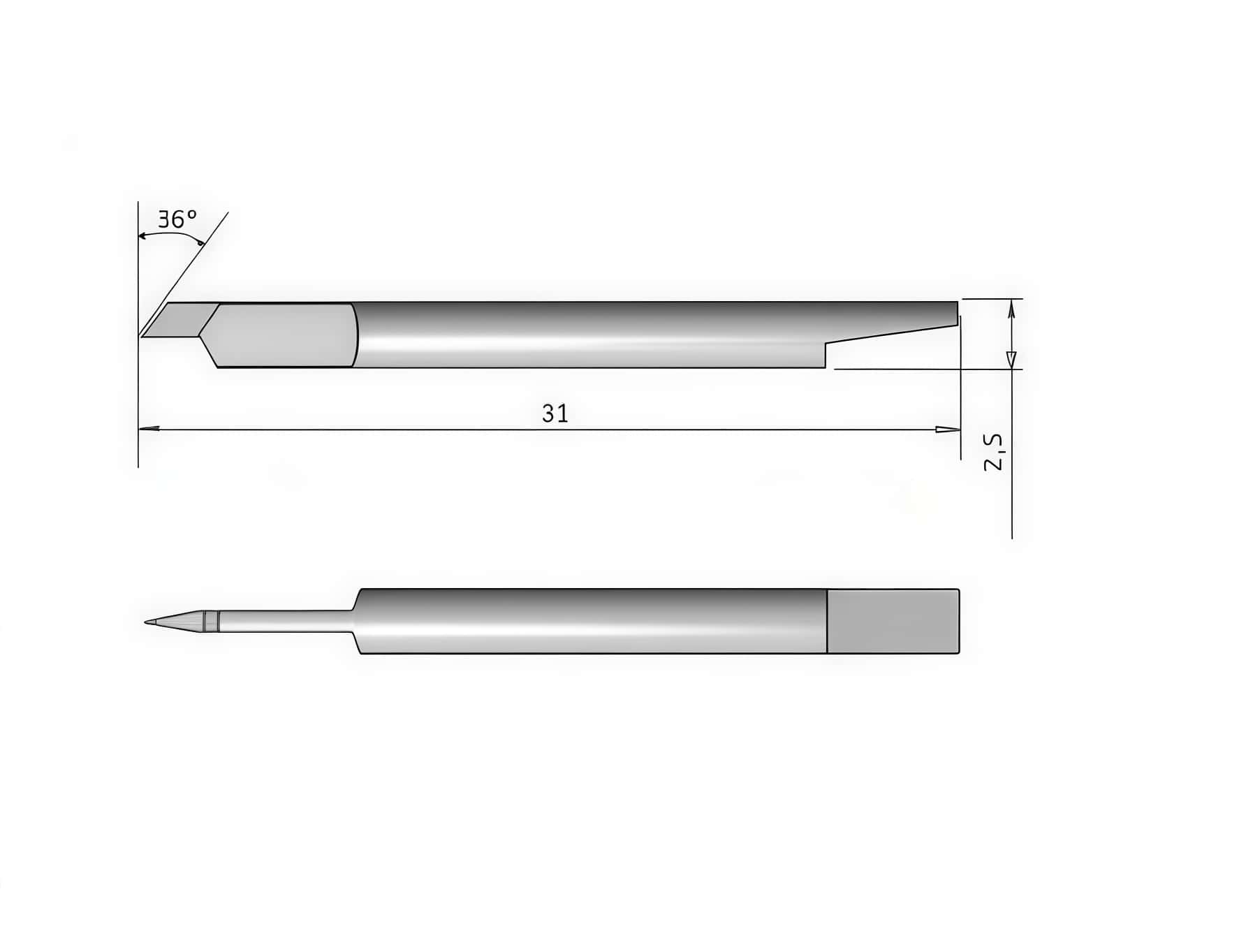

Technical Specifications

Part Number : 390-534
Cutting Angle : 36°
Blade Diameter : 2.5 mm
Blade Length : 31 mm
Max Cutting Depth : 0.010″ (0.25 mm)
Matching Guide Cap : Silver Nose Piece

Machine Compatibility

This blade requires an active, motorized tangential module. It will not fit or function in standard D-Series drag knife holders. It is fully compatible with:

S Class & S Class 2 T-Series (S75T, S120T, S140T, S160T)
S One T-Series roll plotters
F-Series Flatbed Cutters (Tangential Module)
Legacy SummaSign Pro T-Series

Compatible with: ITC BDR-S36T 36° Tangential Knife

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
