Aristo 7180,000007180,0000 07180 Cutter Round Shank Shaft knife Blades FOR Aristo Cutting Systems

The Aristo 7180 (also listed as 000007180 or 0000 07180) is a precision, low-profile tungsten carbide oscillating knife blade designed for CNC digital cutting tables. Enquire now

Description

Aristo 7180,000007180,0000 07180 Cutter Round Shank Shaft knife Blade FOR Aristo Cutting Systems

Aristo 7180,Aristo 000007180 Blade,Aristo 000007180,Aristo Blade,Aristo 07180,ARISTO Cutter Blade

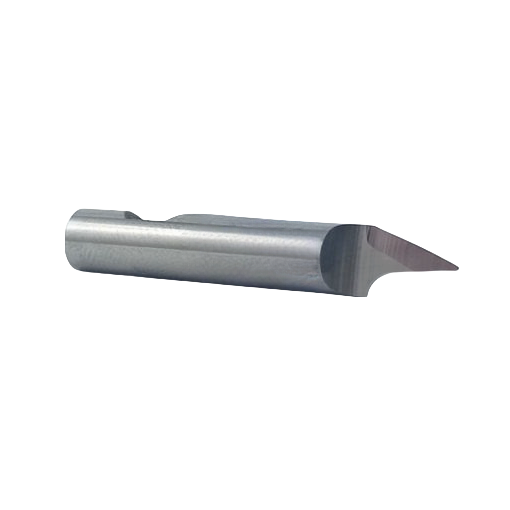

The Aristo 7180 (also listed as 000007180 or 0000 07180) is a precision, low-profile tungsten carbide oscillating knife blade designed for CNC digital cutting tables.

Unlike deeper cutting blades in the Aristo lineup (such as the 7354 or 7394), the 7180 is explicitly engineered with a short cutting profile and an enlarged wedge angle. This specialized shape drastically increases blade stability, giving it high structural resistance against micro-chipping or "breaking out" when slicing through tough, compressed materials.

Key Technical Specifications

Shank Diameter: 6.0 mm (Standard high-rigidity cylindrical round shaft)
Maximum Cutting Depth: 5.0 mm (approx. 0.20 inches)
Blade Geometry: Single-edged with an additional ground tip to maximize precision feed speeds depending on the material density.
Special Design Feature: A wider, reinforced wedge angle along the cutting edge that reduces tool deflection and breakout risks.
Material Composition: 100% Solid Virgin Tungsten Steel / Carbide.

Target Material Applications

Because of its short, rigid profile, this blade is the industry go-to for tough, shallow-depth materials that cause thinner blades to bend or shatter:

Gaskets & Seals: Compressed non-asbestos gaskets, heavy rubber, neoprene sheet, and industrial seals.
Rigid Signage & Packaging: Thin solid carton, multi-wall corrugated cardboard, magnetic foils, and paper-faced foam boards.
Soft Foams: Low-density plastic packaging materials and soft foam insulation sheets.

Equivalent to: Aristo 7275, Aristo 000007275, Aristo 0000 07275, Aristo 0000 07180, Aristo 000007180, Aristo 7180, MultiCam K2 84-00193-BT-57275, AXYZ B1041L-6
