ARISTO 7264,000007264,0000 07264 Cutter Knife Blade For Sale Service Shop

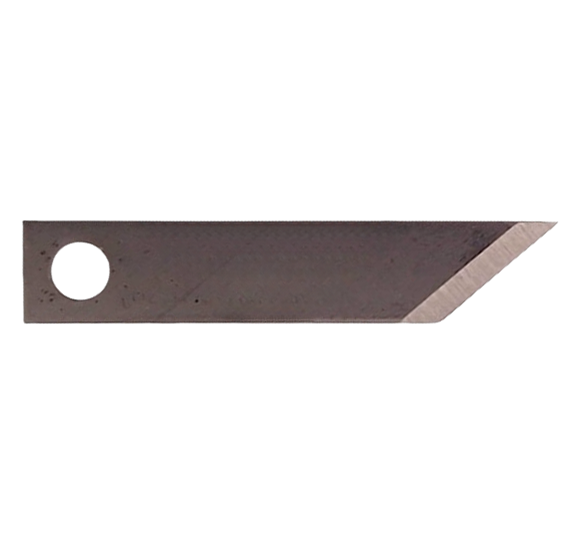

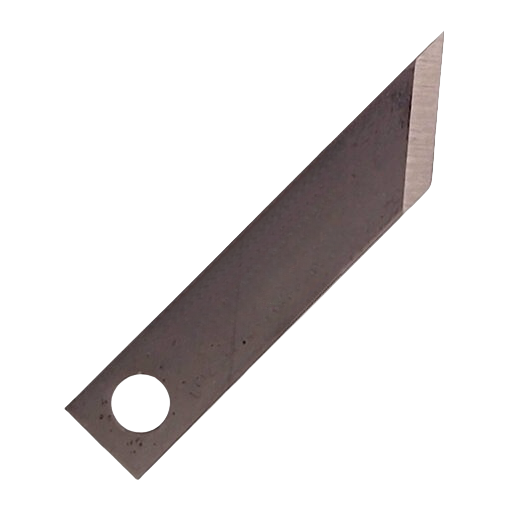

The Aristo 7264 (also cataloged as 000007264, 0000 07264, or HTZ-T06) is a flat-shank digital cutter blade designed specifically for CNC automated cutting systems. It functions primarily as a high-precision oscillating or drag knife blade to cut thin, flexible industrial materials. Enquire now

Description

ARISTO 7264,000007264,0000 07264 Cutter Knife Blade no.784 For Sale Service Shop

Aristo 000007264 Blade,Aristo 000007264,Aristo Blade,ARISTO Cutter Blade,Aristo 7264,Aristo 0000 07264,Aristo 000007264 Knife,Aristo Blade

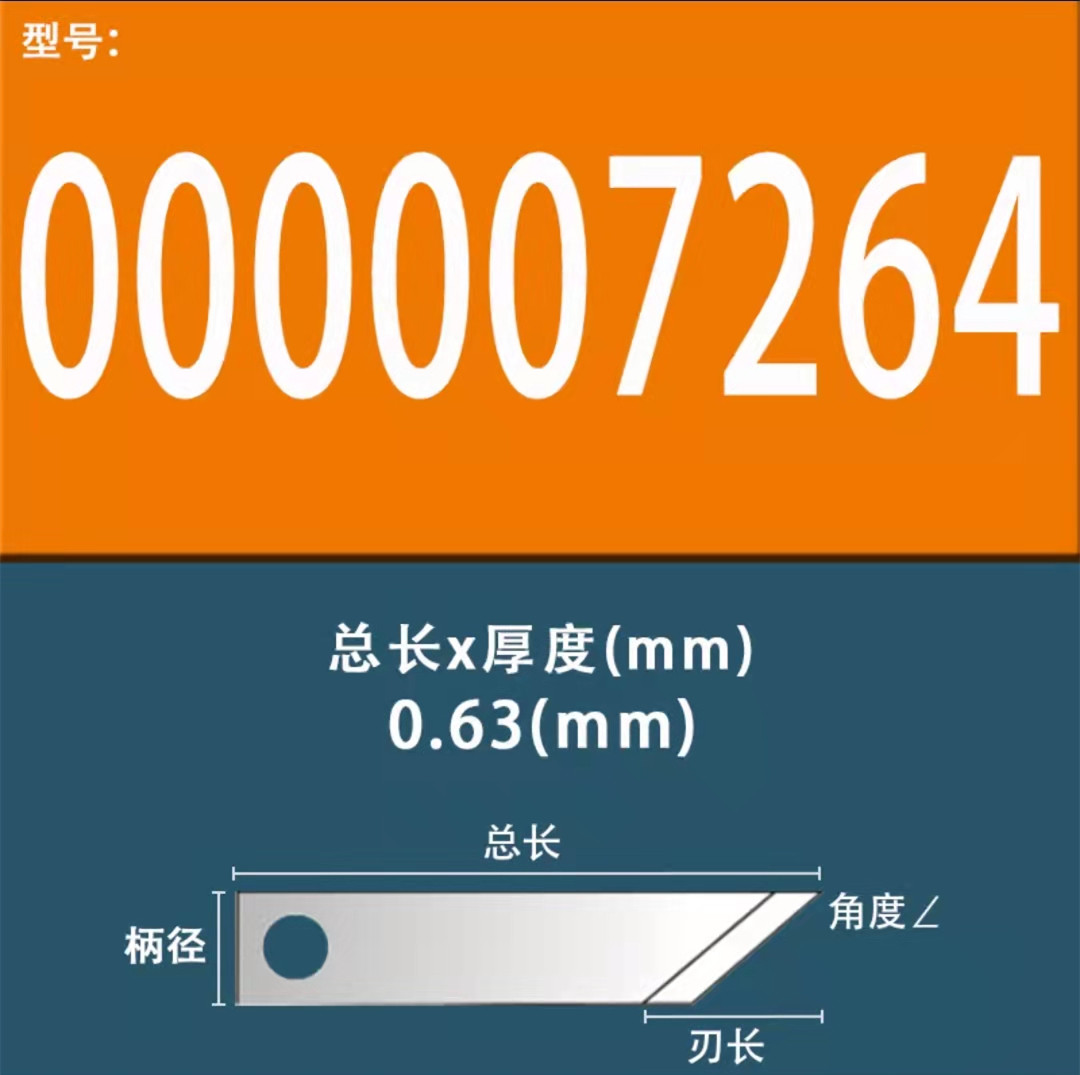

ANGLE
50°
KNIFE HEIGHT
28,5 mm
KNIFE WIDTH
5,60 mm

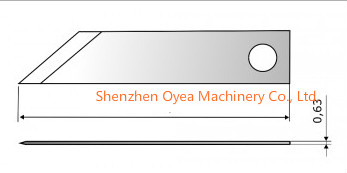

THICKNESS
0,63 mm
Max. cutting depth: 6.5 mm
Knife thickness: 0.63 mm
Knife material: HSS

Machine Compatibility

This blade is fully compatible with Aristo automated cutters utilizing the following tool heads:

Supported Materials

The blade is engineered to provide minimal overcut on intricate shapes. It is frequently used to cut:

Solid cardboard and folding cartons
Canvas, polyester, and woven fabrics
Magnetic foils and polycarbonate sheets
Industrial carpets and plastics (PC/PP)

Suitable for machine manufacturer:
Zund Type 6 3910310 Oscillating blade - pointed Starleaton,Aristo Oscillating blade 7264,000007264,0000 07264 no.784,Esko Kongsberg G42423848 42423848 BLD-SF210

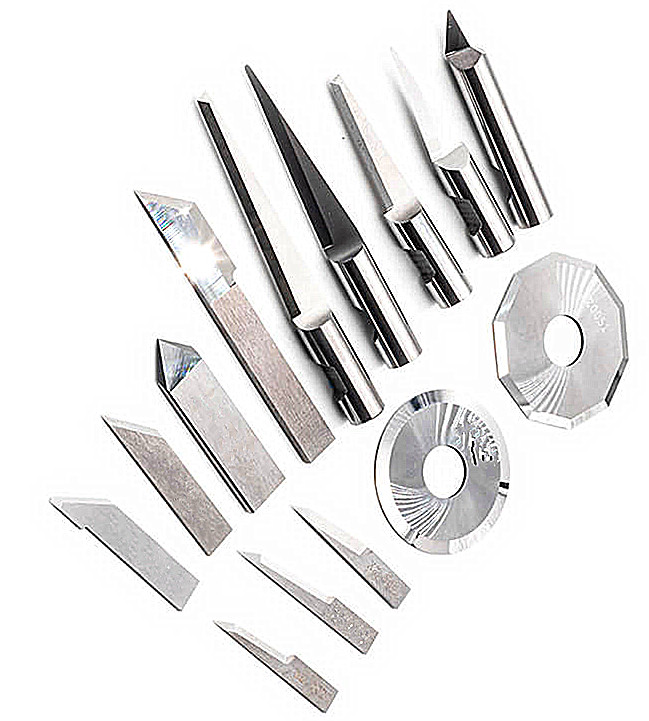

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
