Zund digital cutting systems (such as the G3, S3, D3, and Q-Line), cutting and routing underlays are critical consumables. They protect the machine's vacuum bed, optimize airflow, secure the substrate, and directly impact edge quality. Choosing the right mat depends entirely on whether you are using knife tools (oscillating/drag) or mechanical router spindles.


Zund digital cutting systems require specialized cutting and routing underlays (also called protection carpets, cling mats, or conveyor/static surfaces) to maintain vacuum hold-down efficiency, protect the machine bed, and absorb knife or router passes.

Key Functions of Zund Underlays

• Vacuum Hold-Down: Engineered with controlled air permeability and high air transmission levels to ensure sheet and roll materials stay firmly anchored via vacuum suction.
• Blade Protection: Provides high cut-resistance and abrasion resistance to prevent damage to the underlying flatbed table while extending blade or router bit longevity.
• Material Stability: Features non-slip surfaces and low elongation to prevent shifting during high-speed multi-tool operations.

Common Underlay Types & Compatibility

• Polyurethane (PU) & High-Density PVC/Foam Underlays: Standard durable surfaces designed for Zund G3, S3, and D3 flatbed systems, supporting tools like electric oscillating tools (EOT), pneumatic tools (POT), and high-speed routing modules.
• Latex-Impregnated / Special Fabric Carpets (e.g., TW-A4, TY-L4 styles): Tailored for large-format systems (such as G3 3XL-2500 or 3XL-3200) to maximize airflow and grip.

High Quality Cutting underlay for static cutters. Specially developed for a high quality cutting and accuracy exigencies, offer a high air transmission level, a strong grip coefficient and a optimum resistance to the cut long life. Specially recommended for an intensive productive activity.

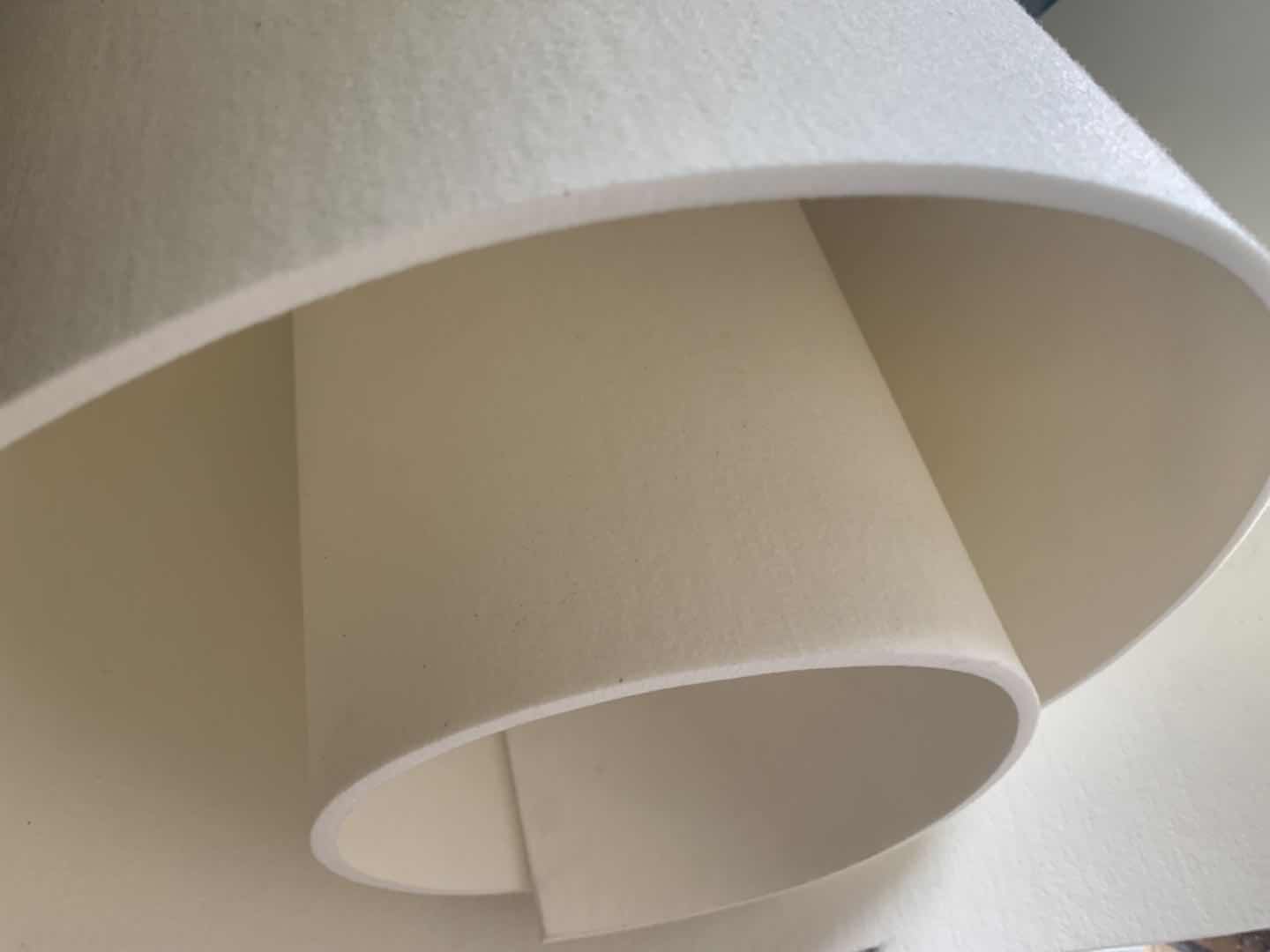

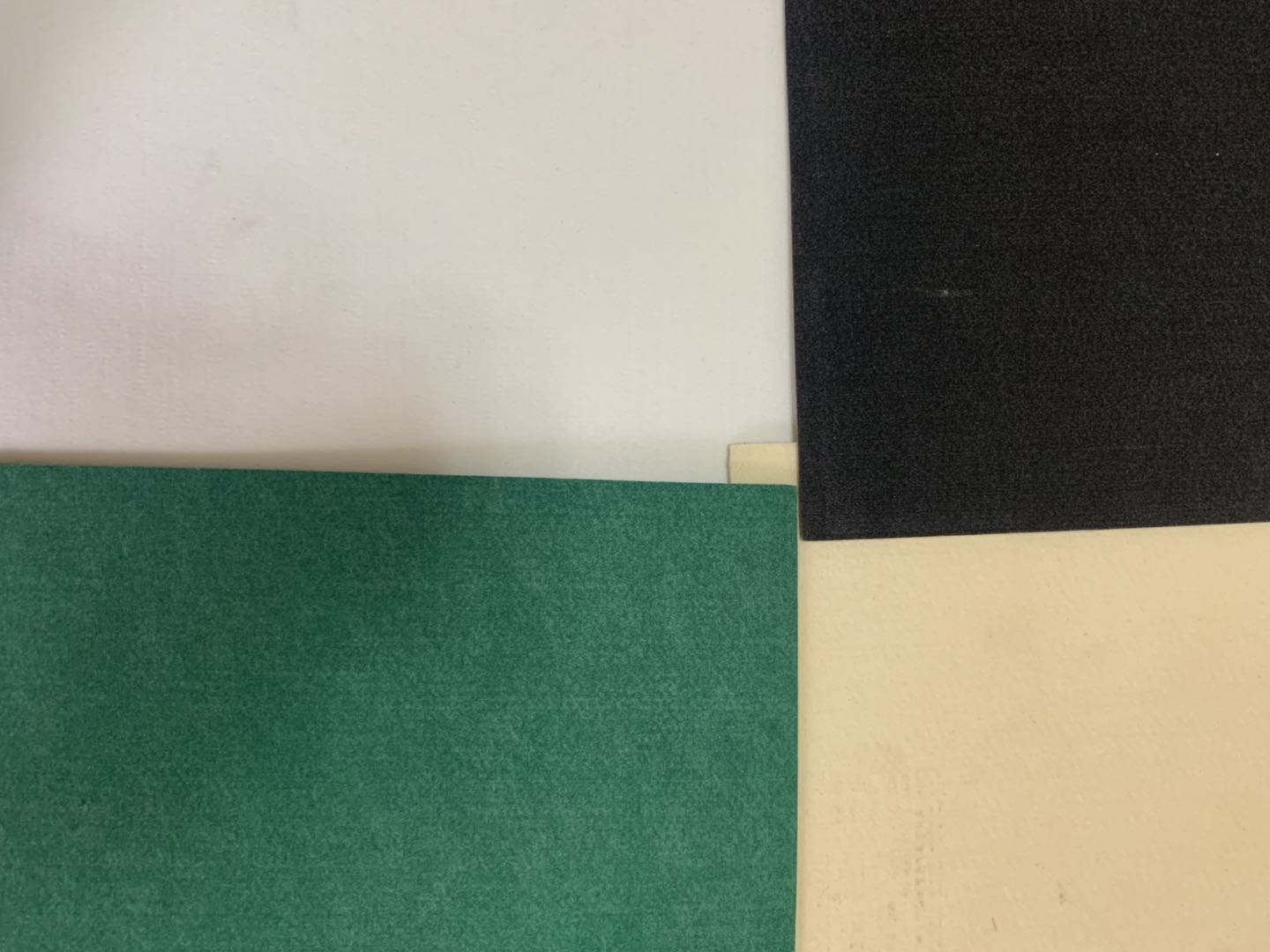

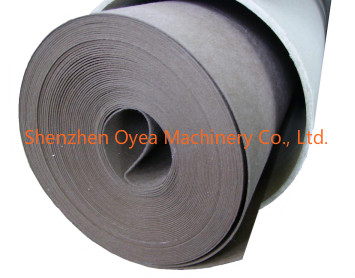

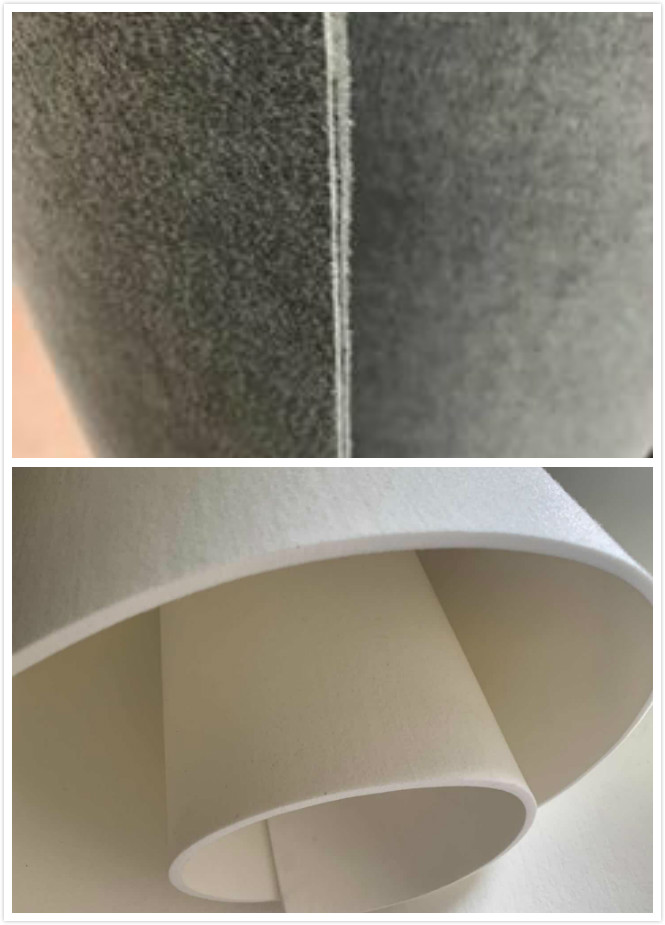

We offer different cutting underlays starting from 4,0 mm (Vidon brown/grey / black). Protecting tools and cutter surface. From the roll or cut to size if needed.Some are available as endless rolls with a with of 160 cm or 150 / 120/105 cm x 100meter length. This can save you lots from cutting to shipping cost.

If you are not sure which type of material you need, please send us your sample material. ASK FOR YOUR FREE SAMPLE. Shipping and sampling is free of charge worldwide for you to compare.

Conveyorband can be offered for your own installation or with our service. EXACT size in mm is required to verify proper size.
