Gerber Multi-Ply Cutting Systems 87203001 Industrial Solid Carbide Reciprocating Blades

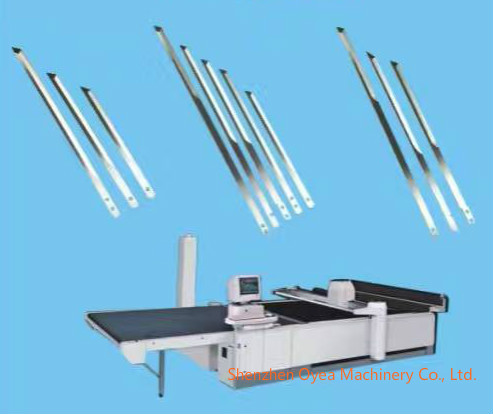

Gerber Technology Part Number 87203001is an ultra-premium, reciprocating industrial knife blade engineered for high-ply automated CNC textile cutting systems, specifically optimized for the Gerber GT5250, S5200 , and G-93 High-Ply Cutters (HPC) Enquire now

Description

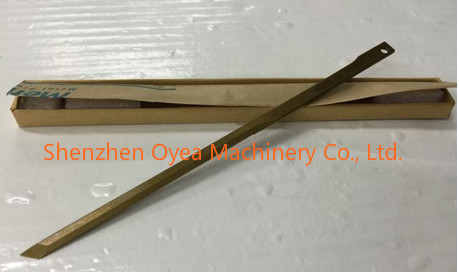

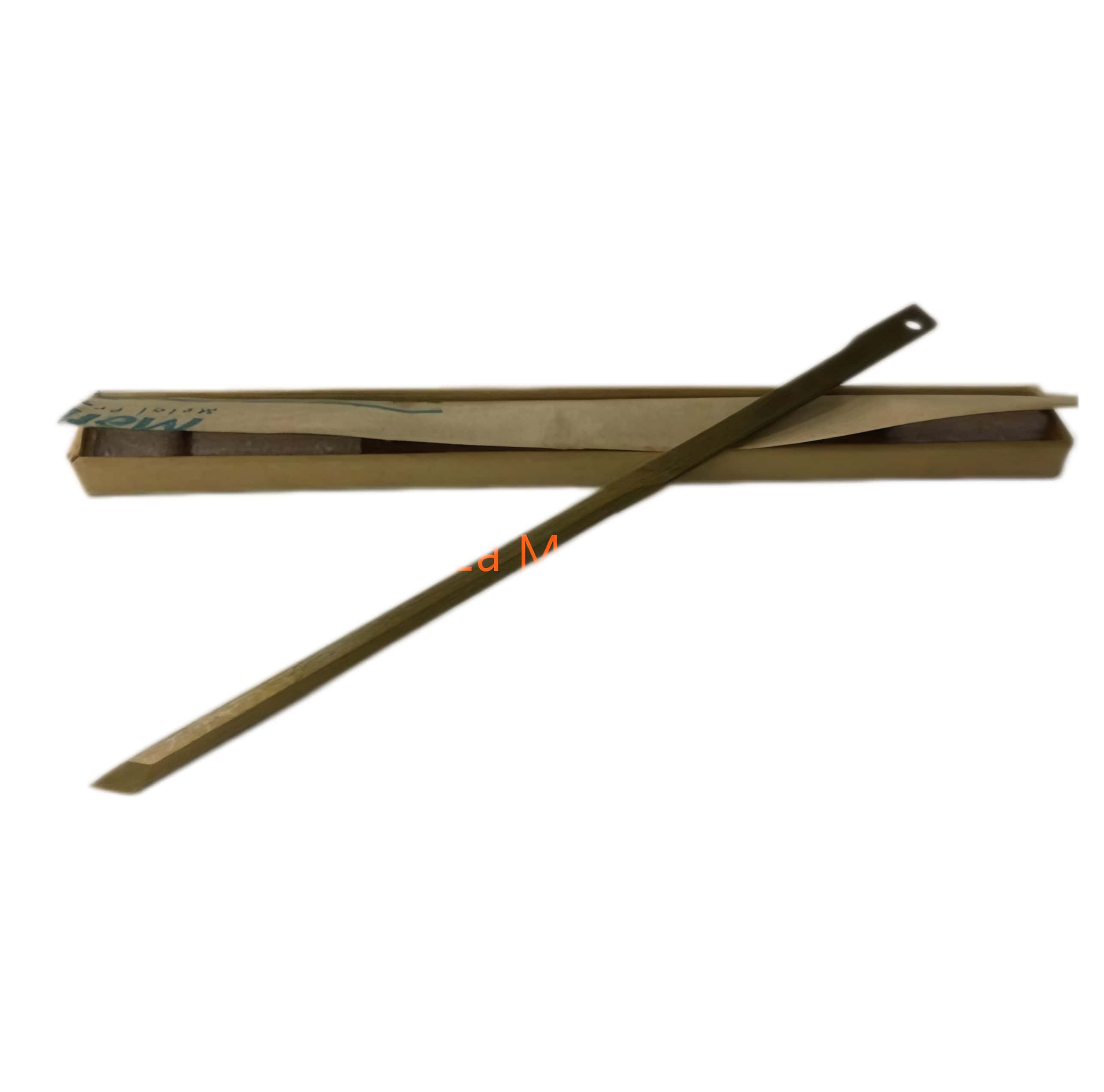

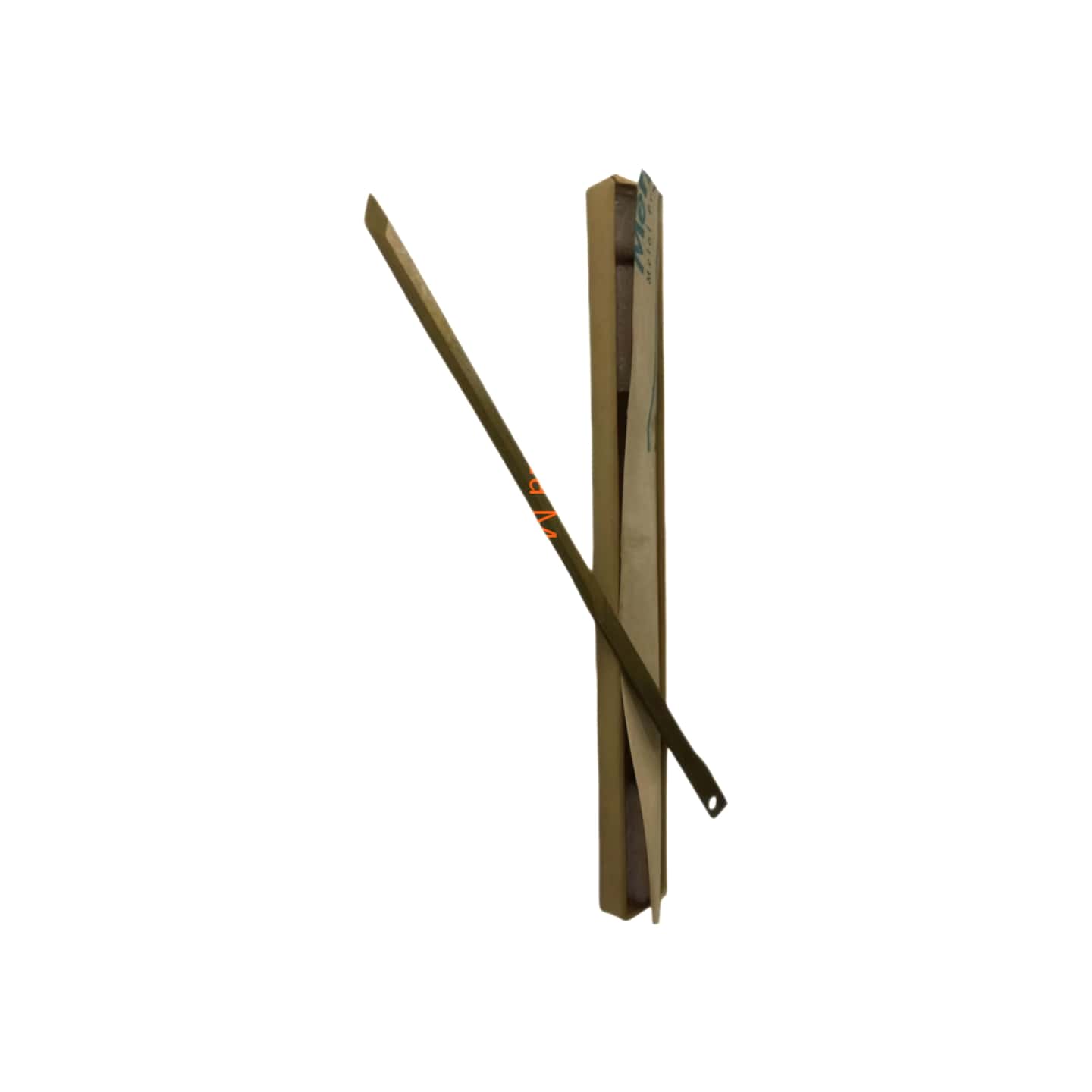

Gerber Multi-Ply Cutting Systems 87203001 Industrial Solid Carbide Reciprocating Cutting Blades

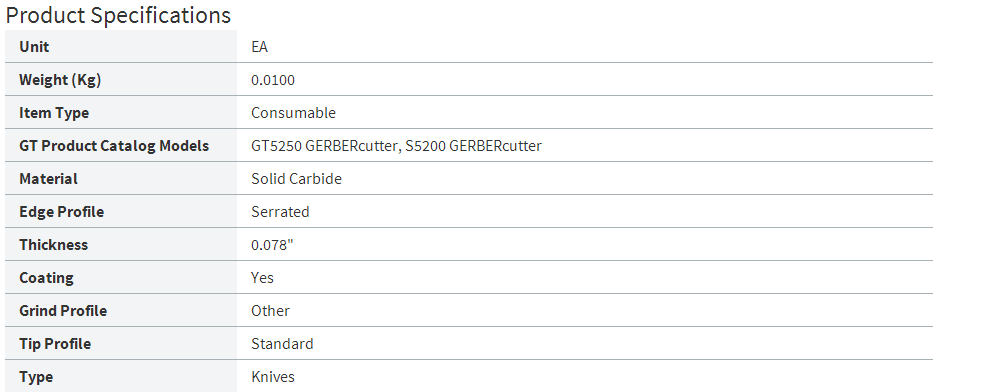

Technical Specifications

Part Number / SKU : 87203001
Compatible Machinery : Gerber GT5250, S5200, and G-93 High-Ply Cutters (HPC)
Blade thickness : 0.078 inches (approx. 1.98 mm)
Base Material : Solid Tungsten Carbide (CARBIDE)
Edge Profile : Serrated Edge
Surface Coating : Titanium Nitride (TiN Coated)

Material Properties & Performance Benefits

Solid Tungsten Carbide Base : Provides maximum structural rigidity compared to standard M2 high-speed steel blades. It eliminates blade deflection, bowing, or bending during rapid, high-stroke reciprocating directional changes, ensuring top-ply to bottom-ply cutting symmetry.
Serrated Edge Configuration : Designed to saw through dense, tough, or slick multi-layered materials rather than simply slicing. This prevents fabric "pushing" ahead of the knife stroke and eliminates fused or frayed edges when processing heavy synthetics.
Titanium Nitride (TiN) Shielding : The gold-colored TiN treatment significantly hardens the blade surface and acts as a vital thermal barrier. It vastly minimizes heat transfer to synthetic fabrics, prevents melted plastic or adhesive buildup on the blade face, and increases overall service life by up to 300% to 400% over uncoated steel.

High-Volume Manufacturing Applications

Industrial data from blade manufacturing networks like Oyea Machinery lists this specific carbide blade combination for high-demand, abrasive composite and textile applications:

High-Ply Apparel : Fast, mass-scale cutting of dense stacks of denim, canvas, or tight-weave tactical nylon.
Automotive & Aerospace : Processing stacked layers of heavy synthetic leather, multi-ply fiber insulation, and cabin technical felts.
Industrial Textiles : Multi-layer vinyl, heavy-duty tarpaulins, and coated composite backing sheets.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM cutting knives and blades. All of our standard cutting knives are manufactured to exceed the exact OEM standards.
