Mimaki Spb-0031 Carbide Both Knife Blades For Mimaki Cf-T Series Flatbed Cutter Supply Product

Mimaki Carbide both blades,Mimaki blades,Mimaki SPB-0031,SPB-0031,Mimaki Carbide both blades SPB-0031

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM … Enquire now

Description

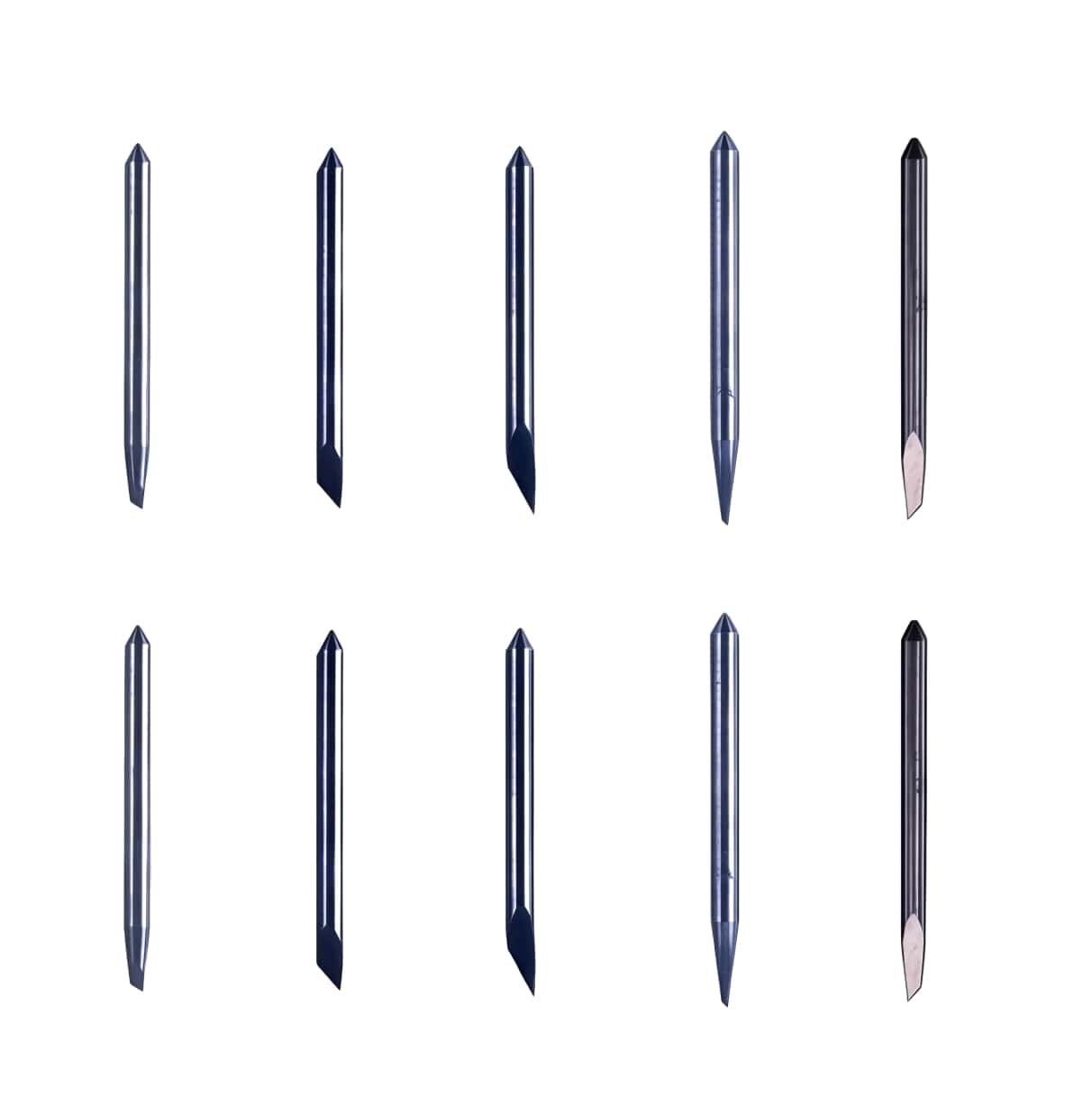

Mimaki Spb-0031 Carbide Both Knife Blades For Mimaki Cf-T Series Flatbed Cutter Supply Product

The Mimaki SPB-0031 is a specialized pair of carbide "both" blades designed primarily for high-precision industrial cutting on flatbed systems. Unlike standard swivel blades used for vinyl, these are typically employed in tangential cutting units for thicker or more demanding materials.

Technical Specifications
Part Number: SPB-0031
Material: Cemented Carbide (Tungsten)
Blade Type: "Both blades" (likely meaning double-edged or a matched pair for specific cutting heads)
Media Thickness: Designed for materials up to 3mm thick
Quantity: Usually sold as a 2-piece set

Primary Applications
These blades are specifically developed for joint sheets and other relatively hard substrates.

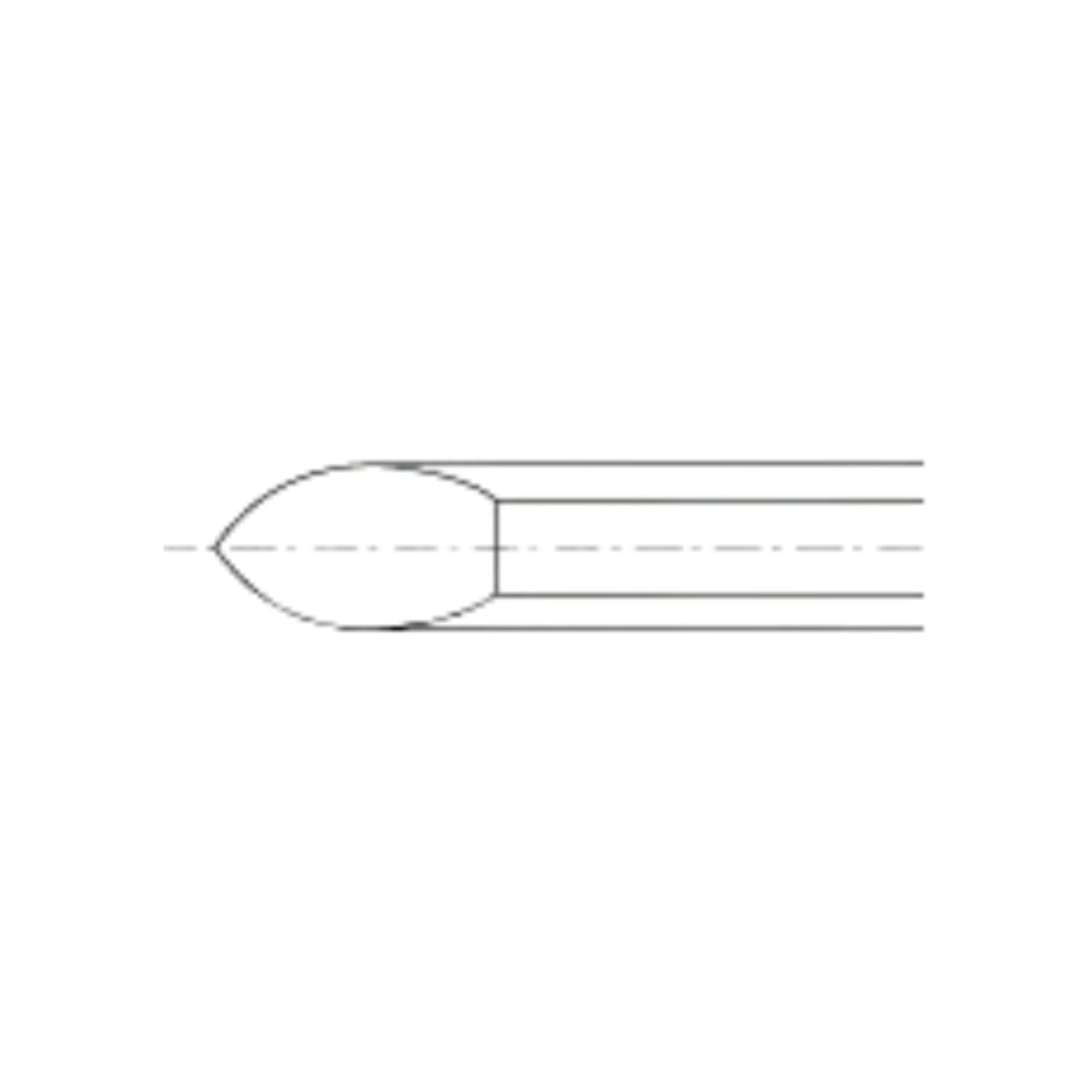

High Accuracy: The blade features a φ3mm rod-shaped edge which reduces deflection, making it suitable for thin materials that require extremely precise cuts.
Specialty Materials: Often used for joint sheets, fluorine-contained resins, and hard gaskets.

Machine Compatibility
The SPB-0031 is primarily used with Mimaki flatbed cutters and CNC systems rather than standard roll-fed vinyl cutters. Supported models include:

CF Series: CF-60T, CF-120T, CF-150T
CF2 Series: RC, RT, T, TD, and TF variants (e.g., CF2-0912, CF2-1215, CF2-1218)
CF3 Series: CF3-1610, CF3-1631
Specialty Units: CFR-1220, CFS-1313, and CF22-1225 models
