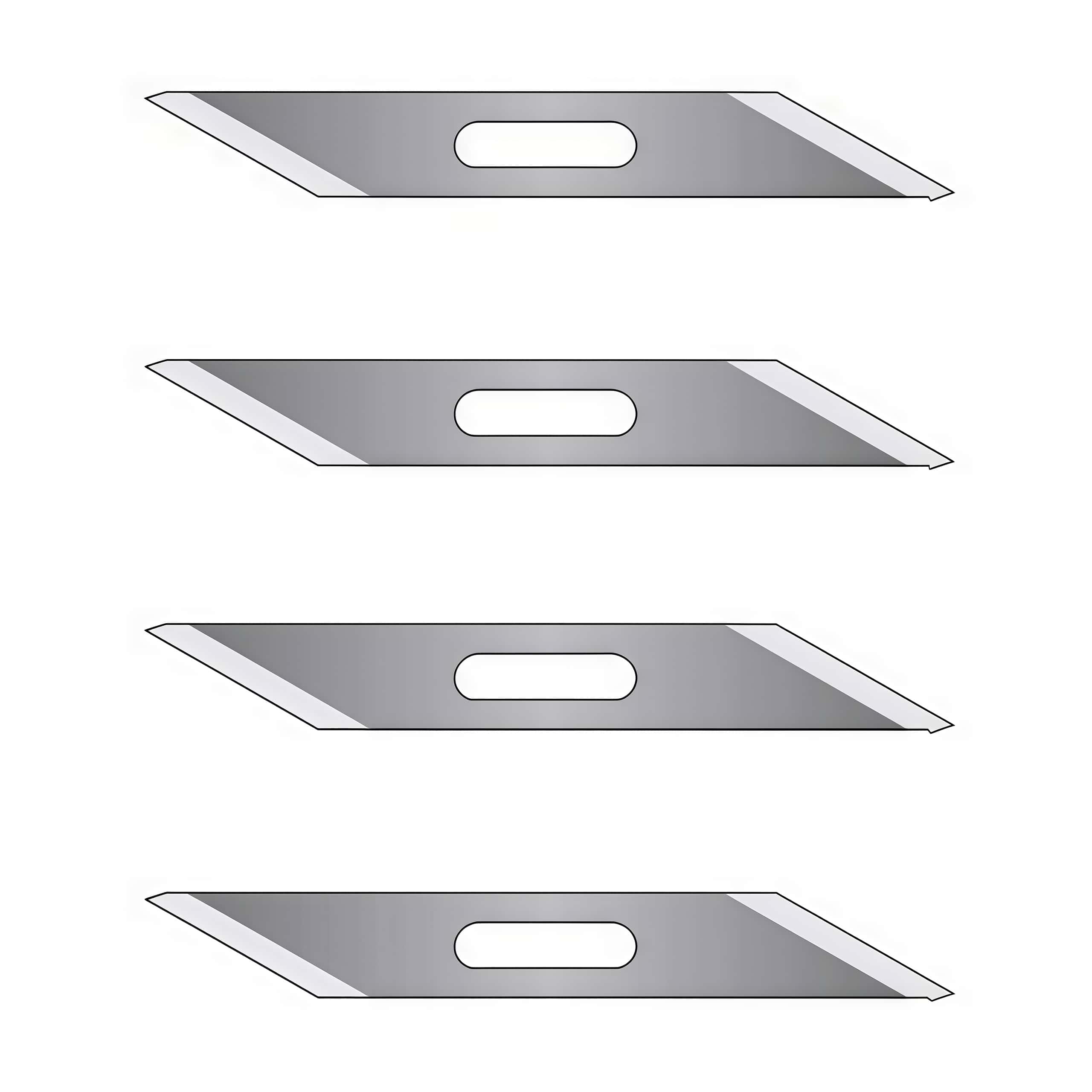

Key Specifications & Technical Features

• Blade Material: High-Speed Steel (HSS)

• Cutting Angle: 30°

• Maximum Cutting Depth/Media Thickness: Up to 7 mm

• Blade Length/Size: 7mm rod edge



Best Used For

This specific blade is engineered to handle thicker, softer, and more flexible materials that require a deep, clean slice without tearing. Common applications include:

• Natural and industrial rubber

• Rubber cork and composite leather

• Thick PVC and Polyethylene films

• Felt, canvas, softron, and neo sponge



Machine Compatibility

The SPB-0048 blade is compatible with Mimaki flatbed cutters utilizing specific tangential or eccentric cutter holders (such as Cutter Holder 7N or RN), including:

• CF Series / CF-T Series: CF-60T, CF-120T, CF-150T

• CF2 Series: CF2-0912, CF2-1215, CF2-1218 (including RC, RT, T, TD, and TF variants)

• CF3 Series: CF3-1610, CF3-1631

• CF22 Series: CF22-1225

• CFR/CFS Series: CFR-1220, CFS-1313



Alternative Blades for Mimaki Flatbed Cutters

If you are cutting different types of materials or require more durability on rigid substrates, you may want to consider alternative part numbers designed for the same machine families:

• For Harder Materials: The Mimaki SPB-0045 Carbide Blade 30° handles materials up to 5mm thick. Because it is made of solid carbide rather than high-speed steel, it offers much higher wear resistance against tough, dense media.

• For Intricate Intensions & Clean Vinyl Cutting: If you are working on standard vinyl adhesive sheets instead of thick 7mm foam or rubber, the standard Mimaki Swivel Blades or alternative high-speed tangential options like the SPB-0043 30° Blade Pack are ideal for shallower, more intricate craft cuts.
