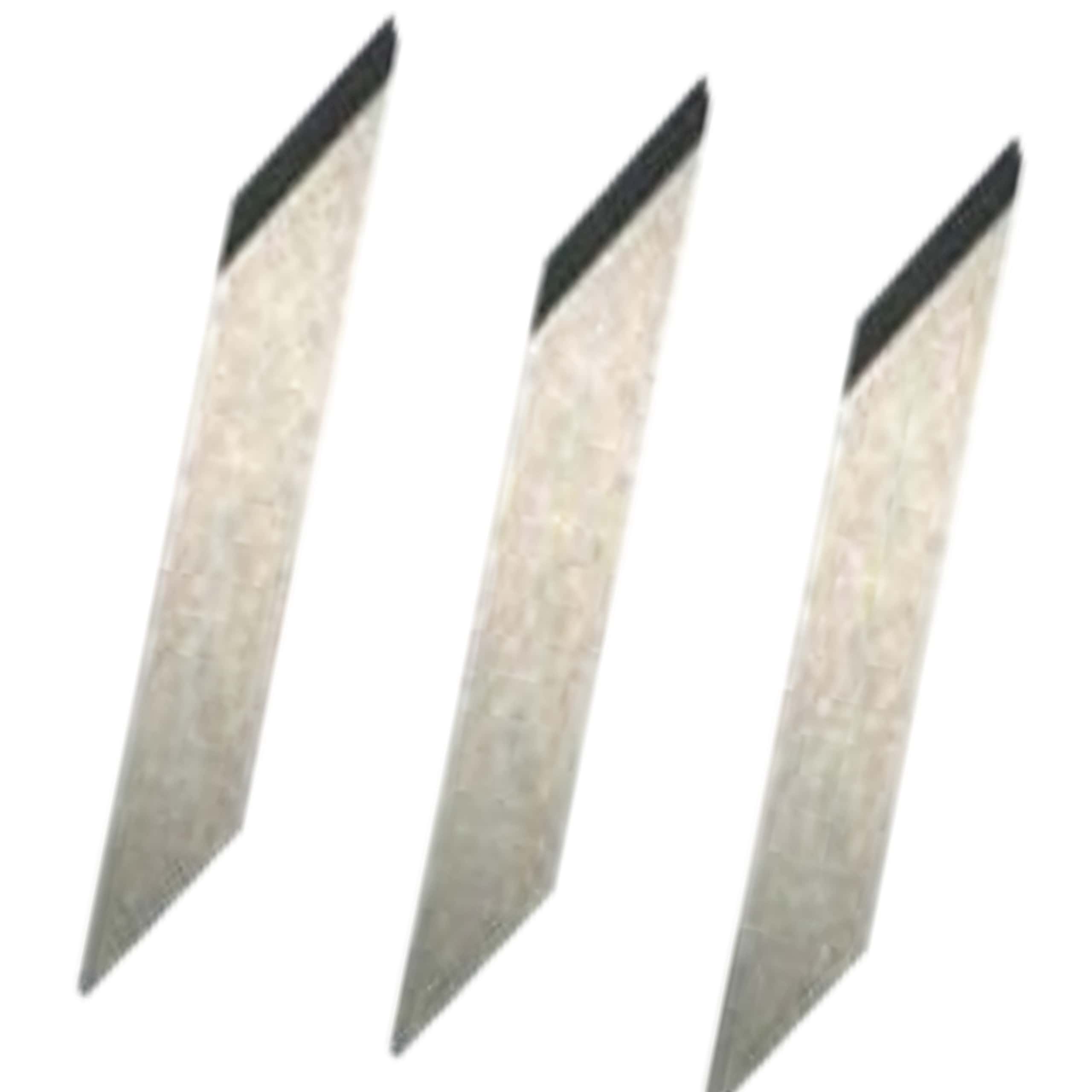

The Mimaki SPB-0051  is a high-performance 30° Carbide Design Blade engineered specifically for heavy-duty applications on industrial flatbed cutters. Unlike standard swivel blades used for vinyl, these are rigid, rod-shaped blades designed to maintain precision when slicing through thick or abrasive materials.

Key Specifications

· Angle: 30°.

· Material: Tungsten Carbide for superior edge retention and durability.

· Design: Features a 3mm rod-shaped edge, which significantly reduces blade deflection during high-pressure cuts, ensuring better accuracy for intricate designs.

· Typical Quantity: Usually sold in packs of 3.

·

Compatibility & Use Cases

The SPB-0051 is primarily compatible with Mimaki CF and CF2 series flatbed cutters, including models like the CFR-1220 and CFS-1313.

Installation & Maintenance

Setting up these blades requires careful handling due to their sharpness and specialized holders:

· Blade Holder: They are typically used with dedicated holders for flatbed systems. To install, you usually unscrew the holder cap, insert the blade with the tip facing outward, and secure the cap back on.

· Depth Adjustment: The amount of blade protrusion is critical; it should only be enough to penetrate the material slightly to extend blade life and prevent damage to the cutting mat.

· Replacement Signs: Replace the blade if you notice jagged edges on cuts, if the material begins to "bunch up" during cutting, or if the tip is visibly chipped.
