Mimaki Spb-0067 End Mill For Resin For Sales Parts

Mimaki SPB-0067 End Mill for Resin is an official, factory-certified solid carbide milling bit engineered for the milling heads on Mimaki flatbed cutting plotters. It is specifically designed to route, profile, and cut through dense plastic resins without melting the material or leaving heavy burrs … Enquire now

Description

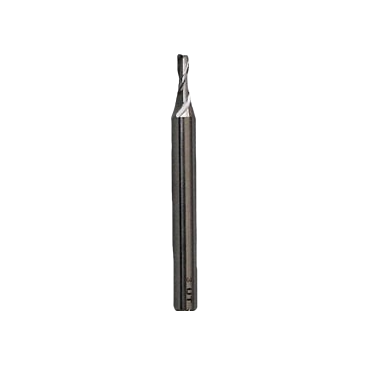

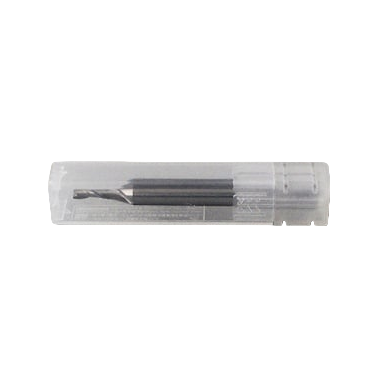

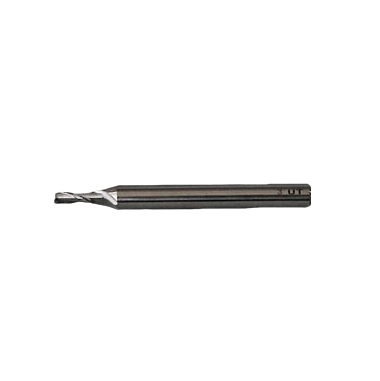

Mimaki SPB-0067 End mill for resin

Technical Specifications

Part Number: SPB-0067 (Internal Mimaki Factory Code: A102174).
Dimensions: 3mm diameter × 9mm cut length (3*9L).
Material: Premium solid micrograin carbide optimized for high heat-resistance when cutting polymer materials.

Target Machine Compatibility

The SPB-0067 is cross-compatible with several generations of ⁠Mimaki's flatbed cutting tables configured with a routing spindle module:

CFX Series: CFX-2513, CFX-2531, and CFX-2550.
CF3 Series: CF3-1610M and CF3-1631M (Specifically the "M" routing head models).

Optimal Material Applications

This specialized geometry clears out debris smoothly from the groove, making it highly effective for:

Engineering & Synthetic Resins: Polyoxymethylene (POM/Acetal), Nylon, and ABS.
Dense Signage Plastics: Rigid PVC, PETG, and polycarbonate sheets.
Composite Layering: Resin-infused decorative panels and structural casting plates.

Best Practices for Cutting Resin

Manage Heat Buildup: Resin melts easily if friction rises. Keep your feed rate high enough that the tool slices crisp chips rather than rubbing against the plastic.
Debris Clearance: Use an active vacuum shroud or a continuous air blast to prevent re-cutting loose resin chips, which can clog the flutes and snap the 3mm bit.
