Atom 01039900 Flashcut HV1600 Oscillating Knife Blades-Replacement Compatible Spare Parts

Atom 01039900 (also referenced across high-frequency HV1600 cutting systems)solid tungsten carbide (HM) oscillating blade designed for digital flatbed plotters. It features a 25° single-bevel edge profile for high linear cutting speeds, low resistance, and clean chip/edge contro Enquire now

Description

Atom Flashcut 25°/1 HV1600 Oscillating Knife Blade 01039900-Replacement Compatible Spare Parts

Atom 01039900 is high-performance carbide (tungsten carbide) vibrating blade designed specifically for ATOM Flashcut CNC digital cutting machines/vibrating knife cutting machines.It is specifically optimized for the fine and complex contour cutting of medium-thickness leather.

Core Technical Specifications

Product Model: 01039900 / Flashcut HV1600
Material and process: HV1600 cemented carbide (Tungsten Carbide) has extremely high wear resistance and hardness, ensuring edge cutting quality and ultra-long service life.

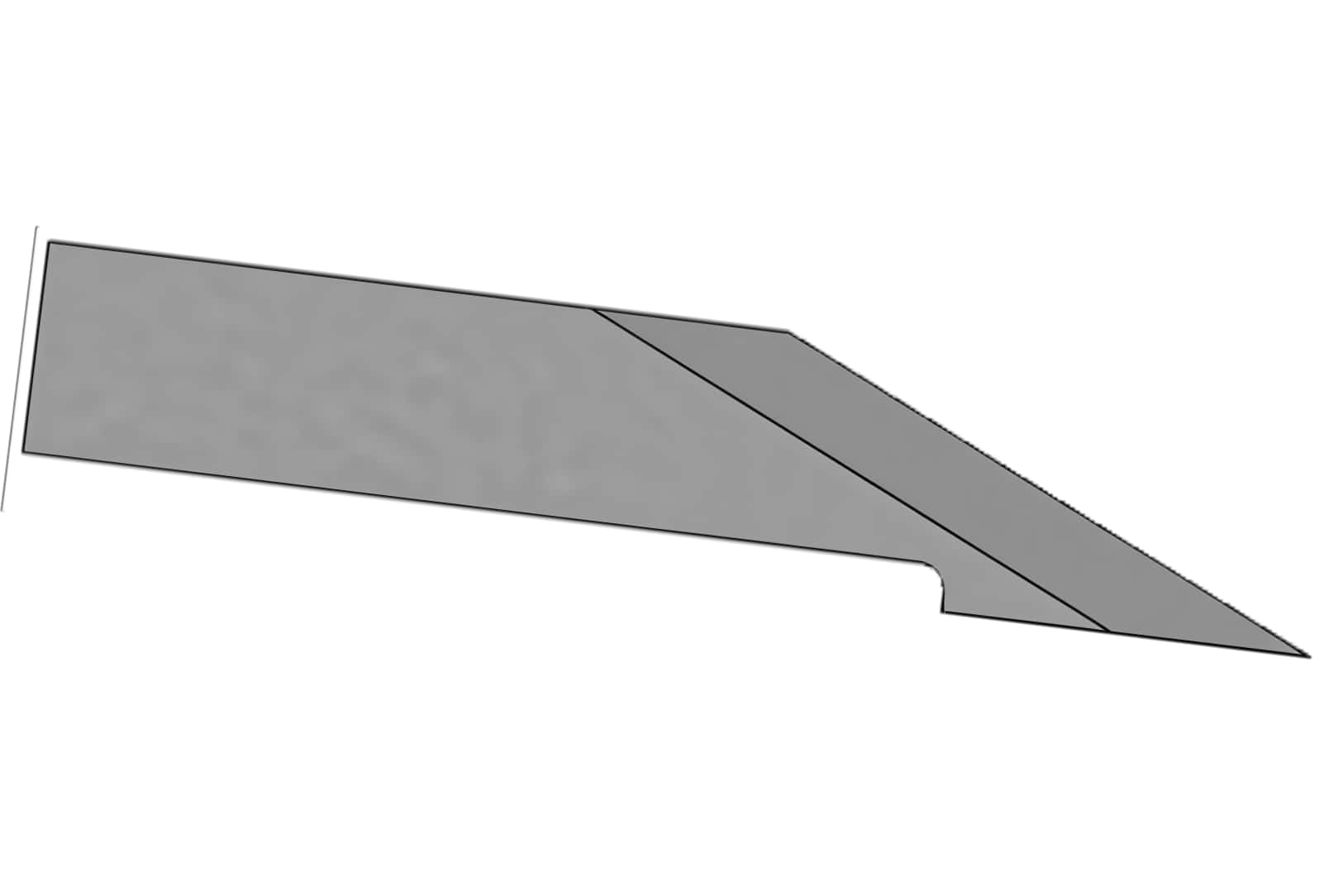

Blade tip angle: 25° / 1° (with an extremely narrow 1° tip side angle, designed for small radius corners and extremely fine detail cutting).
Maximum cutting depth: approximately 11 mm .
Blade thickness (shank): 0.64 mm (compatible with 0.63 mm flat-edged shanks).

Applicable Materials and Tools

Recommended materials: 1-3 mm thick leather (such as footwear, leather goods, bags and accessories, and car interiors).
Small radius capability: Optimized cutting performance with extremely small radius/micro-round corners of 1-2 mm , less prone to blade breakage and with a smooth cutting surface.
Compatible tool heads: Electric vibratory tools (EOT) and pneumatic vibratory tools (POT) for ATOM

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
