Atom 01060676 Flashcut Tungsten Carbide Decagonal (10-Sided) Rotary Knife Blades

Atom 01060676 IS A high-precision decagonal tungsten carbide rotary cutter insert designed specifically for the miniature electrically driven rotary tool head in the Atom FlashCut automated digital cutting system Enquire now

Description

Atom 01060676 Flashcut Tungsten Carbide Decagonal (10-Sided) Rotary Knife Blades

Atom 01060676 is a solid tungsten carbide, decagonal (10-sided) rotary knife blade designed for motorized driven rotary tool heads (such as the Powered Rotary Chuck / PRC) on automated CNC digital cutting systems, including the Atom FlashCut series.

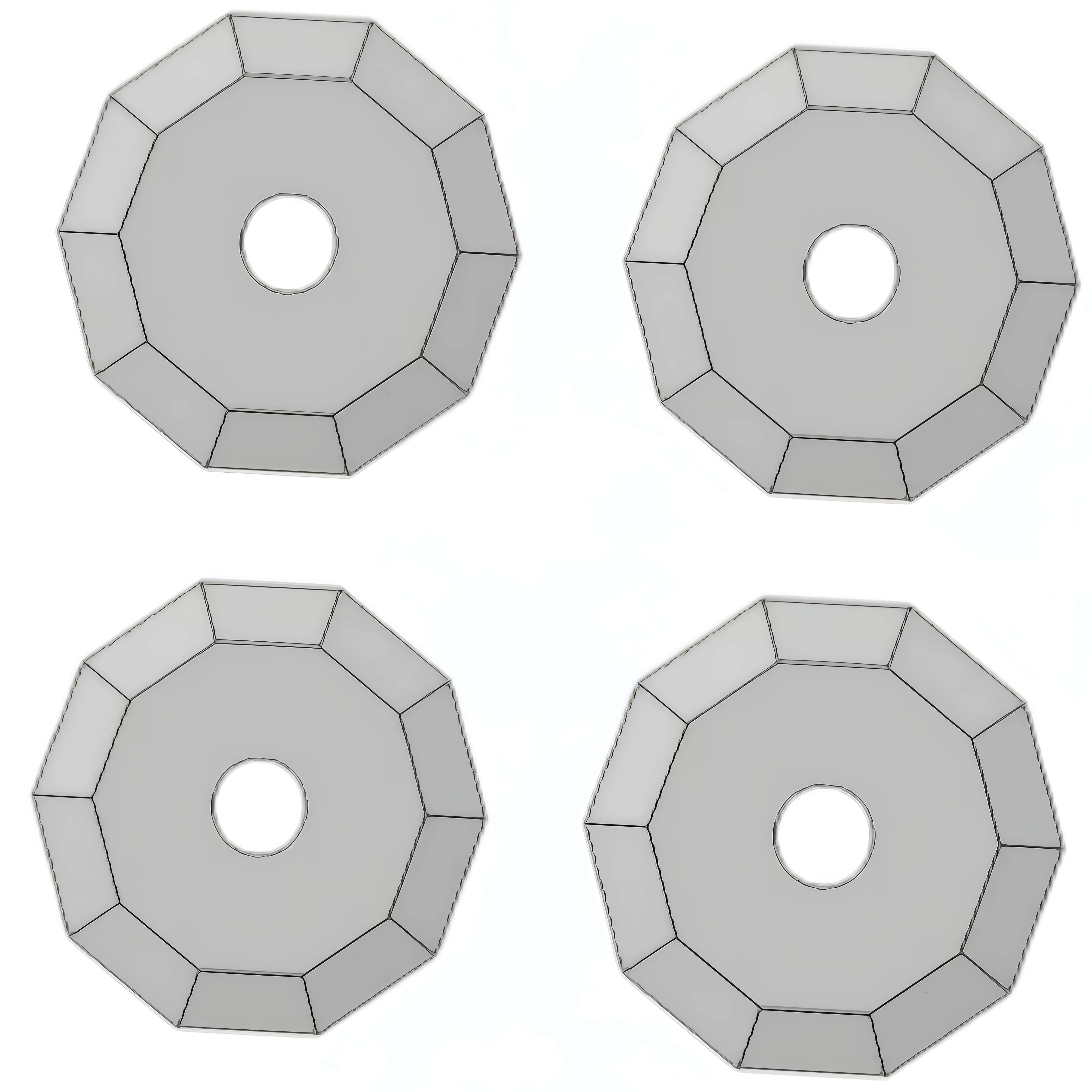

Unlike a smooth round blade, the 10-faceted decagonal profile provides micro-vibrational shear points that prevent tough or slippery materials from pushing ahead of the blade.

Key Specifications

Feature	Specification
OEM Part Number	Atom 01060676 (or 60676)

Blade Diameter	24 mm
Thickness	~0.6 mm
Blade Geometry	10-sided (Decagonal / 10F) faceted edge
Material	Ultrafine-grain Solid Tungsten Carbide (Hard Metal / HM)
Tool Head	Motorized / Powered Rotary Tool (PRC / DRT)

Primary Applications

Technical Textiles & Synthetics: Continuous high-speed cutting of single-layer or multi-layer fabrics, woven nylon, and canvas.
Composites & Reinforcements: High-tensile fibers such as aramid (Kevlar), glass fiber, and carbon fiber weaves without fraying edges.
Soft & Flexible Materials: Synthetic leather, natural leather, vinyl, non-wovens, and paper/cardstock.

Performance Advantages

Small Turning Radius: At 24 mm in diameter, it reduces overcutting on tight concave curves and sharp radius cuts (minimum ~20 mm radius).
Enhanced Traction: The 10 faceted edges act as micro-teeth, gripping tough fibers and shearing them smoothly without dragging or bunching the material.
Wear Resistance: Tungsten carbide offers high hardness and thermal resistance, keeping sharp edges up to 50 times longer than standard high-speed steel (HSS) blades.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
