Atom 01060218 Tungsten Steel / Tungsten Carbide 12-Sided Polygonal Dodecagonal Blades

Atom 01060218 (also referred to as Atom 60218) is a motorized rotary knife blade designed for industrial digital cutting systems, primarily Atom Flashcut CNC flatbed cutters Enquire now

Description

Atom 01060218 Tungsten Steel / Tungsten Carbide 12-Sided Polygonal Dodecagonal Blades

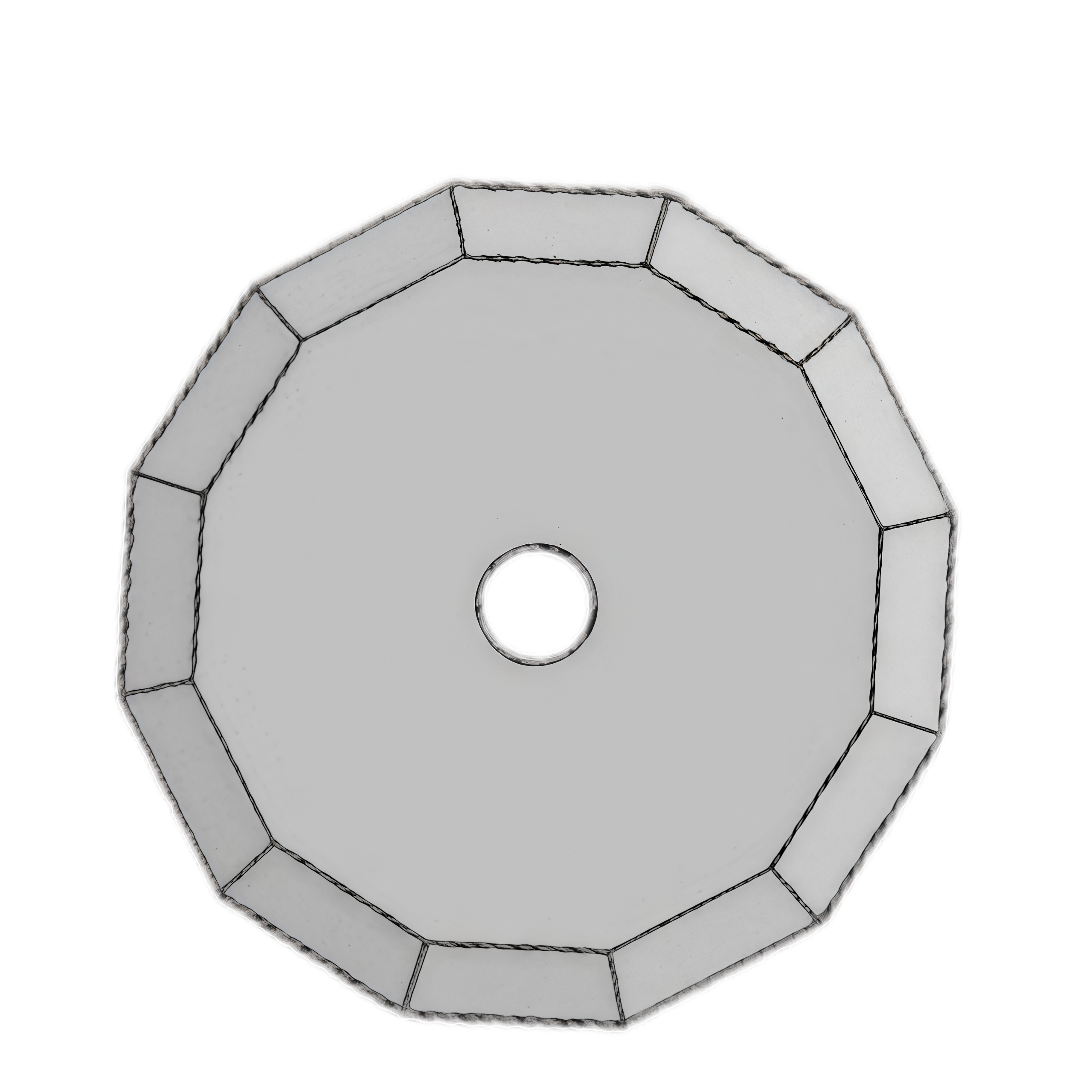

Atom 01060218 is a high-precision 12-sided (dodecagonal) electrically driven rotary cutter blade specifically designed for the Atom FlashCut automated digital cutting system . Made from ultra-fine particle tungsten carbide, it boasts extremely high hardness and wear resistance, and is specifically designed to handle a variety of high-strength and difficult-to-machine industrial soft materials.

Core technical parameters and specifications

Product Model : Atom 01060218 (also written as Atom 60218 on some compatible systems)
Blade outer diameter : 36.00 mm
Inner diameter (bore) : 5.00 mm
Blade thickness : 0.60 mm
Cutting edge angle : 30°
Geometric shape : Dodecagonal , rotary cutter

Core Advantages and Working Principles

Excellent shearing effect : The polygonal (dodecagonal) design generates continuous micro-pulsating shearing force when rotating at high speed. Compared with circular blades, it can more effectively tear and cut high-toughness fibers, avoiding material fraying or slippage.
Ultra-long service life : Thanks to the tungsten carbide material, its wear resistance is several times that of ordinary high-speed steel (HSS), which can keep the cutting edge sharp for a long time and reduce the frequency of downtime for tool replacement.
Precise fit : Perfectly matches the Atom FlashCut 36mm Motorized Rotary Knife tool head assembly.

Applicable material fields

This blade is widely used in the automated cutting of composite materials, technical textiles, and high-performance fibers, primarily including:

Aramid fibers (Kevlar)
Carbon fibers
Glass fibers (Glass mats)
Nylon and polyester industrial fabrics
Non-woven fabric/felt
Regular apparel and industrial textiles

Comparison of common models in the same series

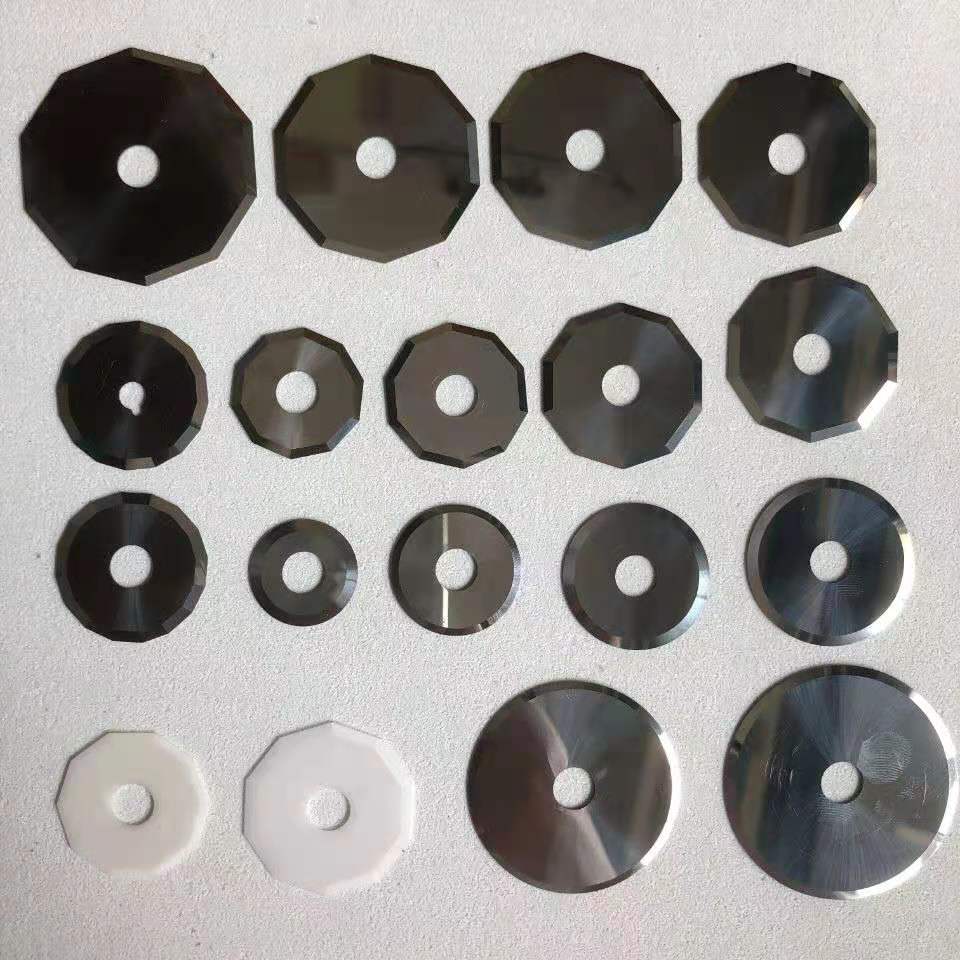

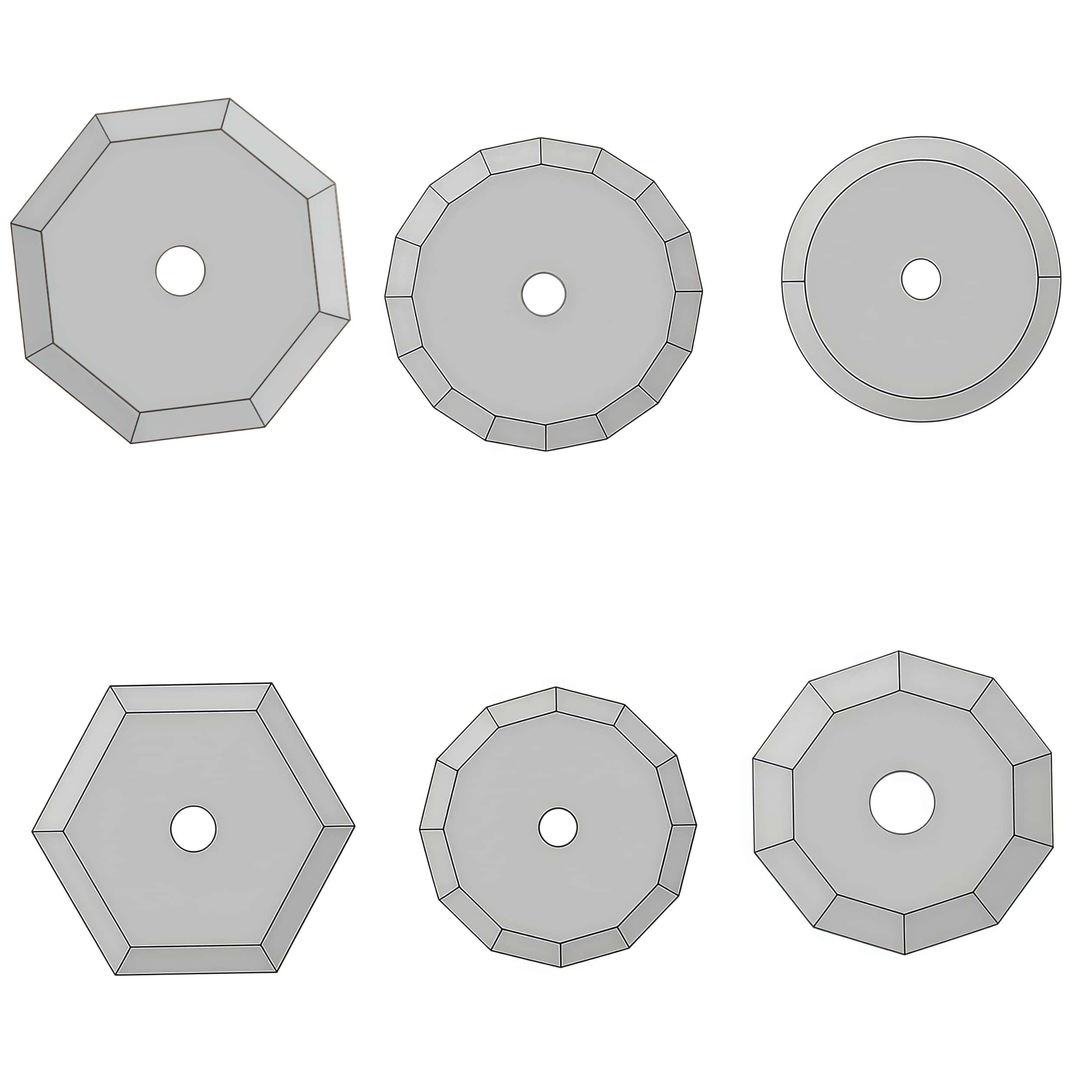

If you are looking for a cutting solution for a specific shape, the Atom system also offers the following alternative or complementary rotary blades:

Atom 01060465 / 01060217 : Decahedral (ten-sided) rotating blade, primarily used for clean cutting of ordinary fabrics, lightweight composite materials, and soft textiles.
