Atom 01060219 Wolfram Carbide Motorized 14 Sided Rotary Cutting Knife Blades

Atom 01060219 (often listed as Atom Flashcut 01060219 or 60219) is a specialized replacement blade designed for motorized rotary cutting tools used on Atom Digital Flatbed Cutters (such as the Flashcut series). Enquire now

Description

Atom 01060219 Wolfram Carbide Motorized 14 Sided Rotary Cutting Knife Blades

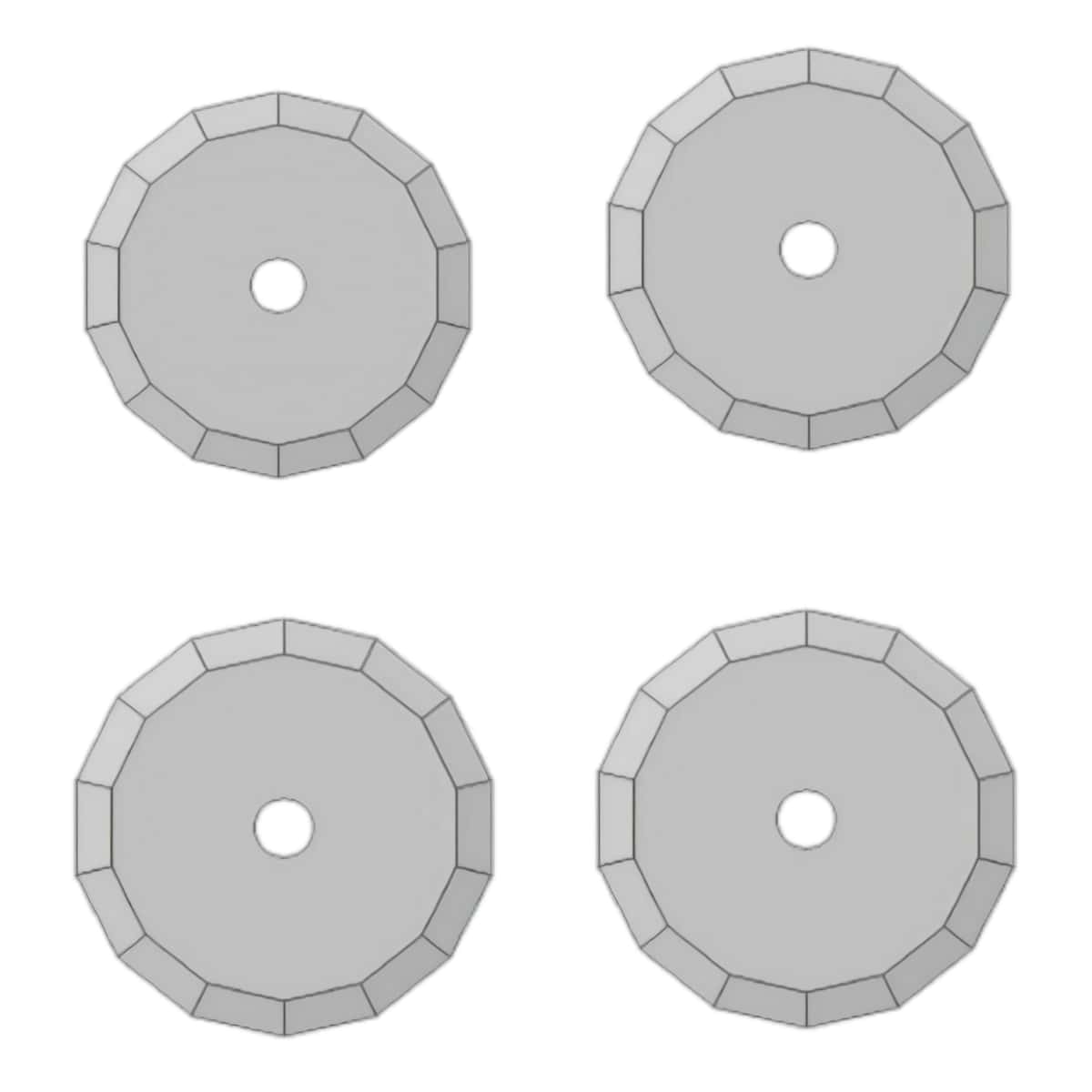

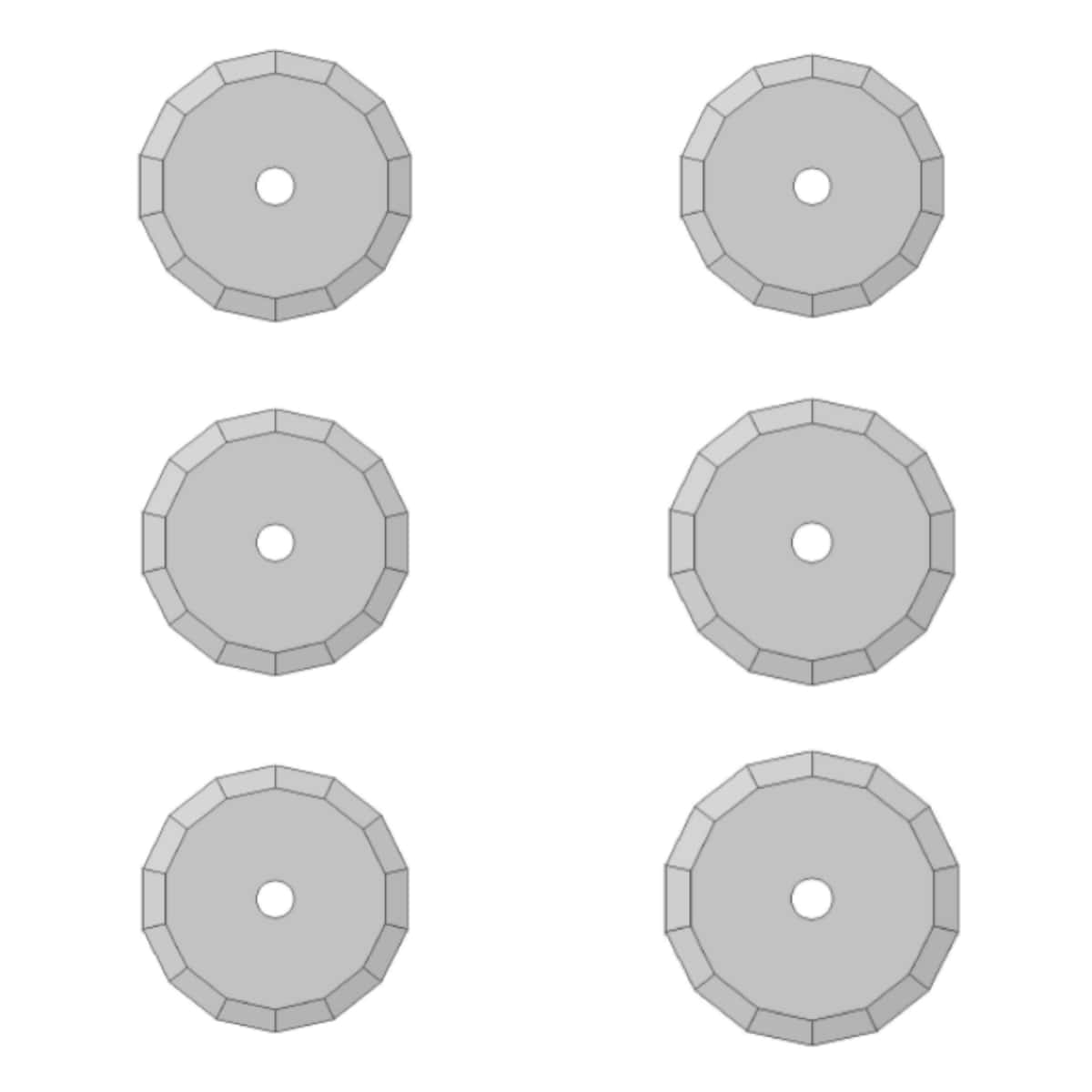

Atom 01060219 is a 14-Sided/Facet Motorized Rotary Cutting Knife Blade made of pure micro-particle tungsten carbide (hard alloy) . It is specifically designed for use with the motorized rotary tool/driven rotary tool of the Atom Flashcut CNC digital cutting system , for high-speed continuous cutting of flexible industrial materials.

Core physical parameters

Product Model : Atom 01060219 (or abbreviated as 60219)
Geometric shape : 14-facet polygonal edge design (14 Facets / 14F)
Outer diameter : 36.00 mm
Bore diameter : 5.00 mm (center of hole)
Blade thickness : Standard 0.60 mm
Minimum cutting radius : 30.00 mm
Material and process : Made of virgin tungsten carbide through high-pressure sintering and fine grinding, it has ultra-high hardness and wear resistance.

Technical advantages of 14-sided polygon design

Compared to traditional perfectly round, smooth blades, 14-sided rotating blades possess unique geometric shearing mechanical properties:

Micro-shearing Action : When the blade rotates at high speed and cuts into the material, the 14 edges generate a rapid pulse downward shearing force similar to micro-scissors , which greatly reduces the overall thrust of the blade on the material.
Prevents fiber pulling and fraying : Specifically designed to overcome the problems of "yarn running", "thread breakage" or "fiber pulling" that are very easy to occur when cutting high-density fabrics.
Heat dissipation and cutting force dispersion : The 14 polygonal facets alternately contact the material, effectively reducing the accumulation of frictional heat and making the wear of the cutting edge evenly distributed. Compared with ordinary circular cutters, it can significantly extend the service life of continuous operation
