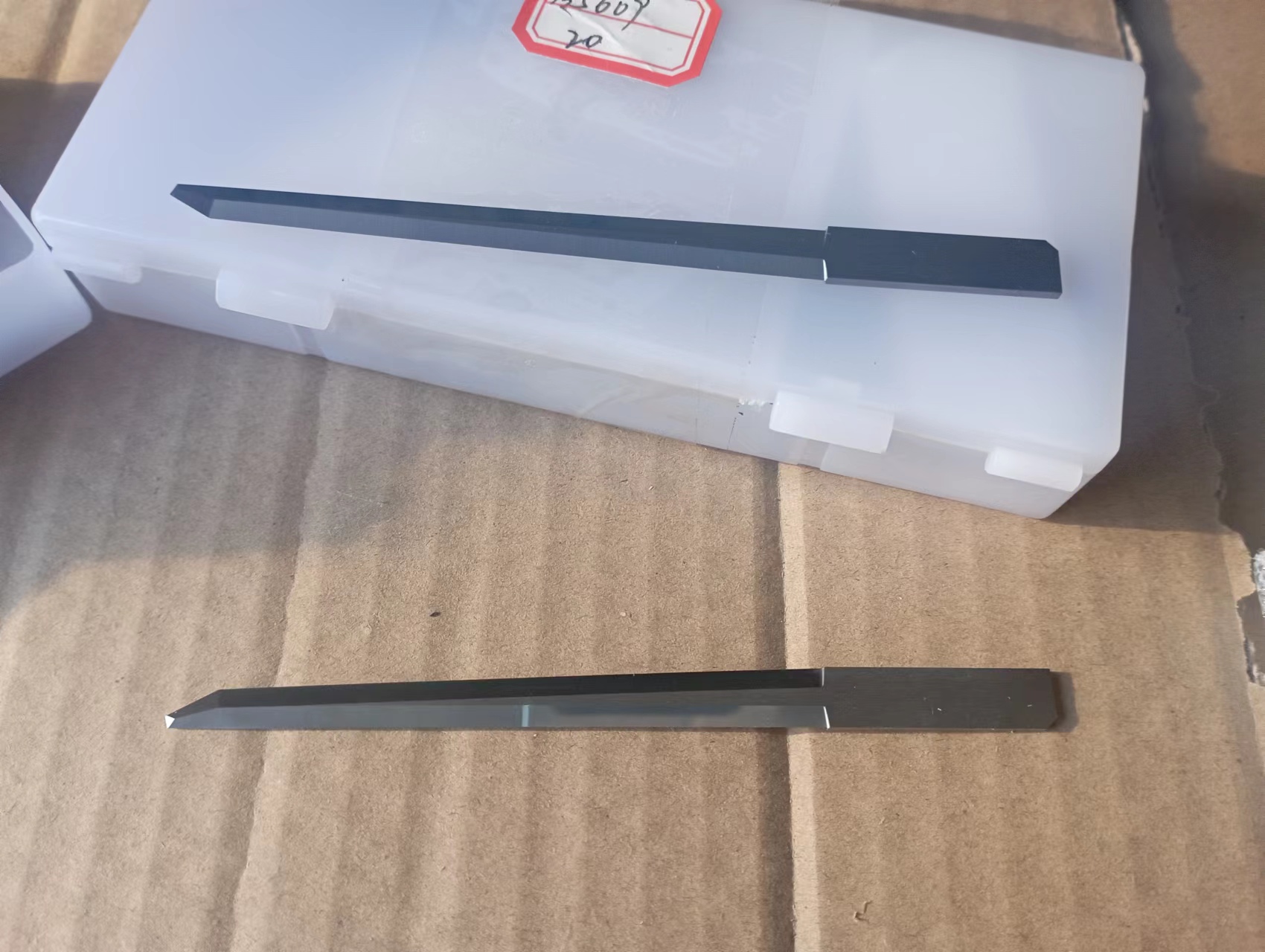

Elitron 135609 Oscillating Knife Blades

Elitron Knife,Elitron 135609 Blade,Elitron 135609,Elitron Blade,Elitron Blade 135609,Elitron Blades

Elitron 135609 is a high-precision solid carbide oscillating knife blade specifically developed for Elitron's industrial CNC digital cutting machines. The blade is primarily mounted on the high-speed oscillating tool head of the Elitron cutting machine, and through high-frequency vertical reciprocating vibration, it is specifically designed for the rapid and precise geometric cutting of thick, high-density, or elastic industrial non-metallic flexible materials.

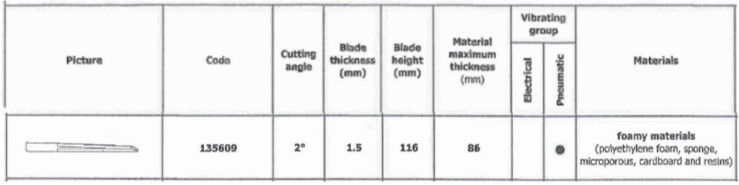

Description:

Hard metal knife
Foam materials: polyethylene foam, sponge and microporous cardboard and resins
Length: 116
Height: 86
Thickness: 1.5
Angle: 2°

Suitable for cutting materials (thick and dense materials)

Thanks to its extra-long 116mm blade , robust 1.5mm thickness , and high-speed vibration impact resistance, the 135609 blade is widely used in the technical textiles, packaging, and sealing industries for heavy-duty cutting.

Industrial hard seals : thick rubber, asbestos gaskets, special polyurethane, high-density gasket plates.
Honeycomb and foam materials : corrugated board, honeycomb cardboard, high-density rigid foam (EVA/PE Foam), industrial insulation cotton.
Leather and Industrial Textiles : Multi-layered heavy synthetic leather, multi-layered thick felt, special tear-resistant tarpaulins and coated fabrics

Core advantages of the Elitron vibrating scalpel series

As a consumable for Elitron digital cutting systems (such as the Kombo SD/Cad Cam automated cutting machine), this carbide blade has the following mechanical characteristics:

Excellent edge finish : The special 2° blade geometry ensures perfect physical perpendicularity between the top and bottom surfaces when performing through-cutting on thick materials, eliminating edge tilting.
High-frequency heat resistance : Vibration cutting is usually accompanied by extremely high mechanical frictional heat. Carbide can maintain the hardness of the cutting edge at high temperatures, perfectly preventing "sticking" and material burning caused by cutting heat.
