Esko Kongsberg BLD-SF110 Blades(i-6100)

Kongsberg BLD-SF110 Blade,Kongsberg BLD-SF110,Kongsberg Blade BLD-SF110,Esko BLD-SF110 Blade,Esko BLD-SF110,Esko Blade BLD-SF110,i-6100,Code
G42436063,standard blades,Single edge flat standard blades,flat standard blades Enquire now

Description

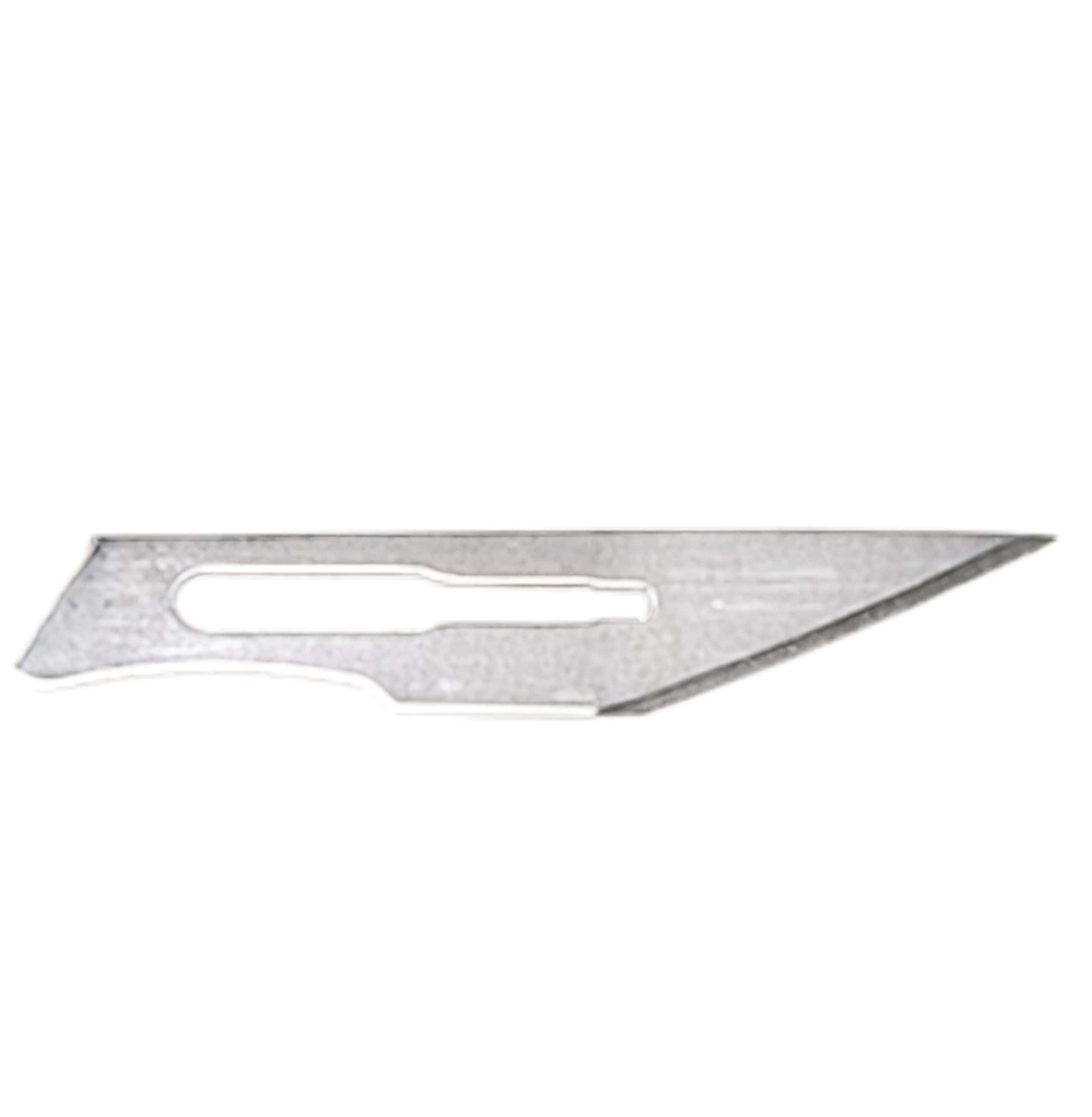

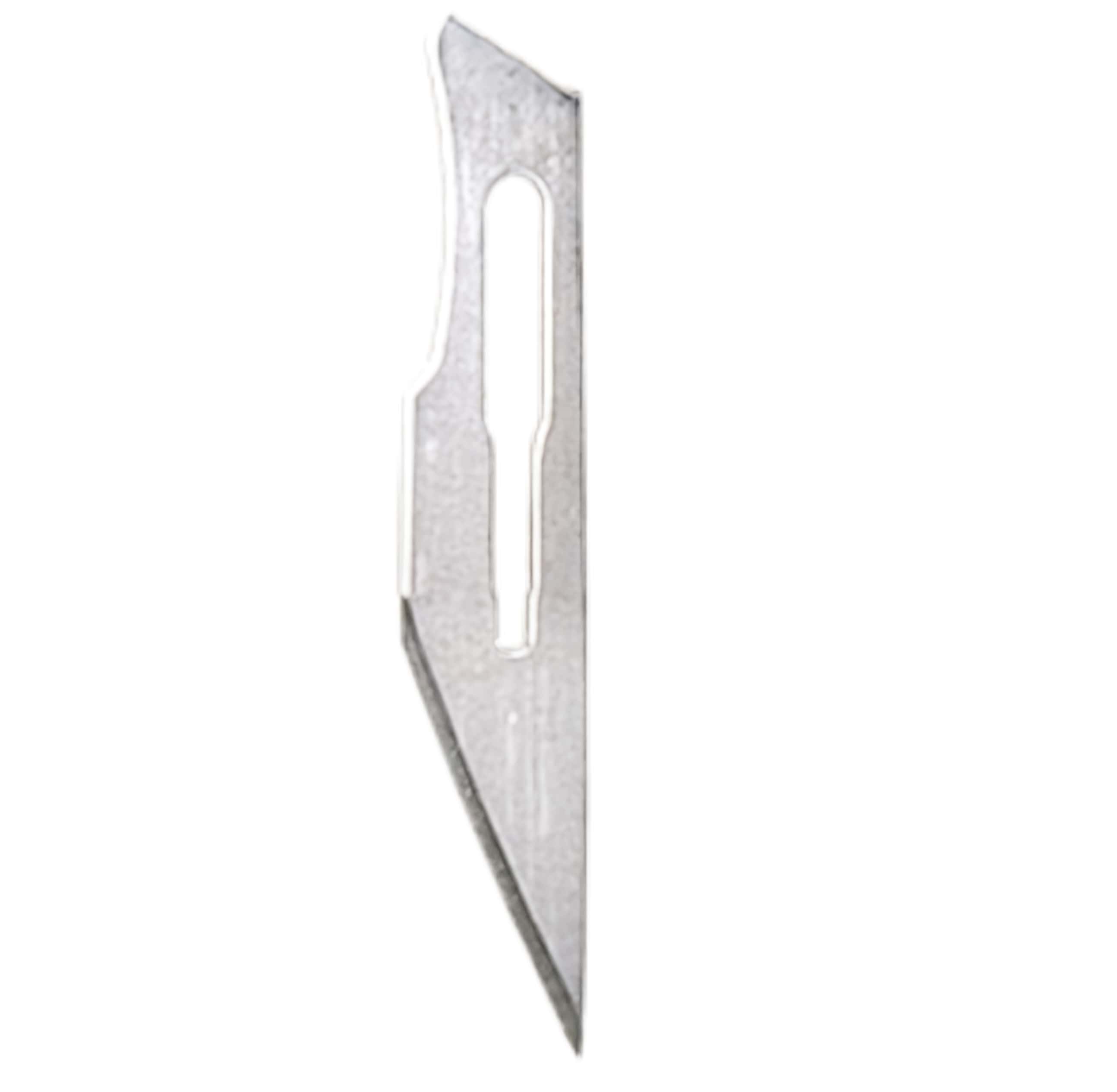

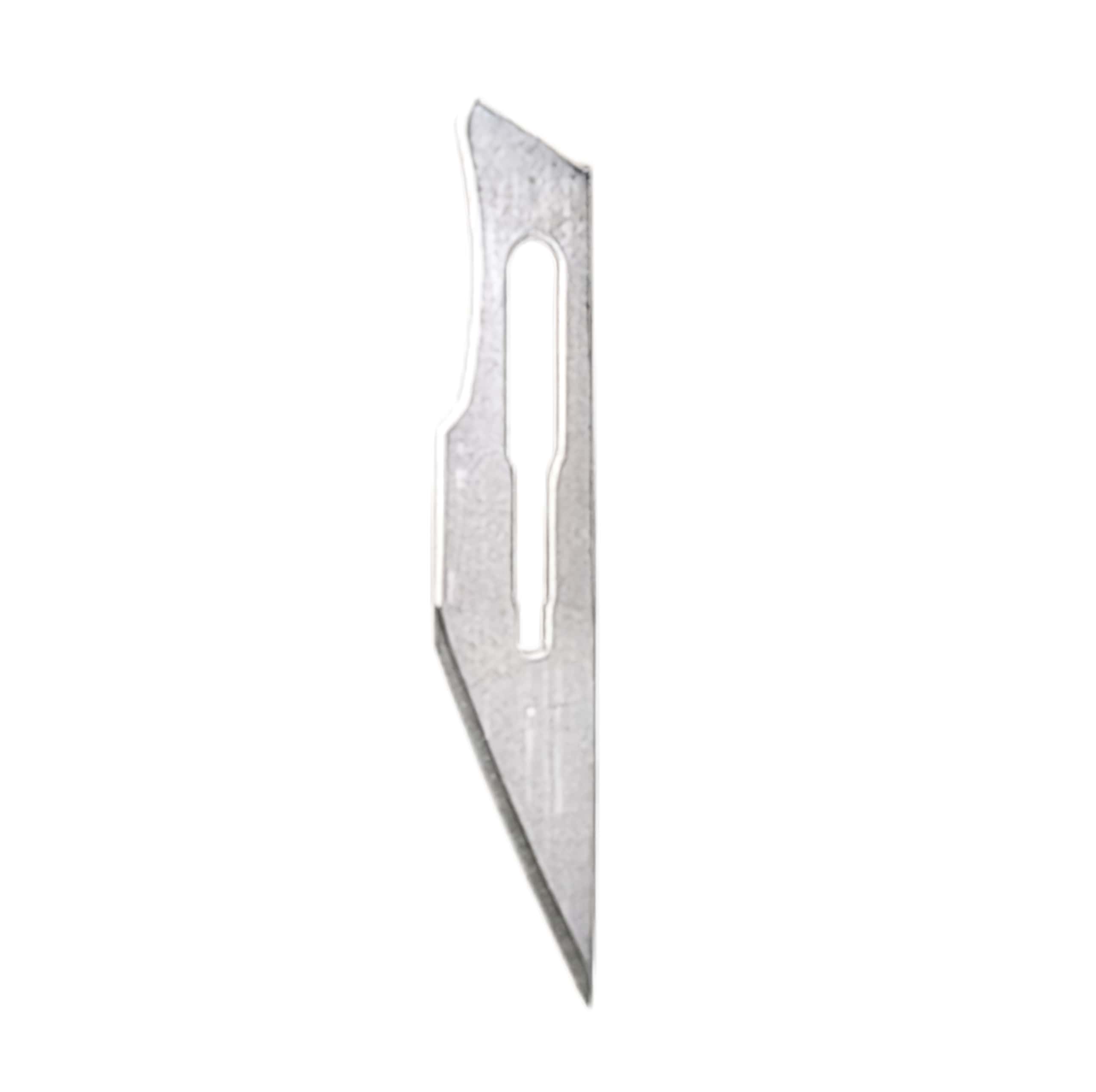

Esko Kongsberg BLD-SF110 Blade(i-6100)

The Esko Kongsberg BLD-SF110 (i-6100) is a high-performance tungsten carbide knife blade designed specifically for precision digital cutting. It is primarily used for cutting folding cartons and is recognized for its ability to produce clean, sharp edges with minimal "plough effect" compared to standard blades.

Key Specifications & Applications
Dimensions: Approximately 4cm in length, 0.8cm in width, and 0.1cm in height.
Blade Type: Single-edge flat standard blade (Static/Drag).
Primary Use: High-speed, precision cutting of folding boxes and rigid materials.
Secondary Use: Compatible with Microcut carpet drawing/painting tools.
Tooling Requirements: On Kongsberg PCS tables, this blade often requires a Static Knife TW adapter (part number 34012575) for certain machine configurations like the XL, XN, V, or X.

Code

G42436063

Recommended use

Good choice for folding carton. More durable than the ASR and cuts with less plough effect in the cut edges. Also suitable for varnish blankets in the MicroCut Tool

Cutting Info

Material	Sub Category	Thickness	Method
Folding carton	Folding carton	Folding carton	Static
Varnish blankets	Varnish blankets	Varnish blankets	Partial

Requirements

To use BLD-SF110 (i-6100) on your Kongsberg table, you need one of the following configurations.

XP/C

XL/XN/V

Tool insert/unit

Adapter

Static knife FC

G34012534

Dimensions

0.8 x 0.1 x 4 cm

Weight

0.001 kg
