Zund R5 3910700 Cnc Milling & Router Bit For Digital Flatbed Cutters

CHINA Zund R5 CNC Milling & Router Bit (u3910393 or 3910700) is a professional, high-performance solid carbide spiral routing bit engineered for digital flatbed cutters. Enquire now

Description

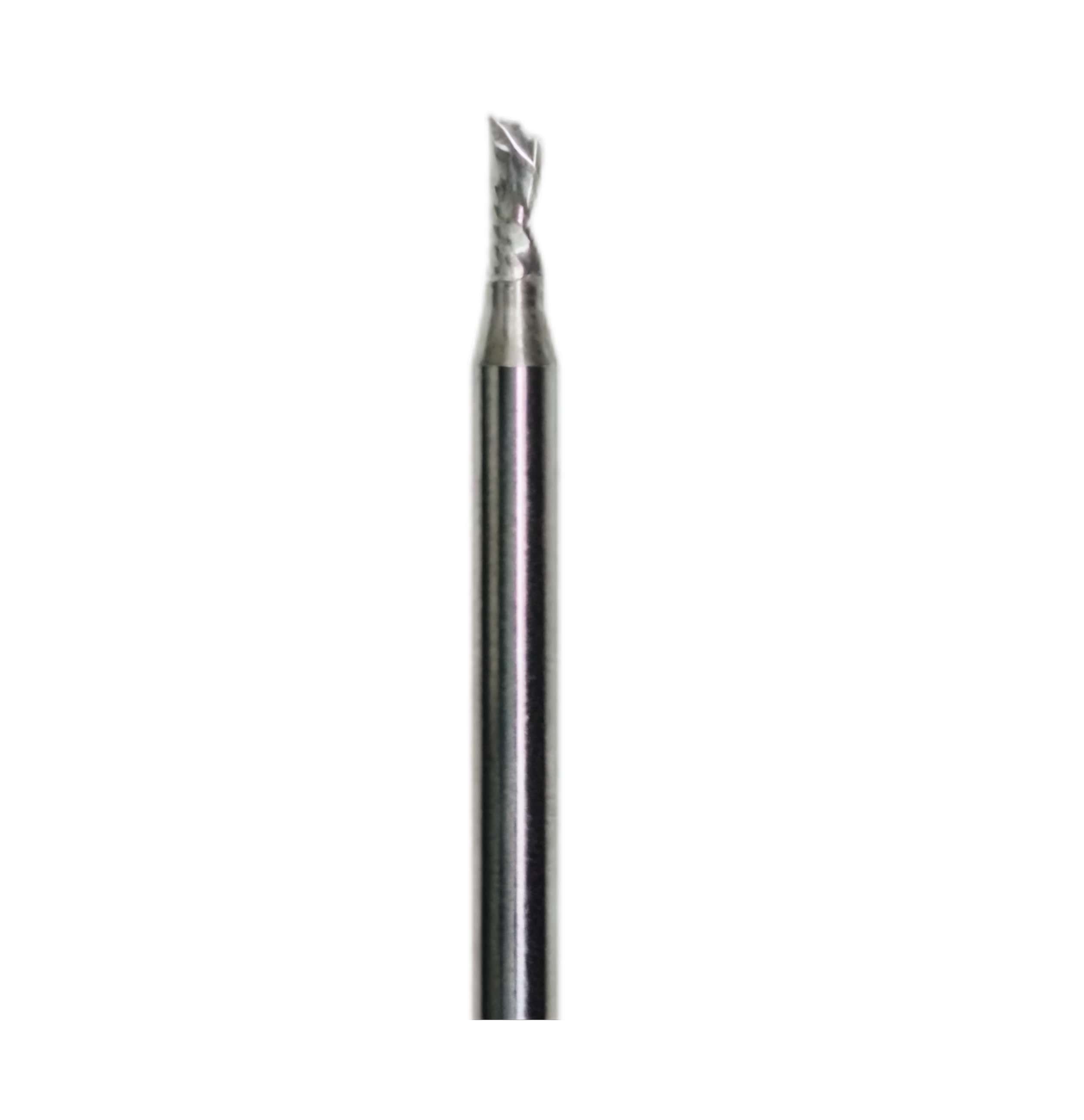

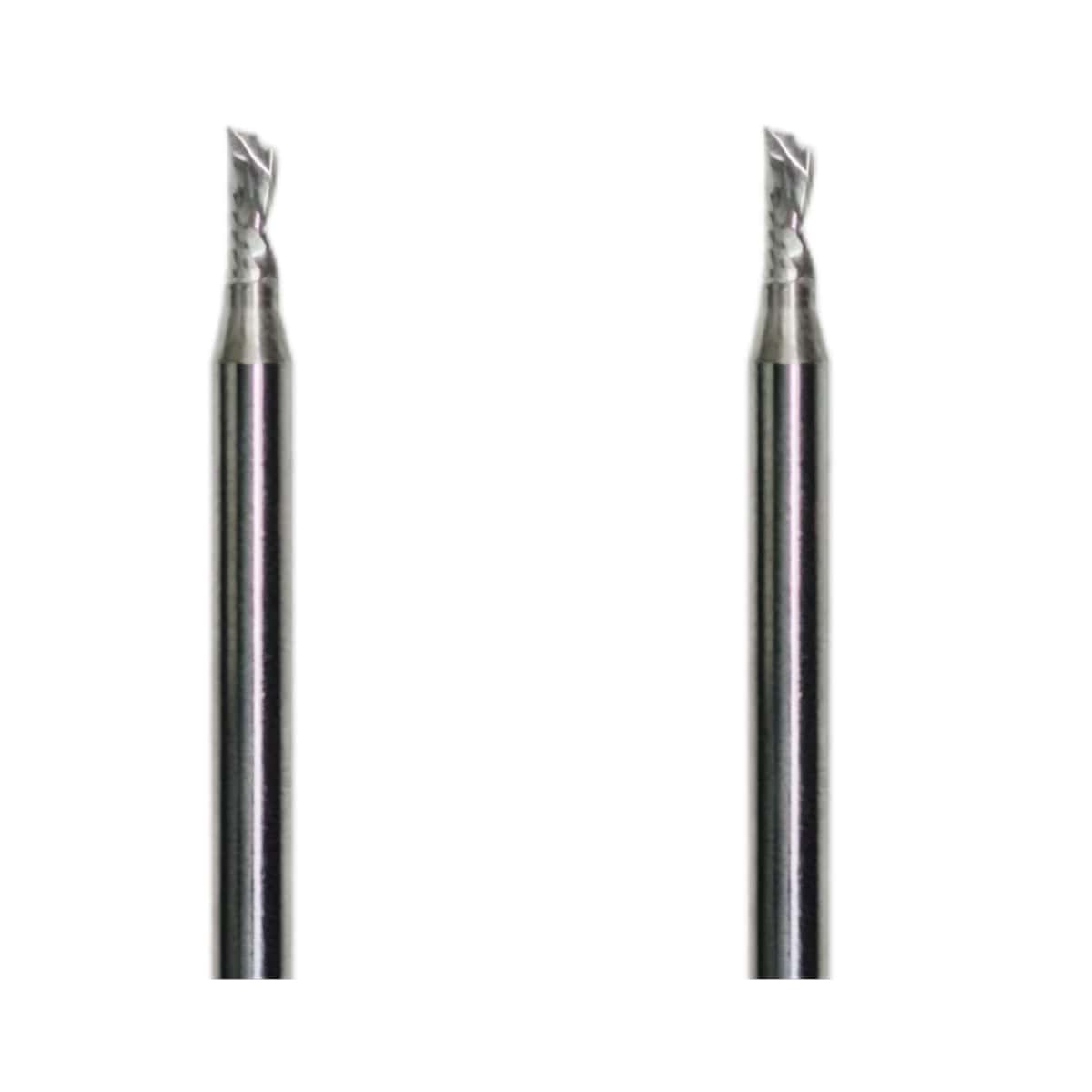

Zund Milling & Router Bits R5(3910700)

Technical Specifications

Verified physical metrics and operating thresholds straight from the Shenzhen Oyea Shop Portal include:

Official Part Number: 3910700
Routing Diameter (Cut Ø): 2.0 mm
Max. Routing Depth: 4.0 mm
Shank Diameter: 3.0 mm
Total Tool Length (OAL): 38.0 mm
Number of Cutting Edges: 1 (Single O-Flute)
Spiral Twist Geometry: Left-hand twist / Down-cut
Maximum Rotation Speed: 80,000 RPM

Hardware & System Integration

The R5 bit is specifically optimized to perform with high-rpm router spindles and modular tool carriers:

Compatible Spindle Modules: Operates inside the Universal Routing Tool (URT), Router Module RM-A, or Routing/Engraving Modules WRM (such as the PN 150/450 setups).
Machine Compatibility: Engineered to fit the automatic tool changers on Zund G3, S3, D3, and L3 series industrial flatbed cutting systems.
Software Ecosystem: Fully integrated into the Zund Cut Center (ZCC) material database, allowing automated calibration of feed rates and rotational speeds based on specific material parameters.

Target Materials & Applications

Because down-cut geometry applies downward force rather than lifting the material edges, the R5 router bit delivers smooth, completely burr-free top surface edges. It is primarily utilized in sign making, display production, and industrial engraving on:

Acrylics & Plastics: PMMA (Acrylic), Polycarbonate (PC), and thin PVC laminates.
Soft Metals: Thin aluminum plates and Aluminum Composite Materials (ACM / Dibond).
Dense Sheets: Engraving plates, compact rigid foam boards, and layered plastic signage.
