Zund R12 Cnc Milling & Router Bits 3910712 For Zund Cutting Machine
Zund R12 CNC Milling & Router Bits (Model 3910712) designed for Zund cutting machines. High-quality, compatible replacement options available from trusted manufacturers. Wholesale pricing and reliable supply from a quality-focused store. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

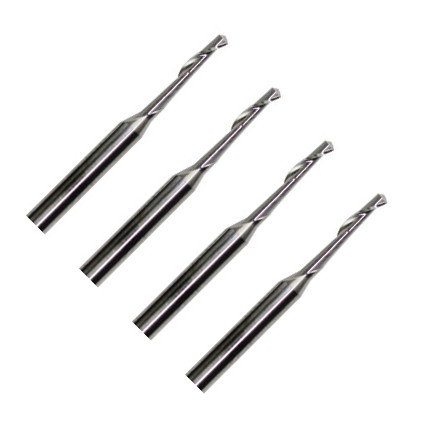

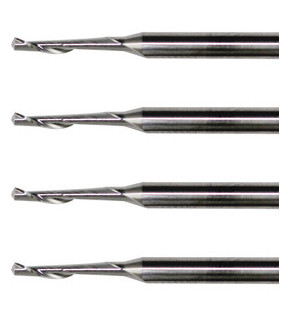

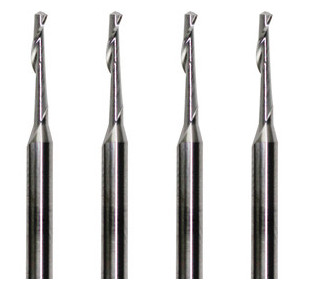

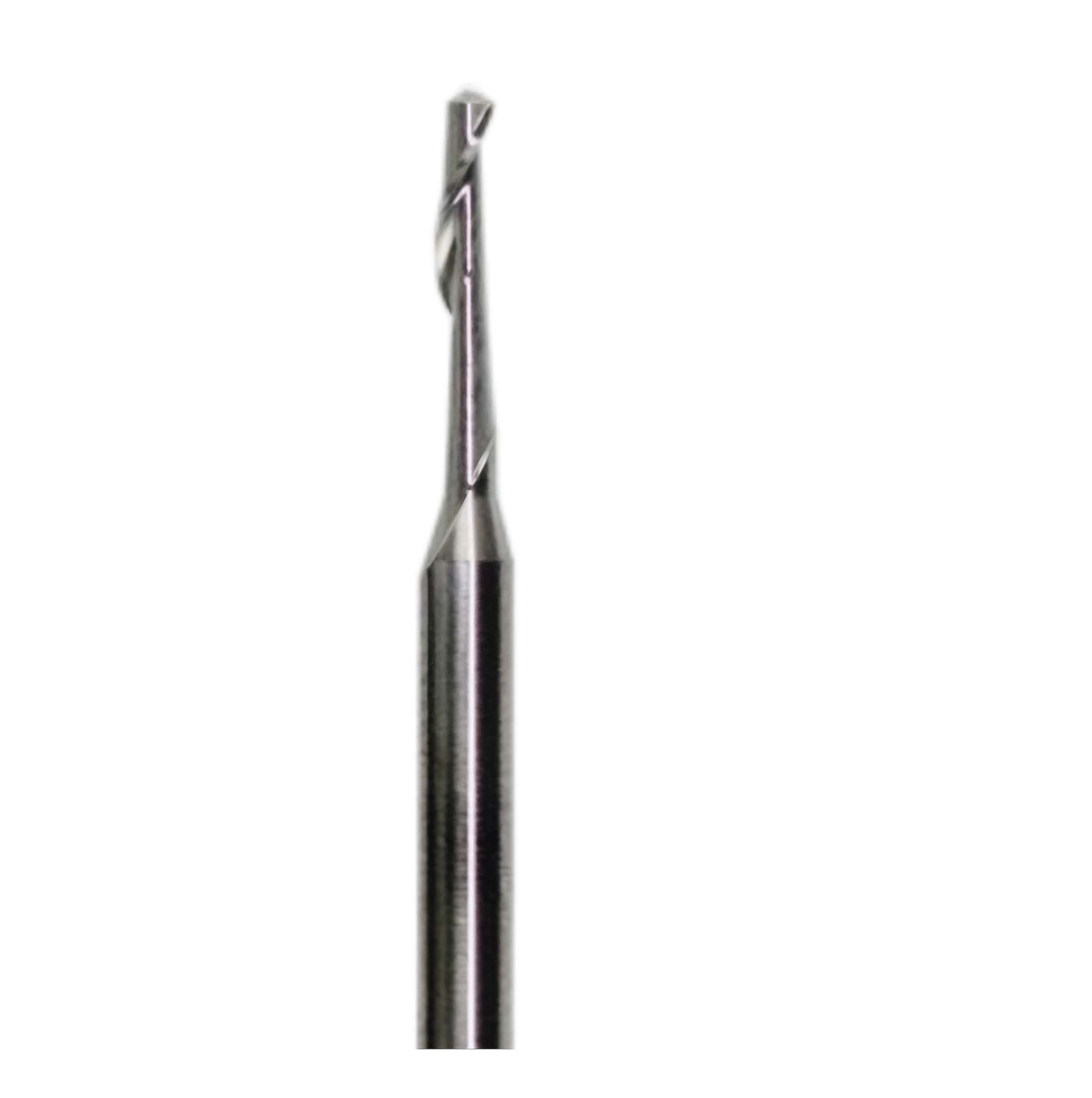

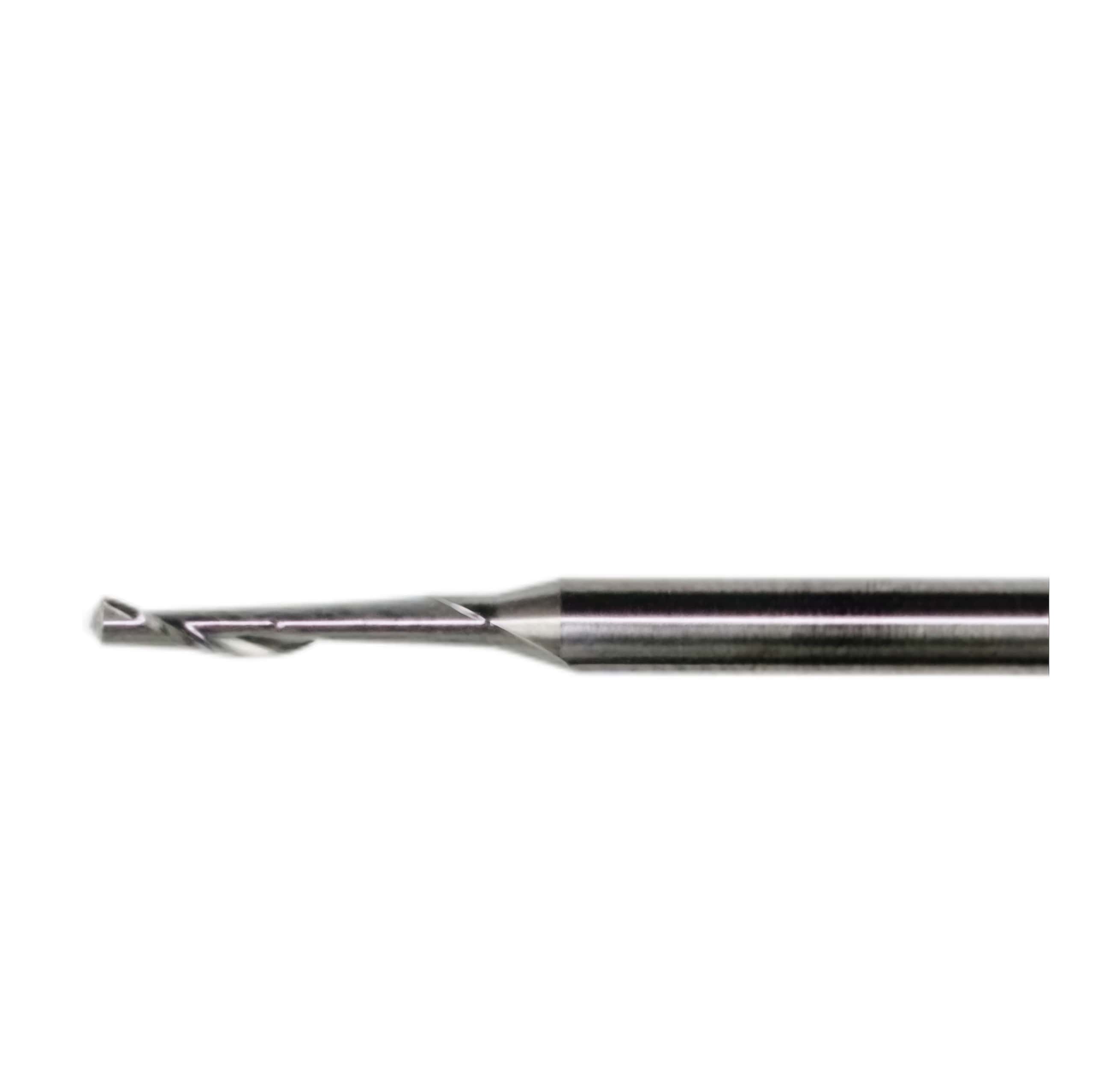

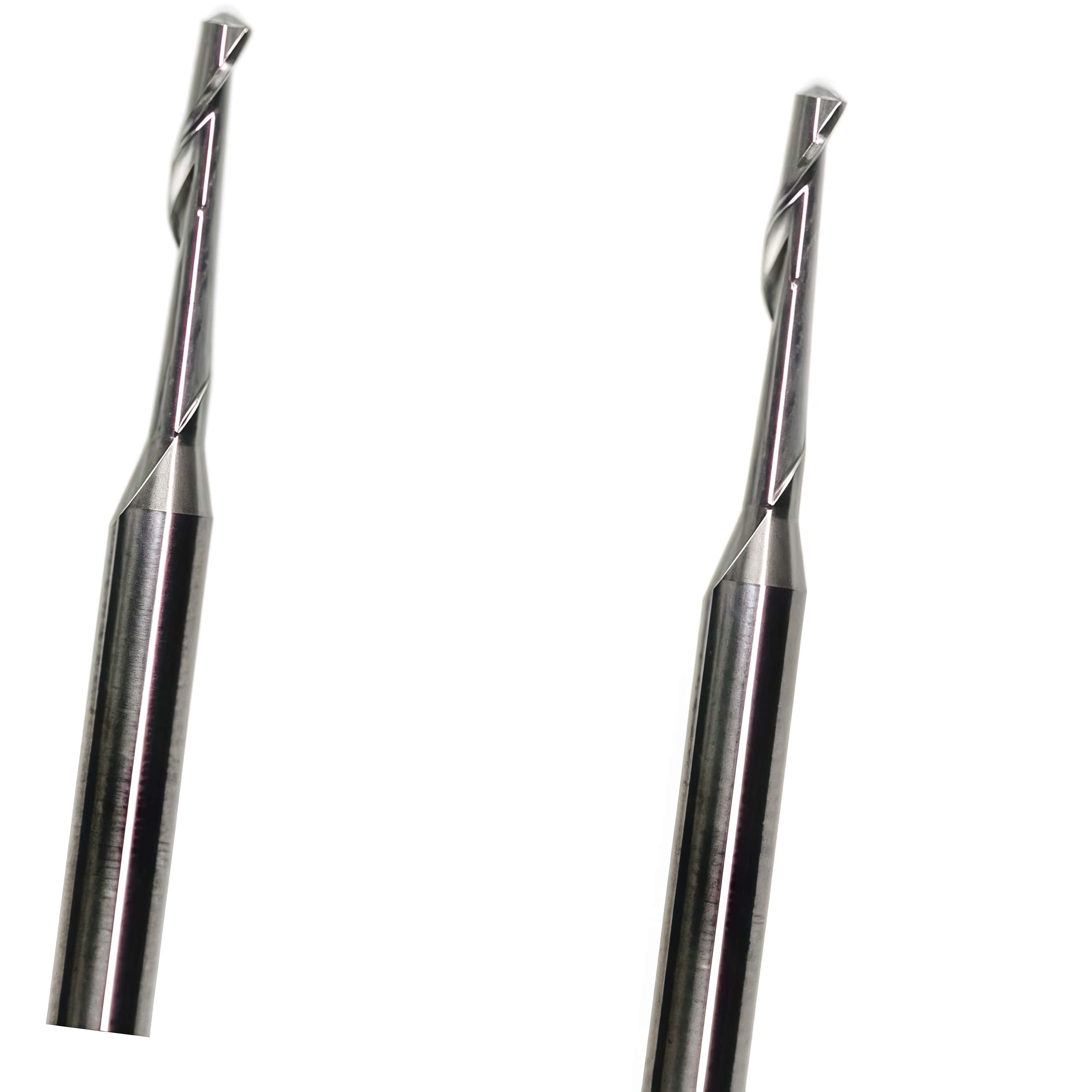

Zund Milling & Router Bits R12(3910712)

Zund R12 is an official universal CNC milling and router bit manufactured by Shenzhen Oyea Machinery Co., Ltd. It is specifically engineered as a consumable accessory for high-precision routing modules integrated into Zund digital flatbed cutting systems.

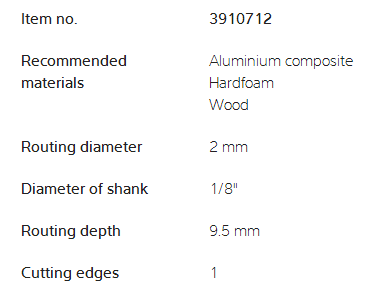

Key Technical Specifications
  • Official Item Number: 3910712.
  • Cutting Diameter : 2.0 mm.
  • Cutting Length: 9.5 mm.
  • Shank Diameter: 1/8 inch (3.175 mm).
  • Total Bit Length: 38 mm.
  • Maximum Rotation Speed: Up to 80,000 RPM.

Material Compatibility
The R12 bit features a specialized single-flute or spiral geometry optimized for high-speed material evacuation. It is primarily deployed for cutting soft to medium-density materials, including:
  • Aluminum Composite Materials (ACM / Dibond)
  • Expanded PVC / Forex
  • Wood and Medium-Density Fiberboard (MDF)
  • Industrial Plastics

Machine Integration
The bit works natively within Zund automated tool-changing modules (such as the RM-S or RM-L routing systems). It can be fitted with integrated stop rings to allow hands-free automatic tool height calibration during high-volume industrial production cycles. Utilizing genuine parts ensures compatibility with original equipment warranties.


If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email:  info@china-oyea.com
             1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.  Contact with us ,you will get more than what you can !





China's Zund R11 Milling & Router Bits (Part No. 3910711) serve as high-quality compatible replacement tools, designed to match the standards of original manufacturers. These precision-engineered router bits are available for wholesale purchase from trusted suppliers, ensuring reliable performance and competitive pricing. Whether you're searching for Zund router bits, tools, or accessories, Oyea Machinery Co., Ltd. provides an extensive catalog of consumables, spare parts, and substitutes.
