Zund R13 Cnc Milling & Router Bits 3910713 For Zund Cutting Machine-Production

Zund R13 CNC Milling & Router Bits (3910713) for Zund Cutting Machines - Designed for production use. This high-quality, compatible equivalent replacement is manufactured to meet performance standards. Available for wholesale purchase from trusted suppliers at competitive prices. Enquire now

Description

Zund R13 Cnc Milling & Router Bits 3910713 For Zund Cutting Machine-Production

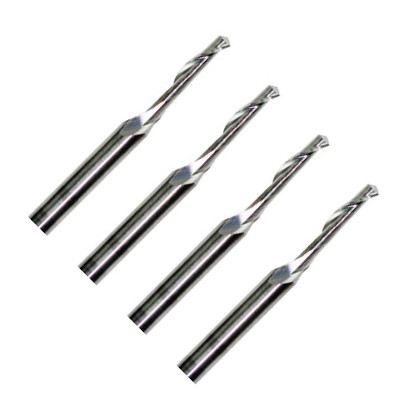

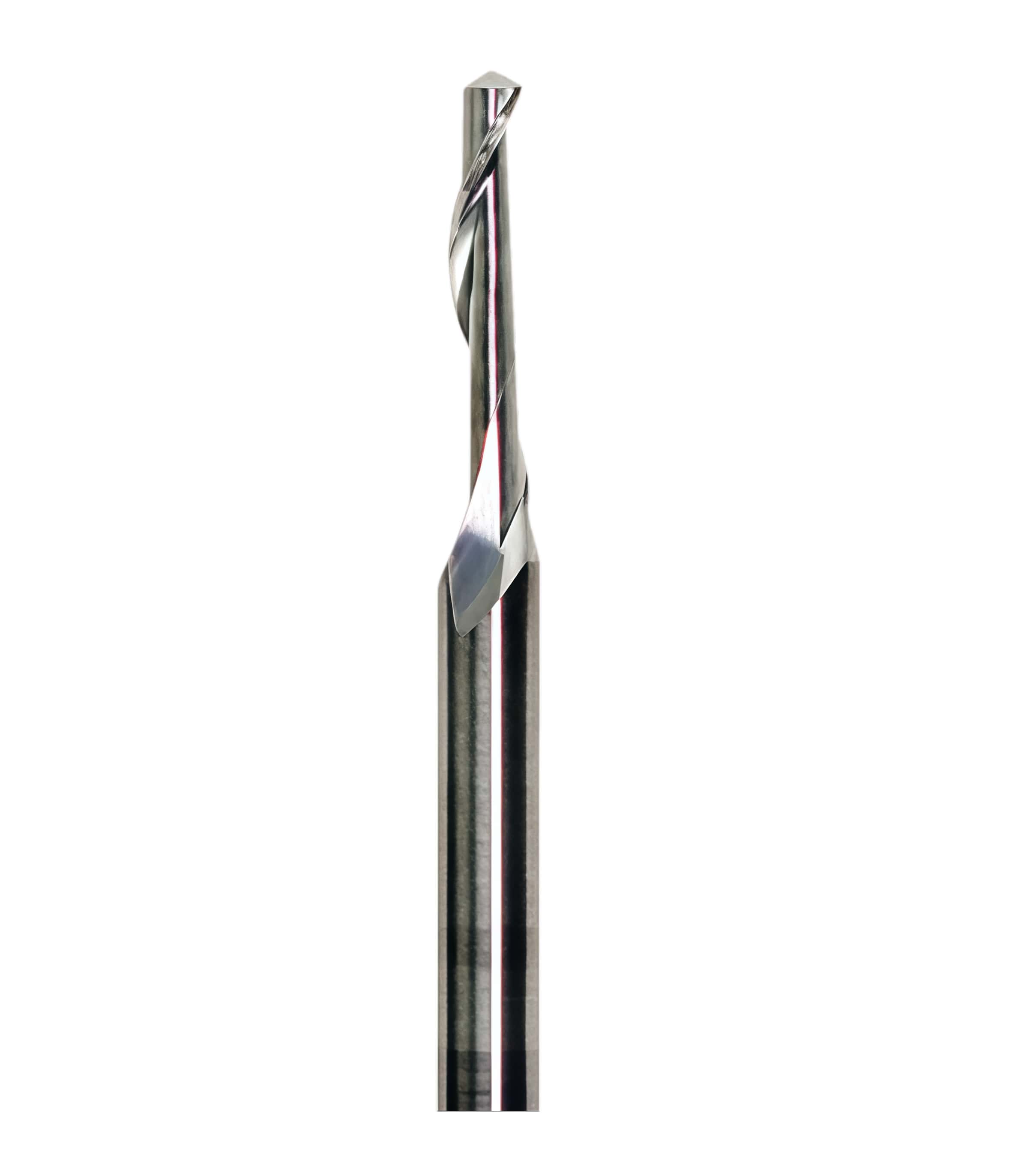

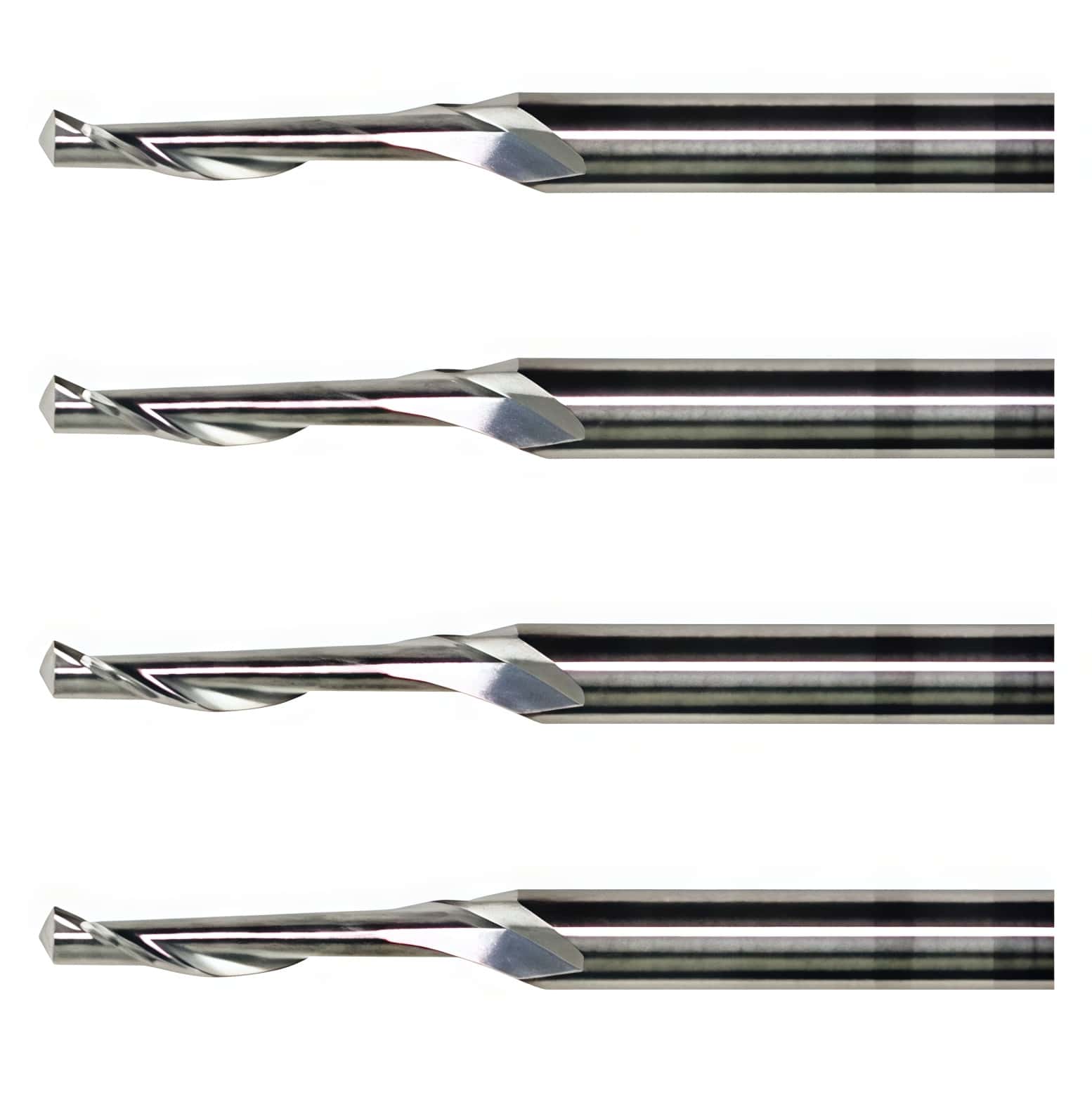

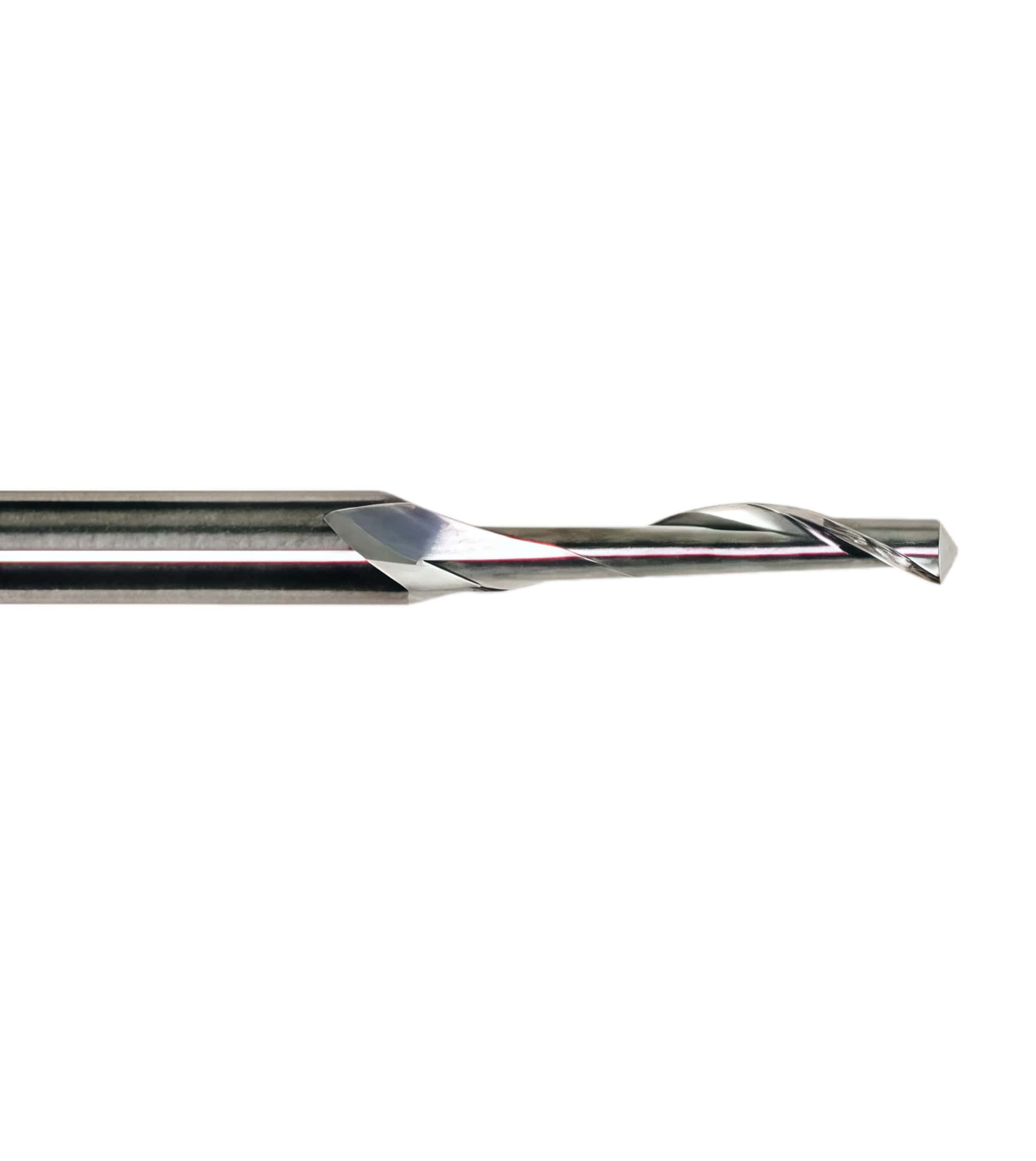

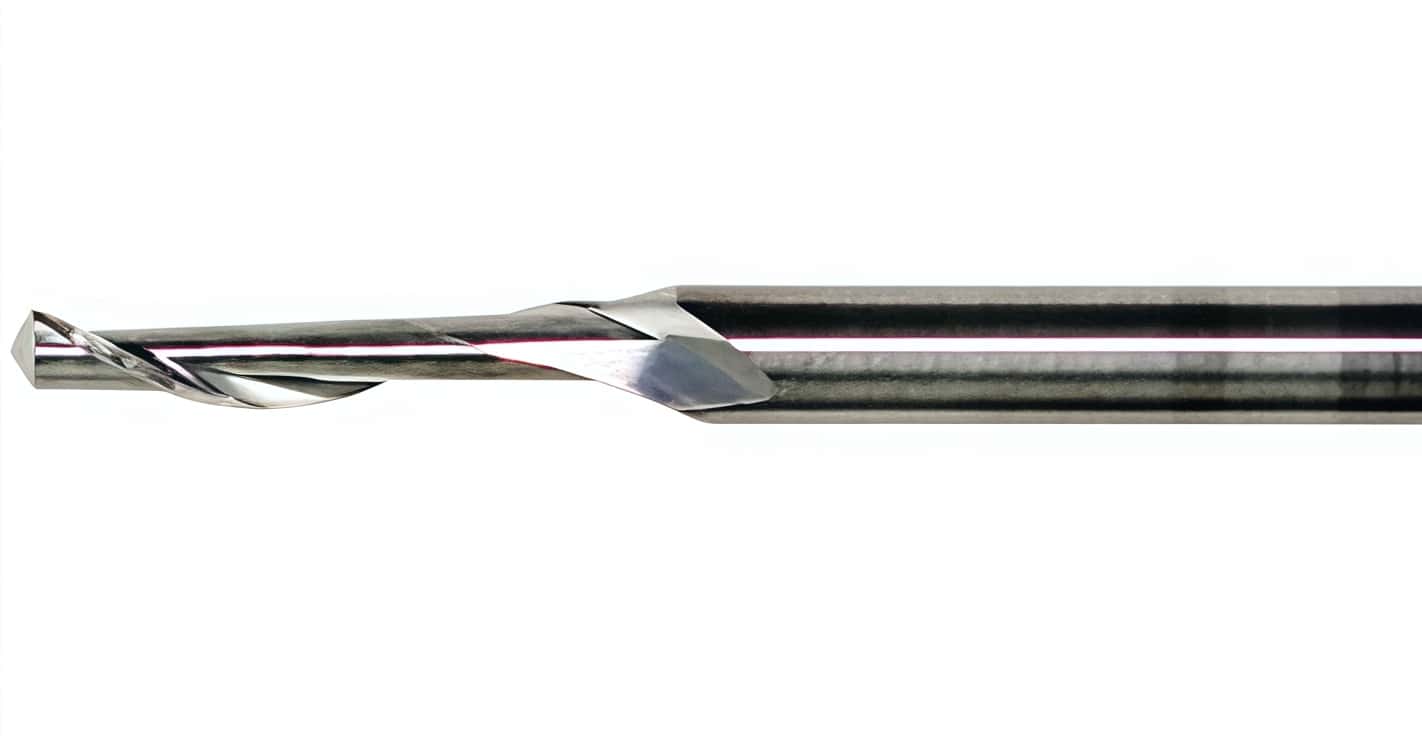

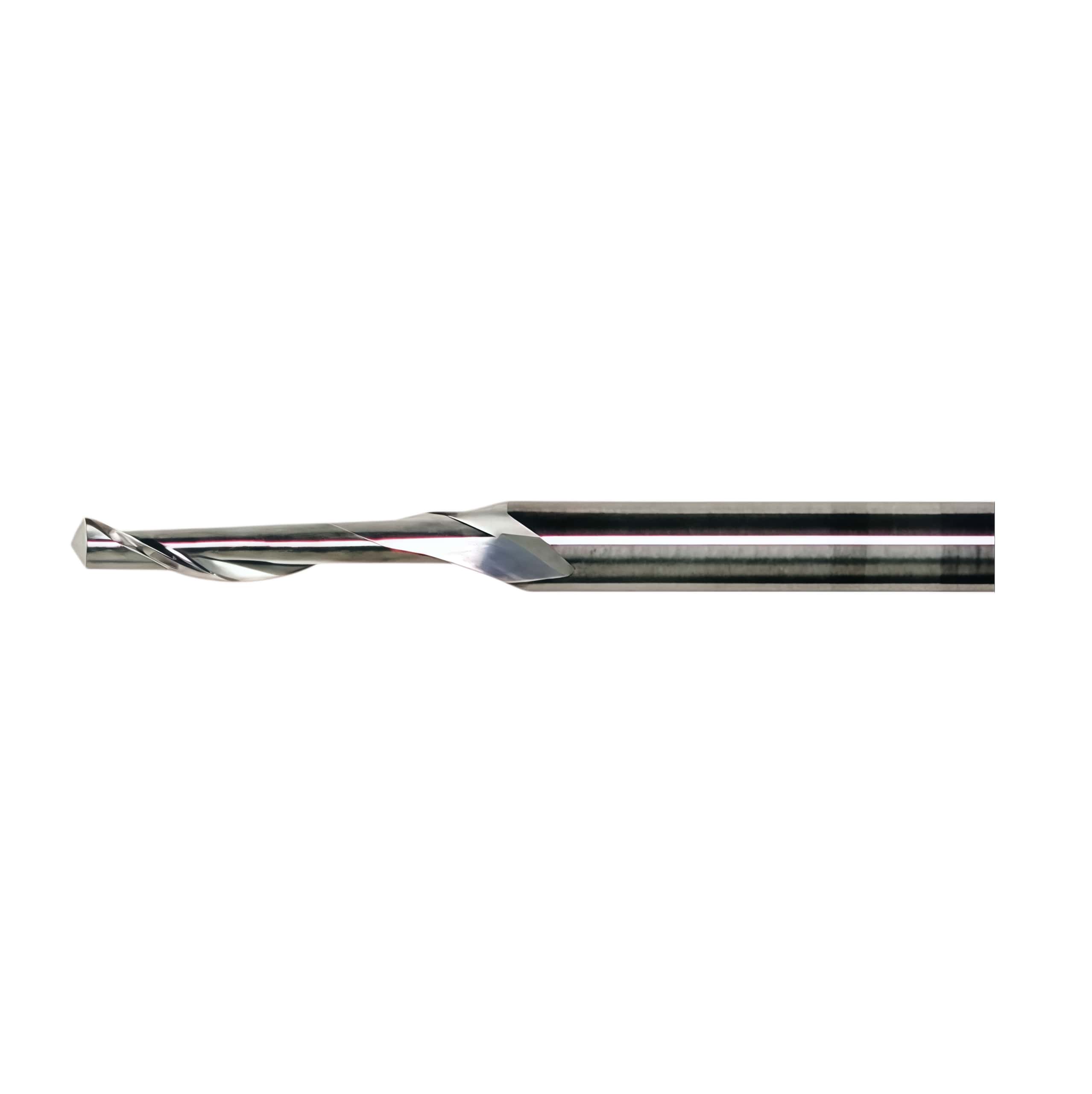

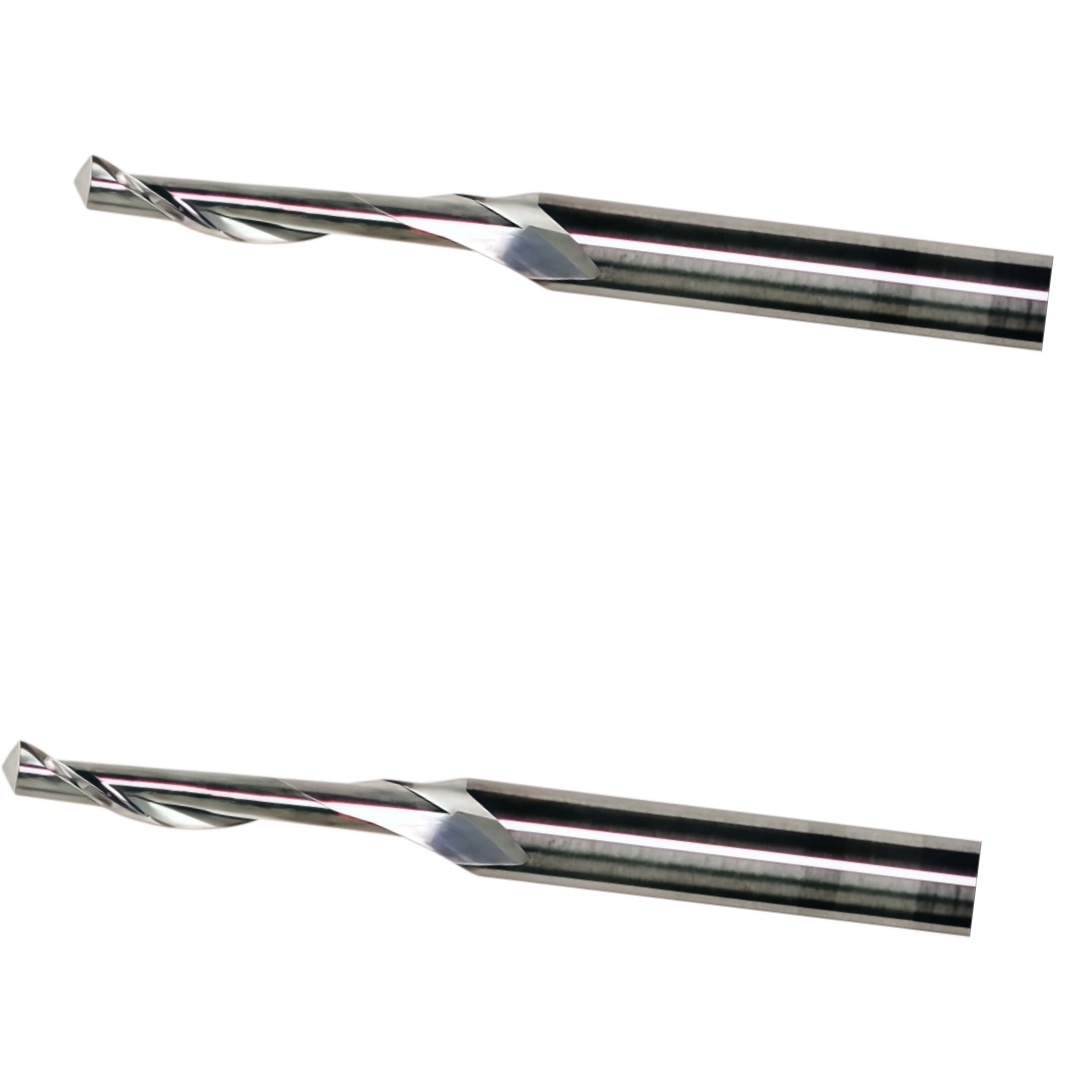

Zund R13 Router Bit (Item Number 3910713) is a highly precise, universal solid carbide spiral milling bit engineered specifically for Zund digital cutting systems. It is designed to deliver smooth edges and prolonged tool life when machining rigid, narrow-profile materials.

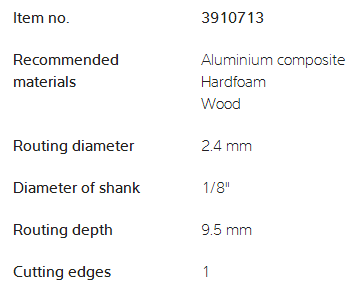

Core Technical Specifications

The R13 bit features distinct measurements optimized for detail-oriented milling modules:

Routing Diameter (Cut Ø): 2.4 mm
Max Routing Depth: 9.5 mm
Shank Diameter: 1/8" (3.175 mm)
Total Length: 38 mm
Number of Flutes: 1 (Single O-Flute design)

Recommended Materials

This universal bit balances a small cutting diameter with an efficient single-flute clear-out geometry, making it ideal for processing:

Plastics & Synthetics: Expanded PVC (Forex), Acrylic, Polycarbonate, and Polypropylene.
Composites: Aluminum Composite Materials (ACM / Dibond).
Wood Products: Medium-Density Fiberboard (MDF) and thin plywood.

Machine & Tool Compatibility

The R13 router bit is officially deployed via the Shenzhen Oyea Machinery Co., Ltd. Store and integrates seamlessly with several Zund hardware configurations:

Compatible Modules: Zund Universal Routing Tool (URT) variants, including the URT 300W and the PN 150/450W spindles.
Supported Platforms: Fully operational on Zund G3, S3, and D3 automated flatbed cutting tables.
