Zund R14 Router Bit 3910714 Solid Carbide Spiral Milling Bit Reviews

If you’re in need of high-quality CNC milling and router bits for your Zund cutting machine, the Zund R14 (Part No. 3910714) is a top choice worth considering. Perfectly suited for production and manufacturing tasks, these bits are designed to deliver precision, durability, and efficiency in your cu… Enquire now

Description

Zund R14 Router Bit 3910714 Solid Carbide Spiral Milling Bit Reviews

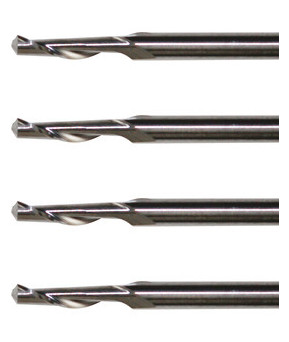

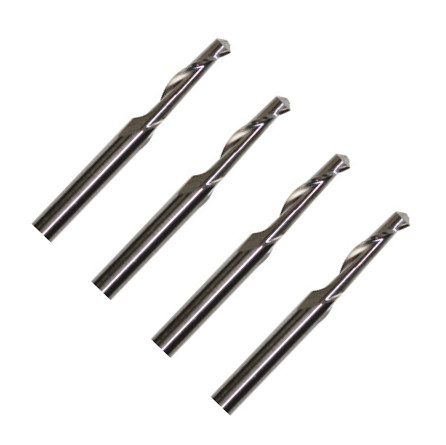

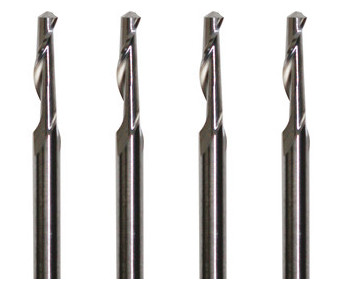

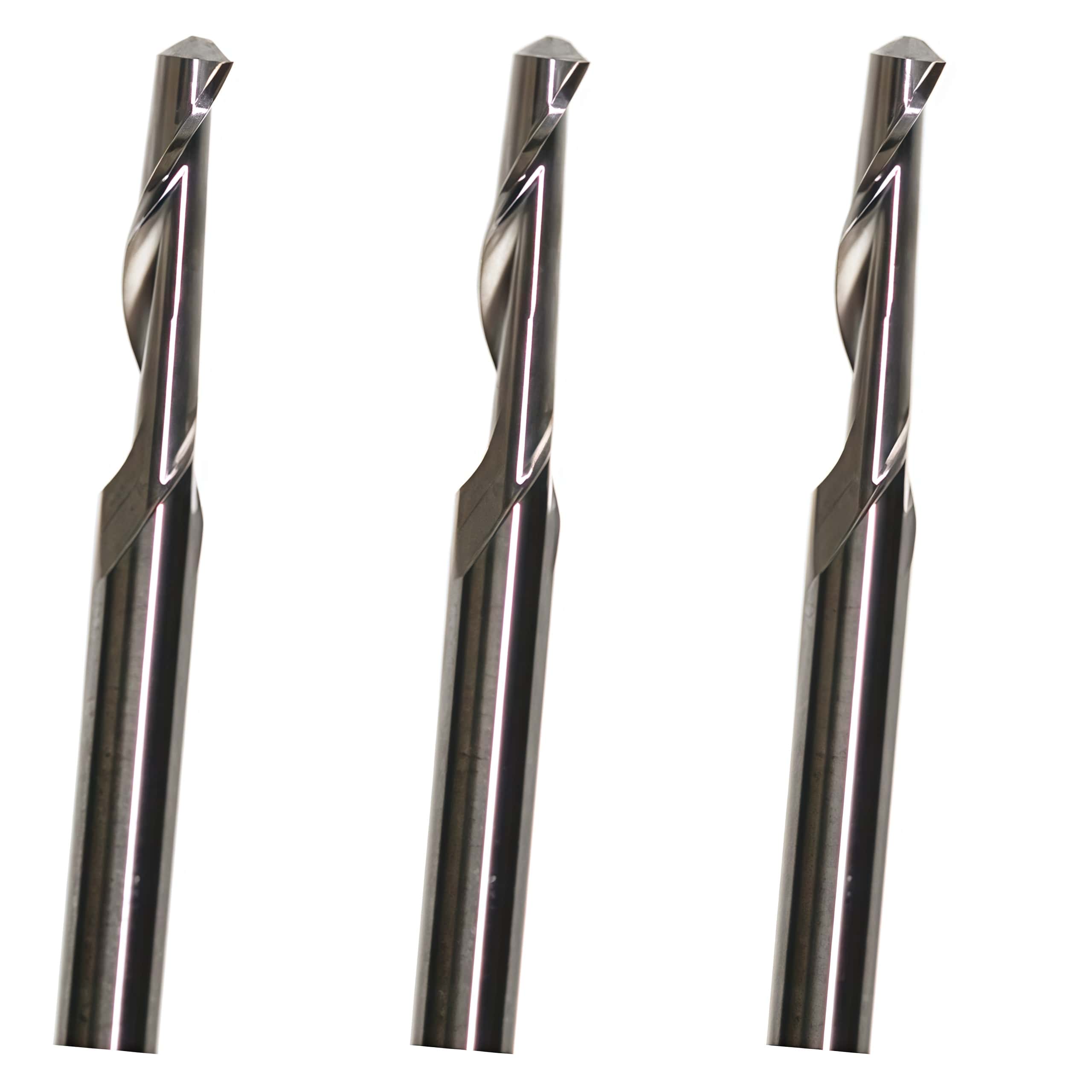

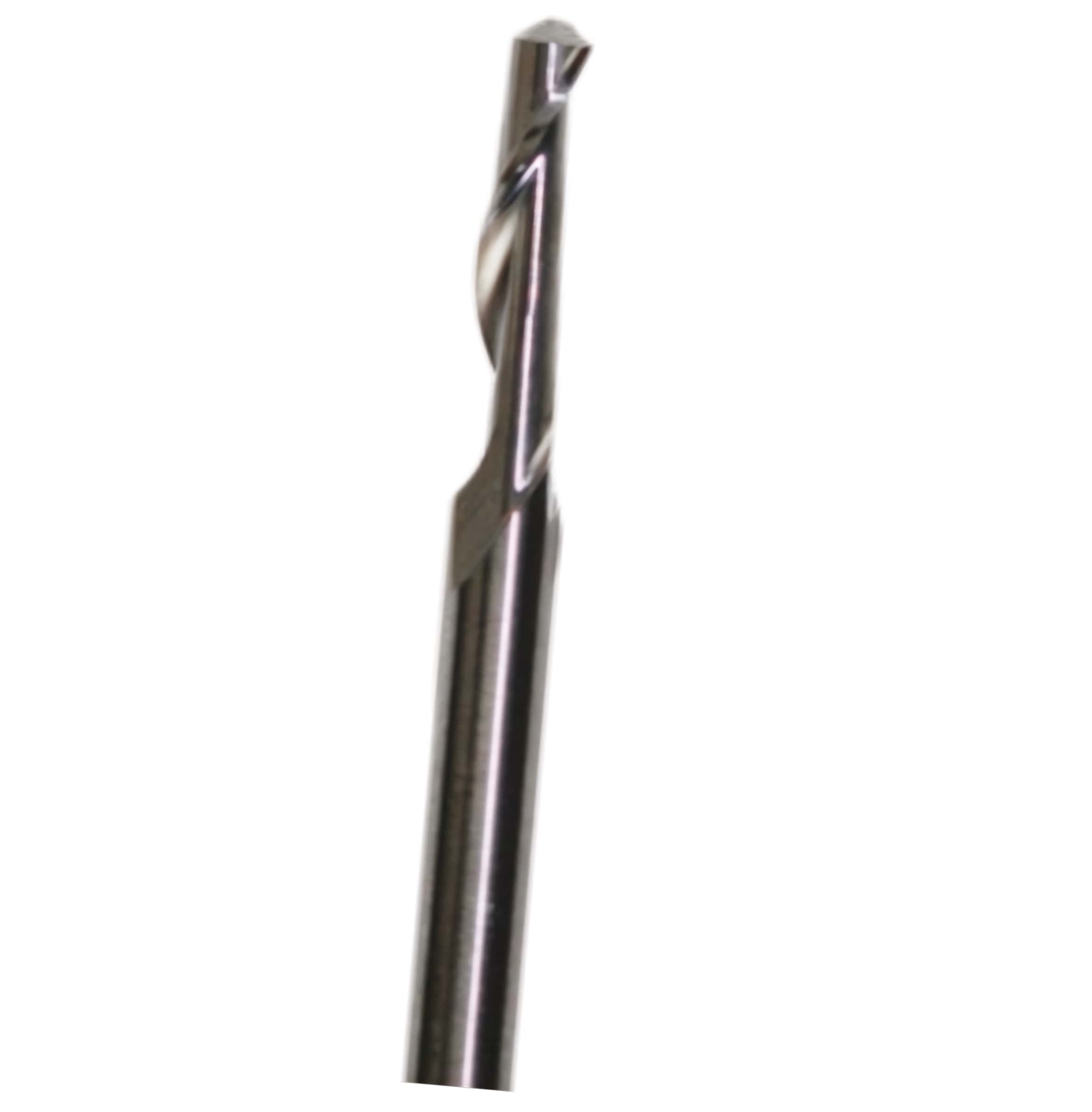

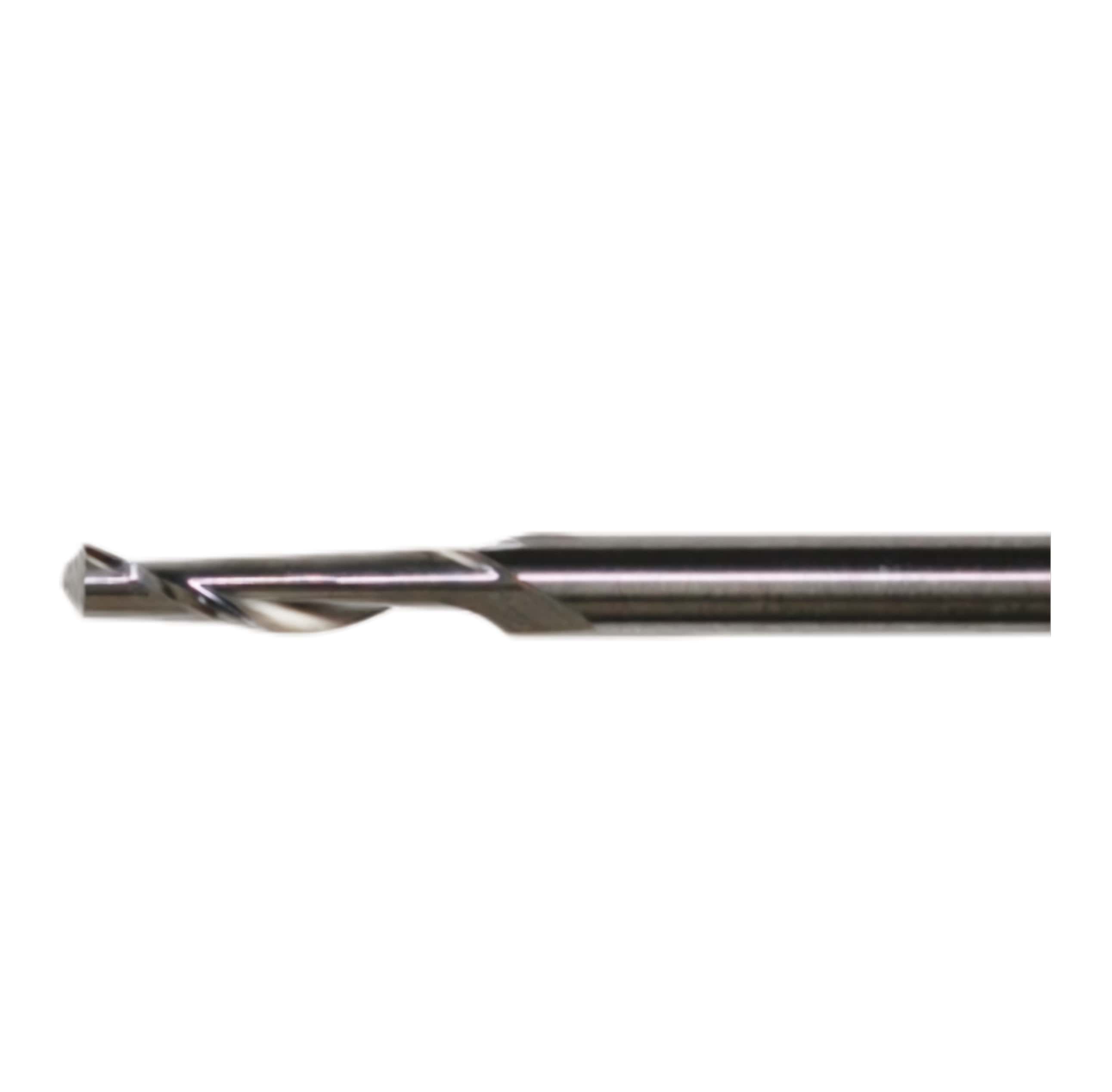

Zund R14 Router Bit (3910714) is an official OEM solid carbide spiral milling bit engineered for high-performance cutting. It features a right-hand twist, single-flute design optimized for fast debris evacuation and smooth edges on automated flatbed systems.

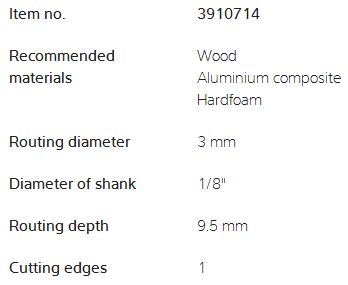

Technical Specifications

Part Number: 3910714
Type: Up-cut spiral O-flute
Cutting Diameter: 3.0 mm
Routing Depth: 9.5 mm
Shank Diameter: 1/8" (3.175 mm)
Total Length: 38 mm

Compatible Tool Modules

This bit fits seamlessly into Zund's high-performance routing hardware:

RM-A Modules: Used on G3, S3, and D3 digital cutters.
URT Spindles: Compatible with the Universal Routing Tool (300W).
PN Spindles: Fits the 150W and 450W high-frequency router modules.

Material Compatibility

The R14 is a versatile, universal bit used across multiple industries for clean, burr-free edges on:

ACM: Aluminum Composite Materials (like Dibond).
Plastics: Acrylic (Plexiglass), Polycarbonate, Expanded PVC, and Solid foam.
Woods: MDF, HDF, plywood, and softwoods.
