Zund R16 Router Bit 3910716 Oem Solid Carbide Spiral Milling Bits Replacement
Zund R16 Milling & Router Bits 3910716 are designed to be compatible with Zund automated cutting machines. These bits are available for global sales, ensuring accessibility across regions such as Europe, the USA, the Middle East, and Asia Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

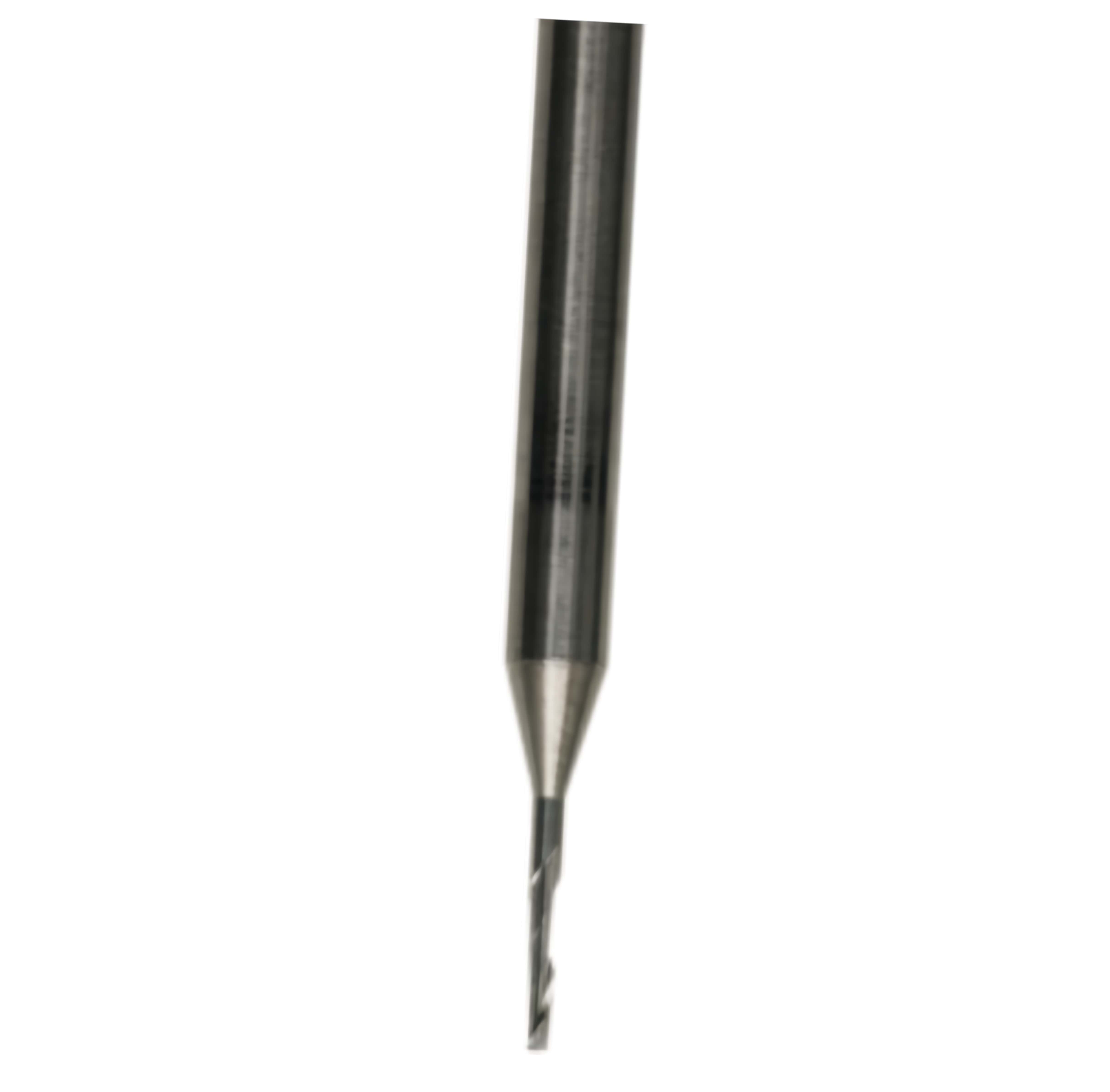

Zund R16 Router Bit 3910716 Oem Solid Carbide Spiral Milling Bits
Zund R16 Router Bit 3910716 Oem Solid Carbide Spiral Milling Bits

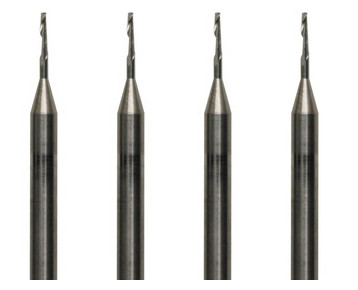

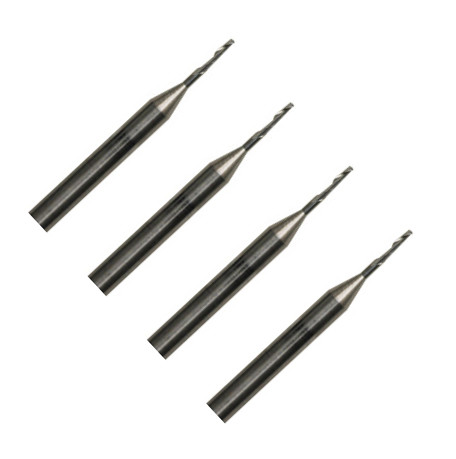

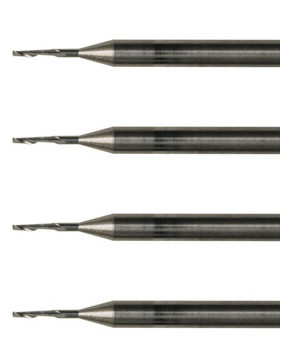

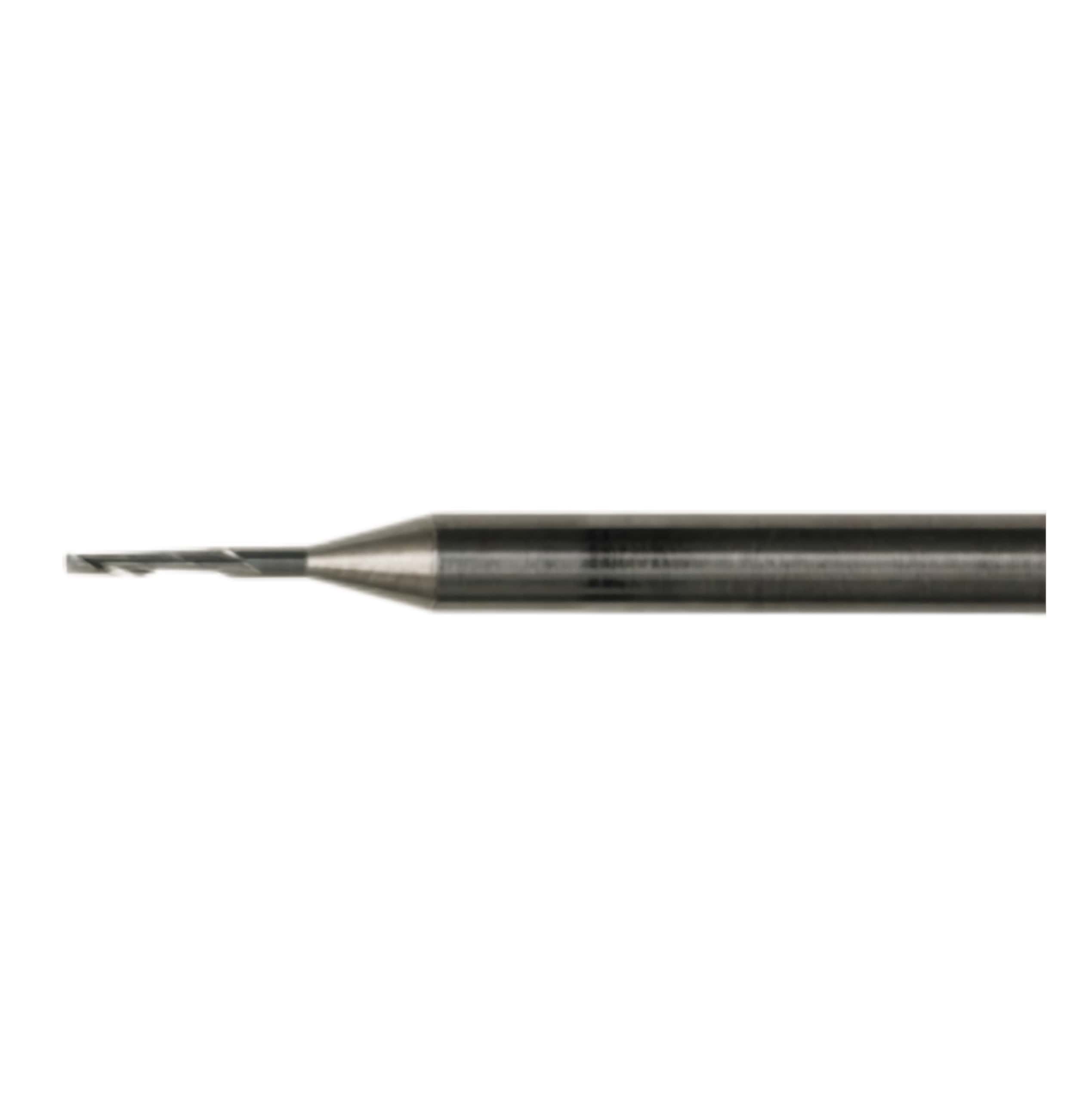

Zund R16 Router Bit (Item Number 3910716) is an OEM solid carbide spiral milling bit engineered for automated flatbed systems. Functioning as a high-precision, micro-milling tool, the R16 variant features a very narrow 1.0 mm cutting edge diameter specifically tailored for cutting small features, tight radii, and thin plastic substrates.

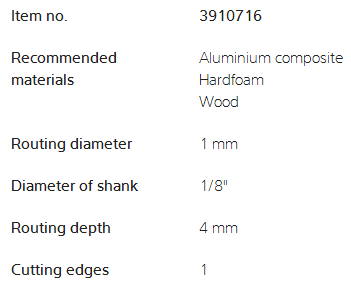

Core Technical Specifications
The R16 utilizes a single-flute ("O-Flute") configuration to safely eject chips from shallow grooves without melting thermoplastic workpieces:
  • Routing Diameter (Cut Ø): 1.0 mm
  • Max Routing Depth: 4.0 mm
  • Shank Diameter: 1/8" (3.175 mm)
  • Total Length: 38 mm
  • Number of Cutting Edges: 1 Flute (Up-cut / Right-hand twist)
  • Maximum Rotation Speed: 80,000 RPM

Material Compatibility
Because of its small 1.0 mm cutting profile and 4 mm depth threshold, this bit is best suited for fine detail work and clean-edge trimming on:
  • Plastics & Synthetics: Highly effective for thin Acrylic (PMMA), Polycarbonate, Expanded PVC (Forex), and delicate engineering plastics.
  • Composites: Intricate engraving or profiling on thin Aluminum Composite Materials (ACM / Dibond).
  • Wood Products: Fine, shallow routing on Medium-Density Fiberboard (MDF) and thin model-making plywood.

Spindle & Module Integration
The R16 can be procured directly from the official Shenzhen Oyea Store and runs on multiple generations of Zund automated hardware:
  • Compatible Spindles: Purpose-built for the high-speed PN 150W / 450W spindles and the Universal Routing Tool (URT).
  • Supported Cutting Tables: Fully compatible with the automated tool management architecture of the Zund G3, S3, and D3 digital cutters

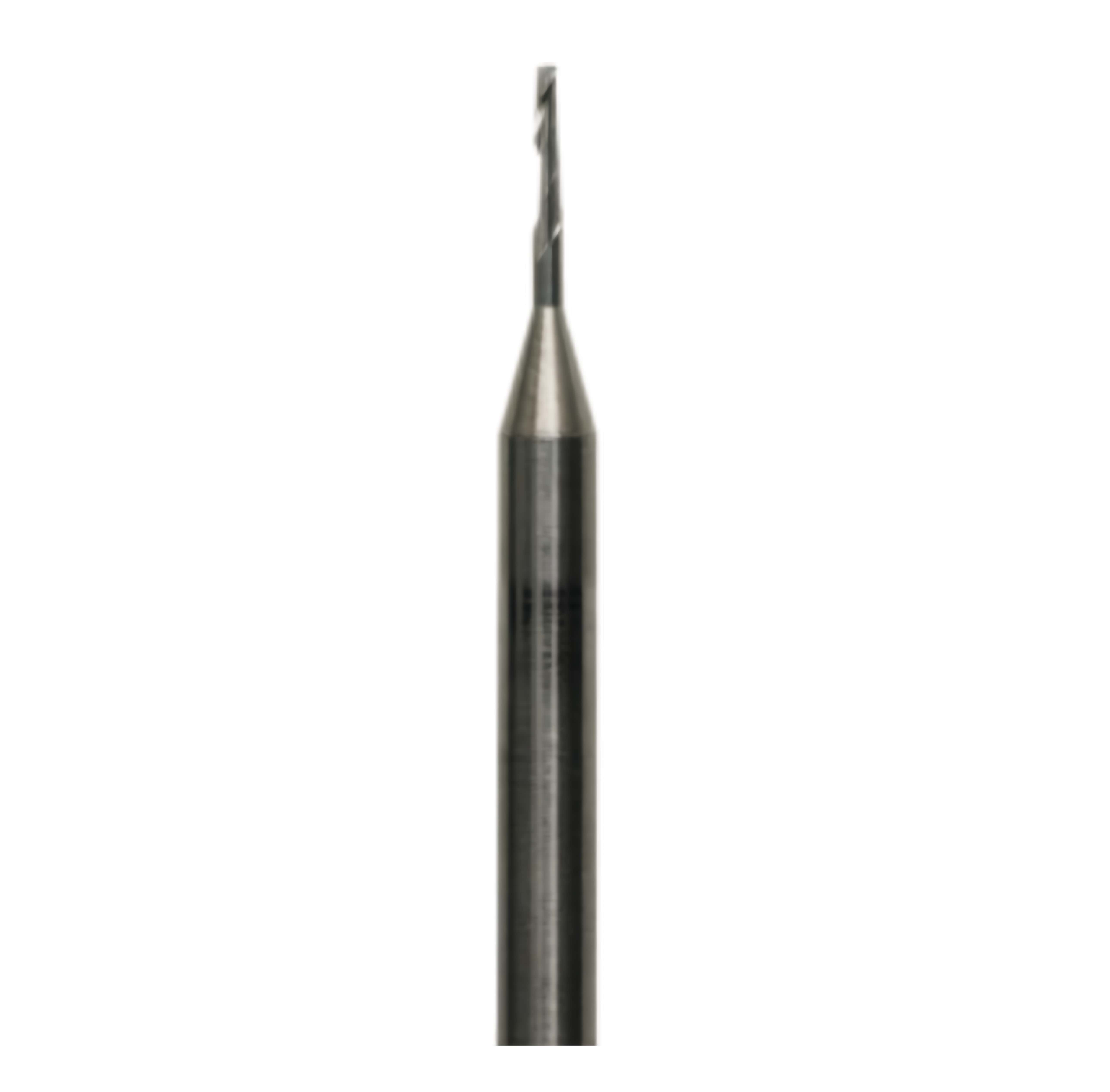

Zund R16 Router Bit 3910716 Oem Solid Carbide Spiral Milling Bits
