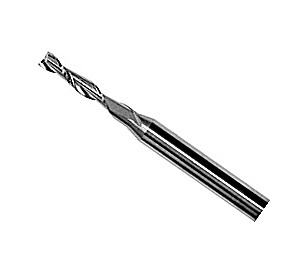

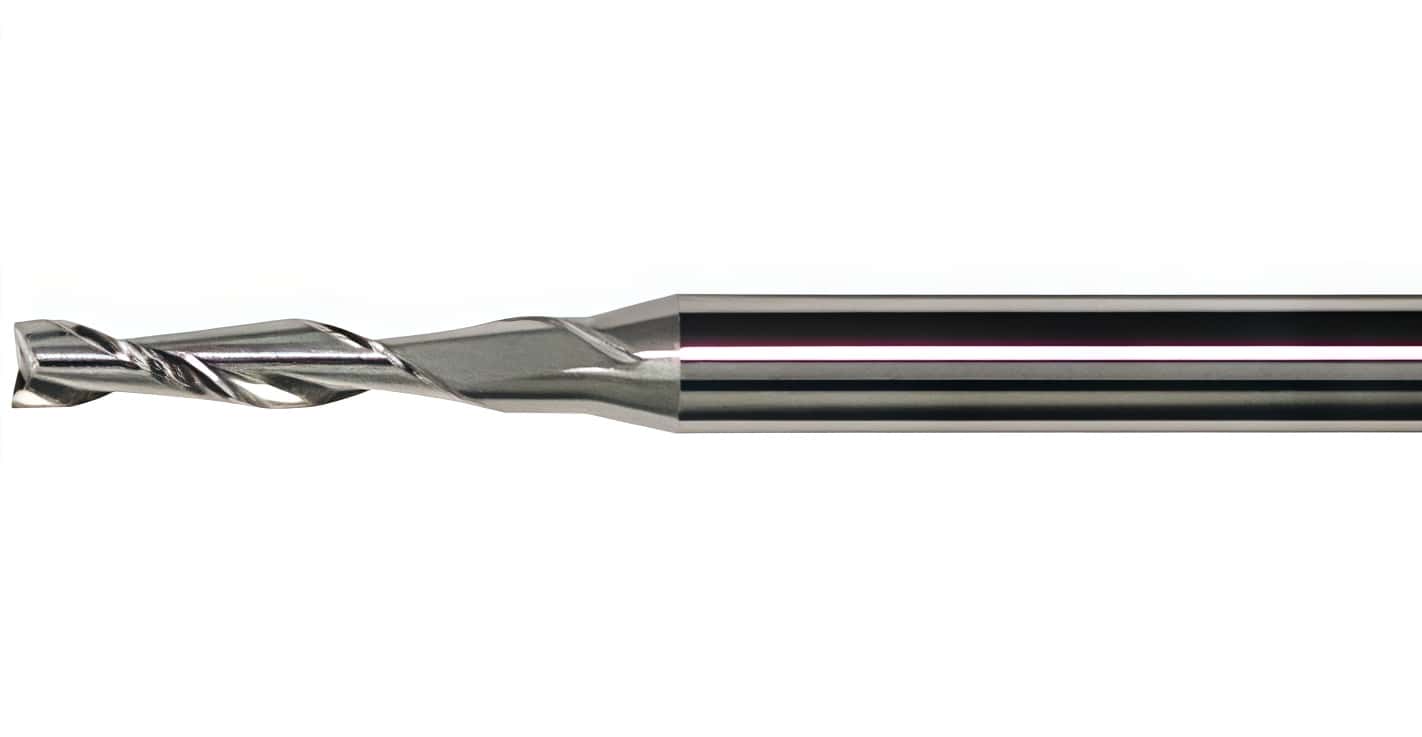

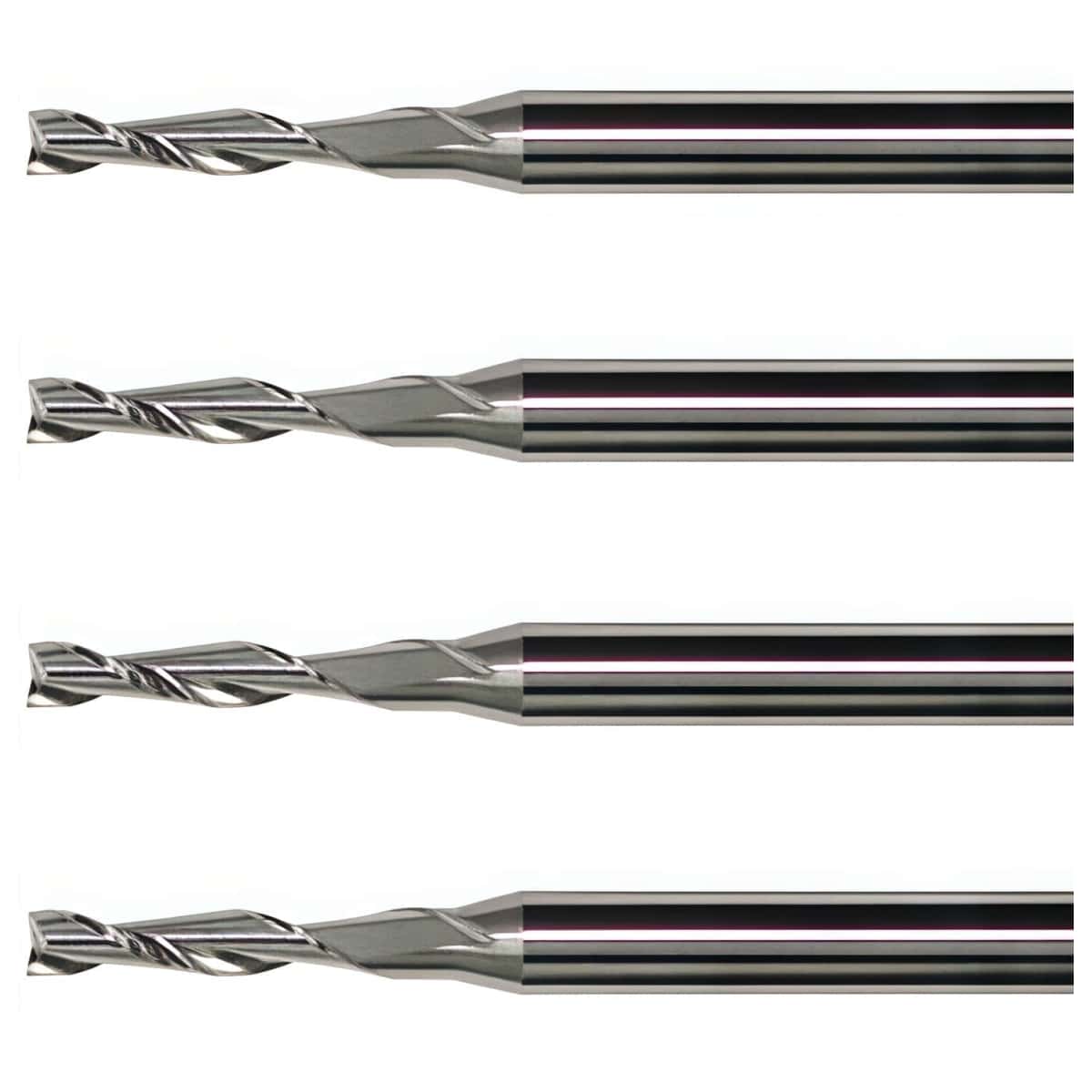

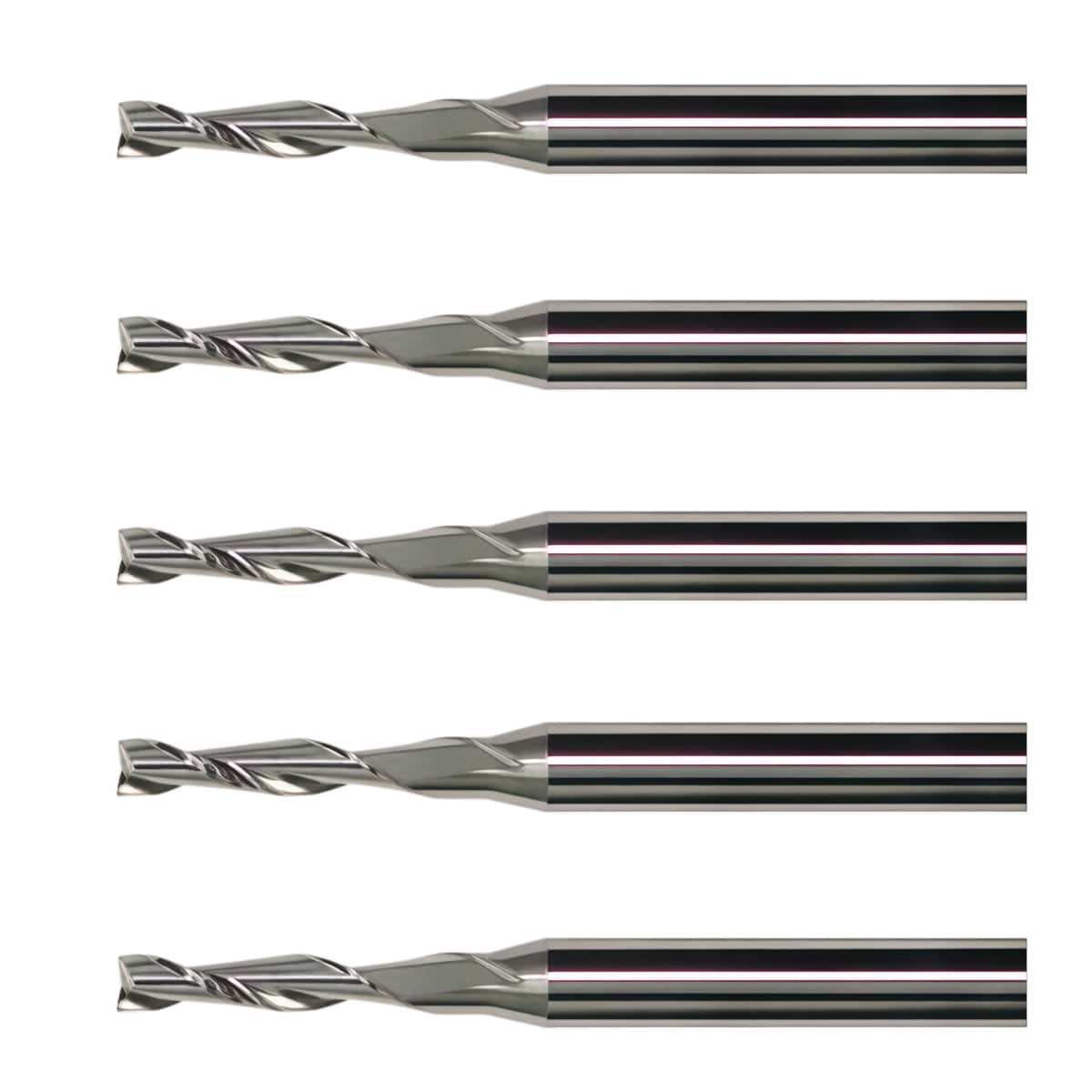

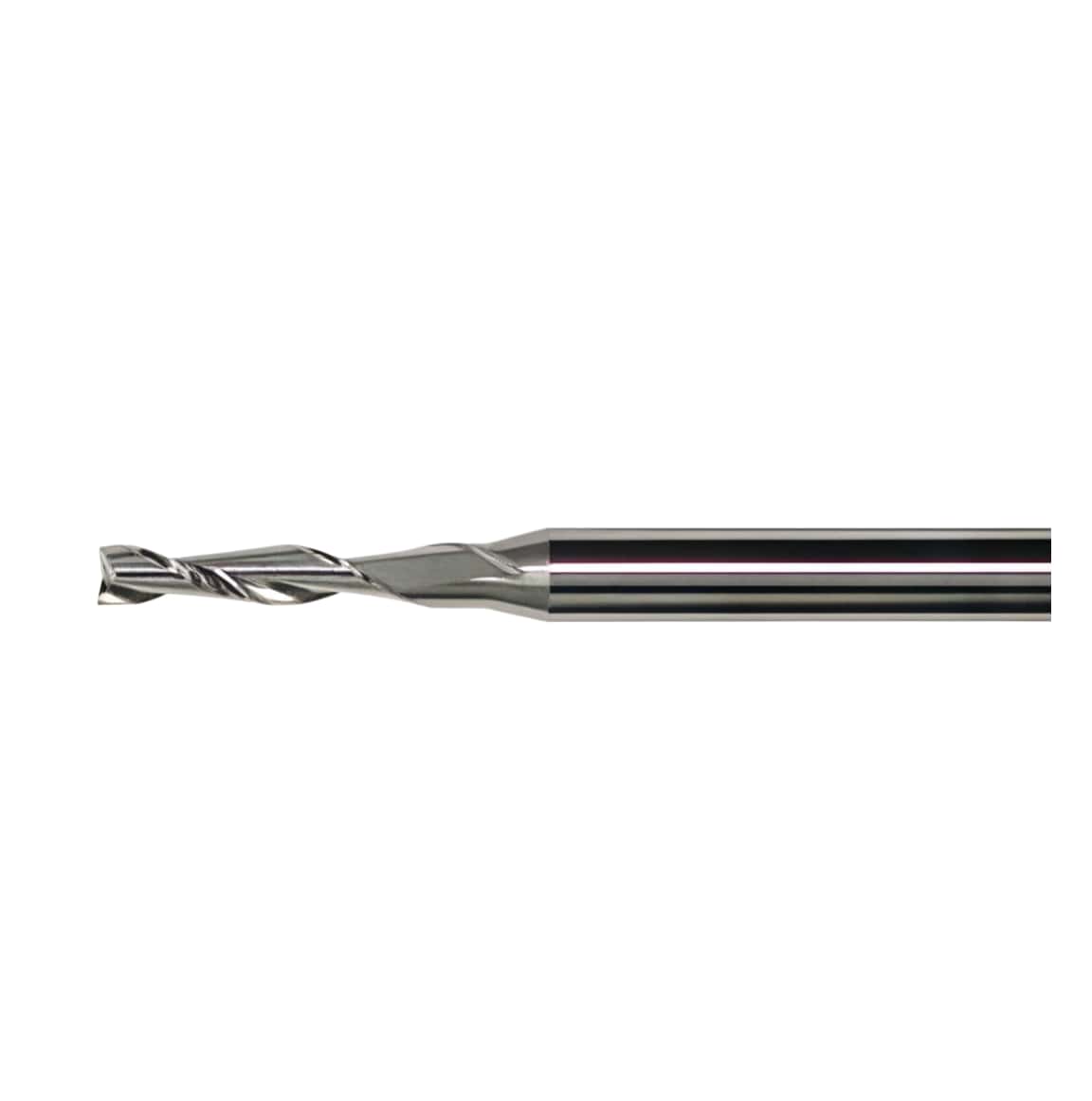

Zund R22 3910702 Carbide Spiral Milling Bit

Zund R22 Router Bit (Item Number 3910702) is an OEM solid carbide spiral milling bit specifically designed by Shenzhen Oyea for smooth, low-vibration machining. Moving up slightly in size from the R21, the R22 features a two-flute (double-edged) geometry engineered to deliver burr-free finishes on denser plastics and non-ferrous metals.

Core Technical Specifications
The R22 balances a rigid structural core with an efficient up-cut design to prevent material weld-back:
  • Routing Diameter (Cut Ø): 2.0 mm
  • Max Routing Depth: 9.0 mm
  • Shank Diameter: 1/8" (3.175 mm)
  • Total Length: 38 mm
  • Number of Cutting Edges: 2 Flutes (Double-edged, up-cut)
  • Maximum Rotation Speed: 80,000 RPM
  • Twist Direction: Right-hand twist

Recommended Materials
The two-flute configuration divides the chip load across two distinct cutting edges. This yields a lower chip per tooth ratio, which prevents cracking or fracturing on brittle substrates:
  • Non-Ferrous Metals: Thin aluminum sheets, aluminum foils, and aluminum alloys (ideally coupled with a continuous minimum-quantity lubrication system).
  • Plastics & Synthetics: Cast and extruded Acrylic / Plexiglass (PMMA), Polycarbonate, and dense engineering plastics.

Machine & Spindle Integration
The R22 integrates natively with the Zund Cut Center (ZCC) tool database and runs seamlessly on standard automated routing modules:
  • Compatible Spindles: Engineered primarily for high-speed PN 150W and PN 450W spindle modules, as well as the Universal Routing Tool (URT).
  • Supported Platforms: Fully operational within the tool-changing assemblies of the Zund G3, S3, and D3 digital flatbed cutters.
