Zund R42 Cnc Milling & Router Bits 3910735-Production Manufacturing Wholesale

Zund R42 CNC Milling and Router Bits (Model 3910735) are designed for excellence in production and manufacturing. These high-quality tools are available for wholesale and retail, offering competitive pricing and reliable performance. Originating from China, they come directly from the factory, ensur… Enquire now

Description

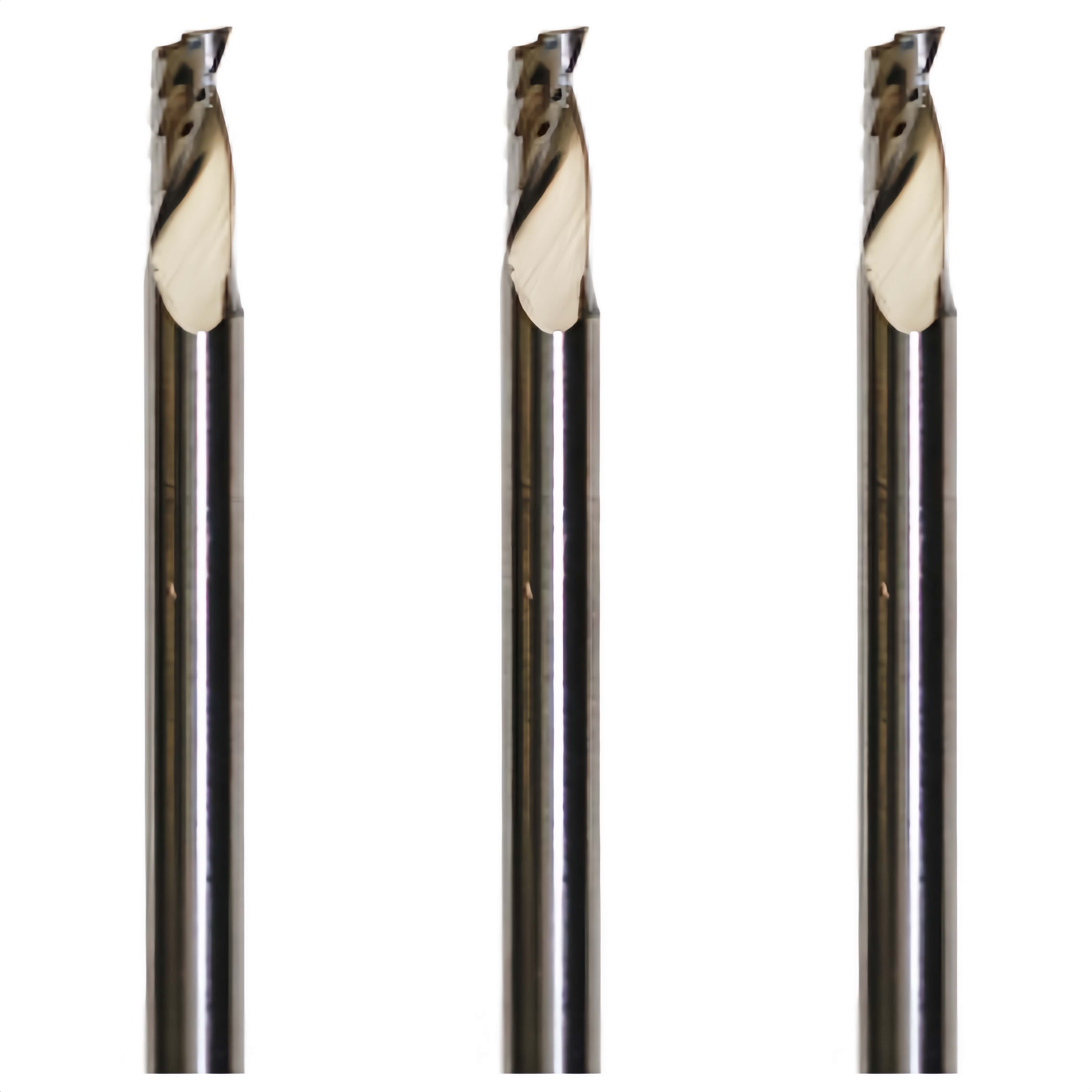

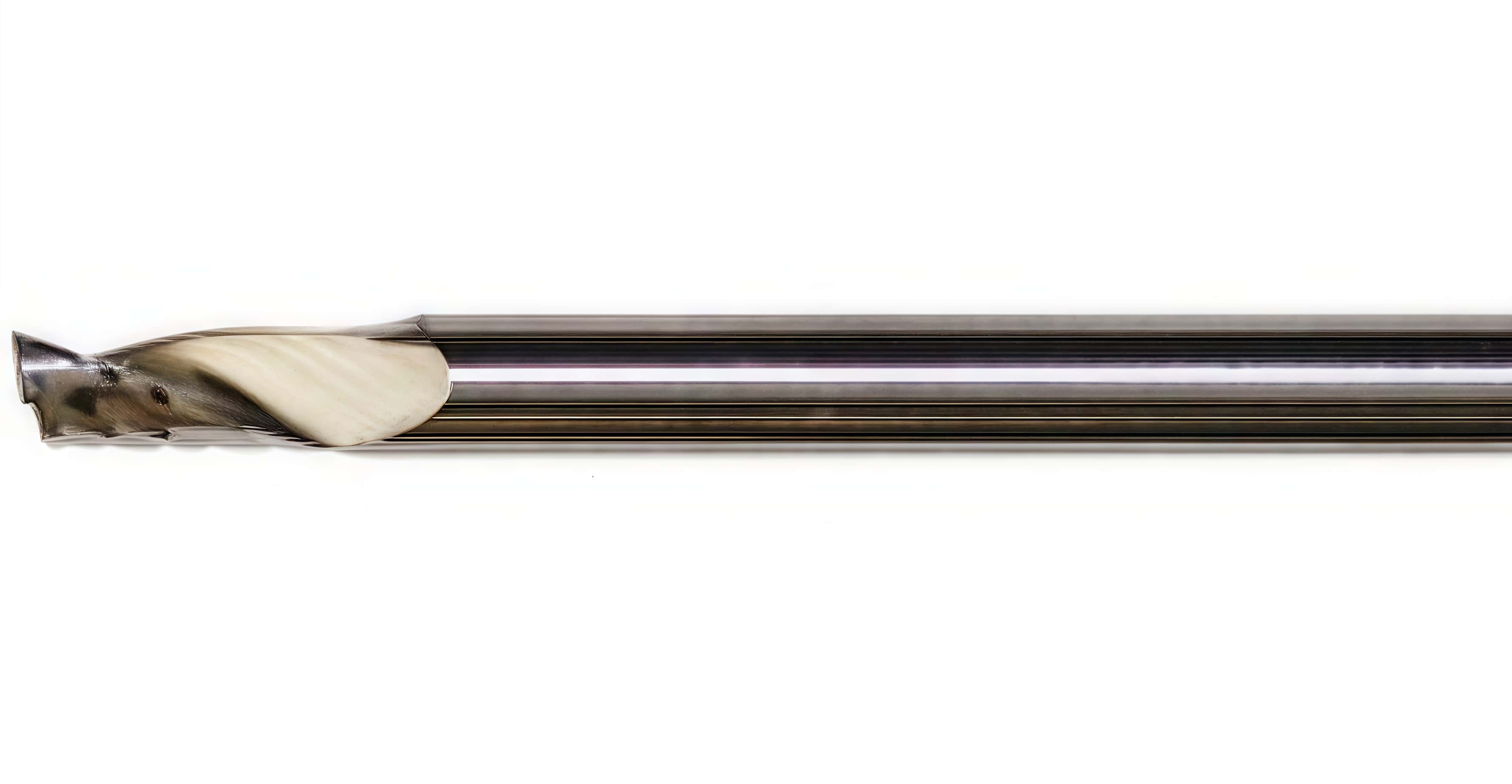

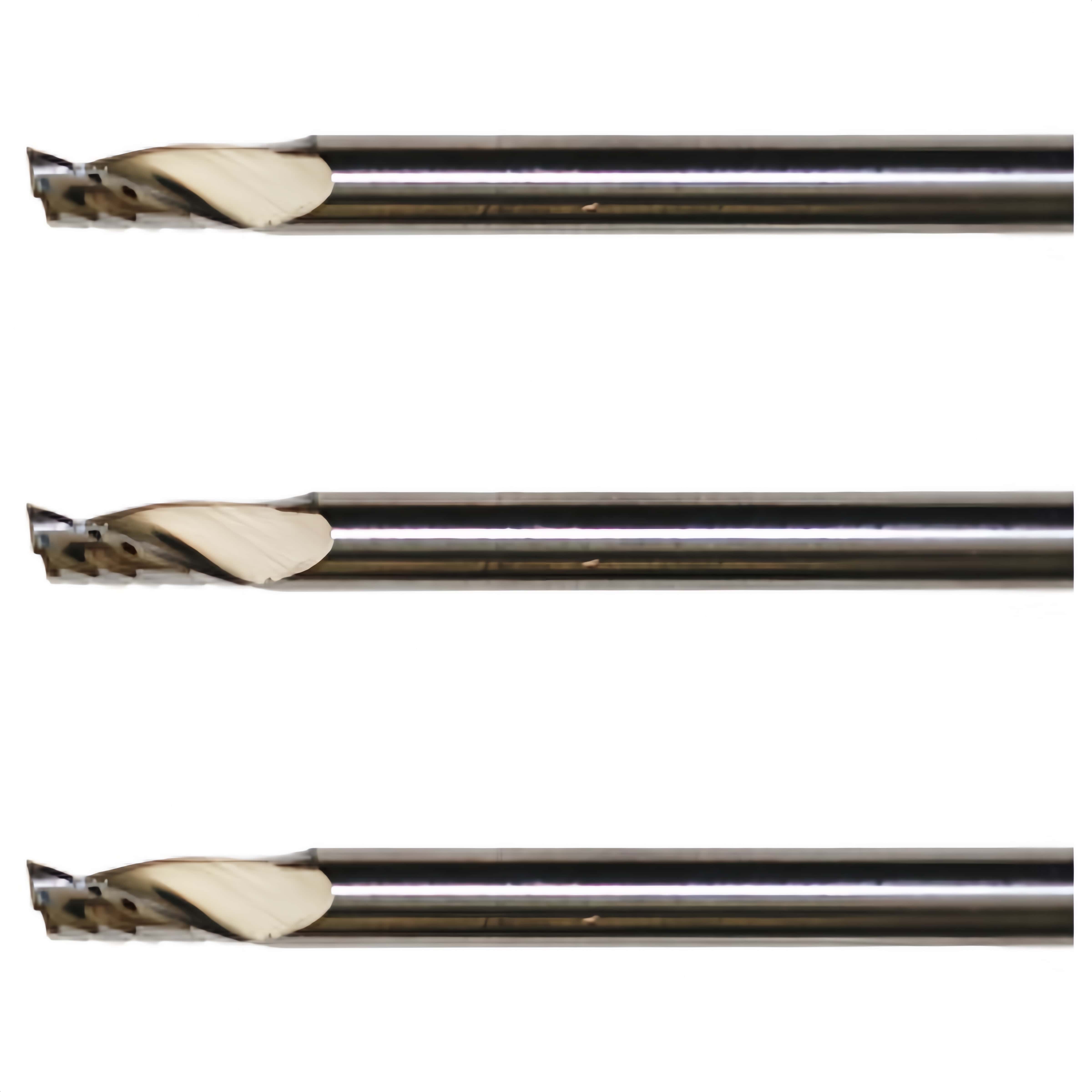

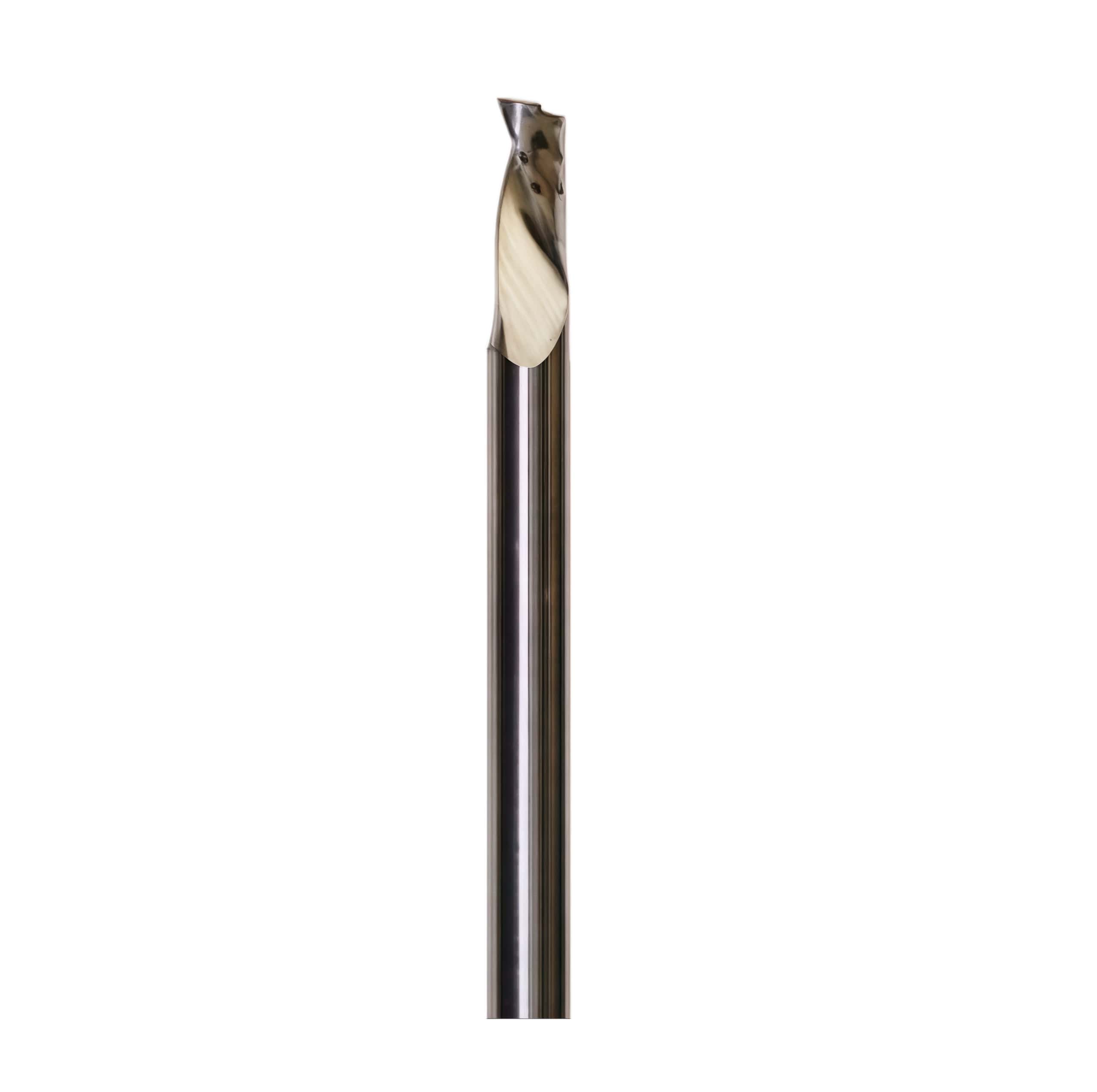

Zund Milling & Router Bits R42(3910735)

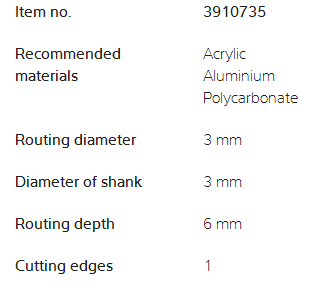

Specifications
Tool
PN 150/450 W, URT
Diameter of Shank
3 mm
Max Rotation Speed
80000
Routing Depth
6 mm
Cutting Edges
1
Routing Diameter
3 mm
Twist
Right-hand twist

Recommended Materials

The R42 bit is optimized to balance clean material evacuation with structural stability when processing dense or prone-to-melt materials up to 6mm thick:

Aluminum Composite Material (ACM / Dibond)
Aluminum Alloys and thin sheet metals
Polycarbonate (PC)
Acrylic (PMMA / Plexiglass)

Operational Advantages

Because of its single-flute up-cut spiral geometry, the R42 provides rapid upward chip clearance. At spindle speeds reaching 80,000 RPM, it quickly forces debris away from the cutting channel. This rapid chip extraction effectively cools the tool tip, prevents rigid plastics from melting back into the seam, and keeps the edge profile entirely clean.
