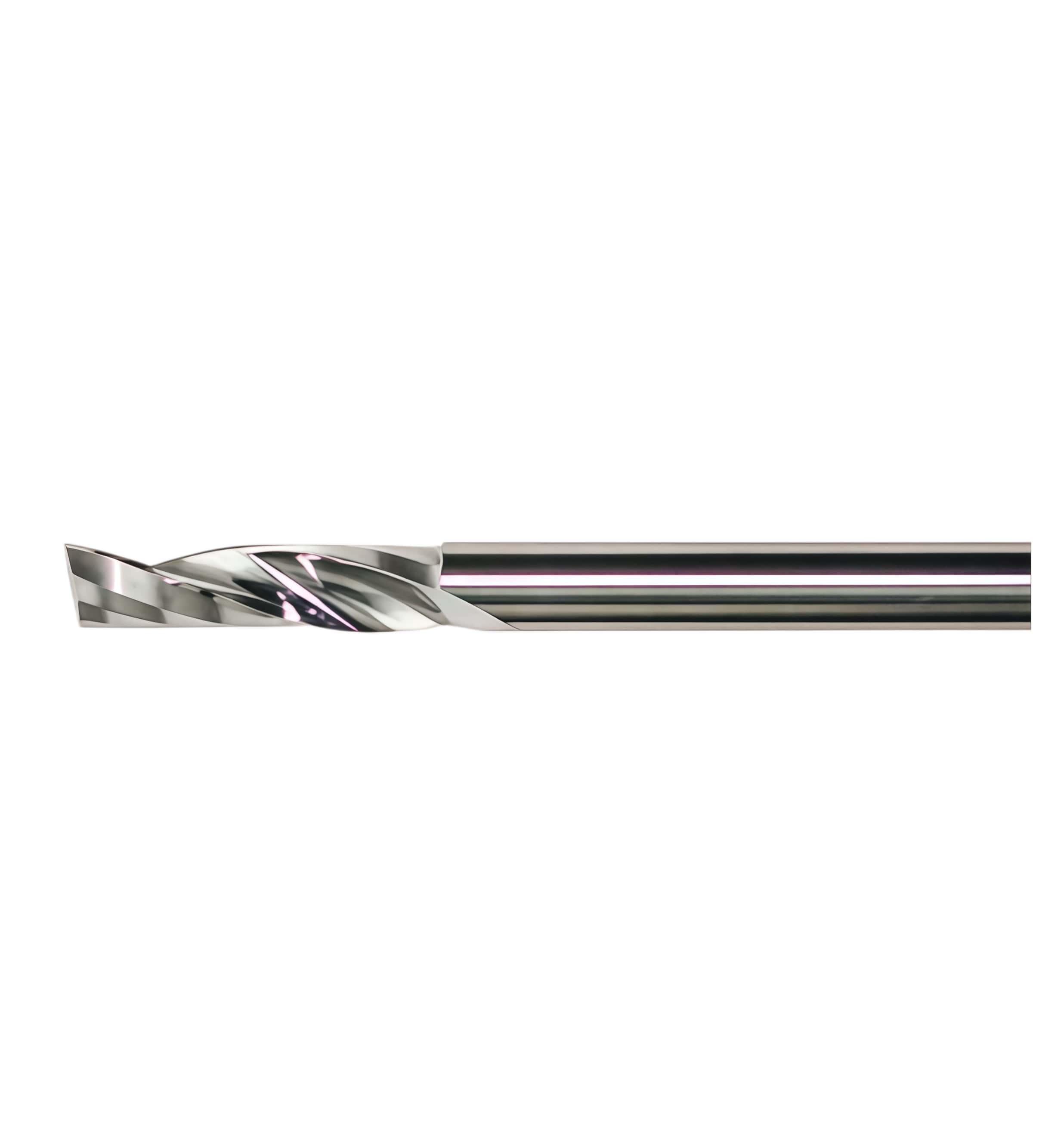

Zund R75 Cnc Carbide Milling & Router Bits 3910756-Replace Compatible Applicable

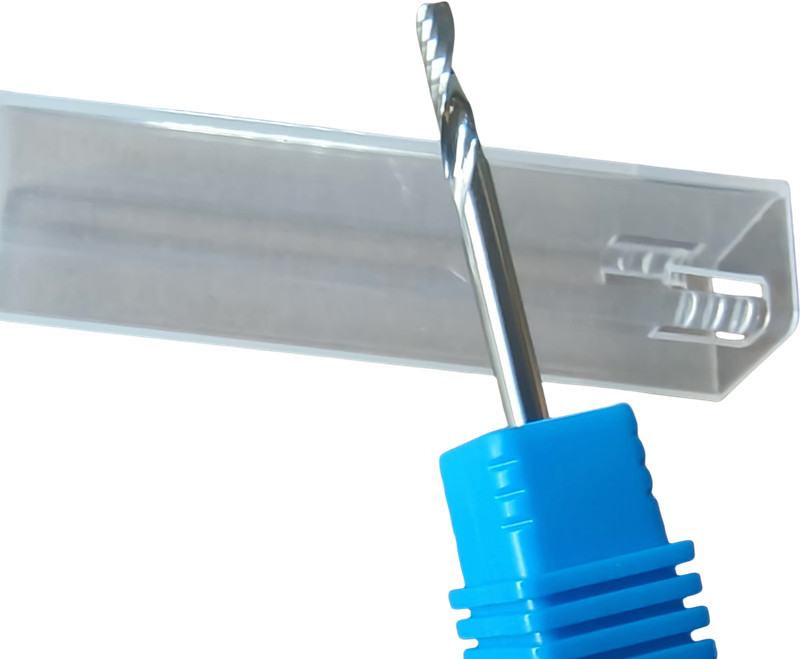

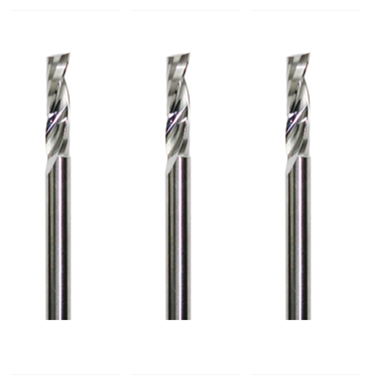

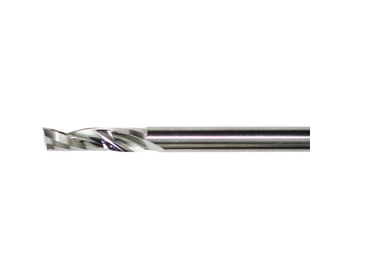

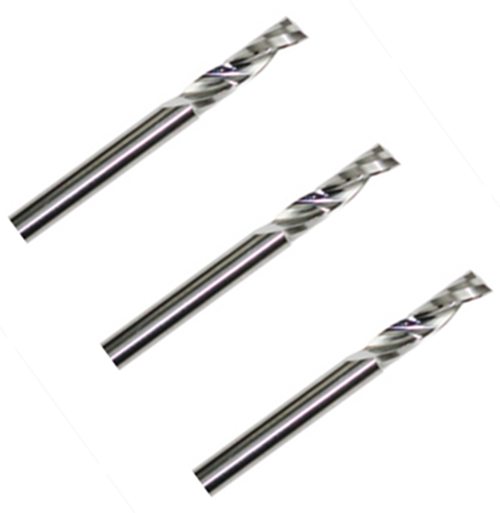

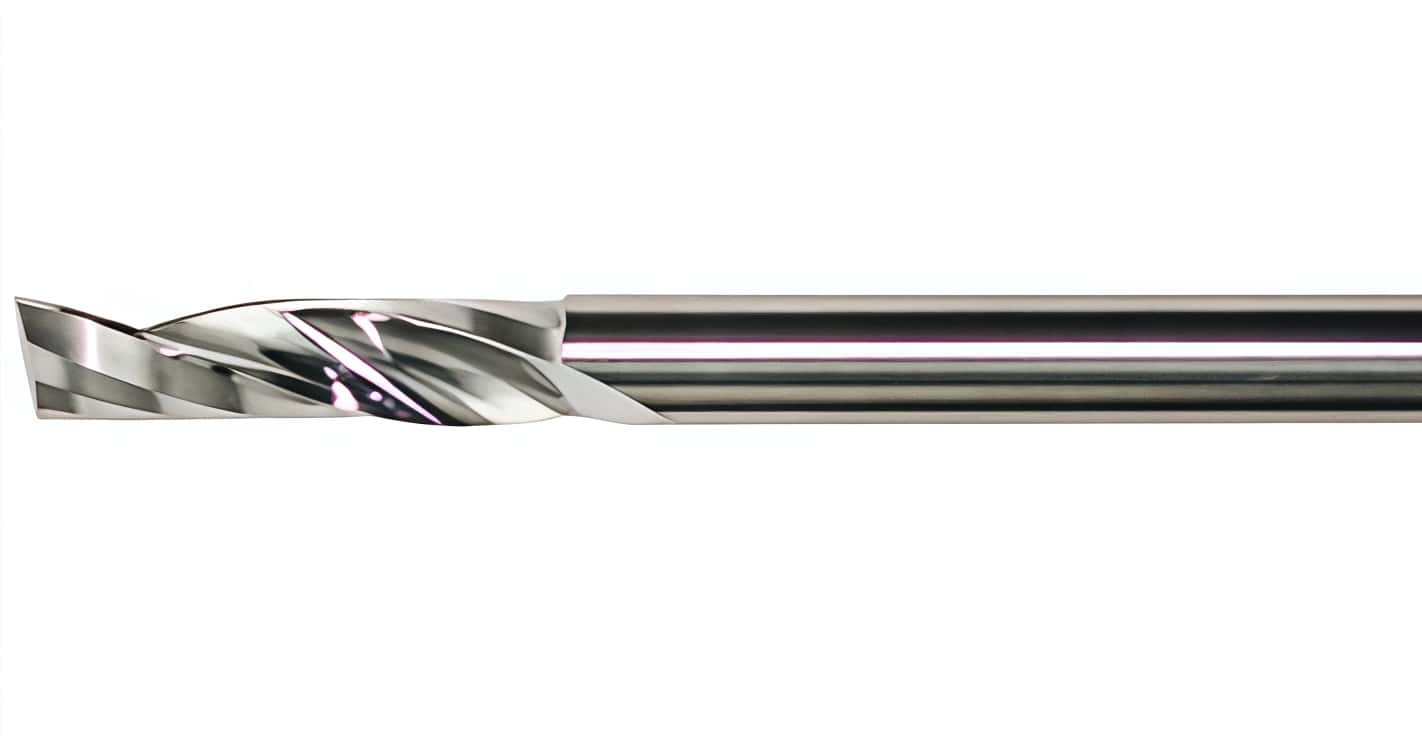

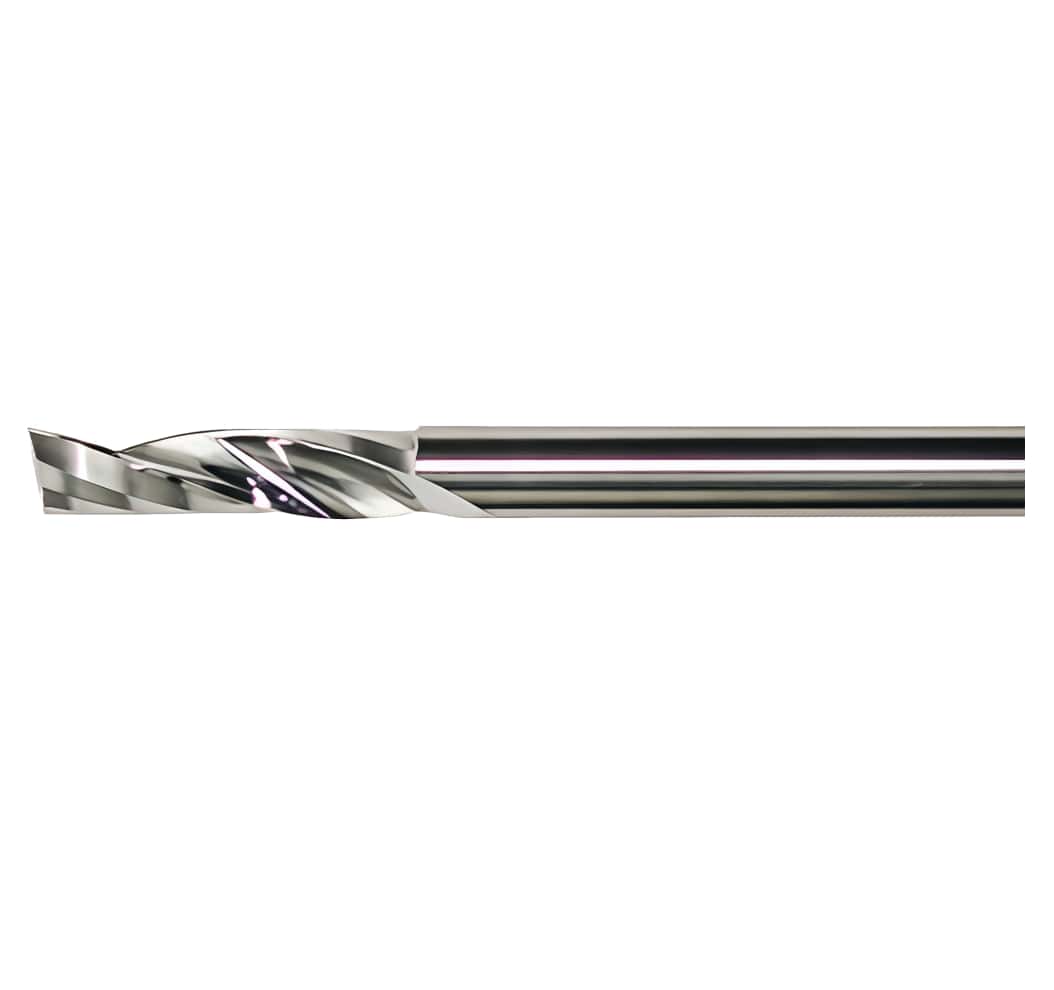

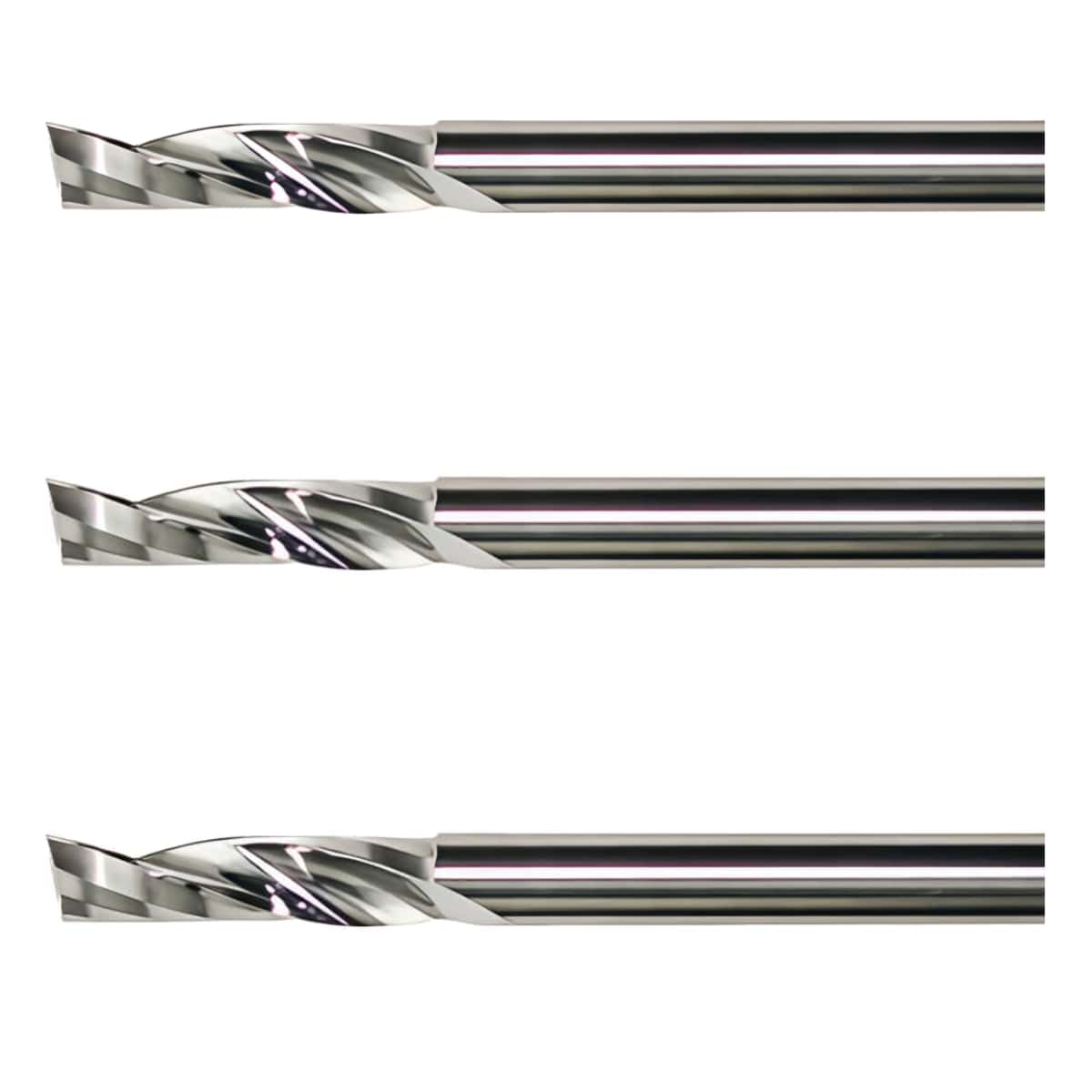

Zund R75 CNC Solid Carbide Milling & Router Bit (3910756) is a premium, single-flute cutting tool designed for clean edge finishing on digital flatbed cutters. In contrast to the down-cut R76 bit, the R75 features a right-hand spiral (up-cut) configuration. This upward flute geometry lifts chips eff… Enquire now

Description

Zund Milling & Router Bits R75(3910756)

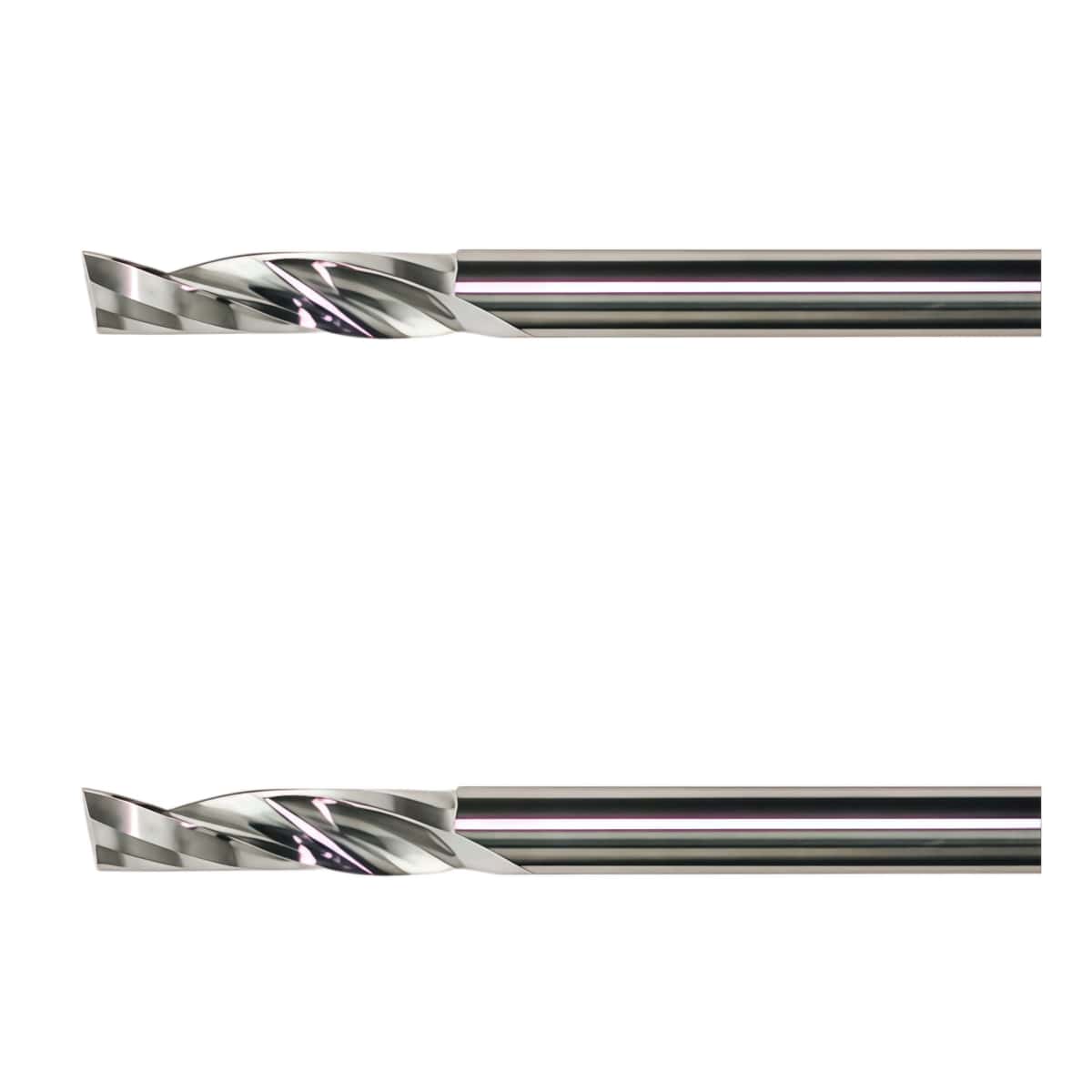

Zund R75 Cnc Carbide Milling & Router Bits

Properties
Single-edged router bit, polished

Tools
PN 150/450 W
URT

Diameter of shank
3 mm
Max. rotations speed (1/min)
80000
Max. routing depth
11 mm
Number of cutting edges
1
Routing diameter
3 mm
Twist
right-hand twist

Recommended Materials

Plastics: Expanded PVC (Forex), PE, PET, PETG, and PP
Wood Products: MDF, plywood, and various softwoods
Composites: Aluminum Composite Materials (ACM / Dibond)

Performance Characteristics

Manufactured from high-grade sintered carbide, the R75 utilizes a highly polished single flute. This smooth interior profile lowers friction, which prevents soft plastics and wood resins from melting or sticking to the bit. The up-cut dynamic excels when executing through-cuts on dense, thick, or gummy materials where maximizing chip evacuation is vital to preserving a flawless surface finish.
