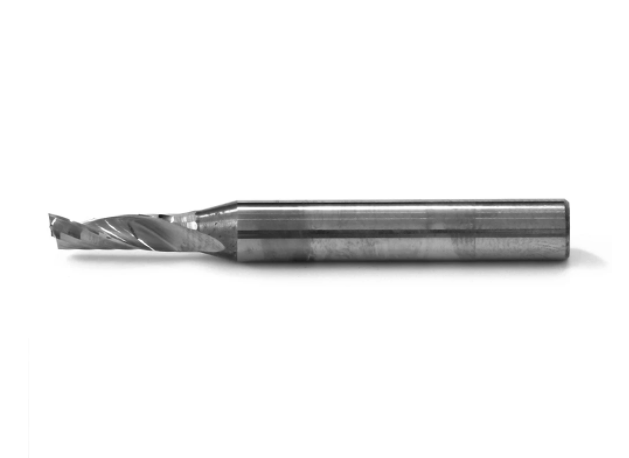

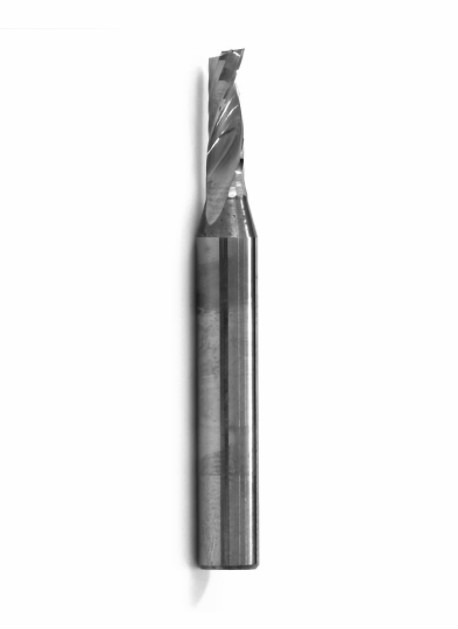

Zund R104 3910744 Spiral Milling bit Router Bits– Replacement

Zund R104 3910744 Spiral Milling bit Router Bits– Replacement Fraise hélicoïdale Zund - Fraises de toupie de rechange Zund Spiralfräser Fräser-Bits – Ersatz Frezy spiralne Zund Frezy do frezów – zamienniki Zund spirális marófej Maró bitek – Csere Enquire now

Description

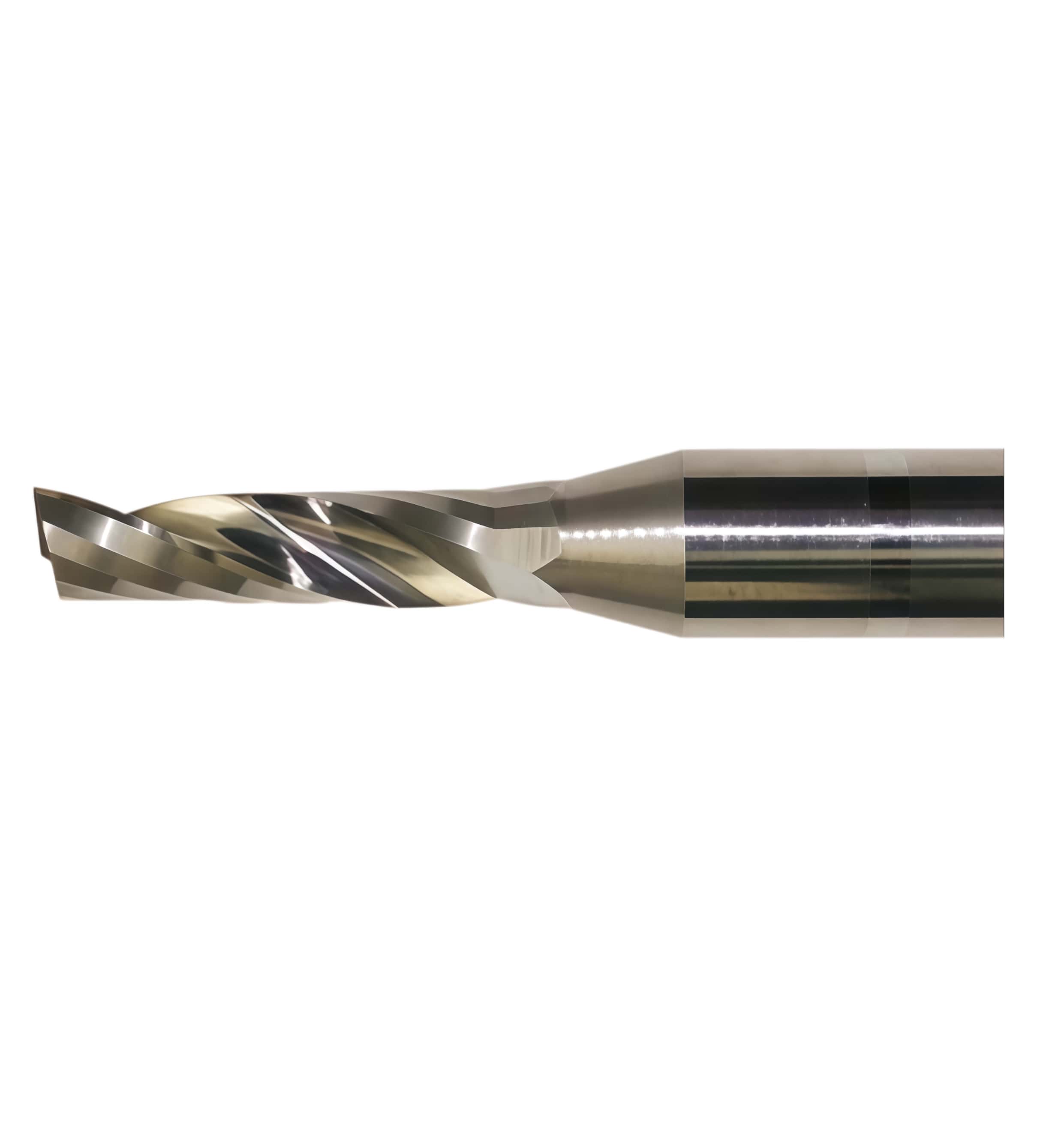

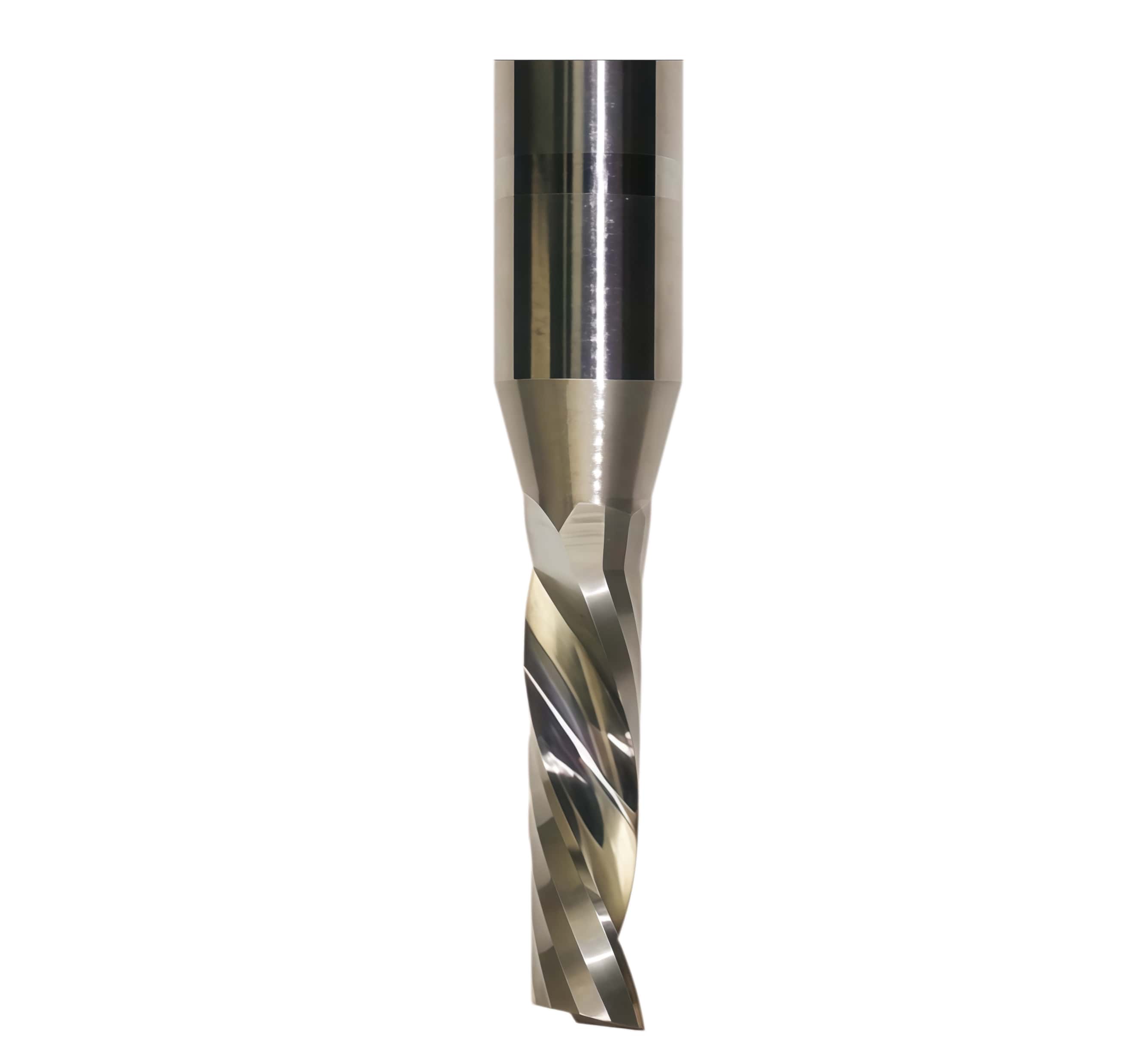

Zund R104 3910744 Spiral Milling bit Router Bits– Replacement

CUTTER BRAND
Zund

ROUTER BIT TYPE
Spitar Router bit

NUMBER OF CUTTING EDGES
1
DIAMETER OF SHANK
Shank ø 6.0 mm
ROUTING DIAMETER
4 mm
TOTAL LENGTH
50 mm
MAX. ROUTING DEPTH
14 mm
MAX. ROTATIONS SPEED (1/MIN)
46600

MATERIALS

Recommended Materials

Thanks to its thicker 4mm cutting core, the R104 handles higher lateral forces without breaking, rendering it optimal for dense, abrasive, or prone-to-melt materials:

Acrylic / Plexiglass (PMMA)
Aluminum Composite Panels (Dibond / ACM)
Expanded PVC Waveboard & Forex
Solid Polycarbonate & Engineering Plastics

Operational Advantages

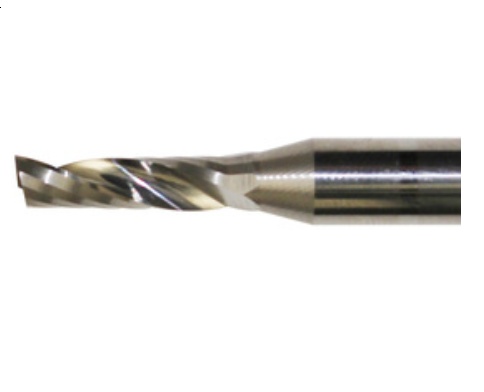

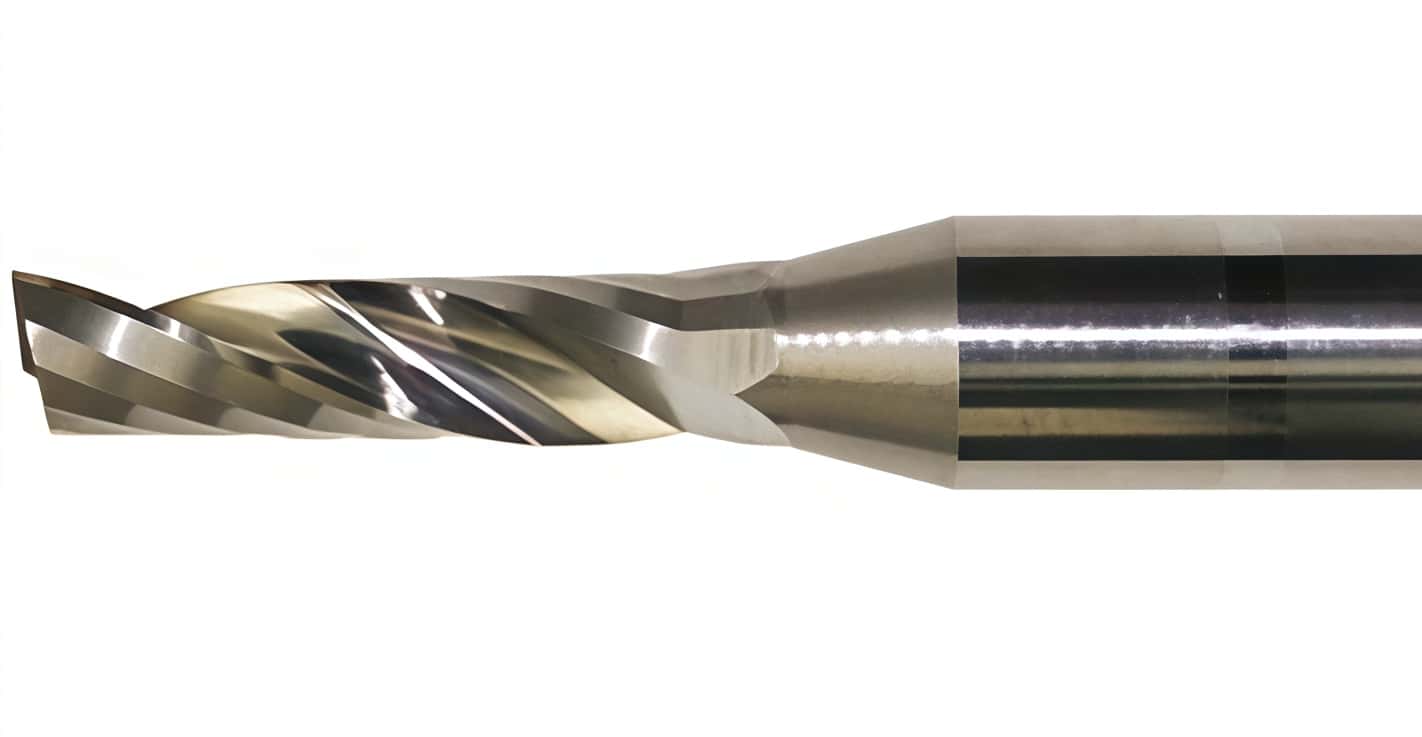

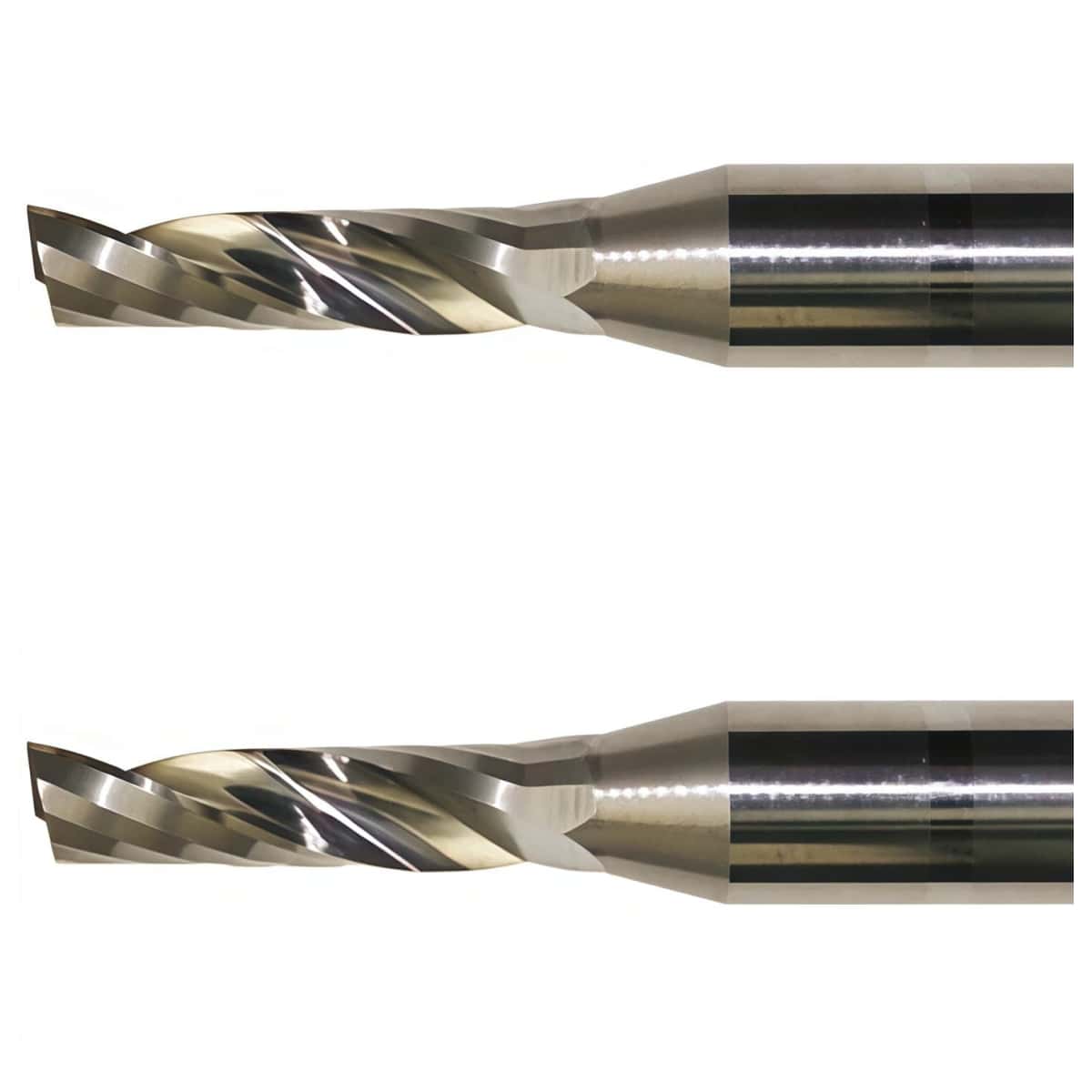

Optimized Chip Evacuation: The single O-flute upward spiral geometry creates a spacious channel that aggressively ejects waste upward and away from the cut path.
Thermal Regulation: Rapid debris clearing prevents the friction-induced heat that commonly causes plastics to melt back together or gum up the tool bit.
Superior Edge Finish: The rigid 4.0 mm geometry eliminates tool deflection, resulting in smooth, post-process free, and burr-free perpendicular edges.
