Zund R123-A Down Milling & Router Bits with Stop Ring 5211741

Zund R123-A Down Milling & Router Bits with Stop Ring 5211741 Who makes the best quality router bits? Can you use regular router bits in a CNC router? Which router bit stays sharp the longest? Do all router bits fit any router? Does brand matter with router bits?
Enquire now

Description

Zund R123-A Down Milling & Router Bits with Stop Ring 5211741

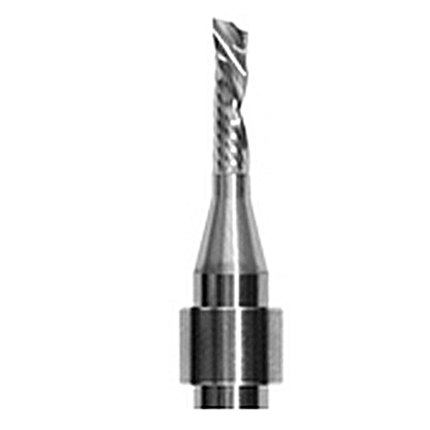

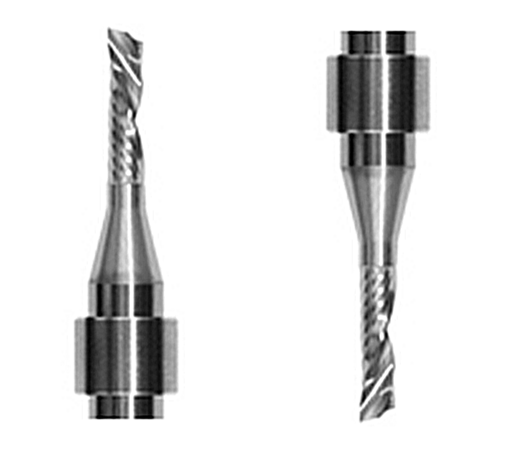

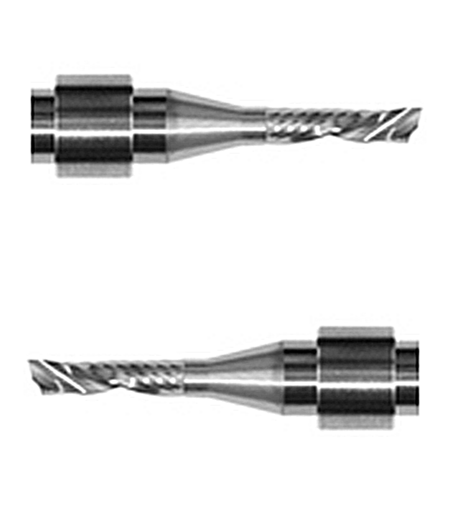

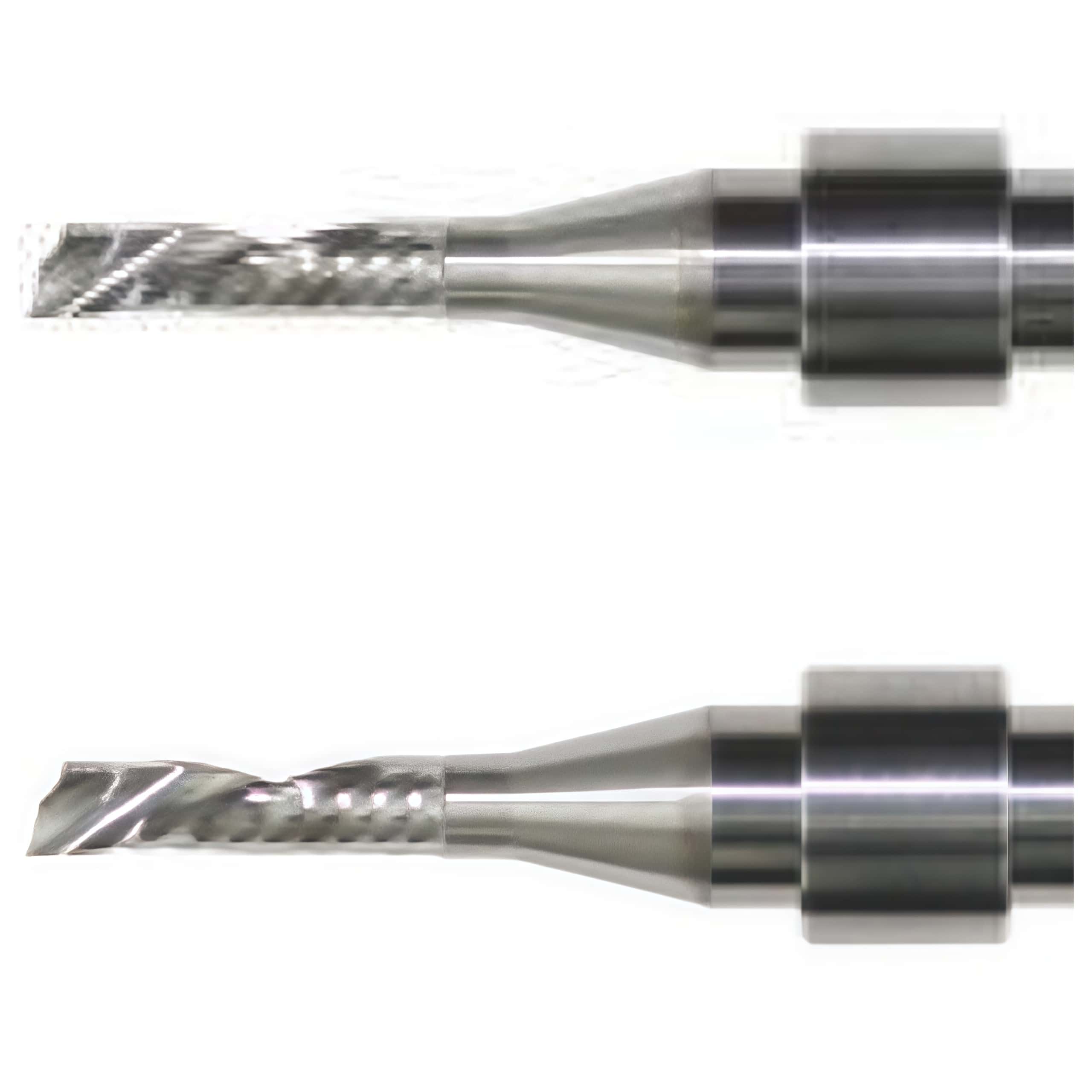

The Zund R123-A is a multi-purpose, single-flute down-cut (left-hand spiral) router bit specifically designed for high-performance milling. The "A" designation indicates it is equipped with a stop ring, which is essential for compatibility with Zund’s ARC (Automatic Router bit Changer) system.

CUTTER BRAND
Zund

ROUTER BIT TYPE
Spitar Router bit

NUMBER OF CUTTING EDGES
1
DIAMETER OF SHANK
Shank ø 6.0 mm
ROUTING DIAMETER
3,0 mm
TOTAL LENGTH
50 mm
MAX. ROUTING DEPTH
11 mm
MAX. ROTATIONS SPEED (1/MIN)
50000

MATERIALS Application & Use
As a down-cut bit, the R123-A pushes chips downward, which helps prevent thin materials from lifting and ensures a very clean finish on the top surface of the workpiece.
Best For: Soft and hard materials including ACM (Aluminum Composite Material), aluminum alloys, plastics (Acrylic/PMMA, PC), MDF, wood, and rigid foam.
System Compatibility: Primarily used with the RM-A (Router Module Air-cooled) and RM-A QC modules on Zund cutting plotters.
