Zund R133-A With Stop Ring Milling & Router Bits 5211744
Zund R133-A is a router bit with a stop ring, and the Zund webshop lists it as Router R133-A, Ø3/11/1 (Ø6/50mm) with item number 5211744 Accessories And Consumables Spare Parts Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Zund With Stop Ring Milling & Router Bits R133-A(5211744)

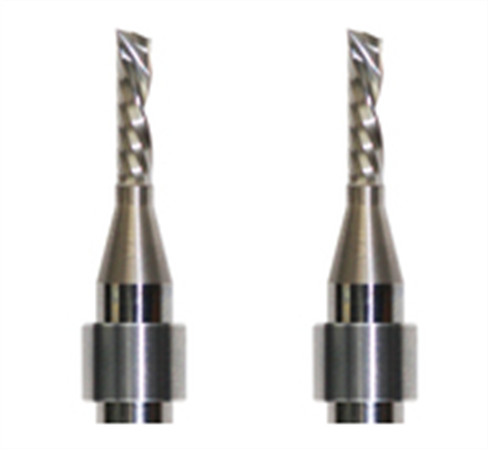

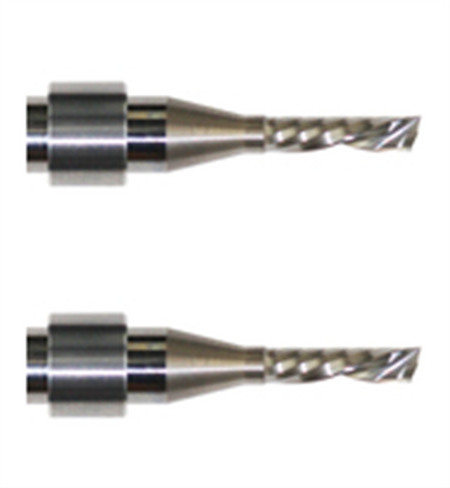

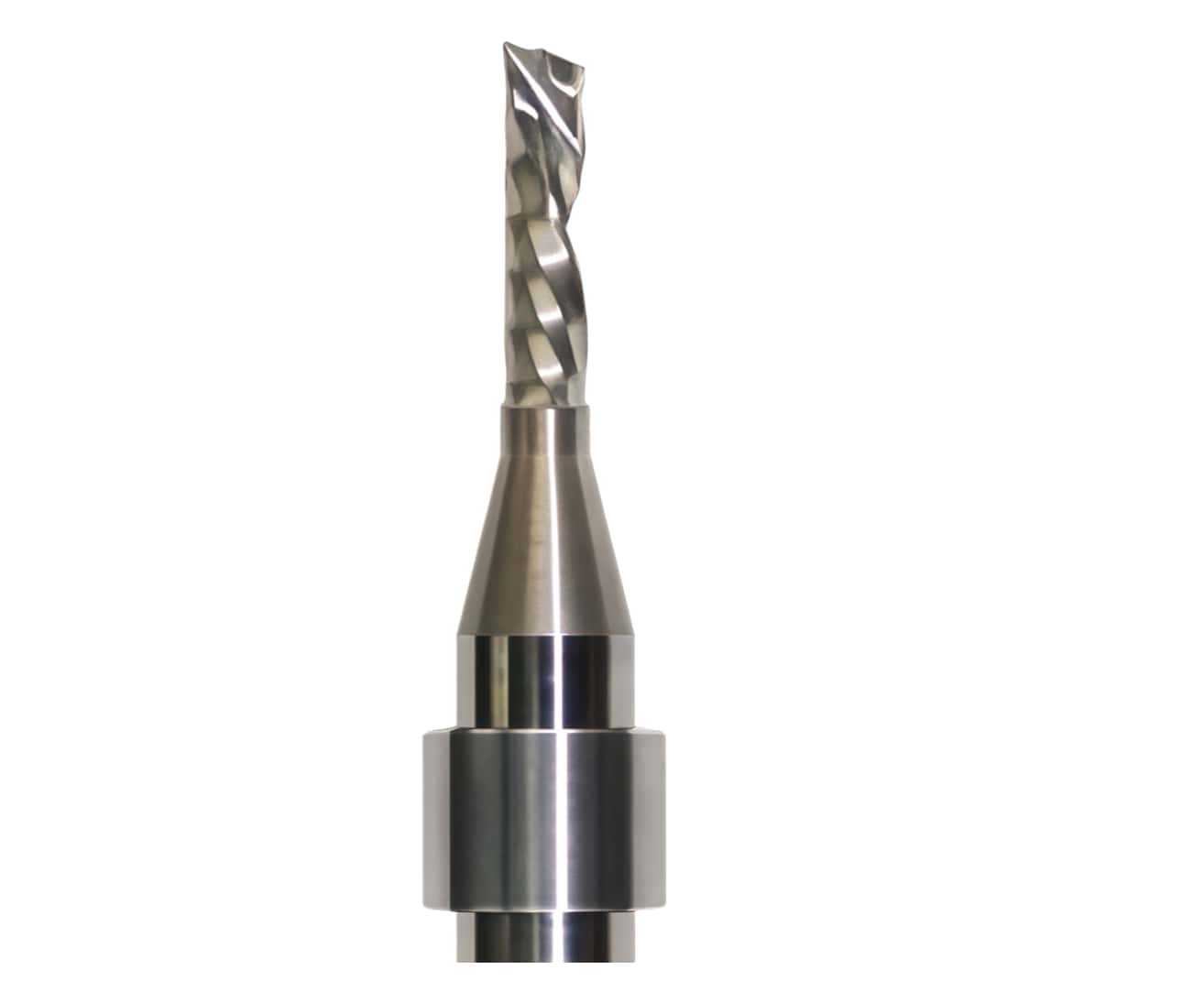

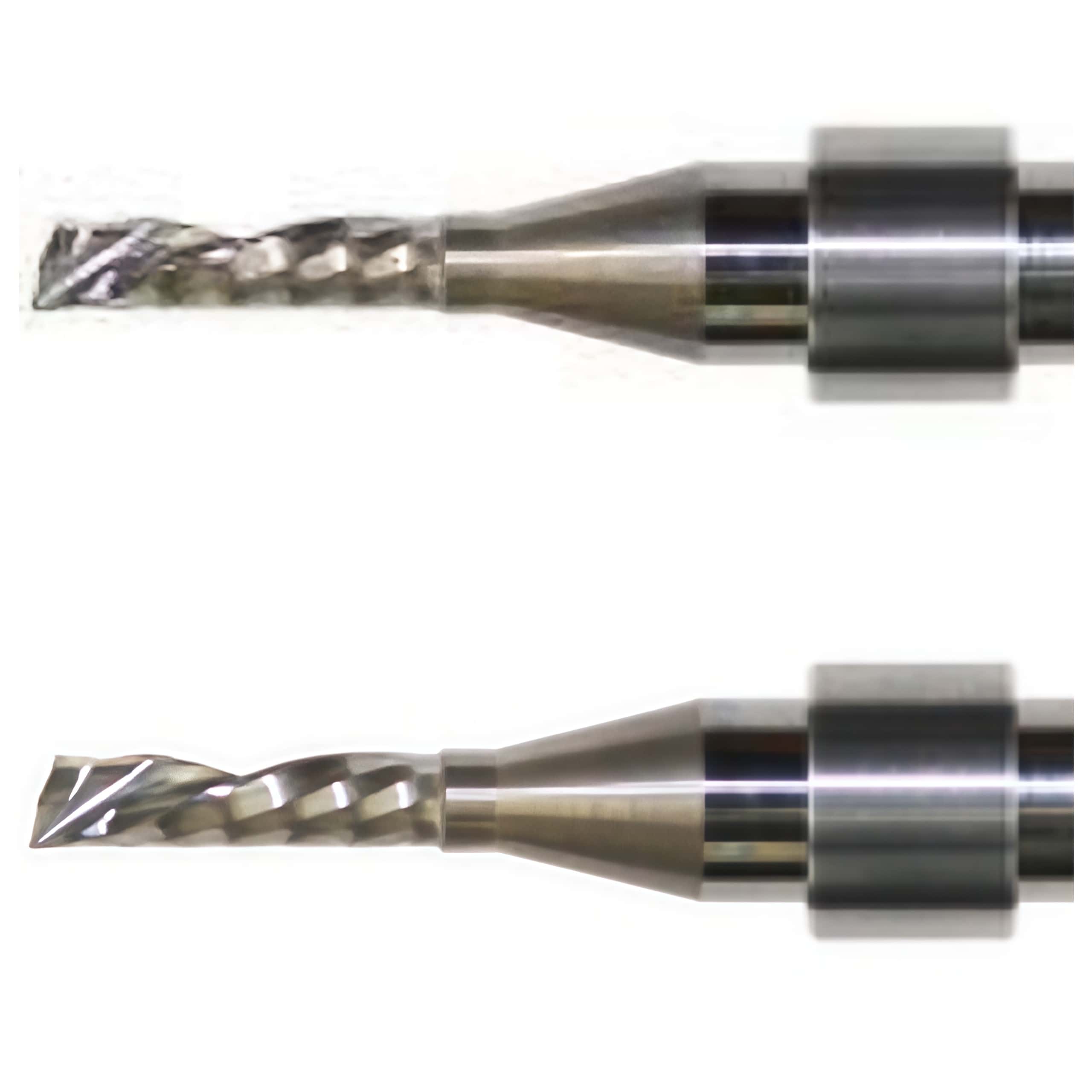

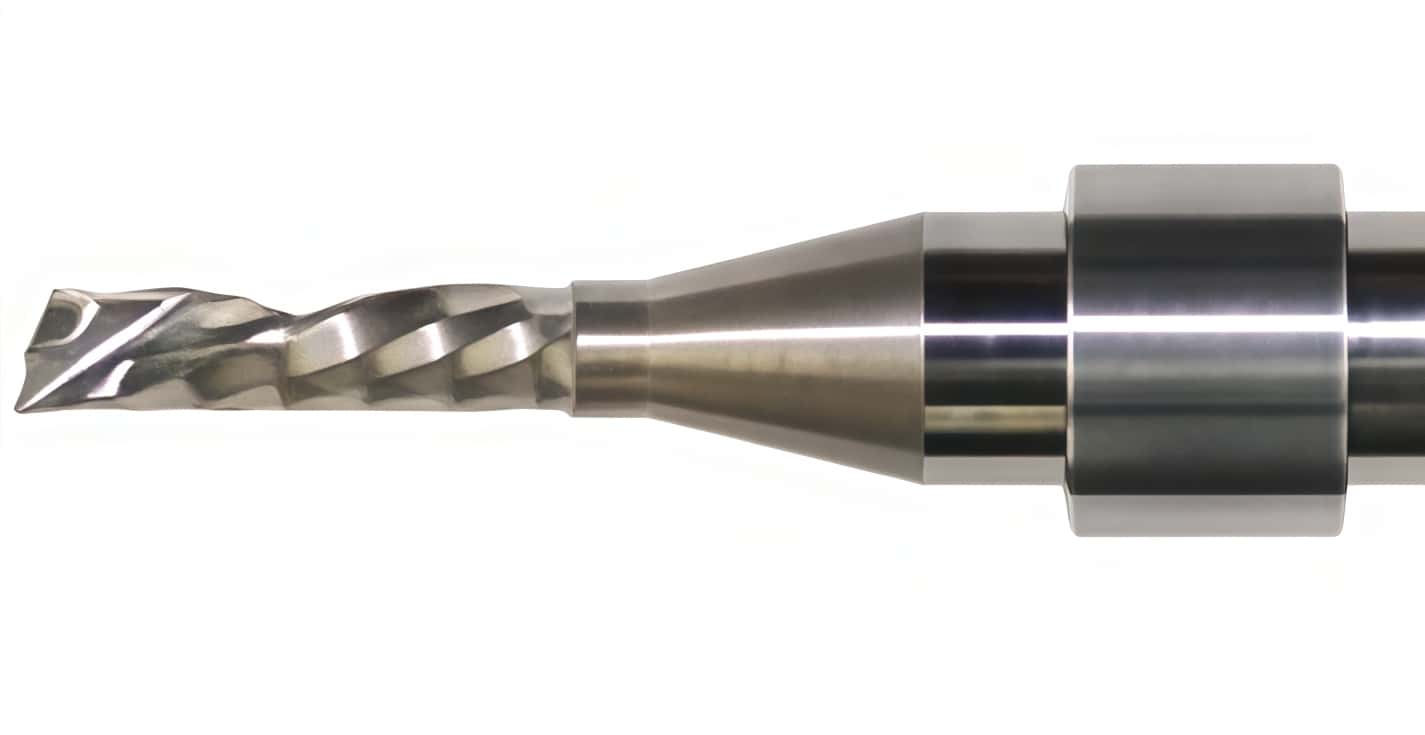

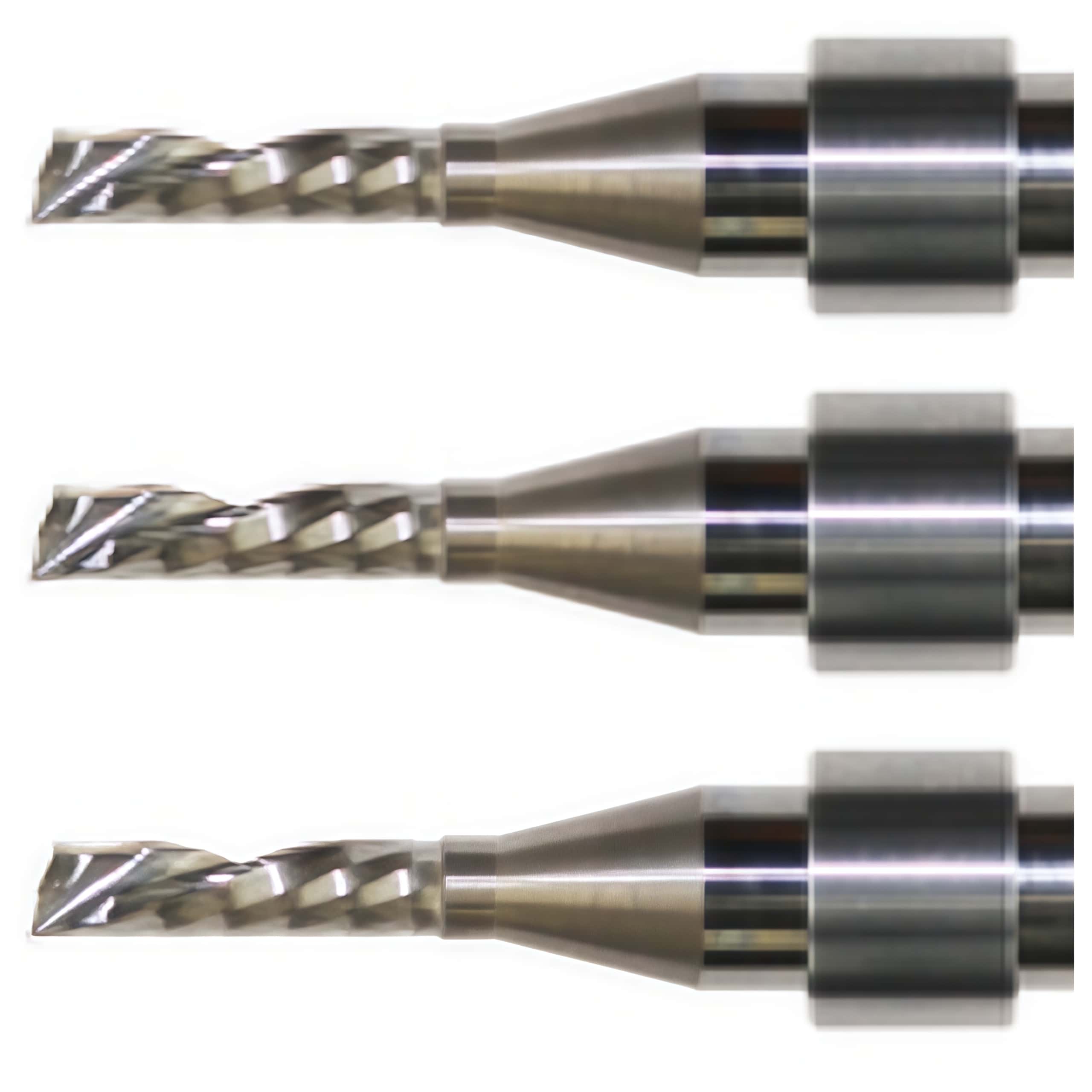

Zund R133-A (Item No. 5211744)is a premium, mirror-polished single-flute router bit designed with an integrated stop ring. It is specifically engineered for high-precision digital cutting systems (such as Zund G3, S3, and D3) using automated tool changes


Tools
RM-A QC ARC

Diameter of shank
6 mm
Max. rotations speed (1/min)
50000
Max. routing depth
11 mm
Number of cutting edges
1
Routing diameter
3 mm

Twist
left-hand twist
Key Features & Benefits
  • Down-Cut (Left-Hand Twist) Design : Pushes material downwards during operation. This completely eliminates top-edge fraying and provides a perfectly clean finish on thin or laminated sheets.
  • Mirror-Polished Single Flute : Greatly limits heat generation and minimizes friction marks along the cut face. This makes it superior to the R123-A when machining delicate, high-gloss materials.
  • Integrated Stop Ring : Serves as a mechanical depth limiter. It is strictly optimized for Zund Automatic Router Changer (ARC) systems to guarantee seamless automated tool swaps and exact depth control.

Recommended Materials
This bit is highly versatile but performs best on:
  • Plastics & Acrylics (High-gloss acrylic, Expanded PVC, PA 6.6, PE, PET, PETG, PP)
  • Composites & Woods (Aluminum Composite Materials/Dibond, MDF, Hard paper)
  • Foams (Rigid foam board - PUR / PMI)
