Zund R202-A With Stop Ring Multipurpose Milling & Router Bits 5211434
Zund digital cutting systems rely on specific, highly compatible tooling profiles—ranging from tungsten carbide knife blades and pneumatic punching bits to specialized single-flute router bits and breathable matrix underlays—to sustain consistent production across various material substrates Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

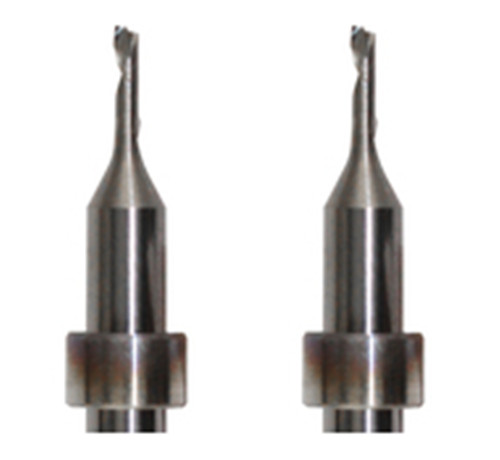

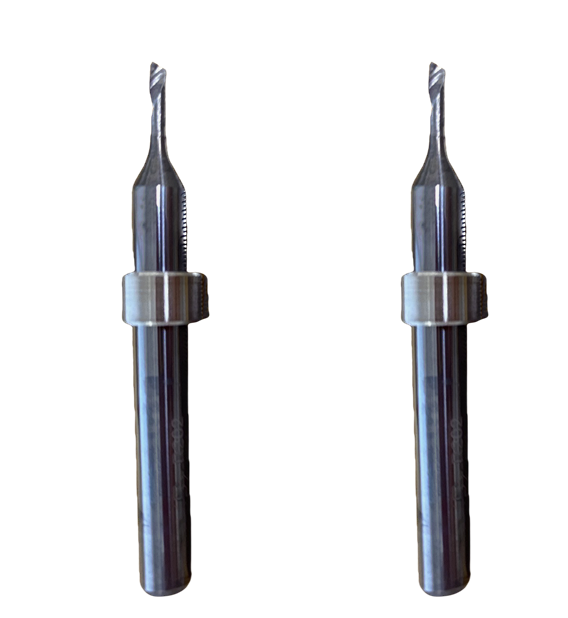

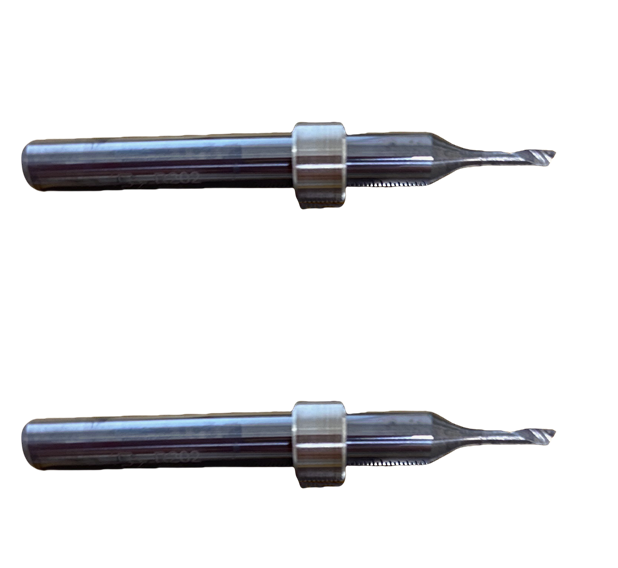

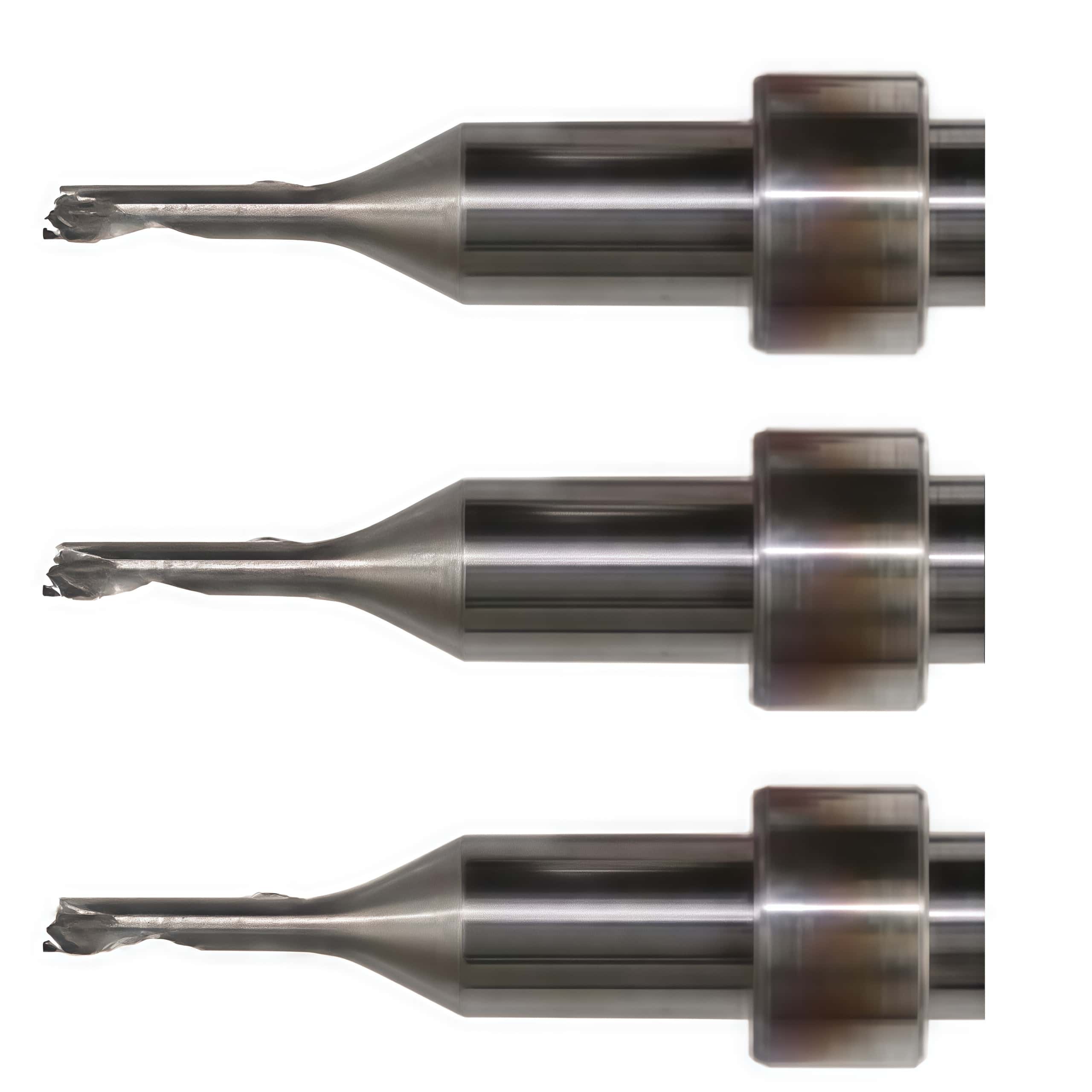

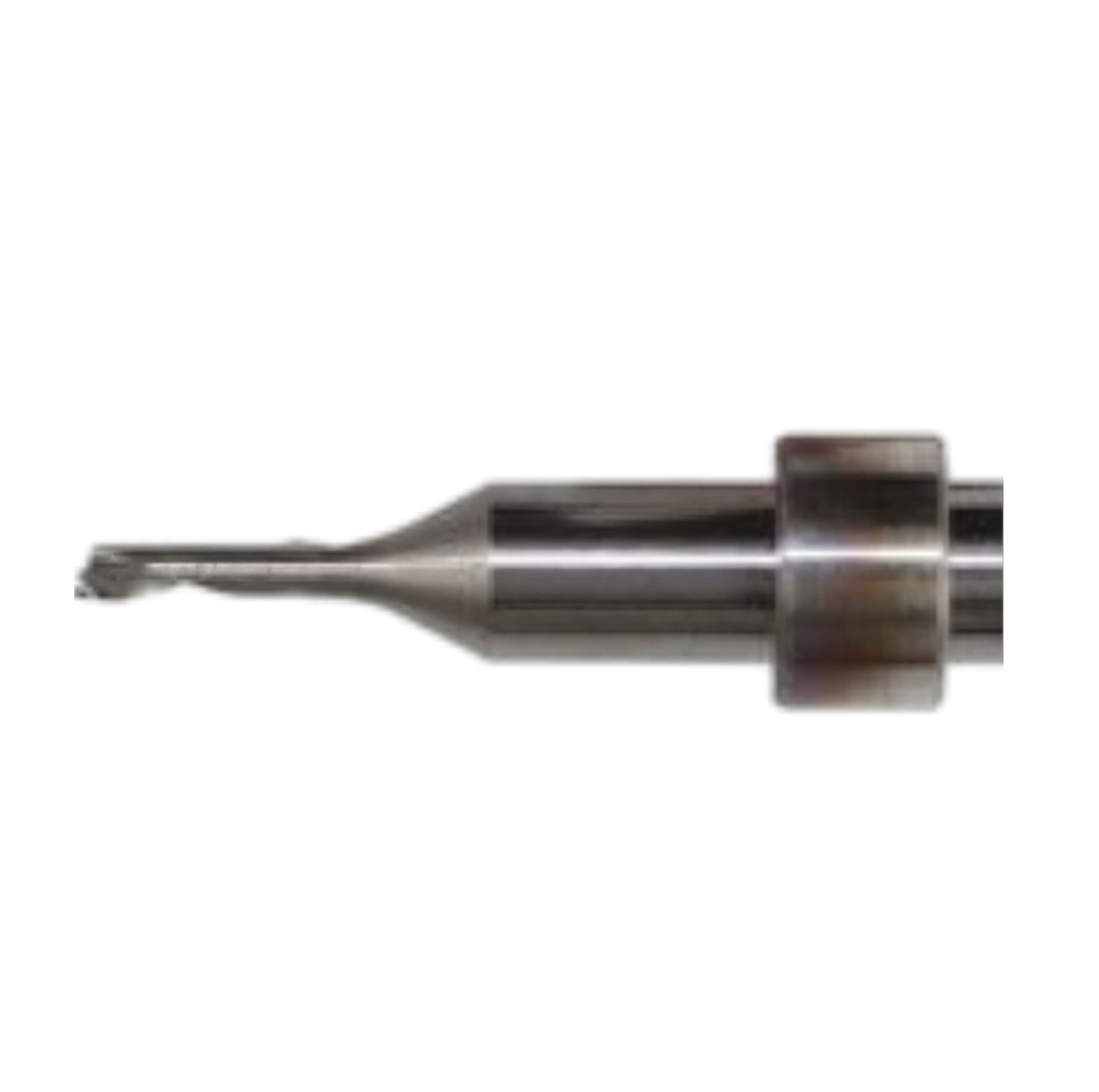

Zund With Stop Ring Multipurpose Milling & Router Bits R202-A(5211434)
The Zund R202-A (Part #5211434) is a premium, solid tungsten carbide multipurpose milling and router bit engineered specifically for high-speed CNC flatbed cutters.

Key Technical Specifications
  • Milling Diameter: 2.0 mm
  • Max Milling Depth: 6.0 mm
  • Shank Diameter: 6.0 mm
  • Total Length: 58 mm
  • Geometry: Single O-flute, right-hand spiral (Up-Cut)
  • Max Rotation Speed: 50,000 RPM

The Role of the Stop Ring ("-A" Suffix)
The integrated stop ring on the R202-A ensures exact, repeatable depth calibration. It is strictly required for Zund machines configured with the Automatic Router Bit Changer (ARC) system. If your system swaps tools automatically, the stop ring enables the automated module to mechanical grasp, lock, and initialize the tool without manual intervention.


Recommended Material Applications
This versatile bit is optimized to tackle a balanced mix of both soft and hard industrial substrates:
  • Metals & Composites: Aluminum alloys, Aluminum Composite Materials (ACM / Dibond).
  • Plastics: Acrylic (PMMA), Polycarbonate (PC), PETG, PE, PP, and Expanded PVC (Forex).
  • Wood & Paper: MDF, plywood, solid hardwoods, and heavy structural hard paper.


Zund R202-A with Stop Ring Multipurpose Milling & Router Bits (5211434) is available through webshop and supplied by Shenzhen Oyea Machinery Co., Ltd, a leading OEM/ODM manufacturer in China.

The company has established a robust global presence, serving diverse markets across Europe, the USA, the Middle East, and Asia. Key countries include Germany, France, the UK, Poland, the United States, Russia, Vietnam, Thailand, Indonesia, Singapore, the Netherlands, Switzerland, South Korea, Japan, Turkey, the Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, and the Czech Republic. Shenzhen Oyea Machinery is dedicated to meeting varied customer demands by offering customized solutions and fostering innovation. Their commitment highlights a focus on sustainable partnerships and adherence to advanced manufacturing standards, consistently pushing the boundaries within the industry.
