Zund R204 Tungsten Carbide Milling & Router Bits For Sale 5209420

Zund R204 Tungsten Carbide Milling & Router Bits For Sale 5209420,Zund G3 Series, Kongsberg XL/XN series, Kongsberg XP, AXYZ Routers, Multicam Routers, Various CNC Routers Enquire now

Description

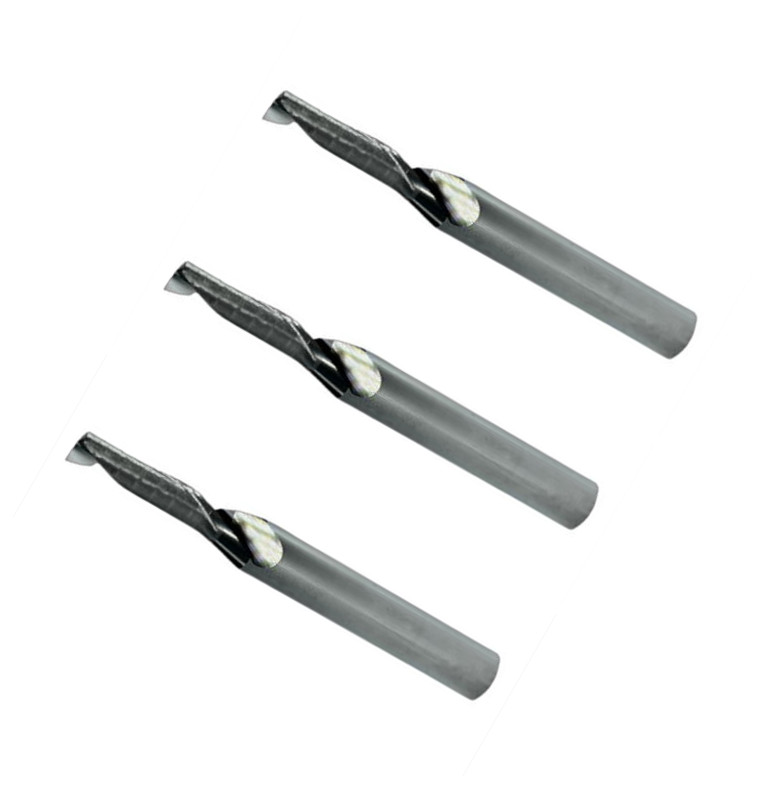

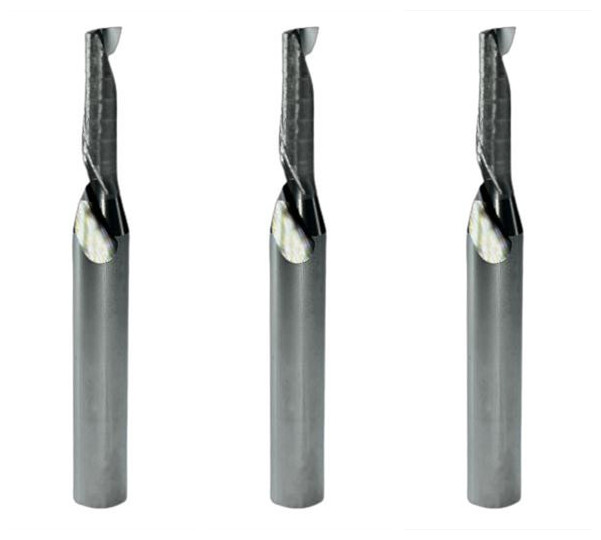

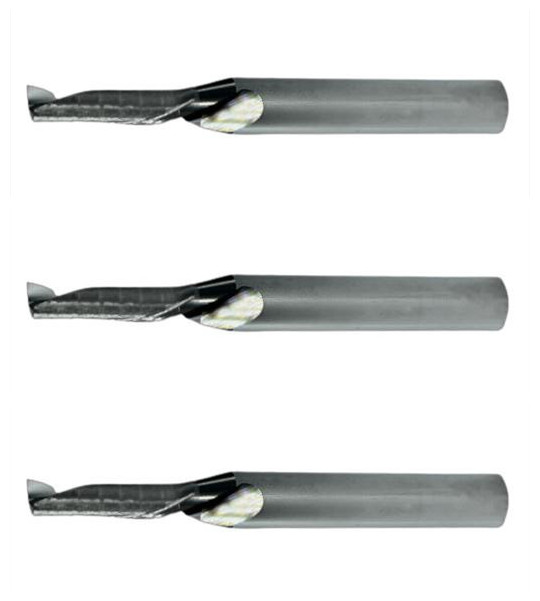

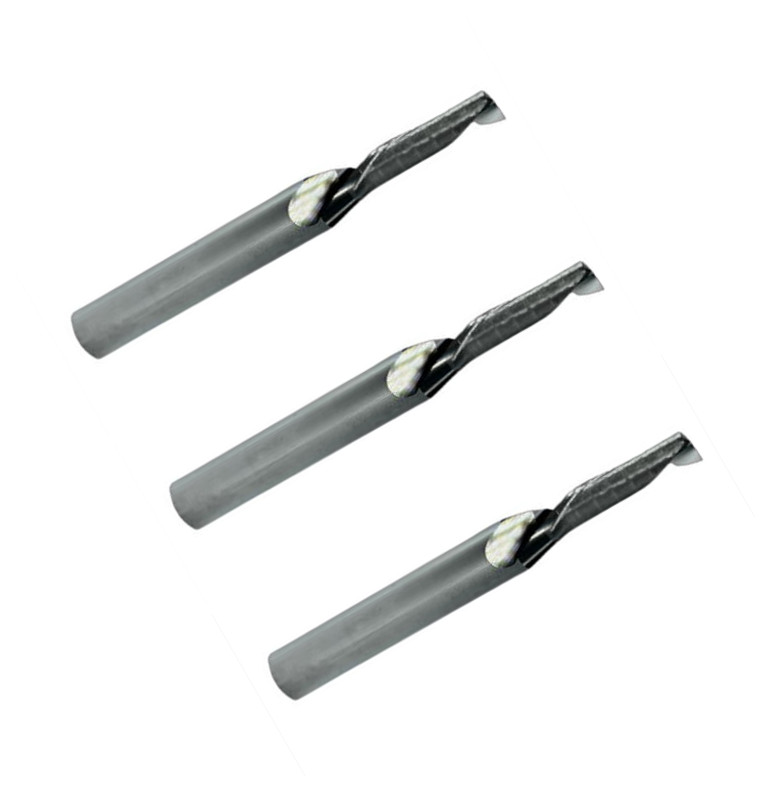

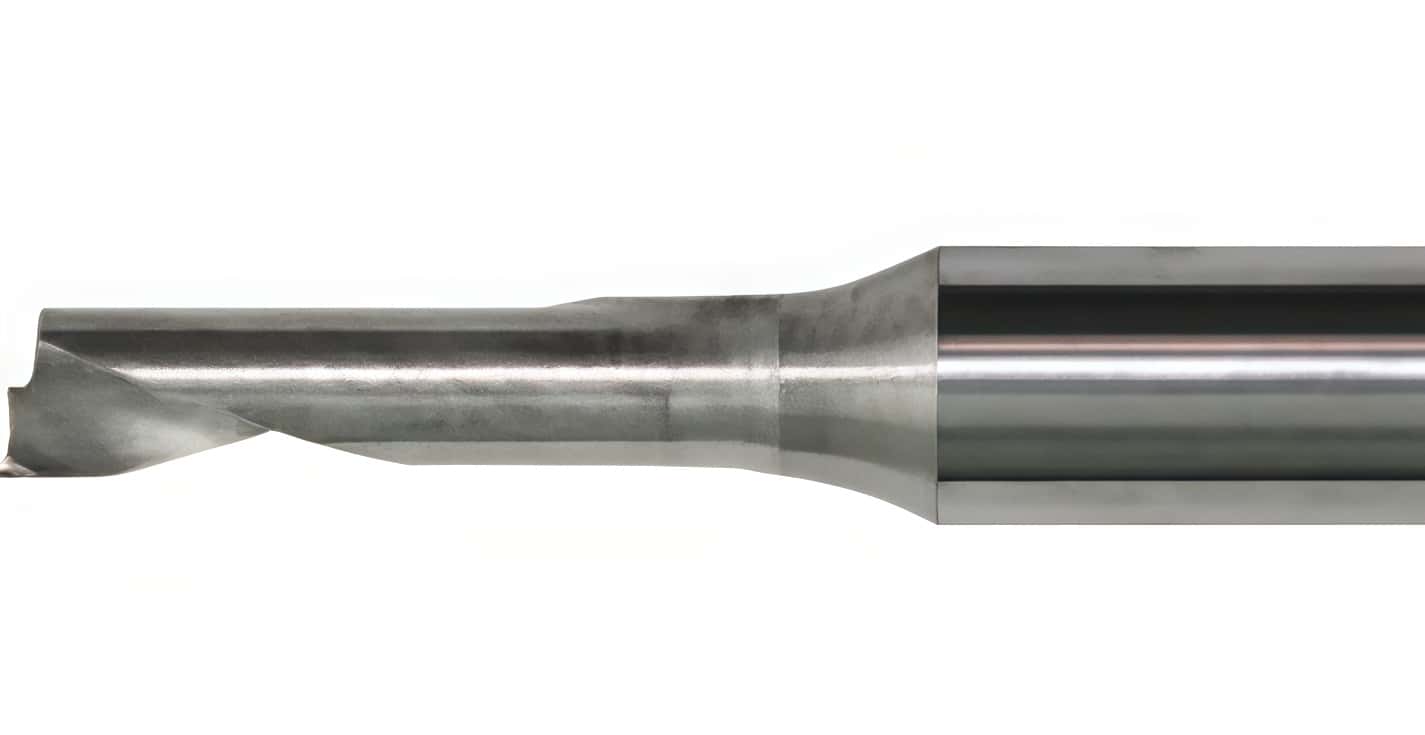

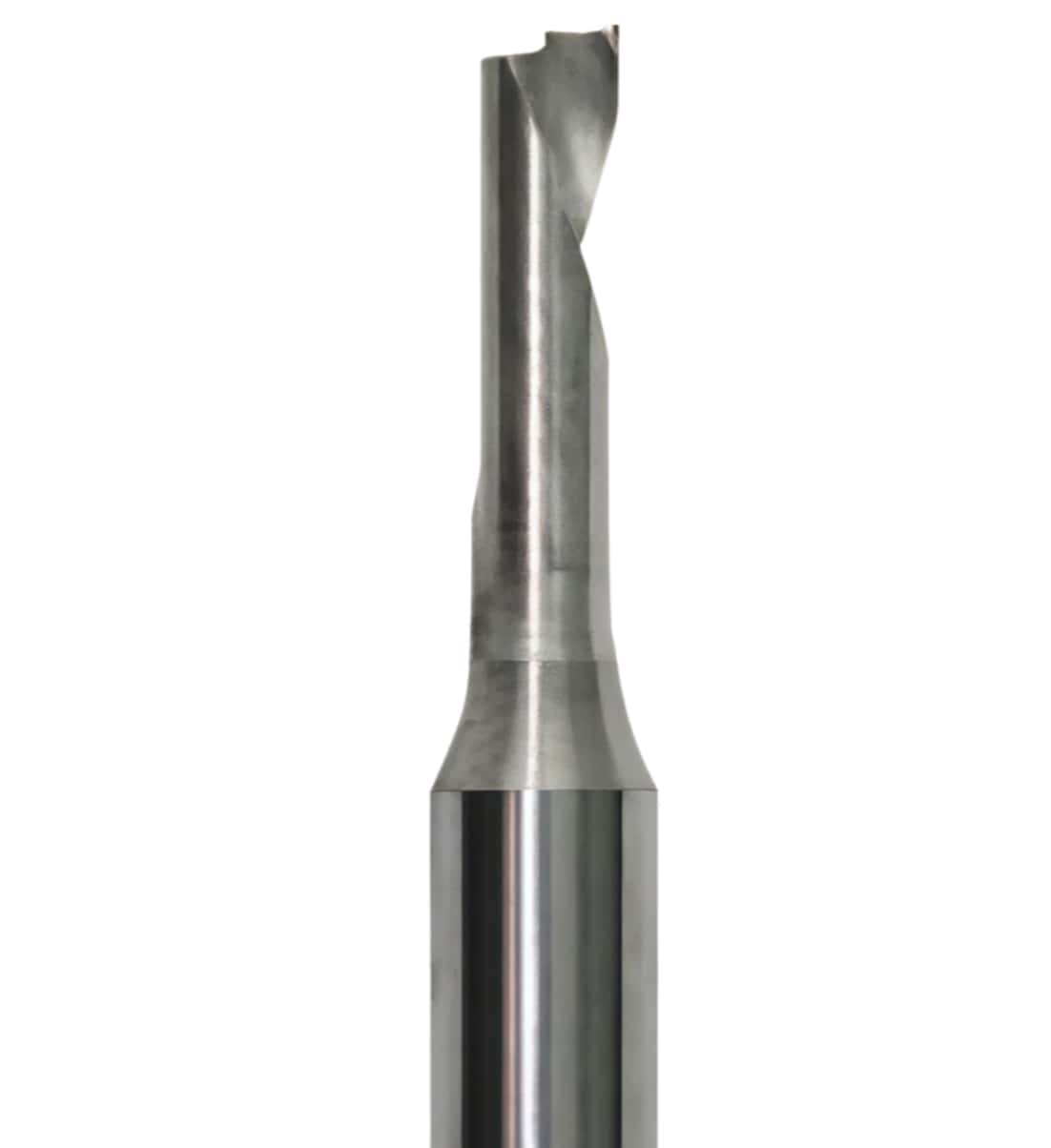

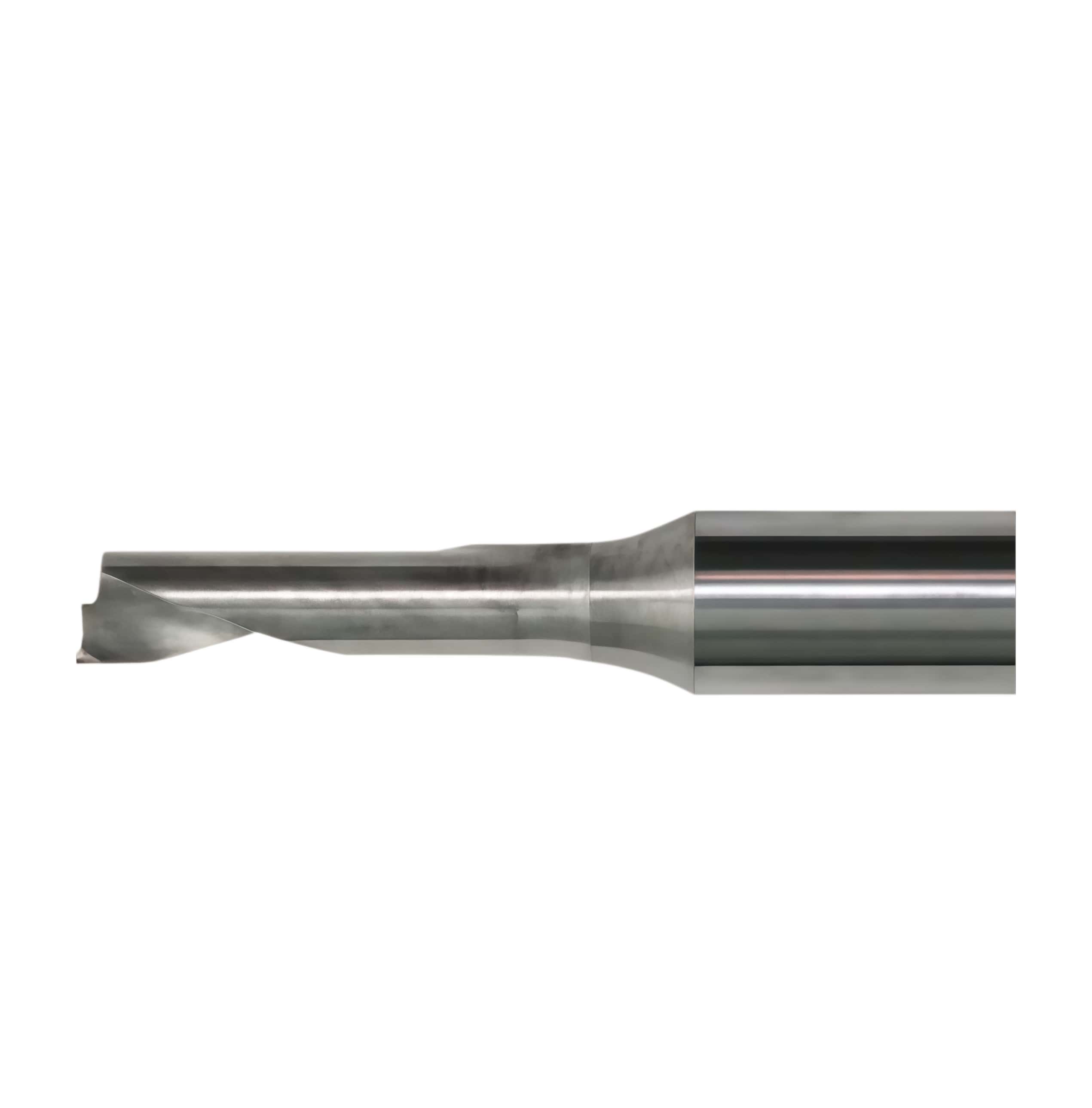

Zund Tungsten Carbide Milling & Router Bits R204(5209420)

The Zund R204 (Part Number: 5209420) is a high-performance, solid tungsten carbide, multipurpose CNC router bit designed specifically for Zund digital cutting systems.

Technical Specifications

Geometry: Single O-Flute, right-hand spiral, up-cut design.
Cutting Diameter: 4.0 mm.
Maximum Cutting Depth: 14.0 mm.
Shank Diameter: 6.0 mm.
Total Length: 58 mm.

Mechanics & Design Benefits

The up-cut single-flute design maximizes chip clearance. It pulls debris upward out of the cut to prevent heat buildup, tool clogging, and edge melting. This makes it highly effective for deep, fast cuts in thick materials.

Ideal Materials

The R204 is a versatile "universal" bit optimized for routing, profiling, and drilling across several materials:

Plastics: Thick Acrylic (PMMA), Polycarbonate, and Expanded PVC.
Composites: Aluminum Composite Panels (ACM/Dibond).
Wood: MDF, Baltic birch plywood, and hardwoods.
Soft Metals: Solid aluminum sheets.

Tool & Module Compatibility

This bit fits standard 6mm collets and is programmed into the Zund Cut Center (ZCC) database for optimal RPM and feed rates. It is fully compatible with Zund's core routing units:

RM-A (Standard Router Module)
RM-L (3.6 kW Heavy-Duty Router Module)
RM-S (Speed Router Module)

(Note: For machines utilizing the Automatic Router bit Changer (ARC) system, look for the R204-A variant (Part Number: 5211436), which includes the required pre-fitted stop ring).

Machine Type:
Zund G3 Series, Kongsberg XL/XN series, Kongsberg XP, AXYZ Routers, Multicam Routers, Various CNC Routers

Shenzhen Oyea Machinery Co., Ltd proudly offers the Zund R204 Tungsten Carbide Milling and Router Bits, available for purchase under various supply options including wholesale, factory direct, and OEM/ODM services. With a firm commitment to delivering quality and innovation, the company has successfully cultivated a strong international presence, extending its operations across multiple continents.
