Zund R205-A With Stop Ring Milling & Router Bits 5211437 Reviews Replacement

If you're looking for feedback or seeking replacement parts for the Zund R205-A with stop ring milling and router bits (model 5211437), ensuring optimal performance and compatibility will be key. These components are often praised for their precision and durability, making them a reliable choice for… Enquire now

Description

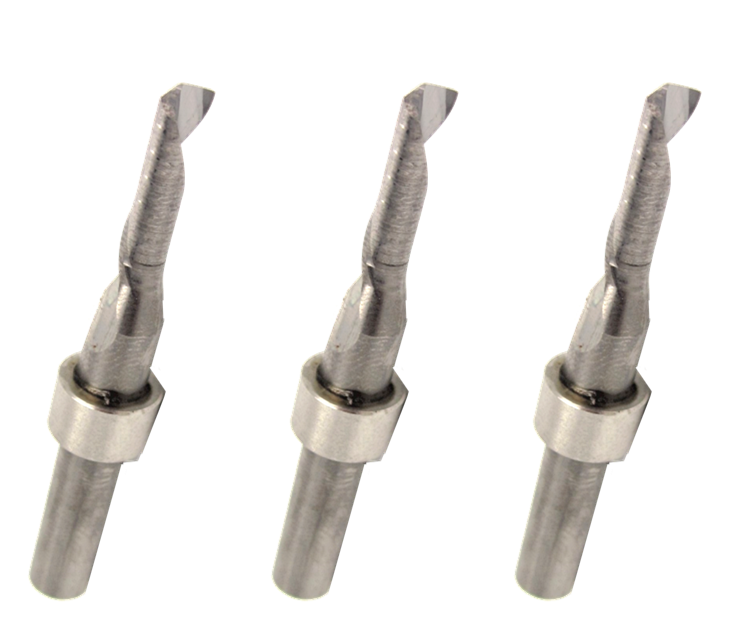

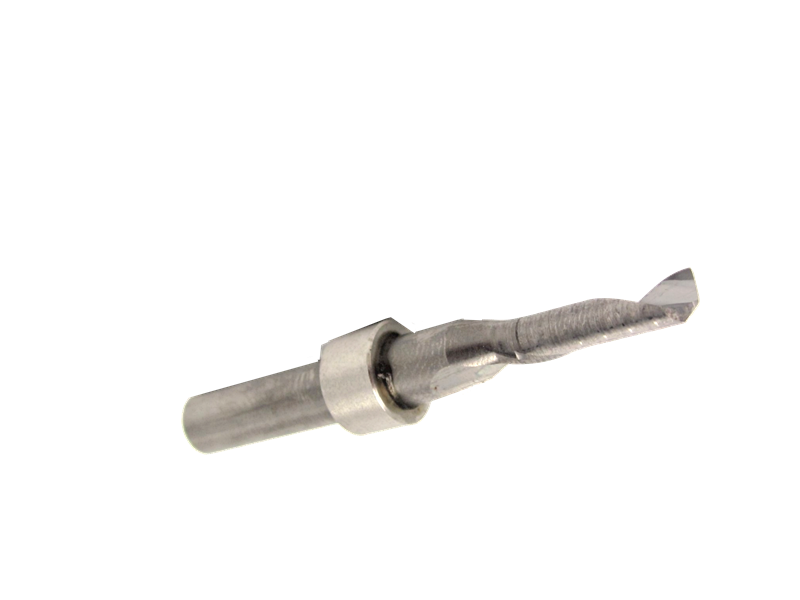

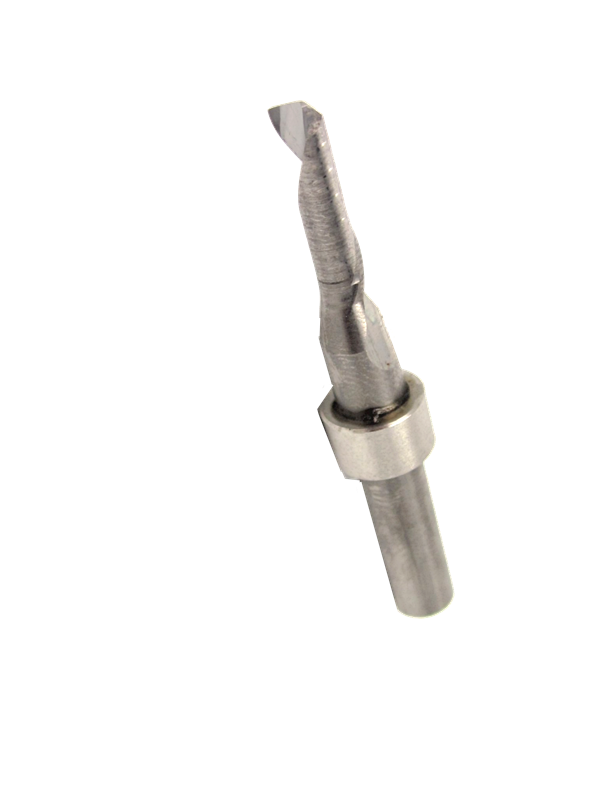

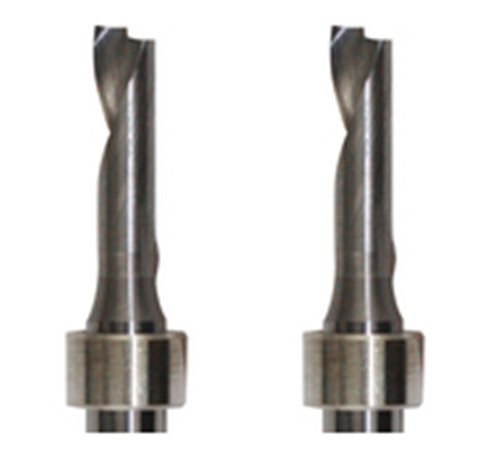

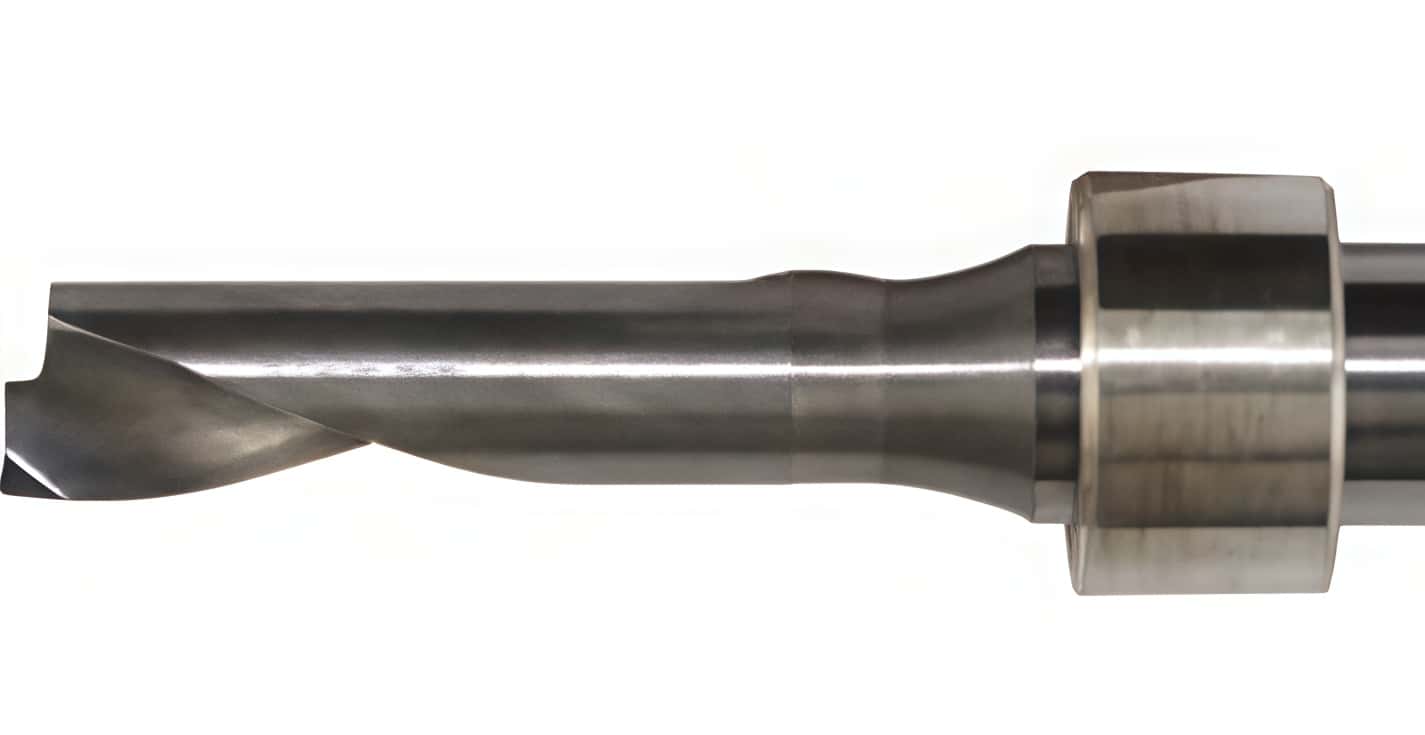

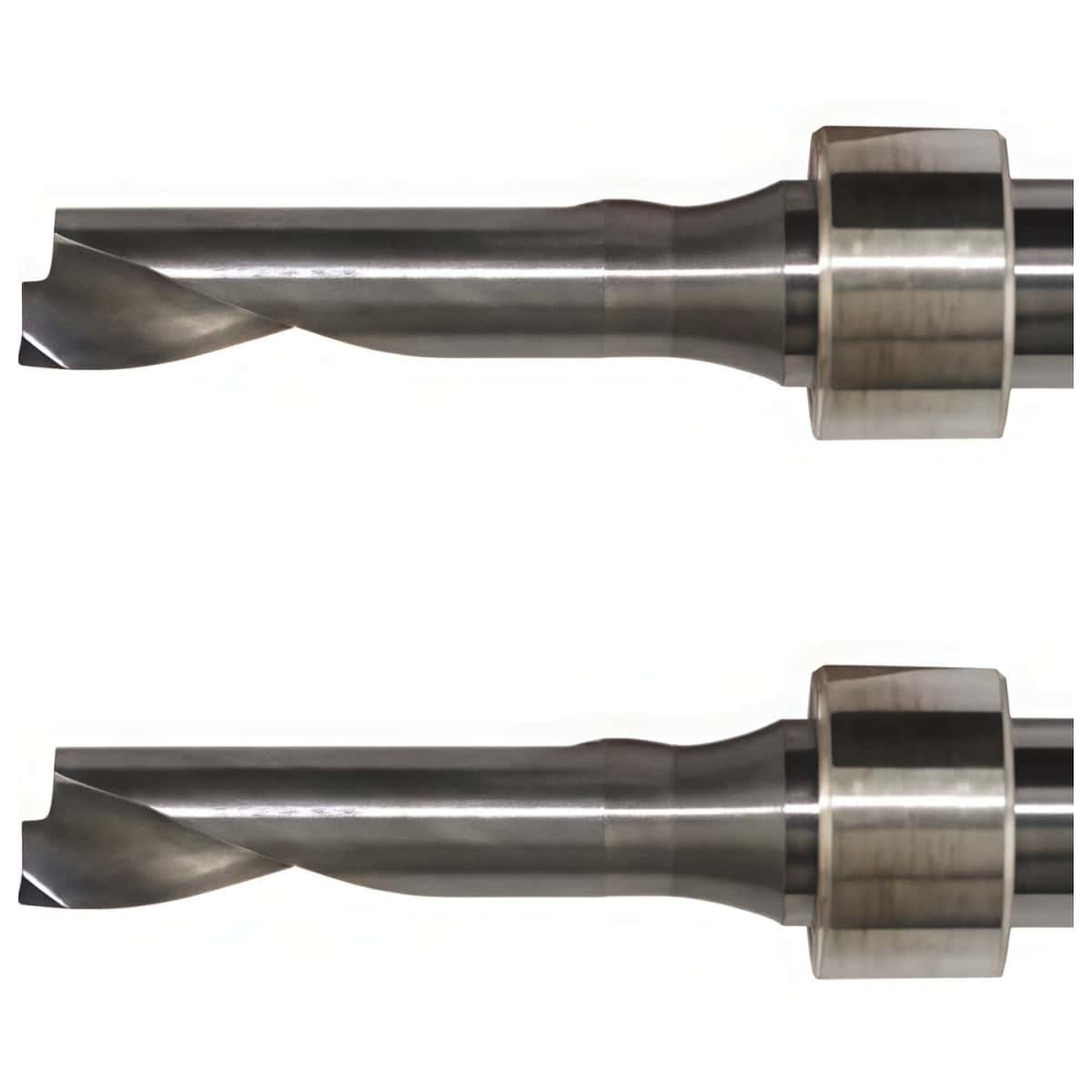

Zund Milling & Router Bits R205-A(5211437)

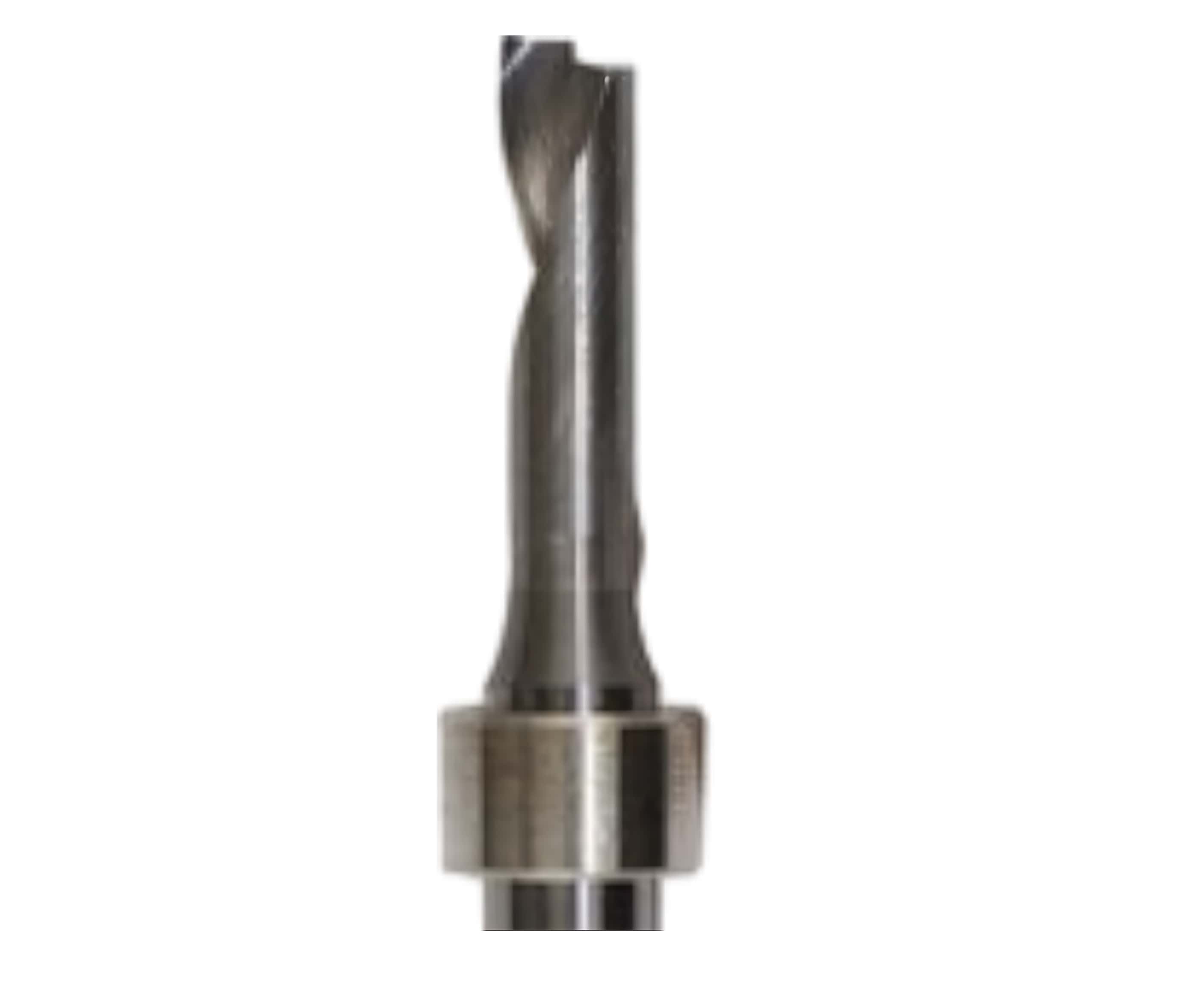

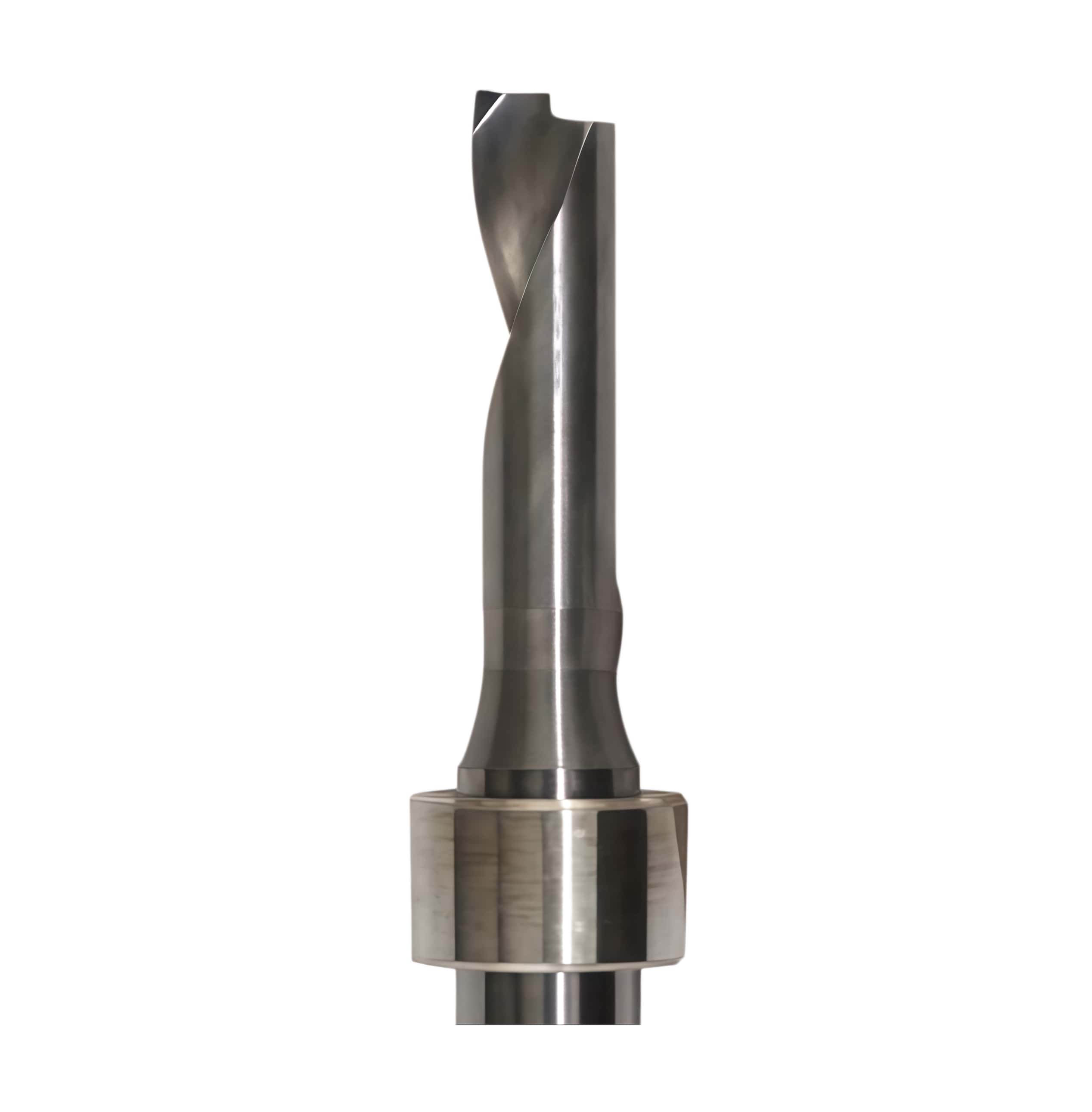

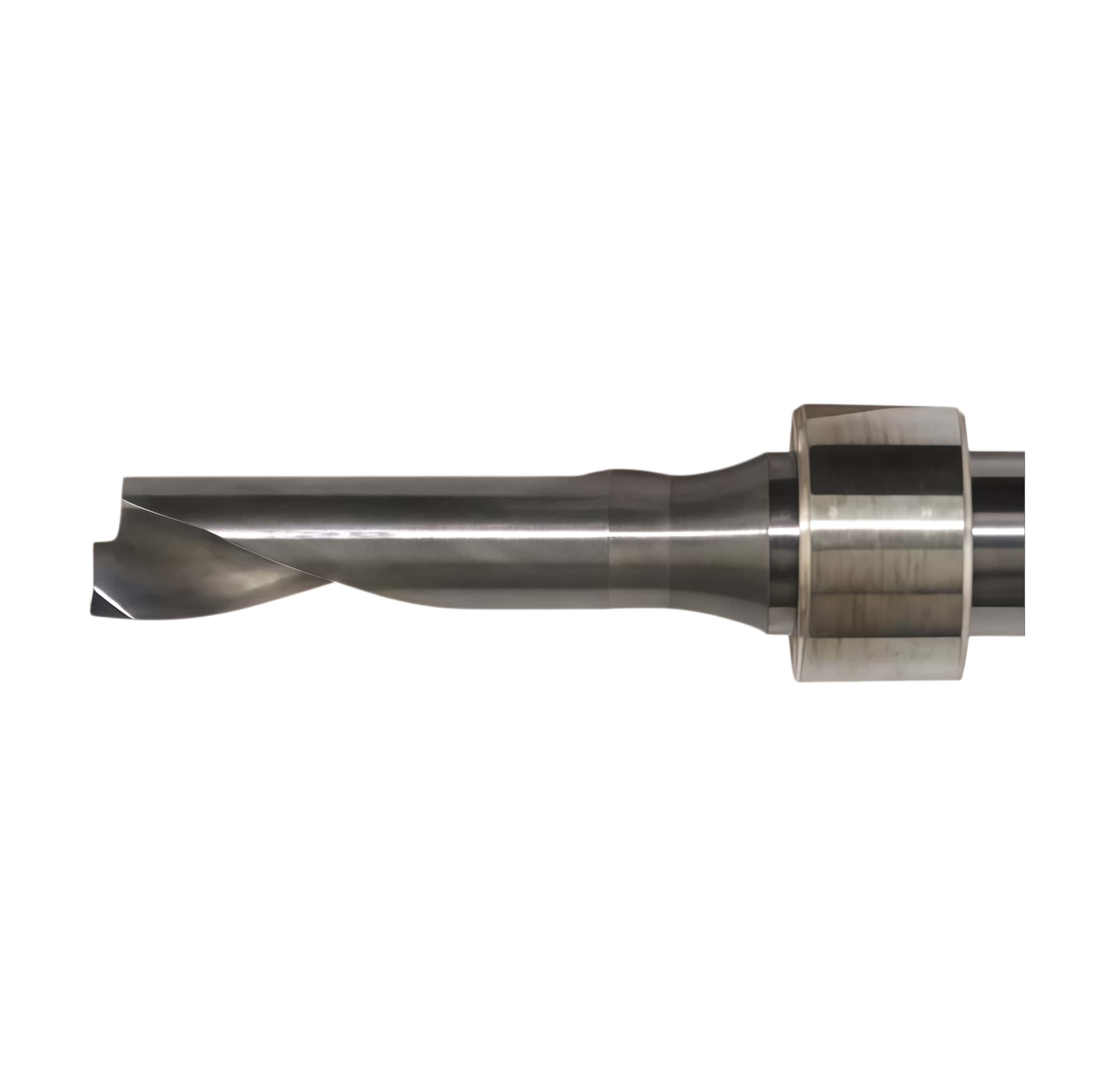

The Zund R205-A (Part Number: 5211437) is a solid tungsten carbide, high-performance CNC router bit equipped with an integrated pneumatic stop ring. This specialized collar is engineered exclusively for Zund digital flatbed cutting tables utilizing the Automatic Router-bit Changer (ARC) system, allowing for automated, hands-off tool calibration and swaps during multi-stage production runs.

Core Technical Specifications

Geometry: Single O-Flute, right-hand spiral, up-cut design.
Cutting/Routing Diameter: 5.0 mm.
Maximum Cutting Depth: 16.0 mm (0.63 inches).
Shank Diameter: 6.0 mm.
Total Tool Length: 58 mm.
Maximum Rotation Speed: 50,000 RPM.

Design Mechanics & Benefits

The R205-A is built for heavy-duty production environments where deep, fast cuts are required. Its polished single O-flute shape maximizes chip clearance space, pulling debris and heat rapidly upward out of the channel. This aggressive chip evacuation prevents edge re-welding and localized melting on heat-sensitive polymers, resulting in smooth edge finishes.

Ideal Material Applications

Classified as a universal "multipurpose" bit, the 5.0 mm diameter provides high structural rigidity when processing thick, tough, or multi-layered sheets:

Plastics: Acrylic (PMMA), Polycarbonate, Expanded PVC (Sintra/Forex), PET, and High-Density Polyethylene (HDPE).
Composites & Non-Ferrous Metals: Aluminum Composite Material (ACM/Dibond), copper, and solid brass sheets.
Wood & Sign Foams: Heavy MDF, thick plywood, hardwoods, and high-density polyurethane foams.

Tool Compatibility & Machine Modules

The bit is programmed directly into the Zund Cut Center (ZCC) material database for plug-and-play parameter setups. It operates seamlessly across Zund's high-power router modules:

RM-A QC (Quick-Change Router Module)
RM-L (3.6 kW Heavy-Duty Router Module)
RM-S (High-Speed Router Module)

Zund R205A CNC equipped with a stop ring, designed for use with ARC, featuring milling and router bits. This OEM/ODM compatible replacement is suitable for model 5209421, making it ideal for shop production, manufacturing, supply, and sales. The unit price is tailored for OEM and ODM requirements, providing compatibility with Shenzhen Oyea Machinery Co., Ltd products.
