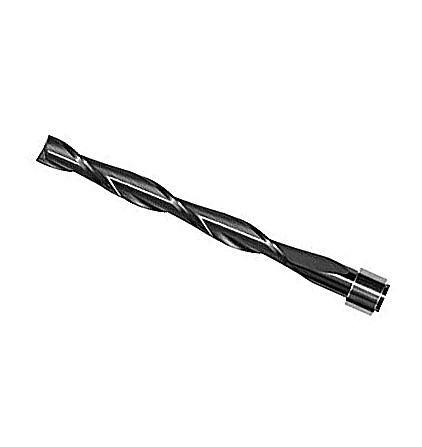

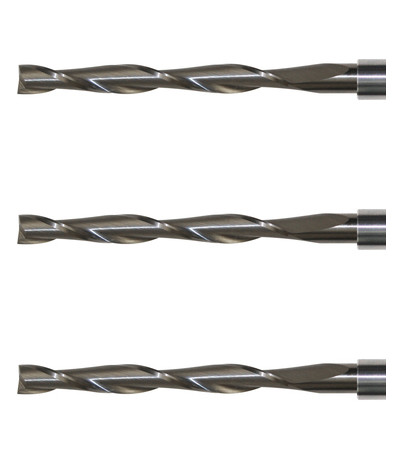

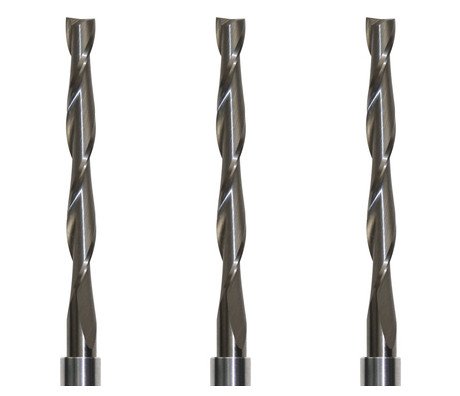

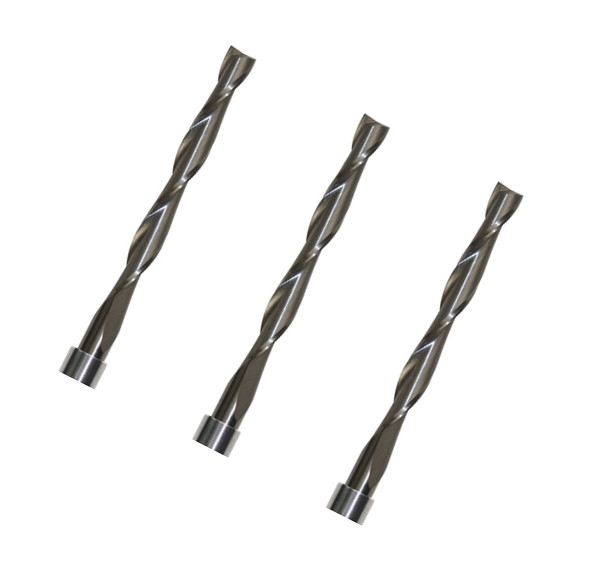

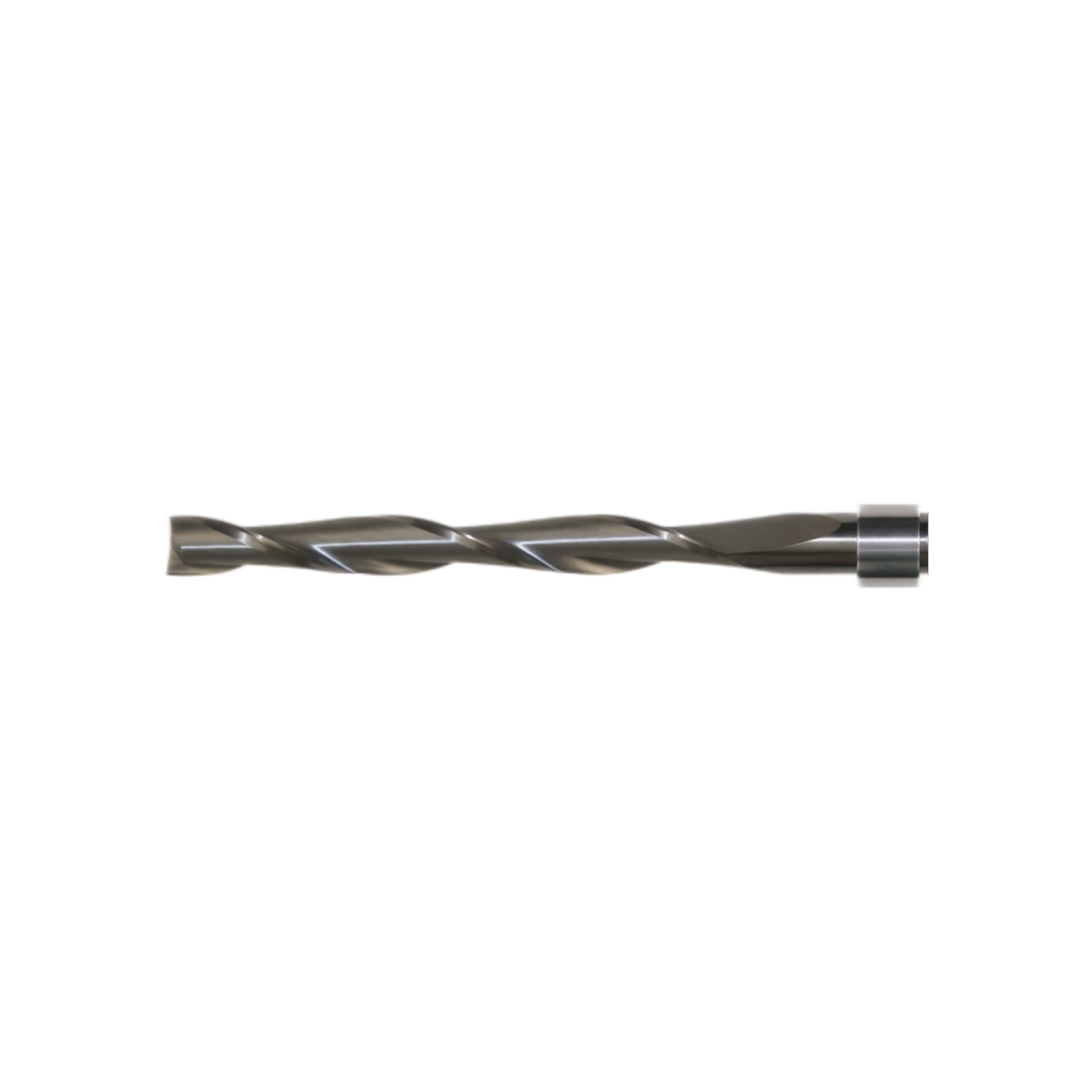

Zund R220-A Tungsten Steel Spiral Milling & Router Bits (5211735)

Zund R220-A( 5211735 ) isHigh-precision solid carbide (tungsten steel) double-edged spiral top end mill (Version A) designed specifically for the Swiss Zund CNC cutting machine system. Enquire now

Description

Zund R220-A Tungsten Steel Spiral Milling & Router Bits (5211735)

Zund R220-A(5211735 ) is High-precision solid carbide (tungsten steel) double-edged spiral top end mill (Version A) designed specifically for the Swiss Zund CNC cutting machine system.The biggest difference between this model and the standard R220 (5211645) is that it comes with a stop ring , which perfectly matches the efficient processing flow of automated equipment.

Item no.	5211735
Properties	With stop ring (for use with ARC)
Recommended Materials	Foam board/Foam, Hardfoam
Routing Diameter	6
Diameter of Shank	6 mm
Routing Depth mm.	53
Cutting Edges	2
Max Rotation Speed	25000

Recommended processing materials

this extra-long double-edged knife is a highly efficient tool for machining medium- to low-density, thick materials.Rigid foam plastic sheet / rigid polystyrene foam (Hardfoam / PS)Foam sandwich panels / Foamed insulation materials / PE foam (Foam board / Light Foam / PE)
