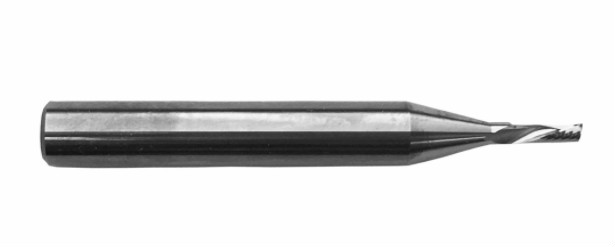

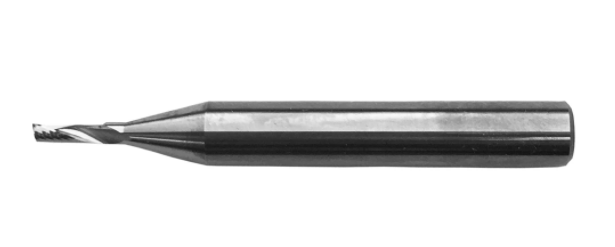

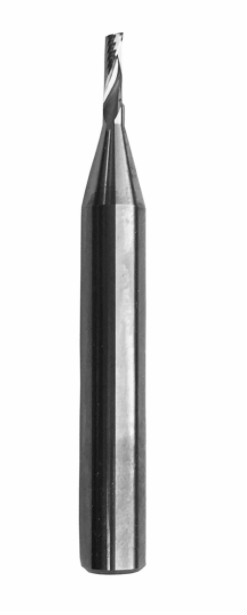

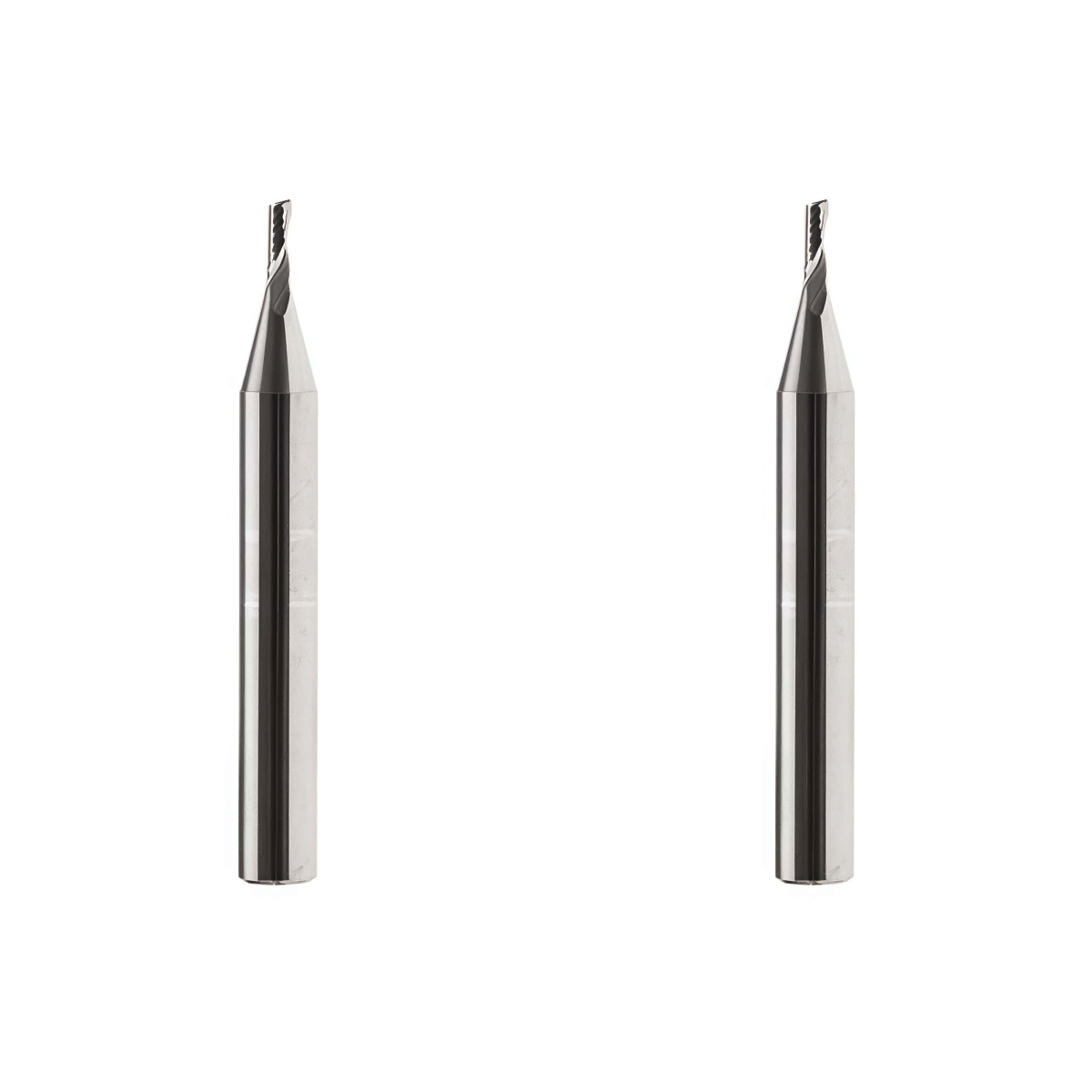

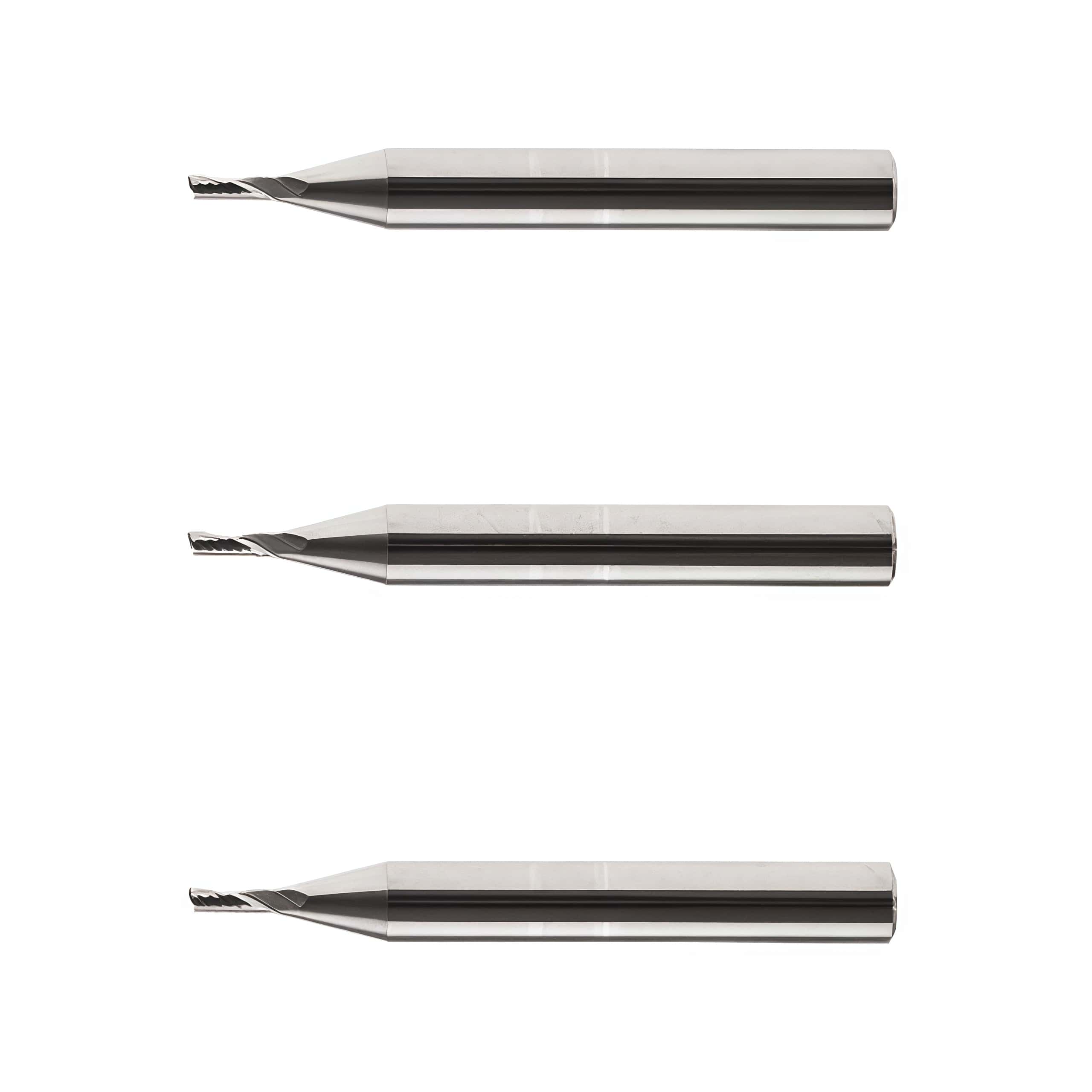

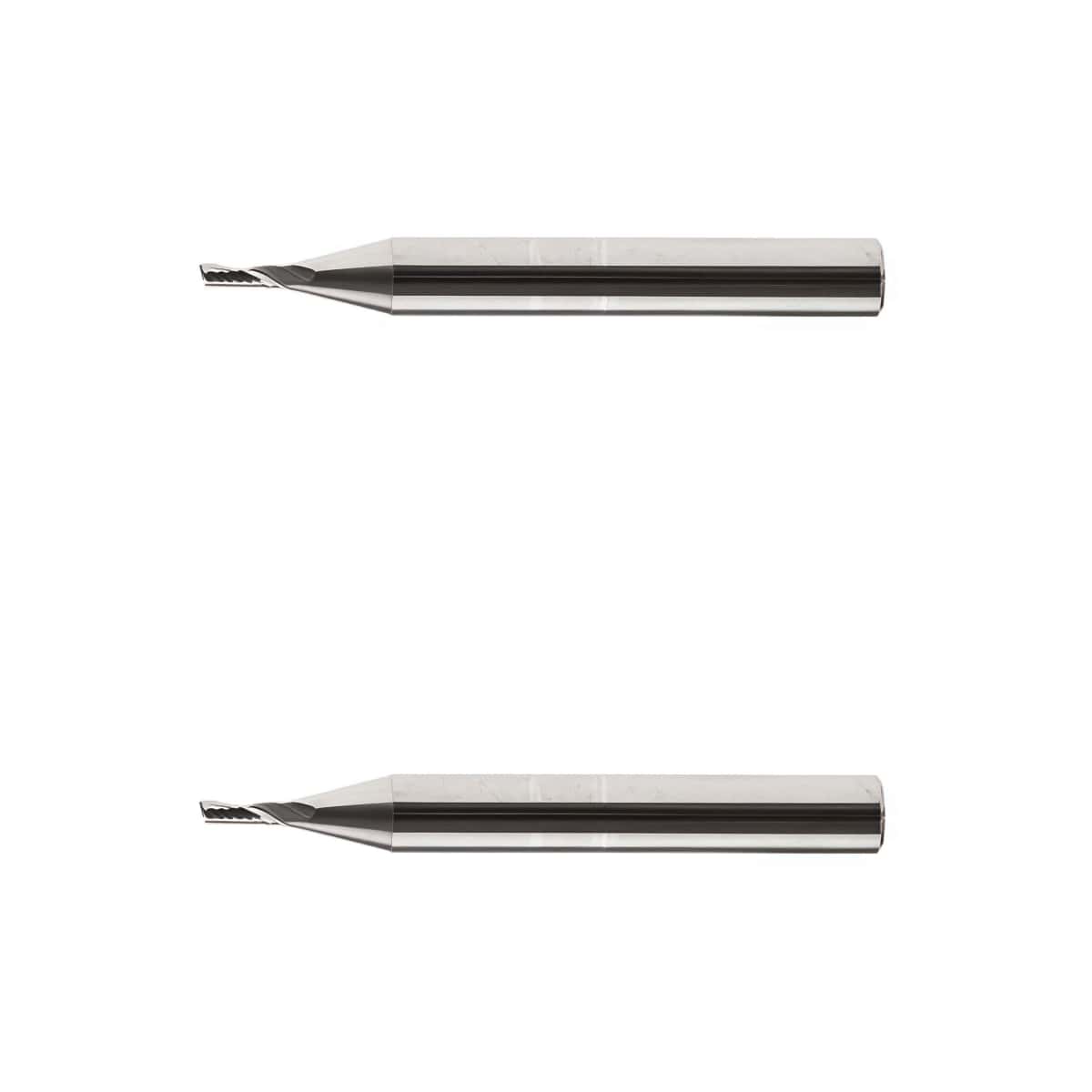

Esko Kongsberg Bit-Mus06-2006-50 G42437913 Spiral Milling Router Bits

Esko Kongsberg BIT-MUS06-2006-50 (G42437913 / 42437913) is a professional-grade, multi-purpose, up-cut, single-flute solid tungsten carbide spiral milling and router bit. It is engineered specifically for high-performance digital flatbed cutting tables, allowing clean material extraction via its upw… Enquire now

Description

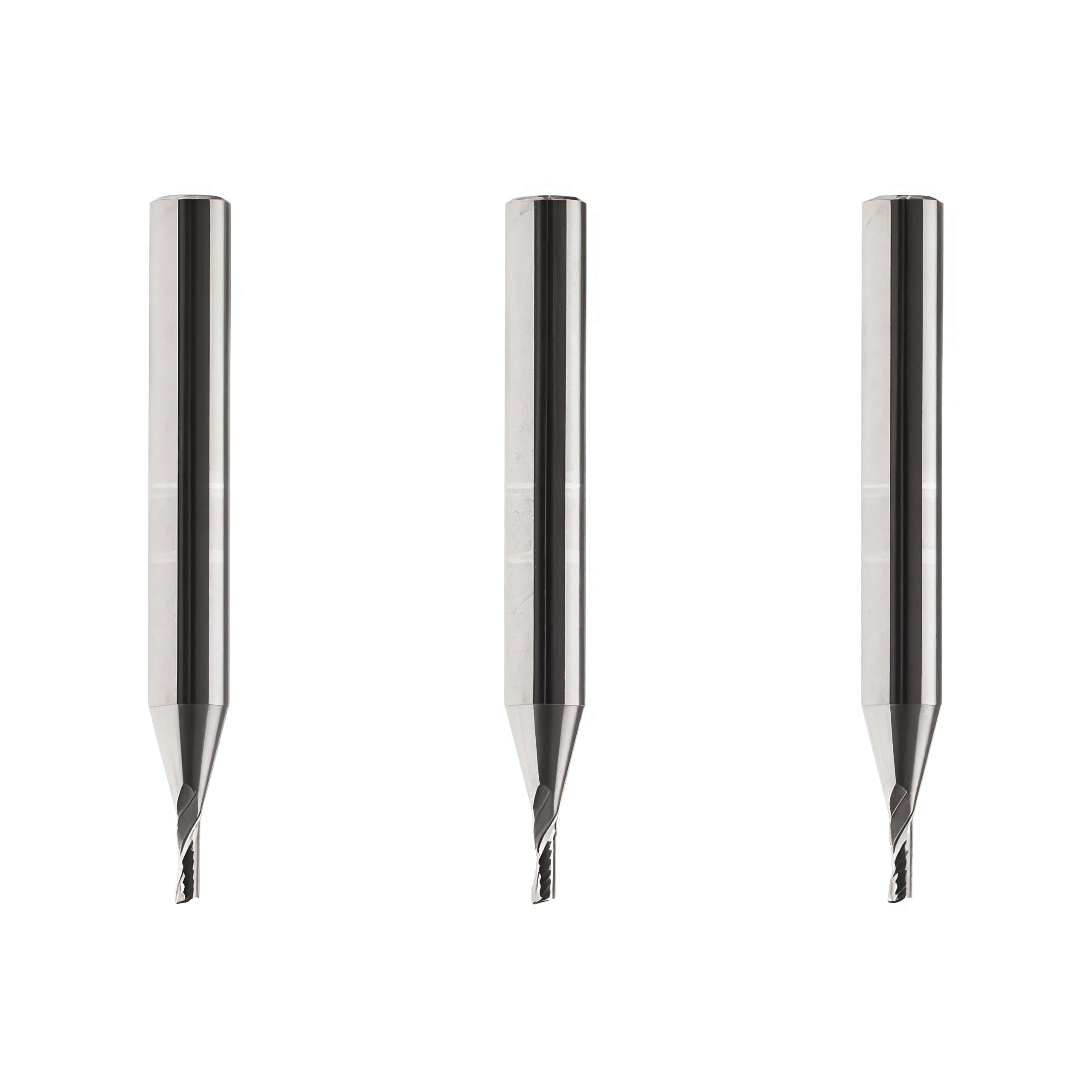

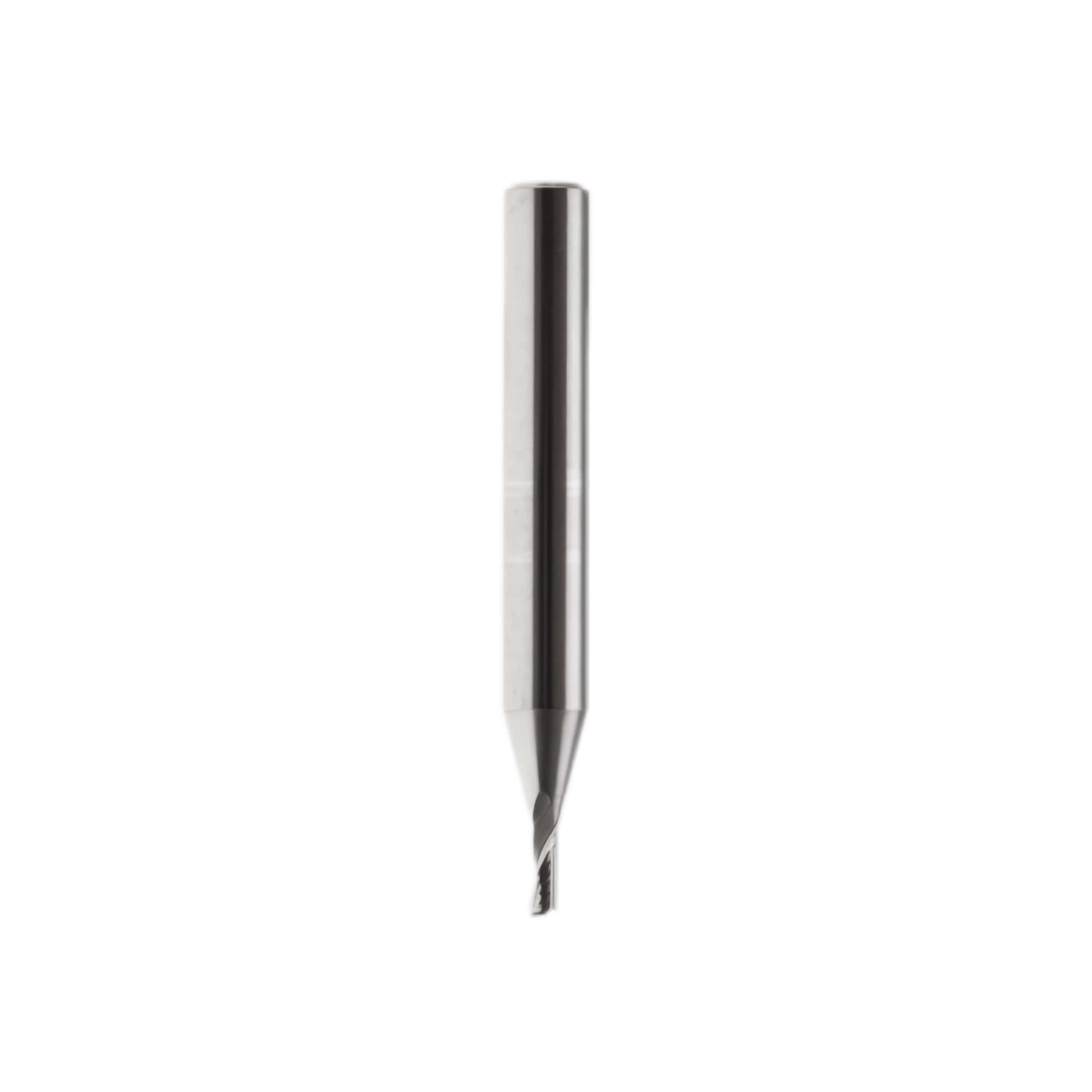

Esko Kongsberg Bit-Mus06-2006-50 G42437913 Multi-Purpose Up-Cut Carbide Spiral Milling And Router Bits

The Esko Kongsberg part number G42437913 (also referenced as BIT-MUS06-2006-50) is a multi-purpose, up-cut, single-flute solid tungsten carbide spiral milling router bit designed for digital flatbed cutting tables.

Technical Specifications

Tip Diameter (d): 2.0 mm
Shank Diameter (D): 6.0 mm
Total Length (L): 50 mm
Maximum Cutting Thickness (M): 5.0 mm
Geometry: Single flute, spiral up-cut

Recommended Materials

This bit is engineered for precision milling on materials under 5mm in thickness, specifically:

Foamed PVC / PS: Forex, Sintra
Lenticular display panels
Protective high-density foam (up to 20mm max depth)

Required Machine Configurations

To use this bit on a Kongsberg PCS table, your hardware must have one of these specific tool heads and chuck pairings:

HSMU / MultiCut (1kW) Ibag: Requires chuck 42444067
MultiCUT (1kW) Kavo: Requires chuck 02721314
HPMU (3kW) / MultiCUT HP (3kW): Requires chuck 42454728
Standard Multicam Routers: Requires a standard 6mm collet

Replacement for:
Zund R102 / 3910742
Zund R112 / 3910762
Esko BIT-MUS06-2006-50 / G42437913
Esko BIT-AUS06-2006-50 / G42437897
