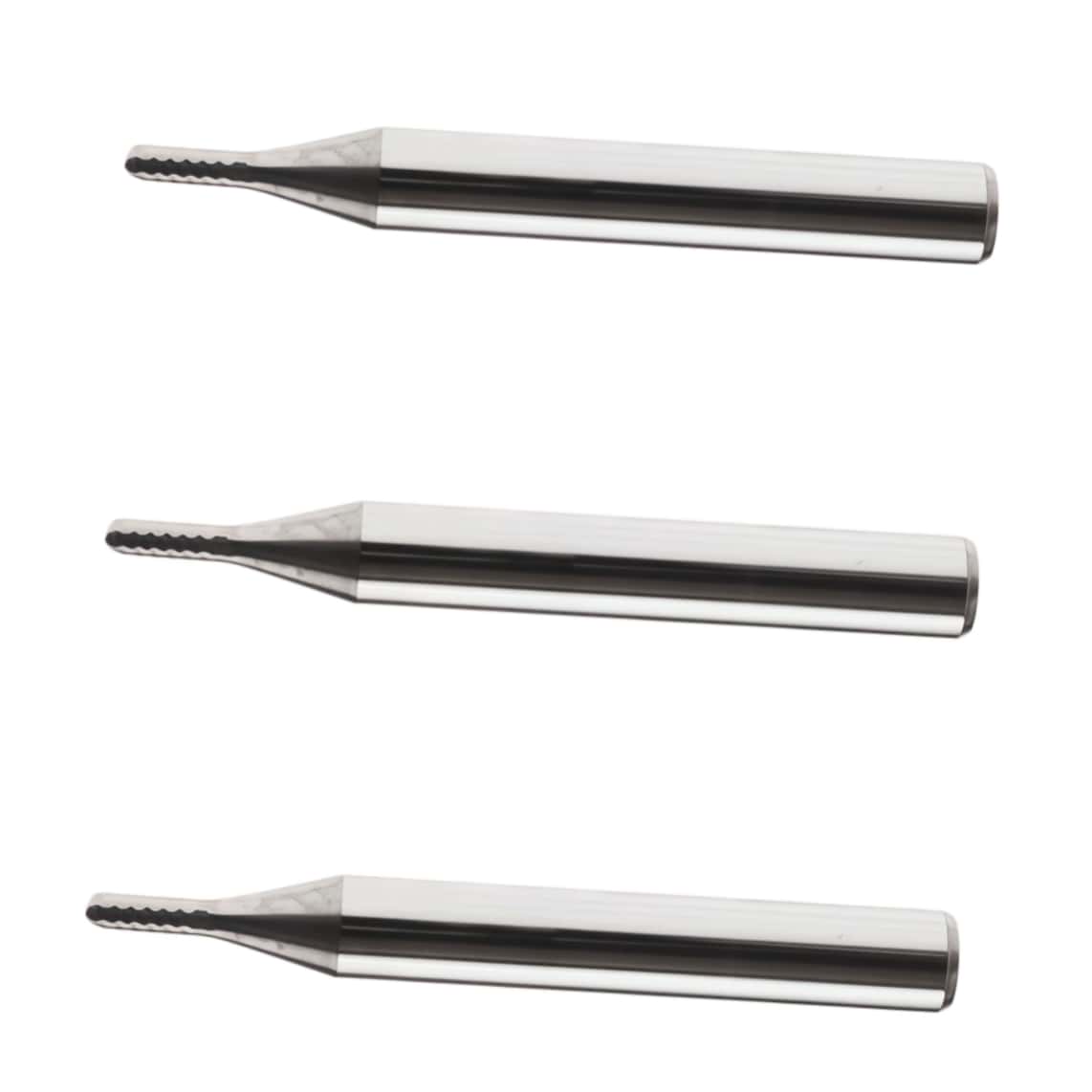

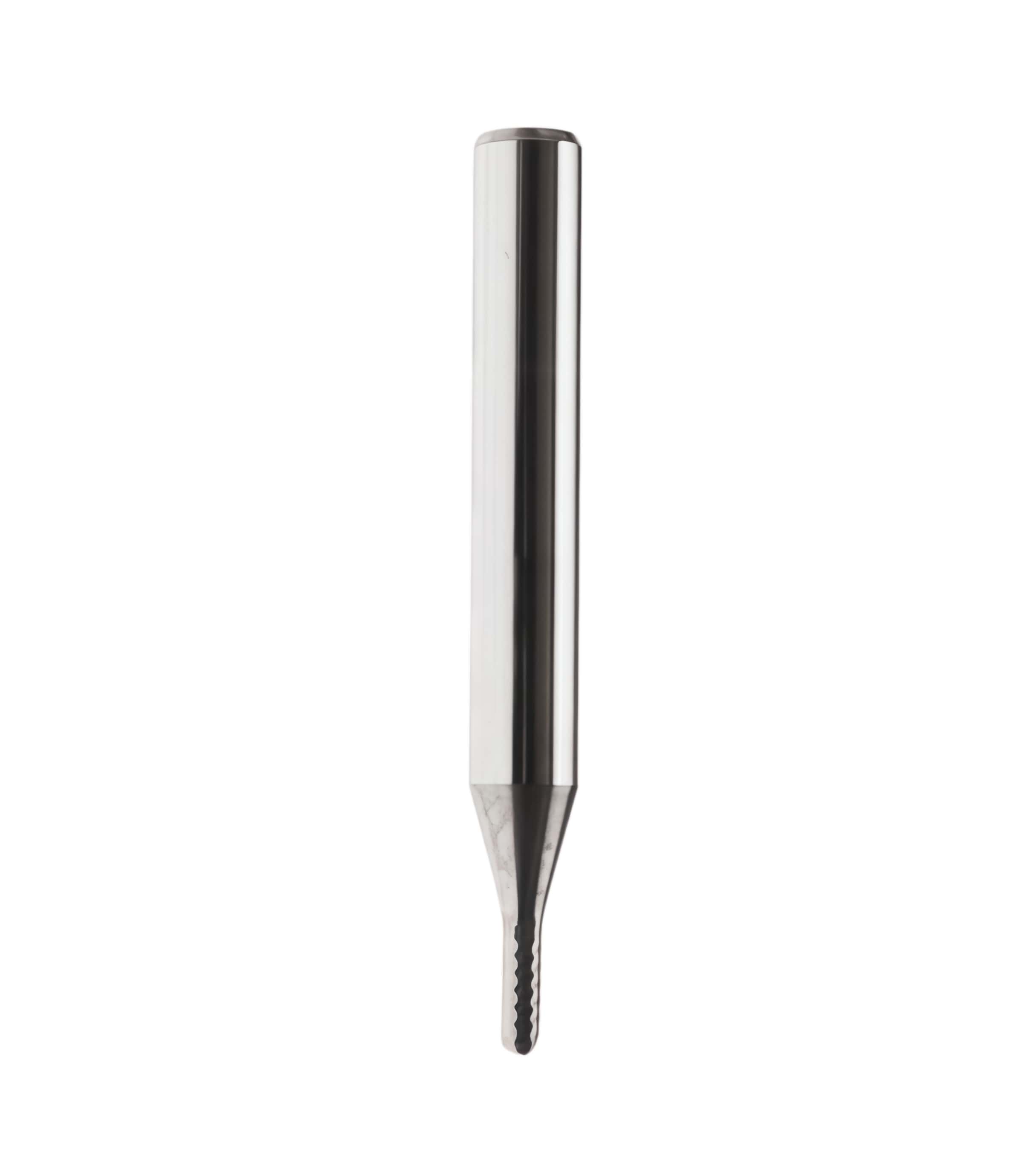

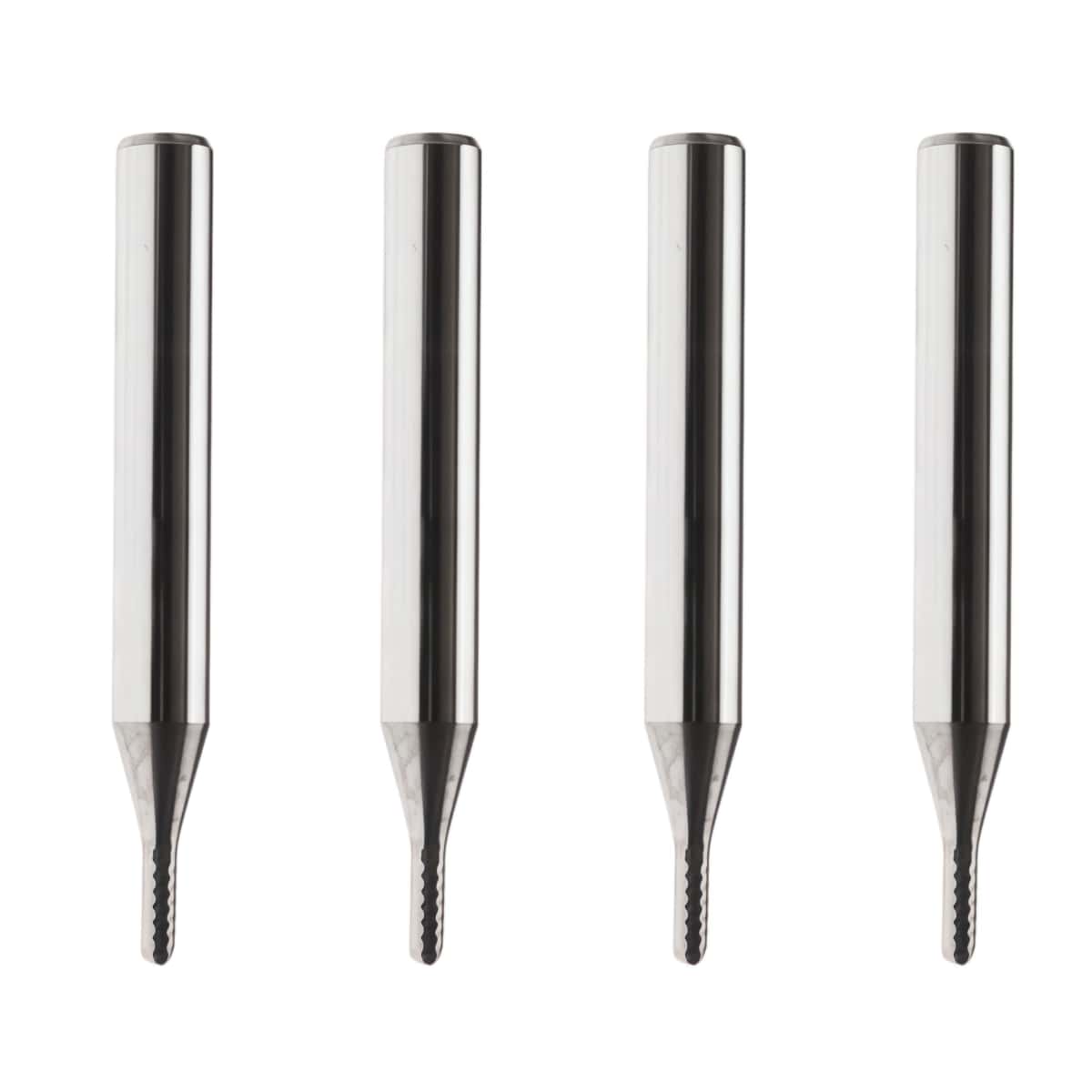

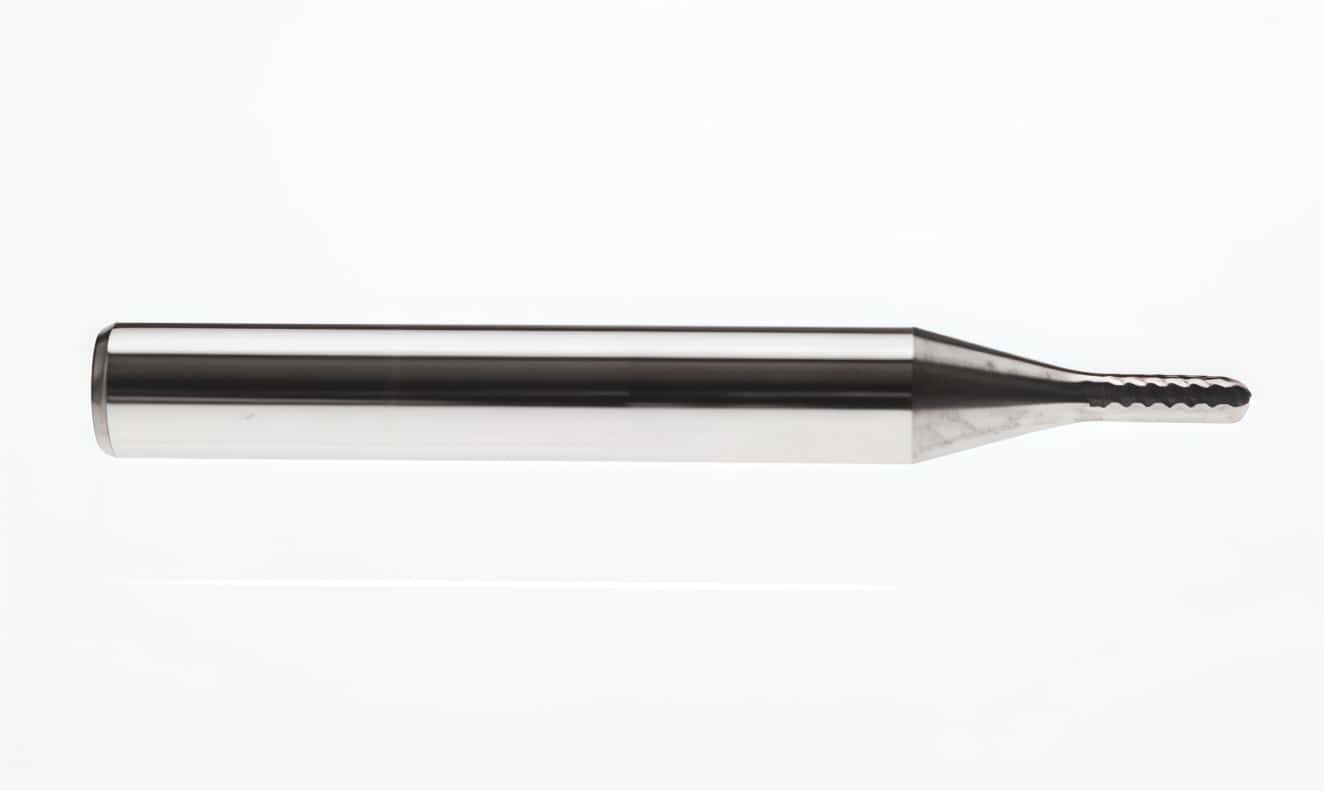

Esko Kongsberg Bit-Mus06-2506-50 G42443531 Multi-Purpose Milling Bits

Esko Kongsberg Bit-Mus06-2506-50 (G42443531) is a premium tungsten carbide, single-flute, multi-purpose up-cut milling bit. It is precision-engineered for use with high-speed Esko Kongsberg digital cutting tables, specifically designed for routing and milling rigid materials while efficiently evacua… Enquire now

Description

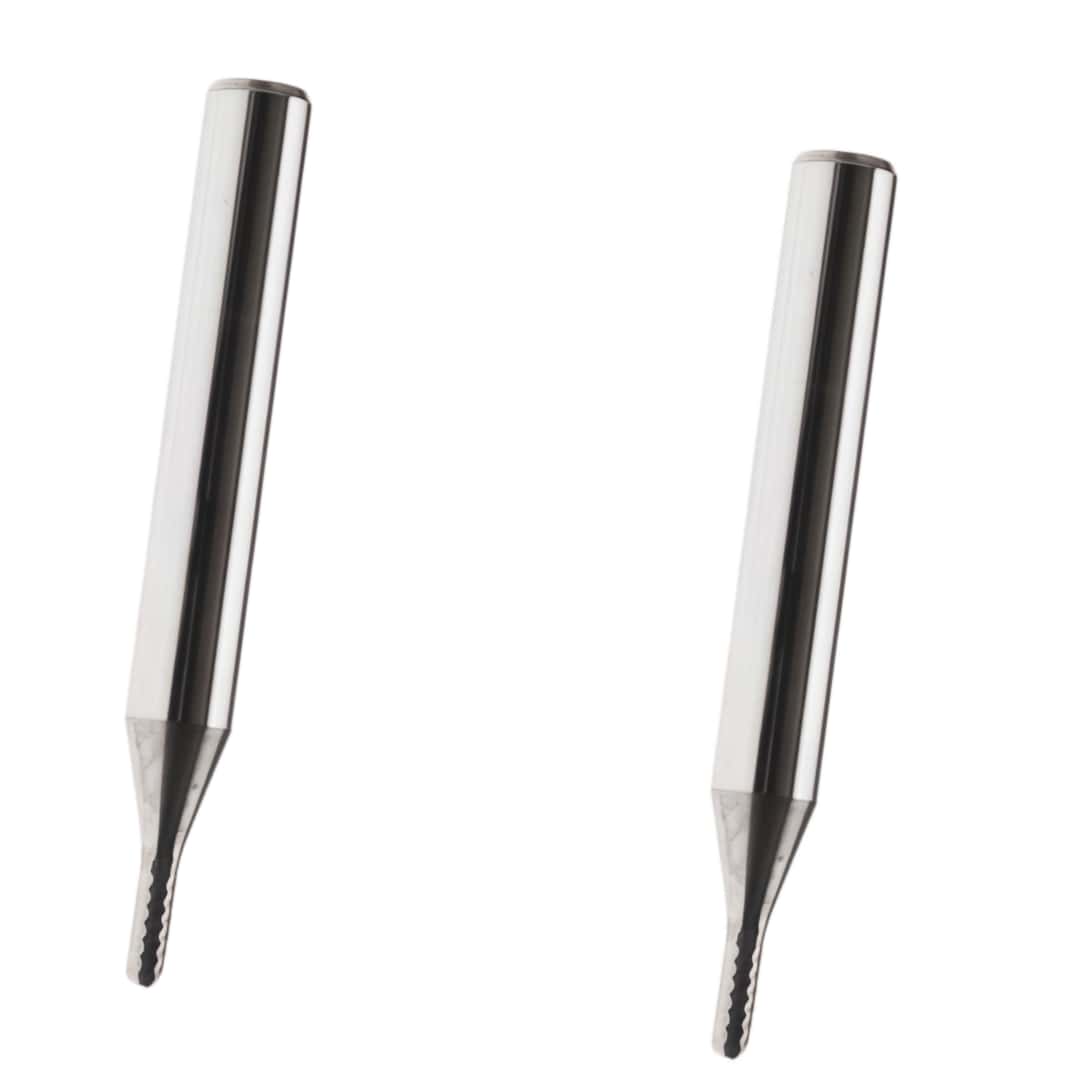

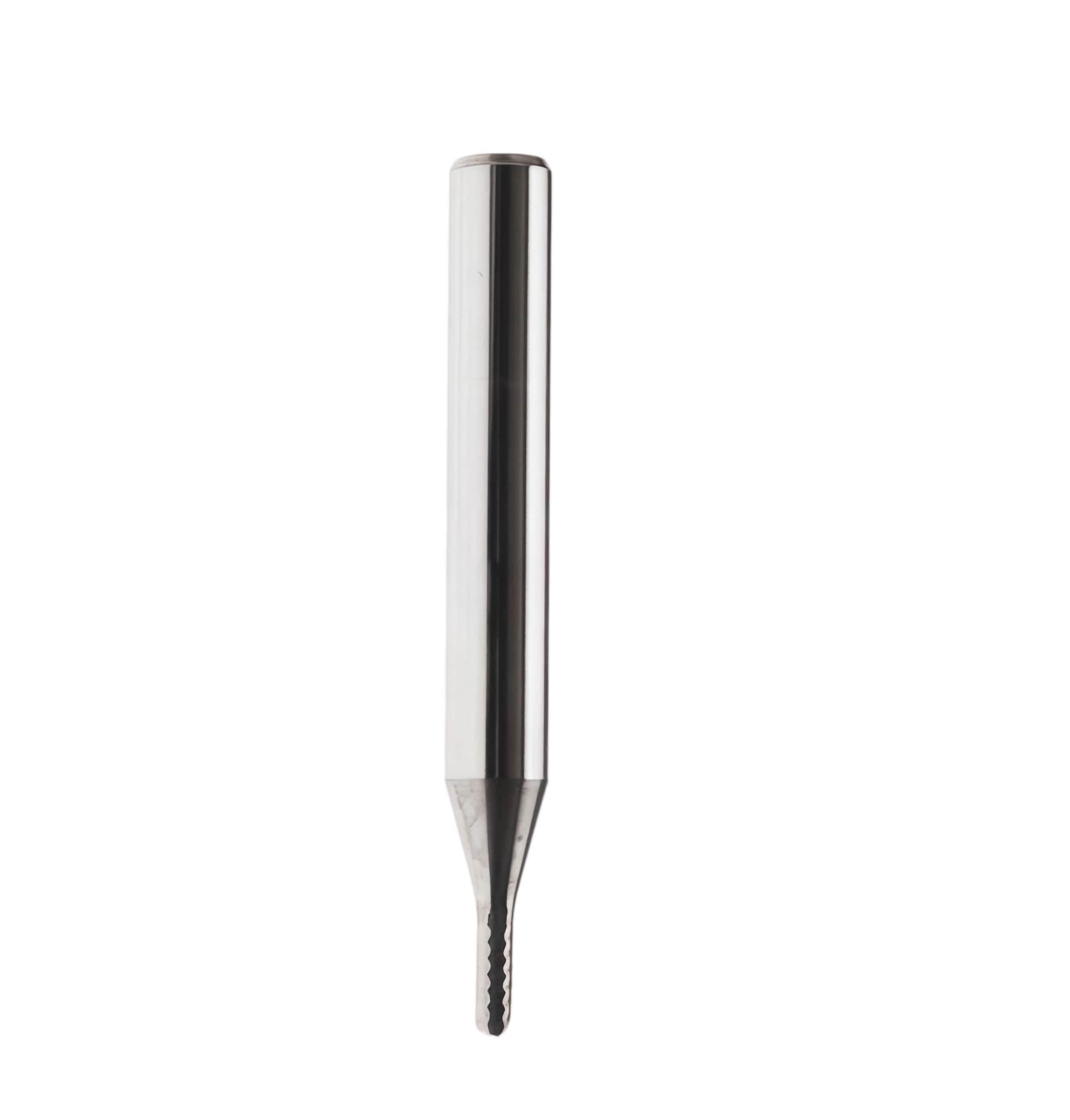

Esko Kongsberg Bit-Mus06-2506-50 G42443531 Multi-Purpose Milling Bits

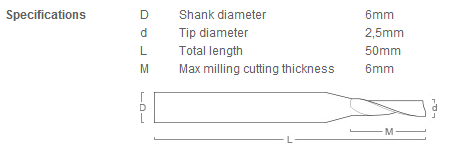

Key Technical Specifications

The part number directly outlines the physical dimensions and geometry of the tool:

Shank Diameter (MUS06): 6.0 mm
Cutting/Milling Diameter (25): 2.5 mm
Max Milling Depth / Flute Length (06): 6.0 mm
Total Tool Length (50): 50 mm
Flute Geometry: Single O-flute, right-hand spiral (up-cut)
Material Composition: Solid Tungsten Carbide (TC)

Functional Overview

Up-Cut Design: The upward spiral geometry efficiently pulls chips up and out of the cut zone. This prevents clogging, reduces heat build-up, and leaves a smooth finish on the bottom surface of the substrate.
Single Flute (Z1): Optimized for high-speed cutting tables, single-flute tools provide larger chip clearance. This makes them highly effective for materials that are prone to melting or binding, such as plastics.

Compatibility & Materials

This tool is primarily utilized on industrial finishing tables, such as the Esko Kongsberg X, XL, XN, XP, and C series. It is typically hosted inside specialized high-speed milling spindles like the MultiCUT tool head.

It is ideal for routing, pocketing, and contour cutting thin rigid sheets, including:

Acrylic and Polycarbonate
Foamed PVC (e.g., Forex, Sintra)
Aluminum Composite Materials (ACM / Dibond)
Dense wood products and MDF
