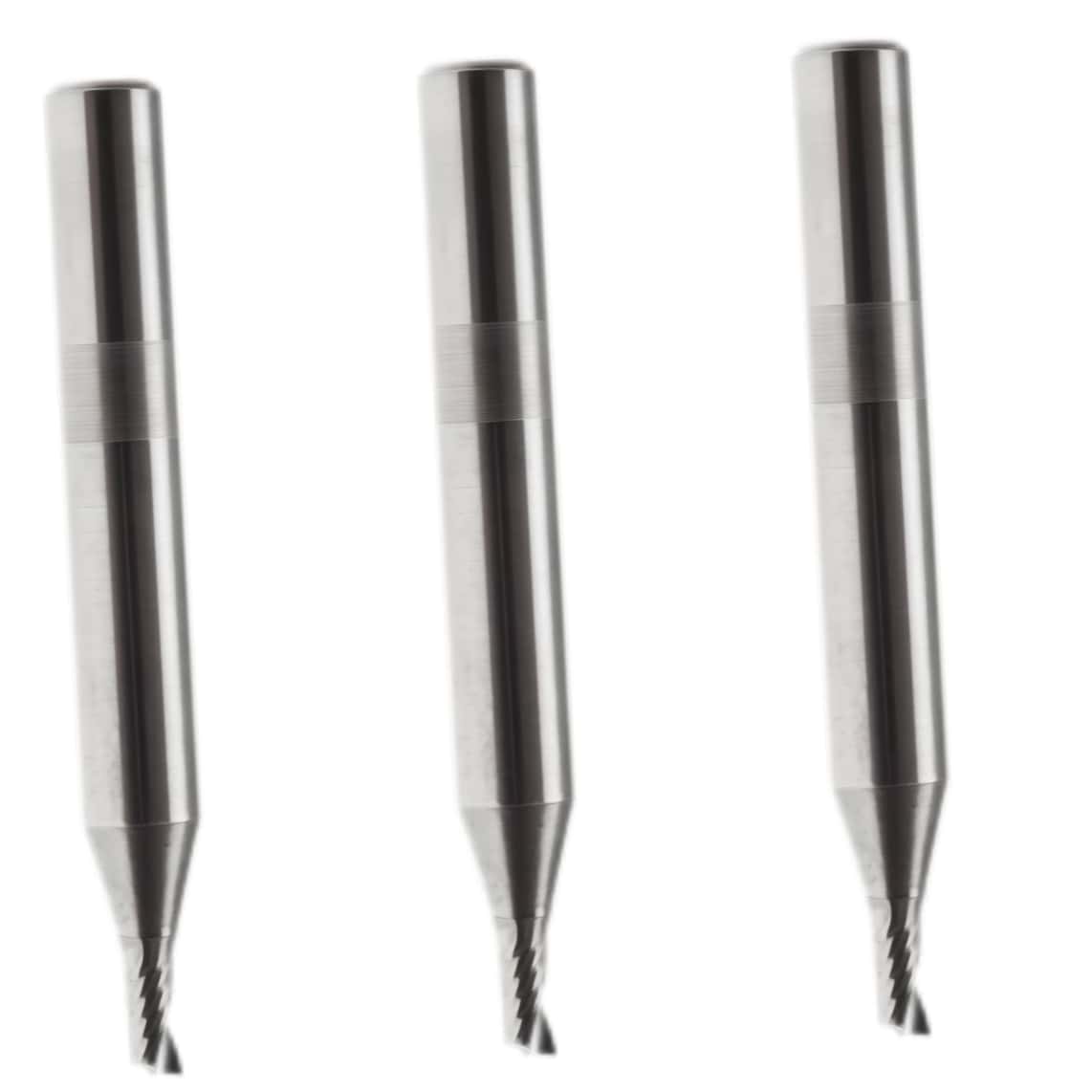

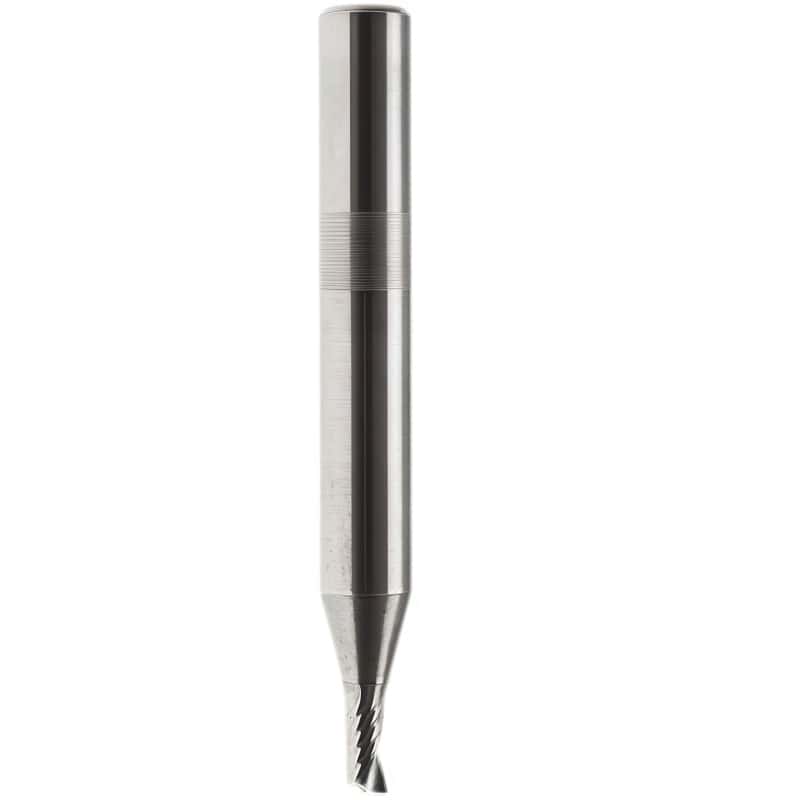

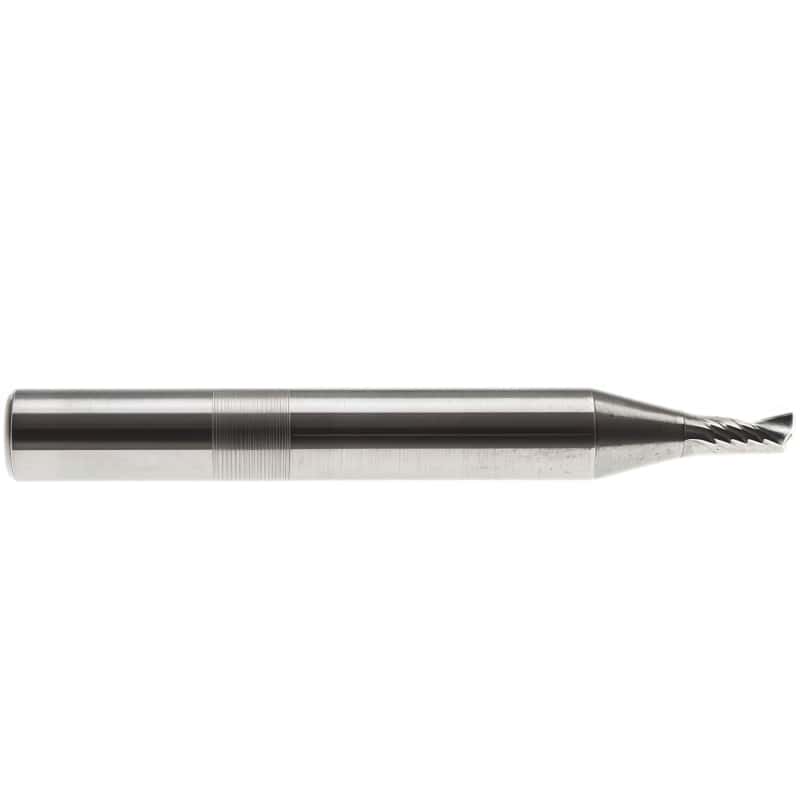

Esko Kongsberg Bit-Mus06-3006-50 G42443549 Up-Cut Router Bit For Cutting Tables

Esko Kongsberg BIT-MUS06-3006-50 (G42443549javascript:;) is an industrial-grade, single-flute solid carbide up-cut router bit designed for automated CNC precision cutting tables Enquire now

Description

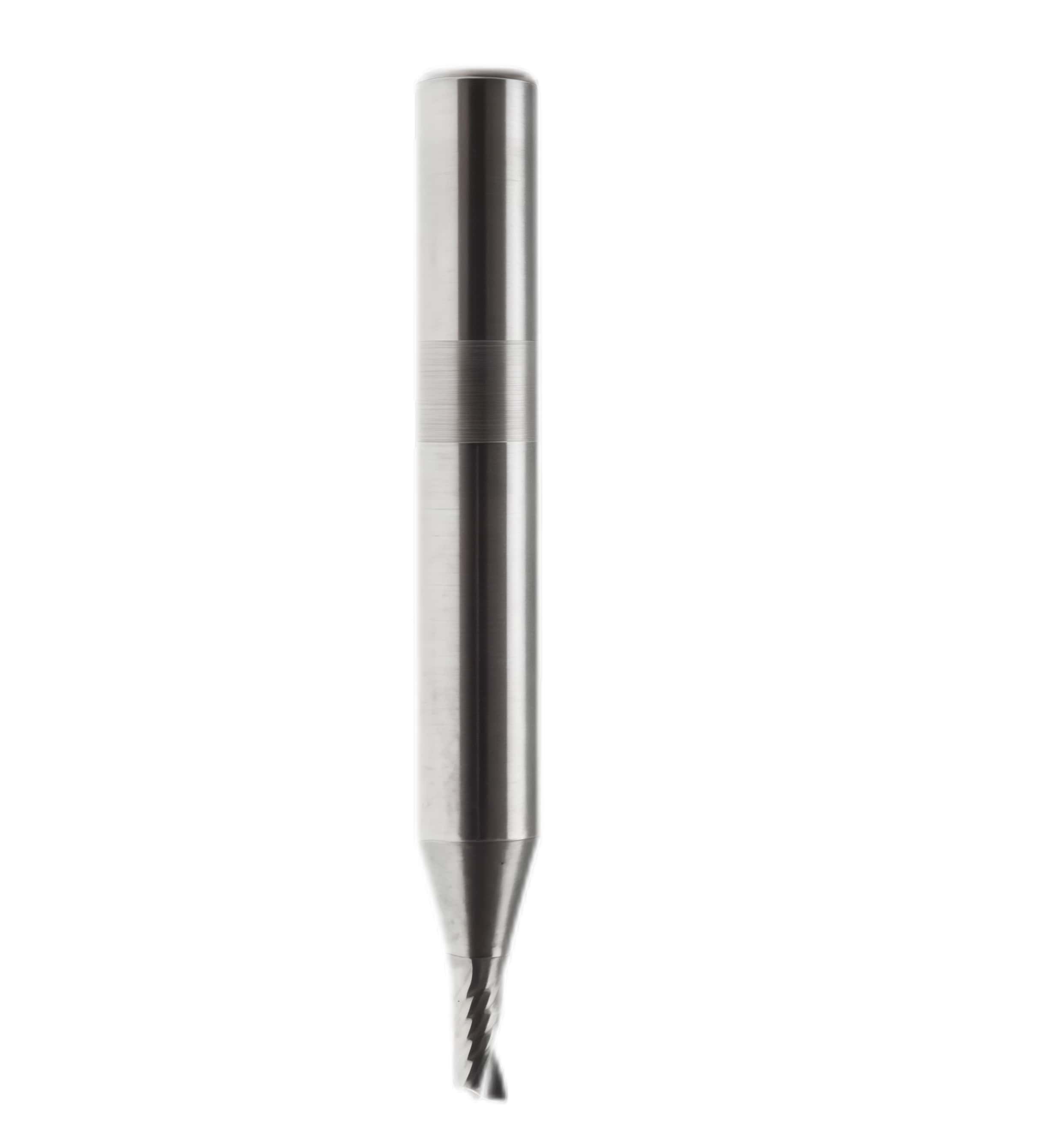

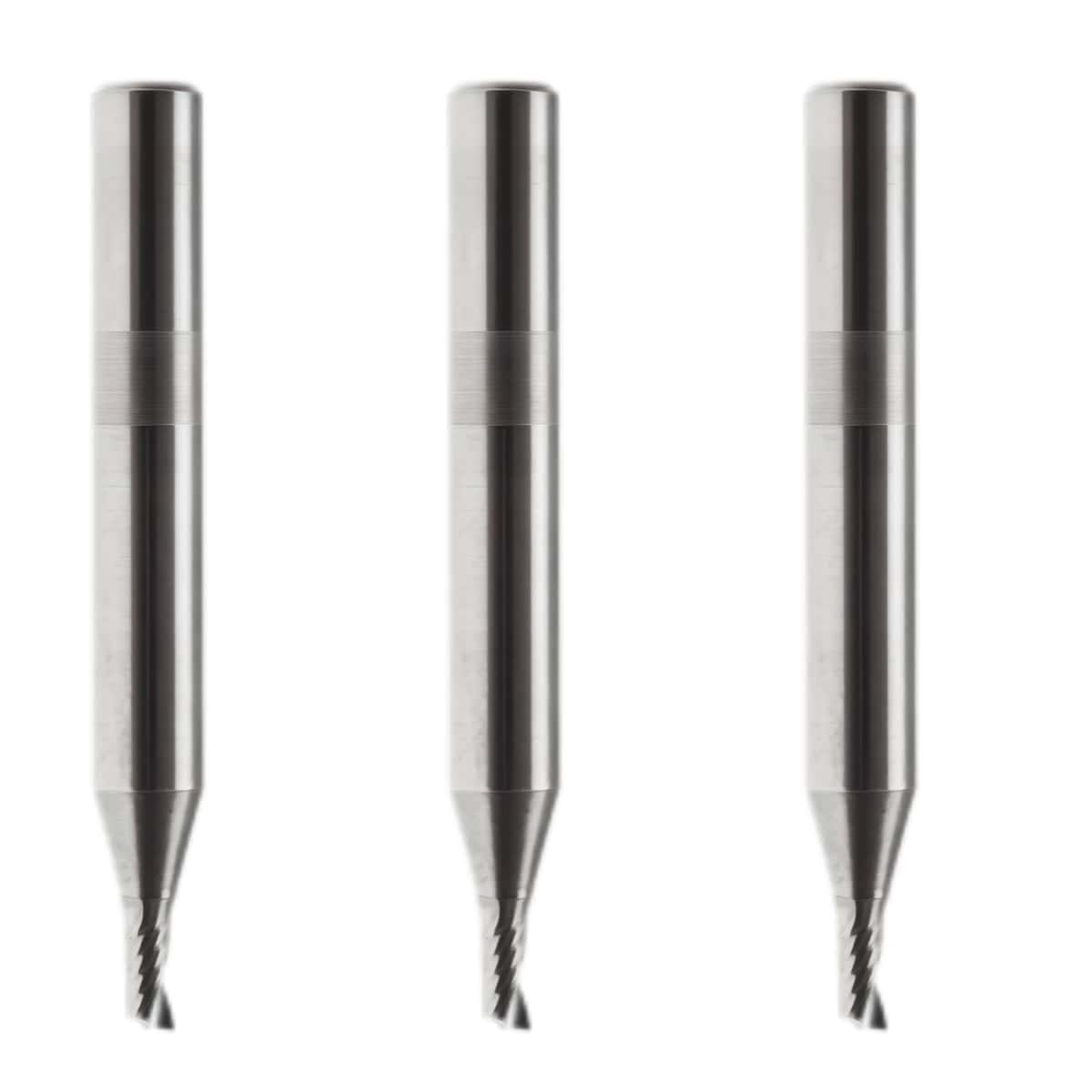

Esko Kongsberg Bit-Mus06-3006-50 G42443549 Up-Cut Router Bit For Cutting Tables

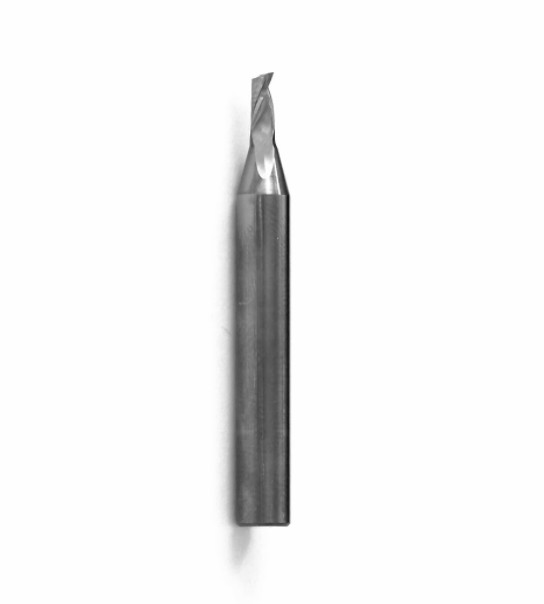

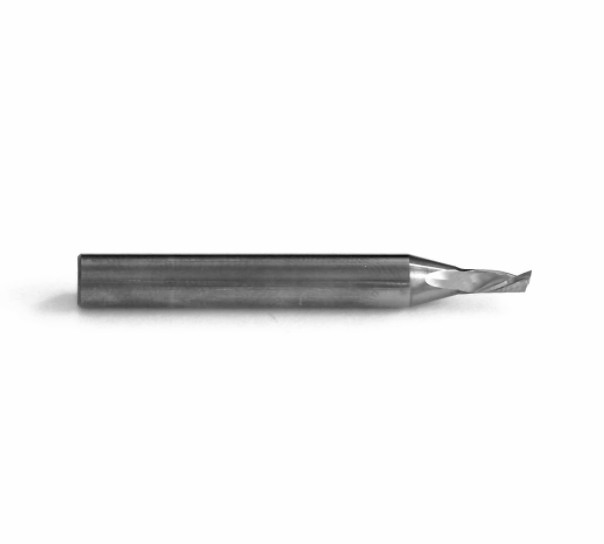

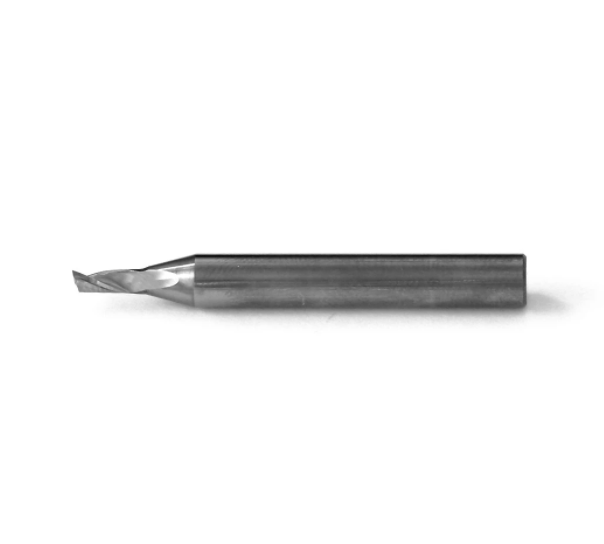

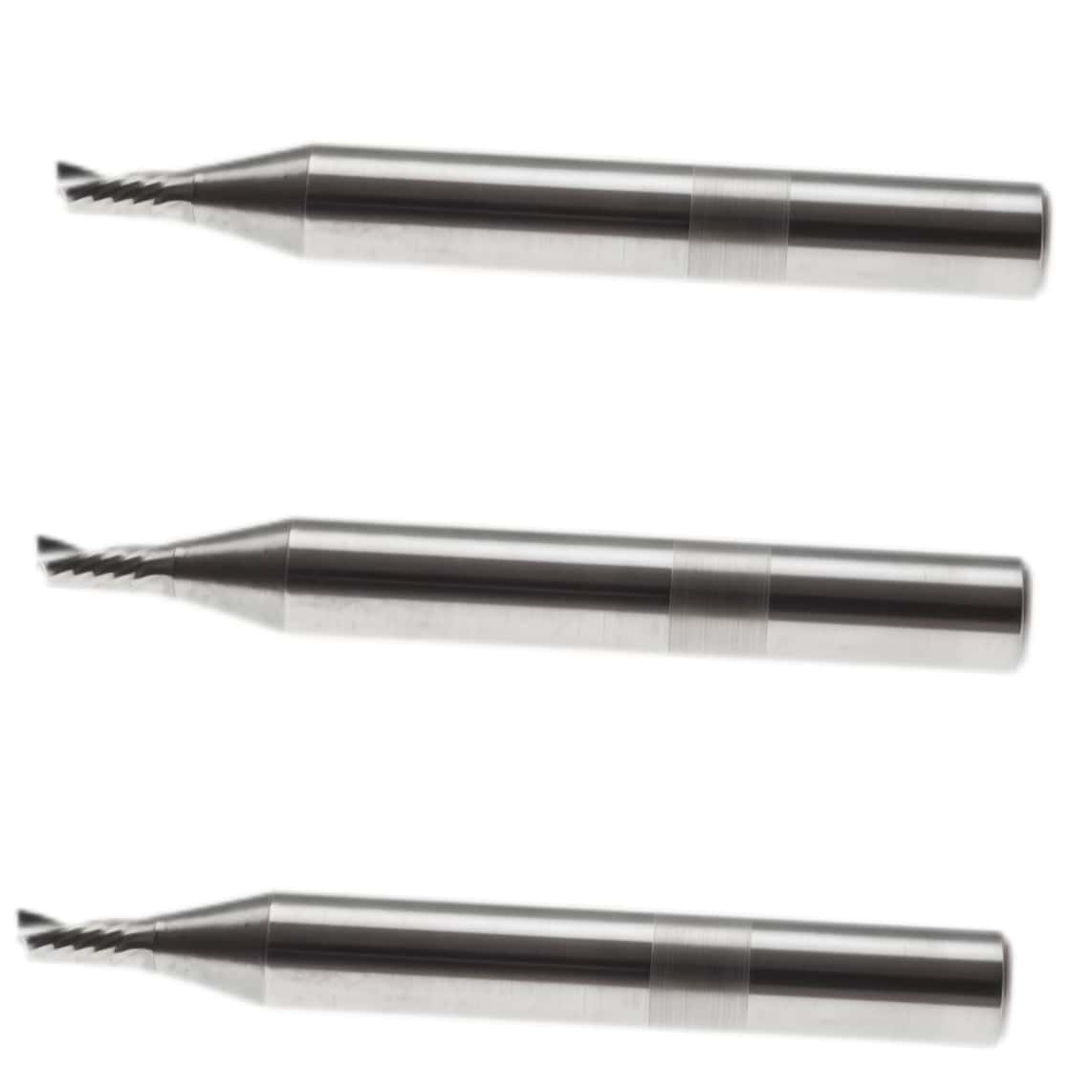

The Esko Kongsberg BIT-MUS06-3006-50 (OEM Part Number G42443549) is a specialized, professional-grade solid tungsten carbide milling and router bit. It is explicitly engineered for high-speed routing, profiling, and deep cutting on Kongsberg Precision Cutting Systems flatbed digital CNC tables.

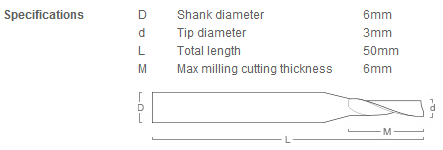

Technical Specifications

Shank Diameter (D): 6.0 mm
Cutting/Tip Diameter (d): 3.0 mm
Max Cutting/Milling Depth (M): 6.0 mm (max milling substrate thickness up to 5mm–6mm)
Total Tool Length (L): 50 mm
Flute Geometry: Single O-Flute, Up-Cut right-hand spiral (24° angle)
Material Composition: Ultra-fine grain solid tungsten carbide

Key Design Advantages

Optimized Chip Evacuation: The single O-flute, upward-spiral design maximizes chip clearance volume. It actively pulls debris and heat up and out of the cutting path. This prevents chip clogging and edge-burning, allowing faster feed rates.
Superior Edge Finish: The upward shearing action delivers an exceptionally clean, burr-free finish on the bottom face of the substrate.

Recommended Target Materials

This multi-purpose bit is optimized for mid-depth cutting across a diverse matrix of rigid and semi-rigid materials:

Plastics & Polymers: PMMA/Acrylic, Polycarbonate (PC), Foamed PVC (Forex, Sintra)
Composites: Aluminum Composite Materials (ACM / Dibond)
Wood Products: MDF, softwoods, hardwoods, and plywood
Soft Metals: Thin aluminum sheets

Replacement for: Zund R108 / 3910738
Zund R153 / 3910761
Esko BIT-MUS06-3006-50 / G42443549
Esko BIT-AUS06-3006-50 (i-8088) / G42445916
