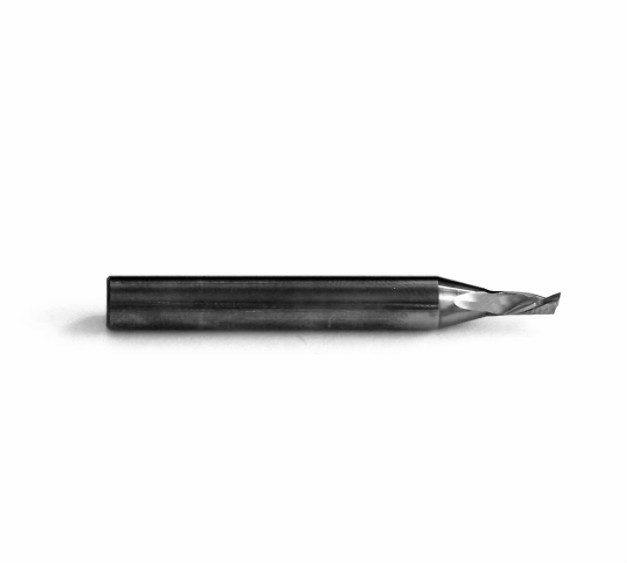

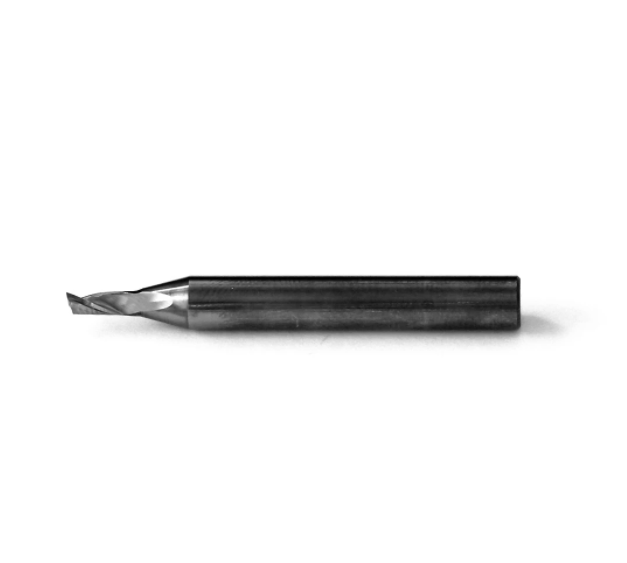

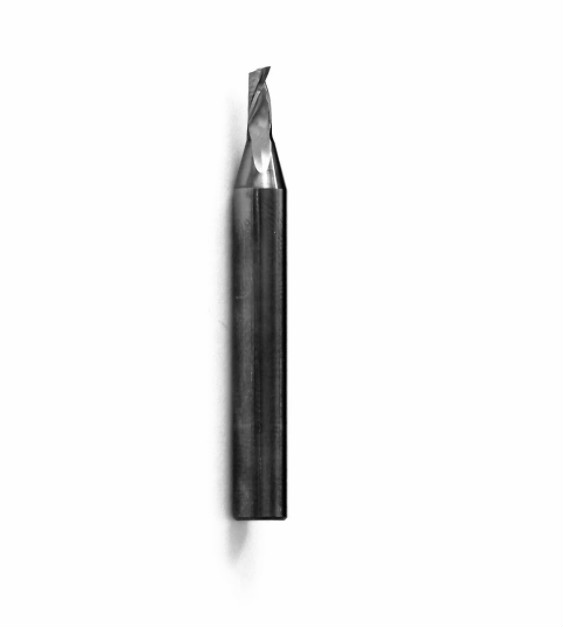

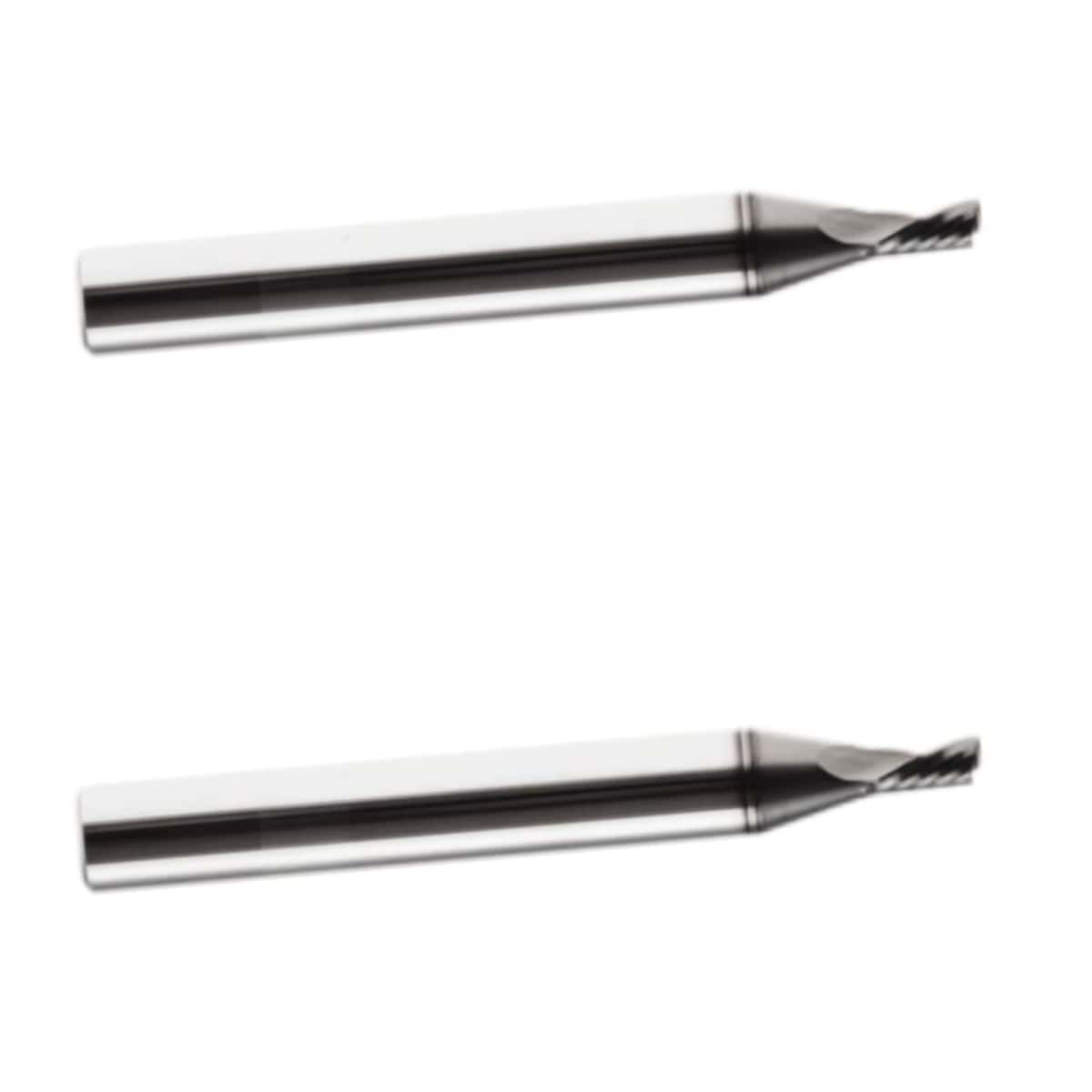

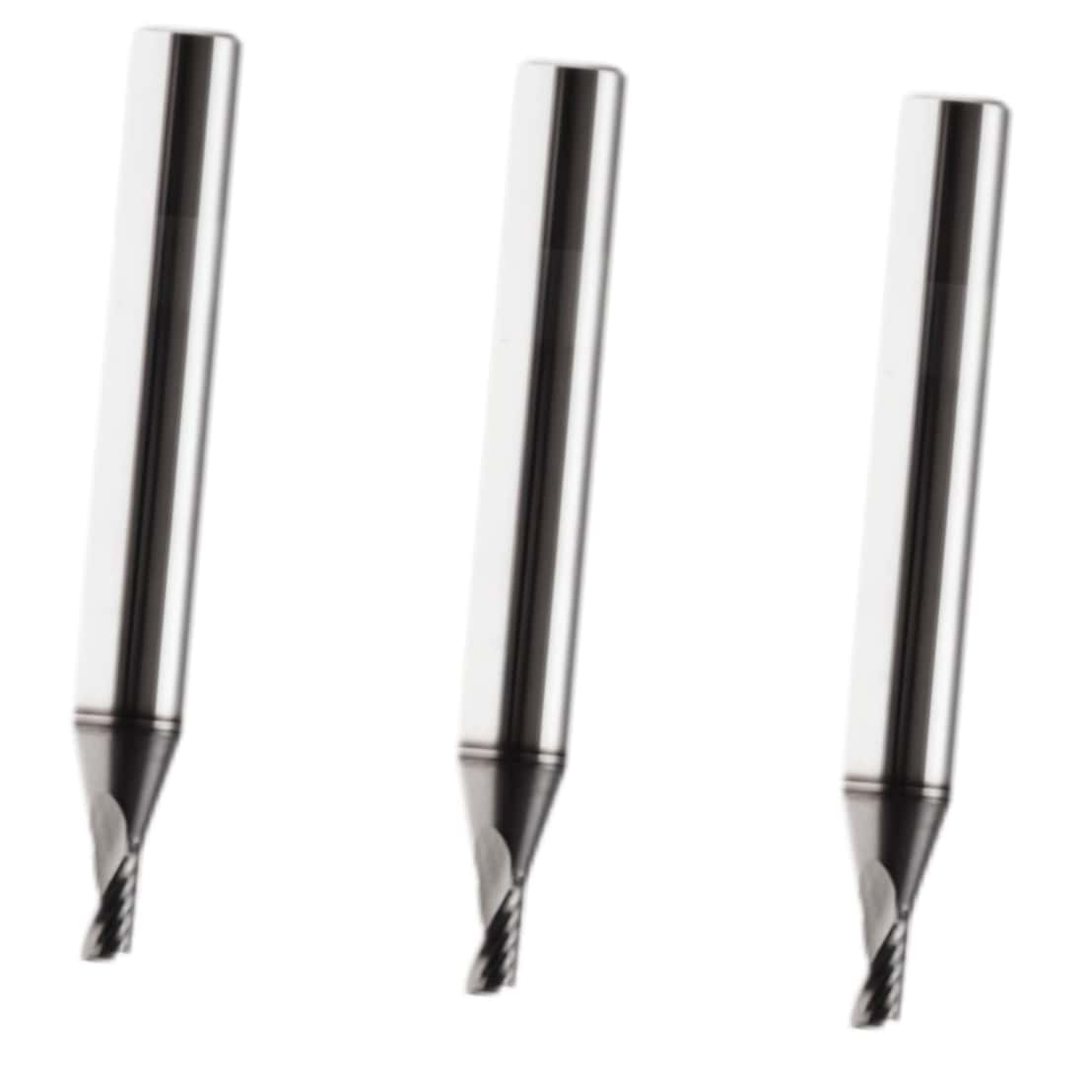

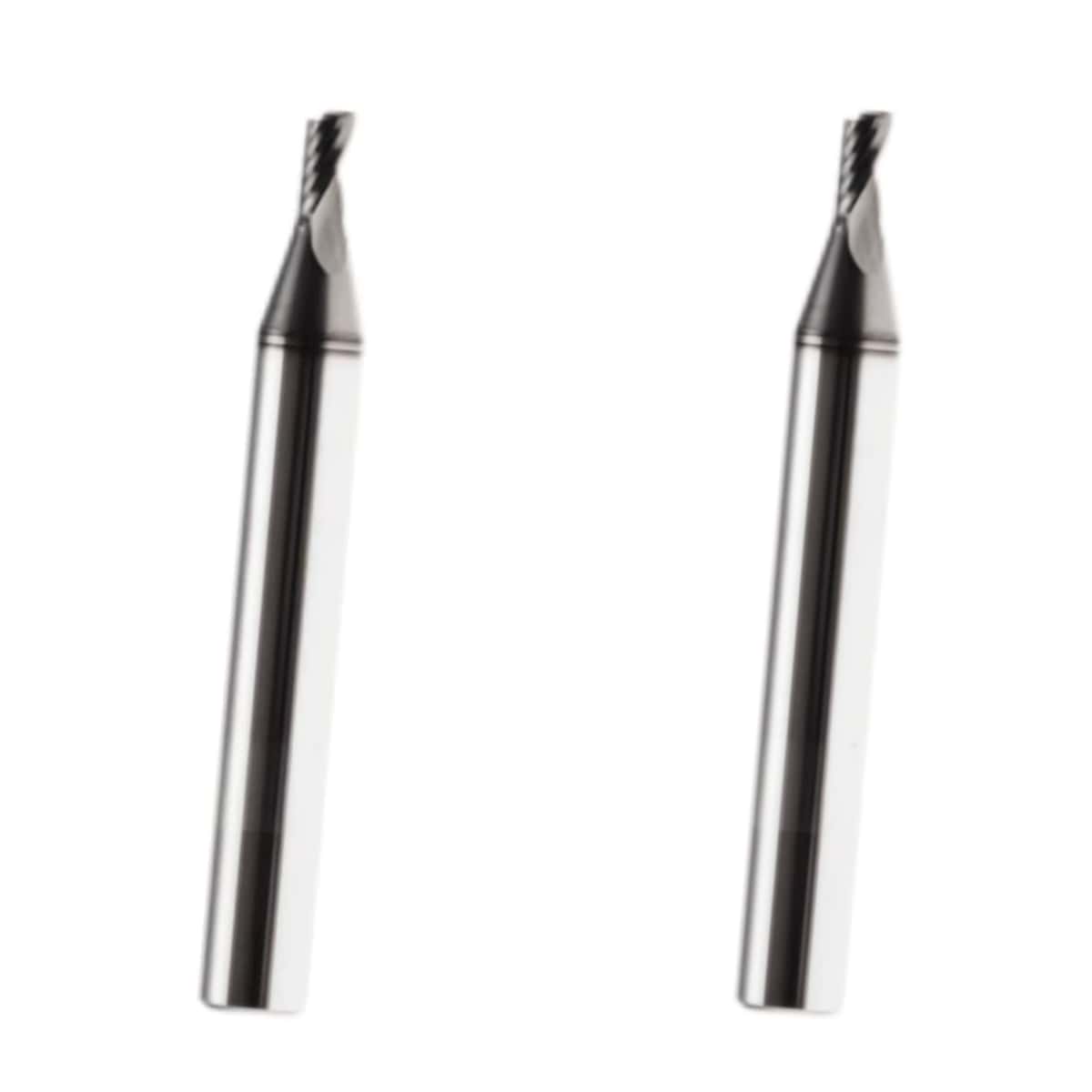

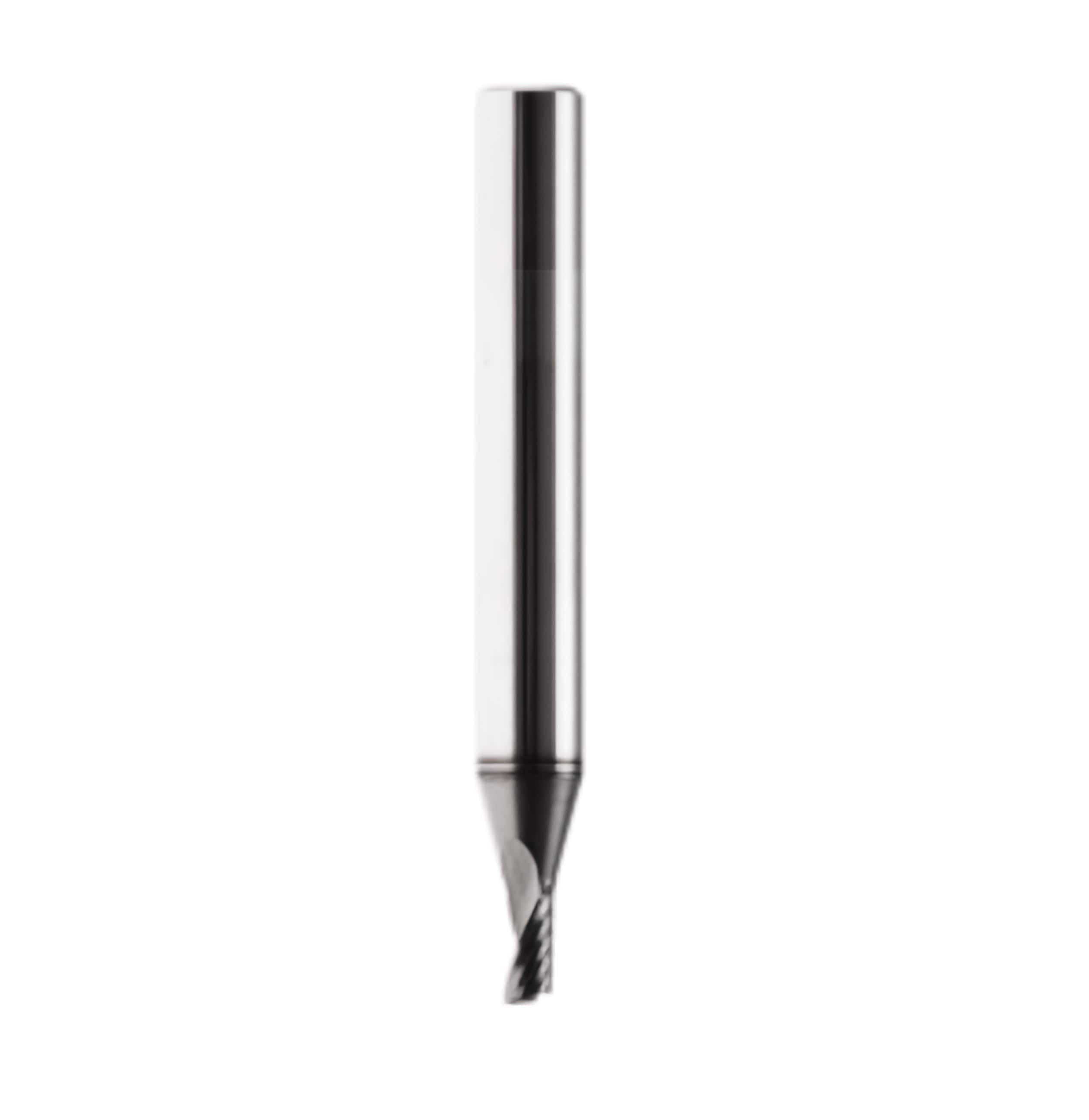

Esko Kongsberg Bit-Mus06-3006-50c1 G42451104 Coating Router Bit For Kongsberg Cutting Systems

Esko Kongsberg BIT-MUS06-3006-50C1 ( G42451104 or 42451104) is a premium, solid carbide multi-purpose up-cut router bit designed for Kongsberg Precision Cutting Systems. It features a specialized "rainbow" multielement multilayered coating that significantly minimizes heat buildup and enhances wear … Enquire now

Description

Esko Kongsberg Bit-Mus06-3006-50c1 G42451104 Coating Router Bit For Kongsberg Cutting Systems

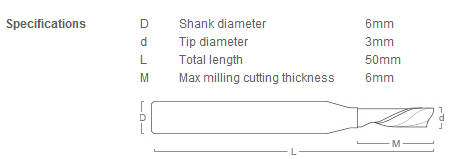

Technical Specifications

Shank Diameter: 6 mm
Cutting Edge Diameter: 3 mm
Cutting Depth: Optimized for materials up to 5 mm to 8 mm thick
Flute Design: Single O-Flute (Z1), right-hand spiral (up-cut) for efficient chip removal
Coating: Specialized multi-element "rainbow" or CKA coating for high wear resistance and improved tool life

Material Compatibility

This bit is a "Special Variety" designed specifically for tougher or multi-layered substrates:

Primary Materials: Aluminum and ACM (Aluminum Composite Material) such as Dibond
Secondary Materials: Plastics (Acrylic, PET, PP, PE), MDF, and foamed PVC (Forex/Sintra)

Operating Recommendations

Esko application data recommends the following baseline settings for this bit when used on Kongsberg C, X, or XL tables:

RPM: 40,000 to 52,000
Feed Speed: 10–30 m/min depending on material thickness (typically 1 pass for 3mm–4mm ACM)
