Esko Kongsberg Cutting Systems Bit-Mus06-3011-50 G42437905 Milling Router Bit

Esko Kongsberg BIT-MUS06-3011-50 (42437905) is a high-performance, solid tungsten carbide milling and router bit engineered for digital flatbed cutting systems. Manufactured primarily for Kongsberg Precision Cutting Systems (formerly part of Esko), this tool is widely used in the sign-making, packag… Enquire now

Description

Esko Kongsberg Cutting Systems Bit-Mus06-3011-50 G42437905 Milling Router Bit

The Esko Kongsberg BIT-MUS06-3011-50 (Original Part Number G42437905) is a premium, high-performance solid tungsten carbide milling and router bit. It is engineered specifically for use with high-speed milling spindles on Kongsberg digital finishing tables, as well as cross-compatible machinery.

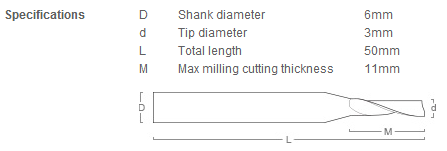

Key Technical Specifications

The part number directly outlines the precise physical layout of the tool geometry:

Shank Diameter: 6.0 mm
Cutting Edge / Tip Diameter: 3.0 mm
Flute / Cutting Length: 11.0 mm
Total Length: 50.0 mm
Flute Type: Single Flute (O-Flute), Right-Hand Spiral
Cut Type: Up-Cut (pulls chips upward for clean bottom finishes)

Application & Material Compatibility

This bit is a multi-purpose (MU) routing asset. The polished single flute design excels at clearing chips efficiently during high-speed production, which minimizes material melting or friction buildup. It is broadly used to cut:

Plastics & Synthetics: PMMA (Acrylic / Plexiglas), Polycarbonate, Forex, and soft plastics
Composites: Aluminum Composite Material (ACM / Dibond)
Wood Products: MDF, solid wood, and plywood
Soft Metals: Solid aluminum sheet routing

Industry Equivalents

If you are managing a mixed production floor, this geometry corresponds to alternative manufacturer naming schemas:

Zund Equivalent: Part number 3910763 (Model R113).
